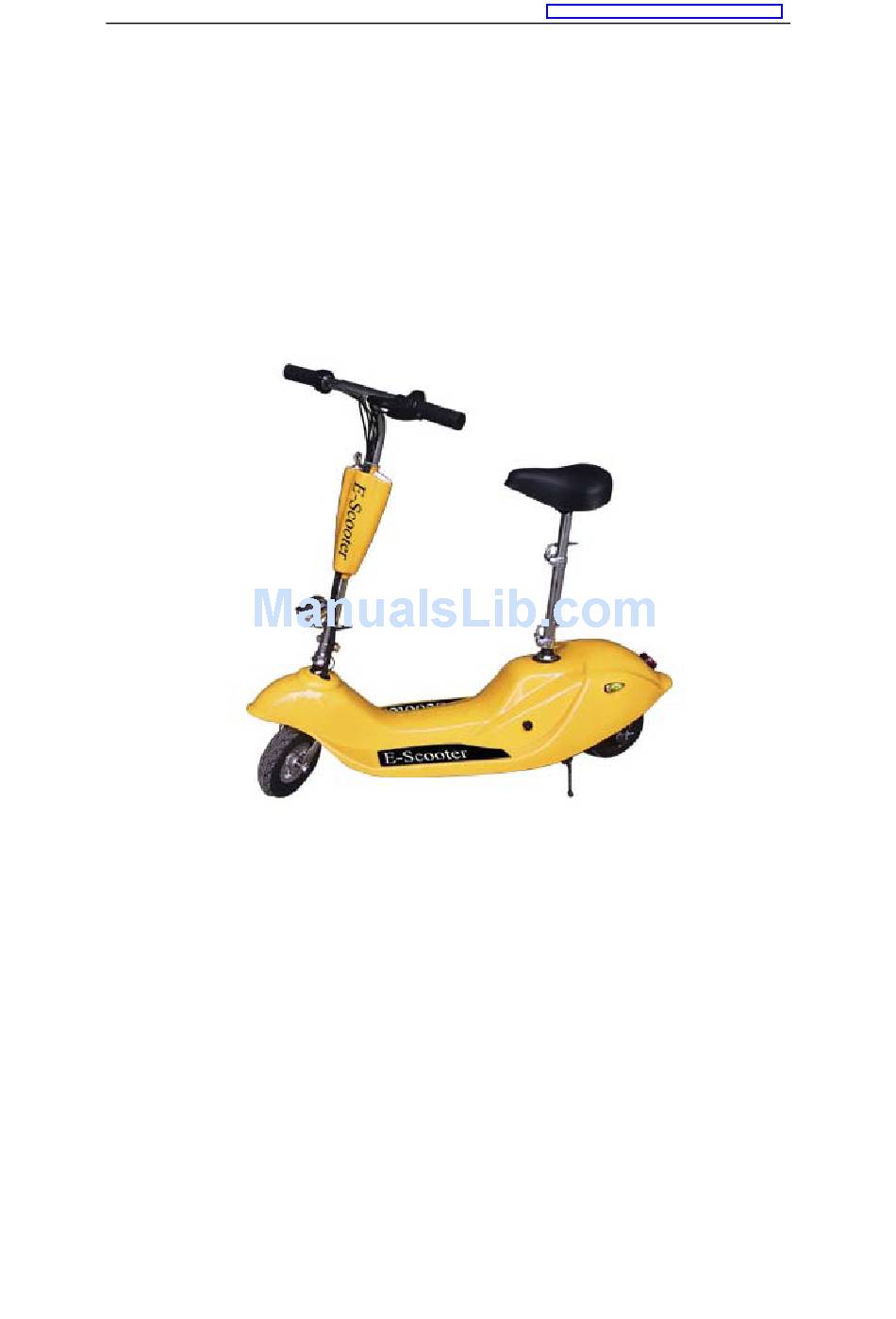

- Page 1 UFREE SCOOTER www.scooter-manufacturer.com INSTRUCTION MANUAL ELECTRIC SCOOTER FS-E12...
- Page 2 UFREE SCOOTER www.scooter-manufacturer.com INTRODUCTION CONGRATULATIONS! The electrical scooter is a kind of new fashion motorized vehicle. It can be replaced as walking. It is energy saving, entertain able, and is environment protection sport vehicle. Our electric scooter is small, long riding time, easy for carry, and easy for repair.
- Page 3 UFREE SCOOTER www.scooter-manufacturer.com KNOWING YOUR SCOOTER The scooter will be as the following: Speed throttle control Brake handle Seat saddle Battery indicator Front light Seat collar clamp Folding accessories Brake light Front wheel Back wheel Rear brake Fuse socket Charger socket...
- Page 4 UFREE SCOOTER www.scooter-manufacturer.com Fig 3 tools set Here is the specification for your scooter: Weight (including Battery): 30kgs Load Capacity: 85kg Brake system: hand front, rear brake Full Charge Mileage: 20km Max Speed: 20km/hr System Voltage: 24V Motor Power: 300W...
-
Page 5: Assembly Instruction
UFREE SCOOTER www.scooter-manufacturer.com ASSEMBLY INSTRUCTION 1. Pick out all the things from the carton box; you will have all the following things Scooter and its accessories 1set tools set 1set ¡ Á ¡ Á Basket 1set charger 1set ¡ Á... - Page 6 UFREE SCOOTER www.scooter-manufacturer.com 3. To finish the assembly, you need to put the fuse into the fuse socket. Remove the cover of the fuse socket and put the fuse on the cover, then re-close the cover. WARNING: when putting on the fuse, please make sure the power key switch turns to OFF.
- Page 7 UFREE SCOOTER www.scooter-manufacturer.com RECHARGING INSTRUCTION & BATTERY CARING Each scooter has one "T" mark adaptor. To recharge of the battery, please read the following instruction: 1. Connect the charger as the picture show. 2. Use the recharging adaptor provided, plug against the electric...
-
Page 8: Safety Instructions
UFREE SCOOTER www.scooter-manufacturer.com SAFETY INSTRUCTIONS Before riding the electric scooter, please read the following instruction carefully. 1. This Electric Scooter should be used by people aged over 14 or under the supervision of an adult. 2. For people weight more than 200 lbs should not use this Electric Scooter. -
Page 9: Operating The Scooter
UFREE SCOOTER www.scooter-manufacturer.com OPERATING THE SCOOTER After assembly and charging your scooter, your scooter is ready to ride. Put the key into the power key switch; turn to "ON" status. Test all the electric functions before riding on the road, including direction light, front light, horn and brake light. -
Page 10: Troubleshooting Guid
UFREE SCOOTER www.scooter-manufacturer.com TROUBLESHOOTING GUID Action Problem Possible causes Power does not on 1. The fuse does not install / 1. Replace the fuse not function 2. Turn on the Power key and 2. Power key switch do not try again turns to "ON"... - Page 11 UFREE SCOOTER www.scooter-manufacturer.com Note 1: drive chain adjustment Periodic adjustment of the drive chain will be necessary to maintain proper tension. If the chain is too loose, it will make a "popping" noise while accelerating, indicating the need for immediate adjustments.
- Page 12 UFREE SCOOTER www.scooter-manufacturer.com IMPORTANT INFORMATION BEFORE EACH USE PLEASE CHECK THE FOLLOWING: 1. All users read safety/operation information 2. Tyre condition and pressure 3. Brake condition and operation 4. Drive belt/chain condition and adjustment 5. Wires and cables. Condition/secure 6. Oil/grease bearings (DO NOT OIL OR GREASE DRIVE BELT) 7.
- Page 13 UFREE SCOOTER www.scooter-manufacturer.com PLEASE NOTE: Tyres, tubes, drive belts; faults due to accidental damage, misuse, wear and tear or modification of the standard product are not covered under this warranty. You must report any faults as soon as it is noticed.
-
Page 14: Certificate Of Warranty
UFREE SCOOTER www.scooter-manufacturer.com CERTIFICATE OF WARRANTY (only valid in conjunction with sales receipt) Name: Supplier Name & Address/Stamp Address: Please include proof of purchase Post Code: Tel. No.: Date of Purchase Product code/ Description: Serial Number: Detailed Description of Defect:... - Page 15 UFREE SCOOTER www.scooter-manufacturer.com In the event of a claim the unit should be returned, together with warranty certificate and sales receipt, to the place of purchase or the address specified by your supplier for inspection, repair or replacement. Postage &packaging cost arc the responsibility of the purchaser and excluded from warranty.
