Summary of Contents for UFREE SCOOTER FS-E31

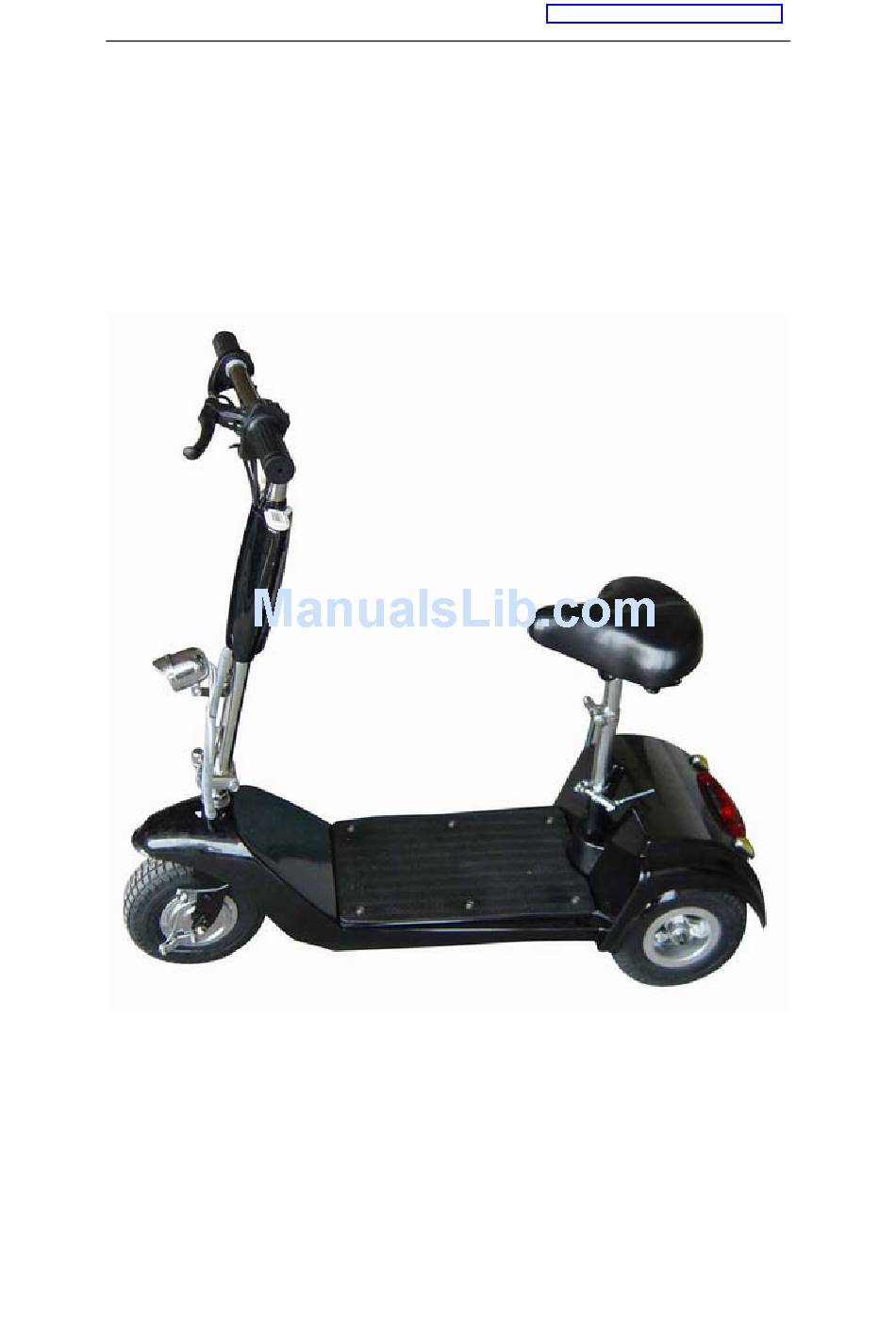

- Page 1 UFREE SCOOTER www.scooter-manufacturer.com ELECTRIC SCOOTER FS-E31...
-
Page 2: Safety Precautions
UFREE SCOOTER www.scooter-manufacturer.com . SAFETY PRECAUTIONS: Please operate it correctly according to all kinds of requirement of the chapter. 1.1 FOR YOUR SAFETY 1.1.1 To ensure your and other's safety, please drive on slow lane and Don't put anybody 1.1.2Please read the specification carefully to make sure that the scooter can serve for you for a long time. -
Page 3: Points For Attention
UFREE SCOOTER www.scooter-manufacturer.com 1.2.8 The scooter is equipped with under voltage caution device(in controller), The caution device will send out humming when the voltage of storage battery is lower than the rated voltage, please stop riding and charge the battery. - Page 4 UFREE SCOOTER www.scooter-manufacturer.com 2. STRUCTURE AND FEATURE: Adjustable speed handlebar Brake handlebar Saddle Supply key Front light switch Taillight Front light Pedal Front wheel 11. Left of rear wheel Power main switch (1) The formal structure of entire scooter The scooter is designed unique structure.
- Page 5 UFREE SCOOTER www.scooter-manufacturer.com 2.2 It adopts the original and applied electric driving controller and stepless governing system. It has defensive functions of undercharge and overcharge, brake and interruption etc. The electric machinery and storage battery can be protected by grounding to ensure handling safety.
- Page 6 UFREE SCOOTER www.scooter-manufacturer.com 4. ASSEMBLE AND ADJUST METHOD: 4.1 Assemble (3) Remove the scooter 4.1.1 Take out the scooter from the carton. (see fig.3) (4) Install the handlebar bolt (5) Tighten the handlebar 4.1.2 Install the handlebar bolt (fig 4) 4.1.3...
- Page 7 UFREE SCOOTER www.scooter-manufacturer.com (6) Install the saddle (7) Tighten the saddle pipe 4.1.4Install the saddle( fig.6) 4.1.5Tighten the saddle pipe to ensure its fastening. 4.2 Adjust the saddle (fig.8) 4.2.1 Loosen the fastening bolt, remove the saddle pipe to proper height, it is a must not to exceed the safety mark on the saddle pipe.
- Page 8 UFREE SCOOTER www.scooter-manufacturer.com (9) Adjust the front brake 4.3 Adjust the front brake (fig.9) 4.3.1 Adjust the front brake with adjustable bolt, the wheel should stop rotating when braking, the brake rubber can be restored quickly after loosening the brake.
- Page 9 UFREE SCOOTER www.scooter-manufacturer.com (10) Adjust the chain 4.5 Adjust the chain 4.5.1 Loosen the bolt of electric machinery base 4.5.2Rotate the adjustable bolt to swing the electric machinery, adjust the chain to ensure its proper and flexibility. 4.5.3Tighten the bolt of electric machinery and adjust the nut.
- Page 10 UFREE SCOOTER www.scooter-manufacturer.com XYDH-030 Type Electric Scooter General Connection Diagram (2) Circuit (12) Rechange the battery 4.7 Rechange the battery (fig.12) 4.7.1 Take out the pedal 4.7.2Pull out the battery socket connector 4.7.3Carry the strip with both hands, and take out the battery.
-
Page 11: Maintenance Method
UFREE SCOOTER www.scooter-manufacturer.com Turn on the supply key 5. MAINTENANCE METHOD 5.1 Ordinary inspection and maintenance 5.1.1 To make sure if the electric machinery has the clash, noise etc abnormal phenomenon when turning. Please examine and repair it in time. - Page 12 UFREE SCOOTER www.scooter-manufacturer.com 6. Symptoms and methods of resolution: 6.1 The symptoms and methods of resolution are listed in table 2. Symptoms Failure reasons Methods of resolution No.1 The speed control is out 1) The battery is undercharge; (Charge the battery...
