Page 1: User Manual

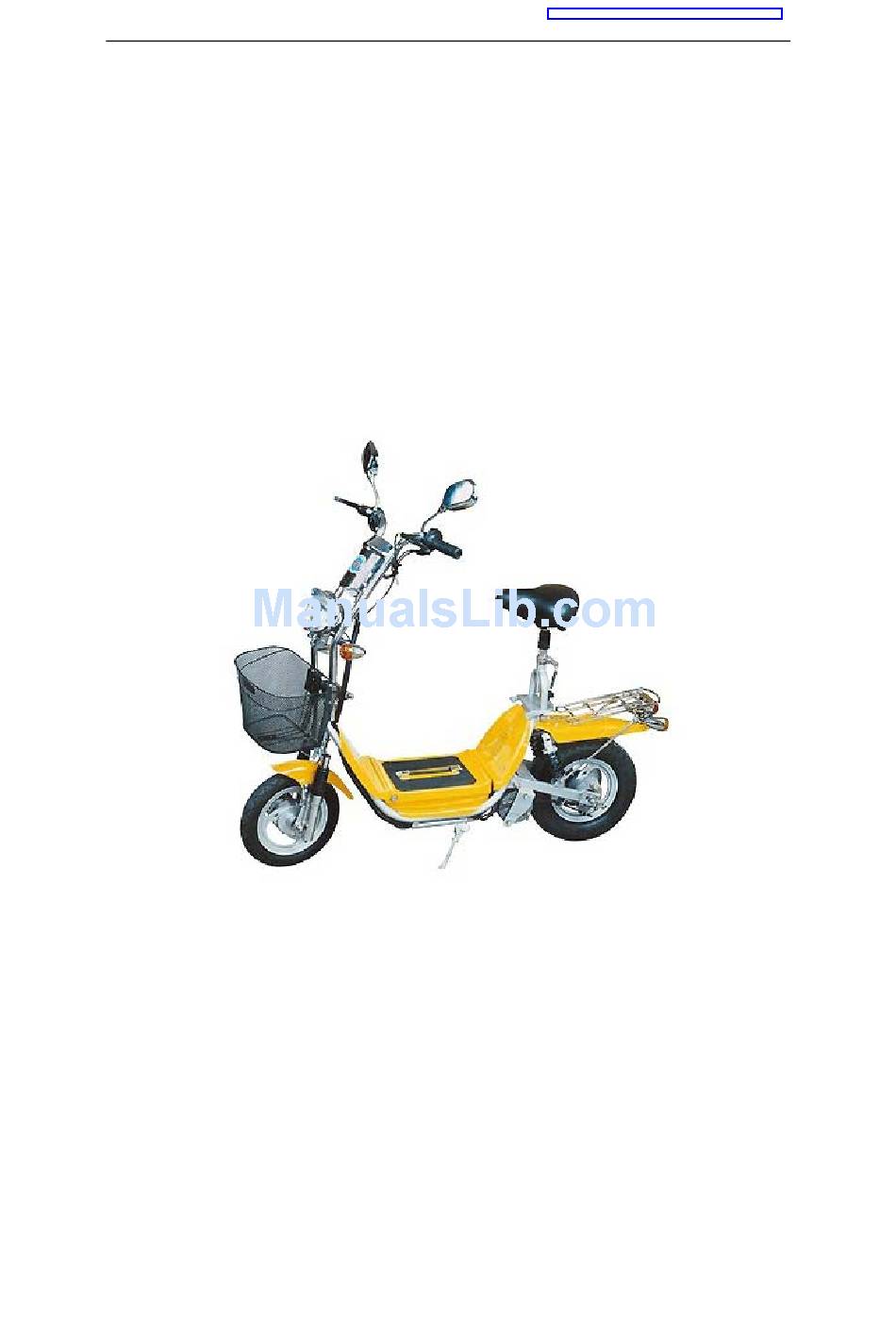

UFREE SCOOTER www.scooter-manufacturer.com ELECTRIC SCOOTER FS-E20B USER MANUAL... -
Page 2: Table Of Contents
UFREE SCOOTER www.scooter-manufacturer.com TABLE OF CONTENTS 1) INTRODUCTION................2 2) DESCRIPTION OF SYSTEM............3 3) SAFETY WARNINGS................4 4) OPERATION AND FEATURES............5 A) ASSEMBLY B) RIDE AND RANGE C) SPEED-CHANGING SWITCH AND BRAKE HANDLE D) POWER SWITCH AND CHARGE SOCKET E) CHARGE BATTERY AND BATTERY CARE... -
Page 3: Introduction
UFREESCOOTER www.scooter-manufacturer.com |INTRODUCTION| CONGRATULATIONS! YOU HAVE MADE A GREAT CHOICE IN SELECTING A BAUMAN ELECTRIC SCOOTER YOUR SCOOTER WILL PROVIDE YOU WITH HOURS OF FUN AND ENJOYME? WHILE HELPING YOU TO GET SOME OF THAT MUCH NEEDED EXERCISE W ALL WANT TODAY. YOUR SCOOTER IS ALSO A PRACTICAL "GREEN"... -
Page 4: Description Of System
UFREE SCOOTER www.scooter-manufacturer.com Speed changing Indicator switch and horn switch Saddle Brake lever Brake light Lamp Quick locks Front fork Indicators Chain drive Battery box Locking tabs & bolts WEIGHT (Including Battery):42kgs MOTOR POWER: 350W CHARGE LOAD CAPACITY: l00kgs VOLTAGE: 110-230V BATTERY:... -
Page 5: Safety Warnings
UFREE SCOOTER www.scooter-manufacturer.com SAFETY BEFORE YOU RIDE YOUR ELECTRIC SCOOTER, PLEASE READ CAREFULLY THE FOLLOWING • The recommended age and maximal weight for riding the scooter 10 years or older and 200 pounds. • Read this manual thoroughly and follow all the safety and maintenance recommendations made here. -
Page 6: Operation And Features
UFREE SCOOTER www.scooter-manufacturer.com OPERATION AND FEATURES ASSEMBLY 1. Lift the handlebar and put the fixed handle into the front fork, then tighten the quick lock. 2. Put the pole of the seat into the fixed tube then tighten the lock. -
Page 7: C) Speed-Changing Switch And Brake Handle
UFREE SCOOTER www.scooter-manufacturer.com SPEED-CHANGING SWITCH AND BRAKE HANDLE For safety purposes, your scooter uses a speed-changing switch when released it will return to the "OFF" position. Turn the speed-changing switch towards your body to raise the speed of the scooter and away from your body to lower the speed. -
Page 8: F) Drive Belt Adjustment And Replacement
UFREE SCOOTER www.scooter-manufacturer.com DRIVE BELT ADJUSTMENT AND REPLACEMENT Periodic adjustment of the drive belt will be necessary to maintain proper tension. If the belt is too loose, it will make a "popping" noise while accelerating, indicating the need for immediate adjustments. Before adjusting the belt drive, disconnect the battery power to prevent accidental starts or shocks. -
Page 9: Important Battery Information
UFREE SCOOTER www.scooter-manufacturer.com IMPORTANT BATTERY INFORMATION BATTERY CARE 1) Store and charge the battery at a temperature between 50f (10c) and 100f (38c), try to keep your battery charged. Keep the battery terminals clean and the connections tight. 2) Handle your battery and the charger with care and be careful not to dreg Running the battery all the way down is bad for its overall life. -
Page 10: Troubleshooting Guide
UFREE SCOOTER www.scooter-manufacturer.com TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSES ACTION A. Motor does not start 1 .Battery not connected 1. Connect battery 2. Power switch is off 2. Switch on 3. Broken drive belt 3. Replace belt 4. Battery is drained 4. - Page 11 UFREE SCOOTER www.scooter-manufacturer.com THANK YOU AND ALWAYS REMEMBER TO RIDE SAFELY! ENJOY YOUR RIDING! WE WELCOME YOUR COMMENTS!
