Summary of Contents for Harman Kardon HKTS 11

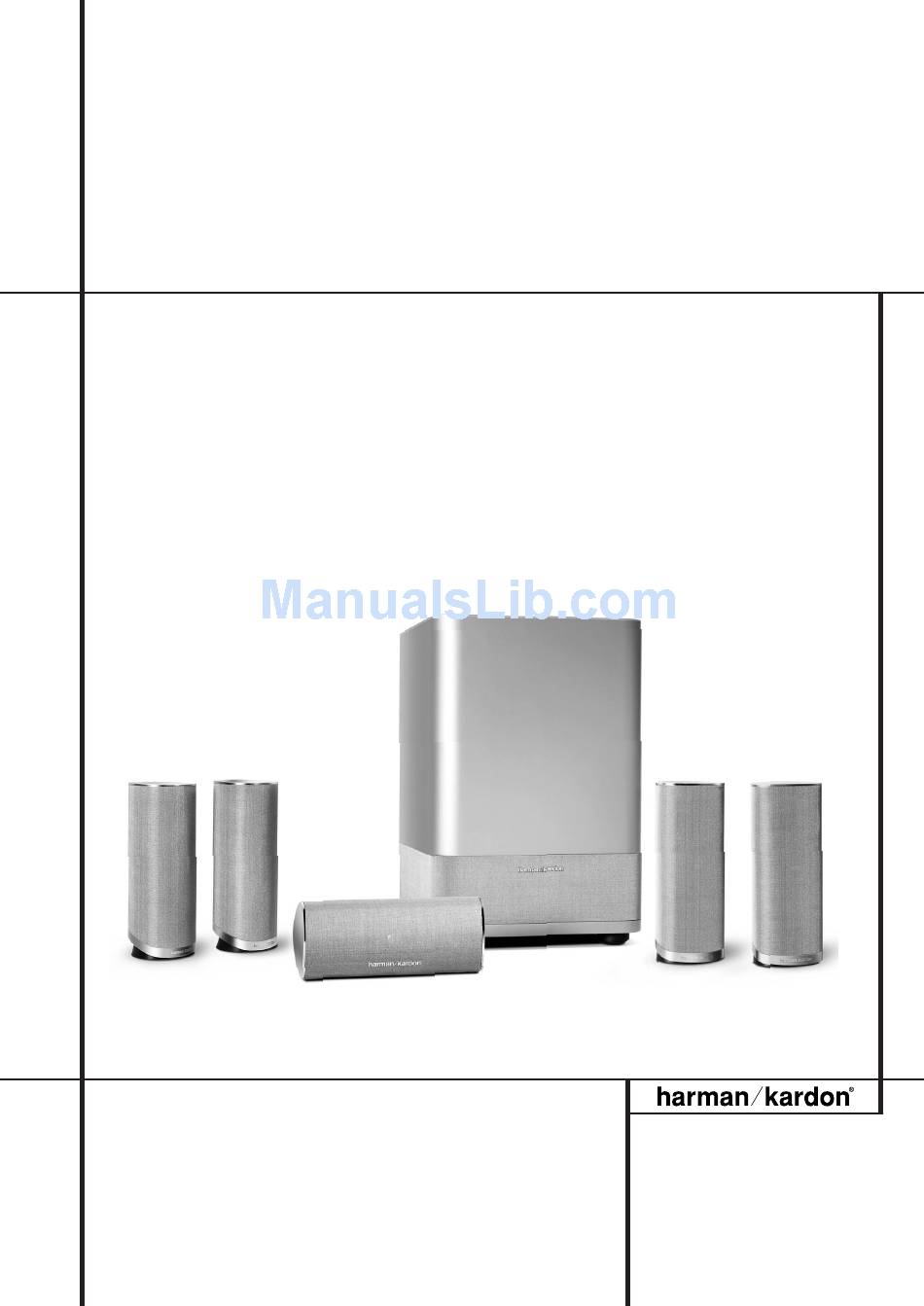

- Page 1 HKTS 11 Home Theater Speaker System OWNER’S MANUAL Power for the Digital Revolution ®...
-
Page 2: Table Of Contents
Table of Contents 3 Introduction 4 SUB-TS11 Subwoofer Amplifier Panel Controls and Connections 6 Speaker Placement 7 Mounting Options 8 Speaker Connections Speaker-Level Connection Guide Dolby Digital or DTS (or Other Digital Surround Mode) Connection Dolby Pro Logic (Non-Digital) – Line Level Dolby Pro Logic (Non-Digital) –... -
Page 3: Introduction
Description and Features The HKTS 11 is a six-piece home theater speaker system that includes a 10-inch, 200-watt, bass- reflex powered subwoofer; four identical, 2-way dual-driver satellite speakers for use in the left and right front and rear speaker positions;... -
Page 4: Rear Panel Connections
LED is lit amber to indicate that no signal is being received and the SUB-TS11 is in Standby mode. For use with HKTS 11 System CAUTION CAUTION RISK OF ELECTR IC SHOCK RISK OF ELECTR IC SHOCK... - Page 5 Rear Panel Connections Line-Level Subwoofer (SUB) Input: Con- nect the subwoofer output of a receiver with digital surround sound decoding, such as Dolby* Digital or DTS ® , to this input. This input bypasses the SUB-TS11’s internal crossover circuitry, and should only be used with a filtered signal.
-
Page 6: Speaker Placement
Speaker Placement Color-Coding System The HKTS 11 uses the channel color-coding system established by the Consumer Electronics Association to make setting up your home theater speaker system as easy as possible. Your system includes a set of colored stickers that... -
Page 7: Mounting Options
Mounting Options Wall-Mounting Unscrew the bolt that attaches the black shelf stand to the bottom of the speaker. Store the stand and bolt in a safe place in case they are needed for a future installation. Remove Stand 15mm or 1/2" Wall Plate Mount the wall-bracket attachment plate on the wall in the desired location. -
Page 8: Speaker Connections
CEA standard and therefore use a color other than red or black for the (+) terminal to indicate some speaker positions: e.g., surround left. Although the HKTS 11 system has red and black collars on the individual speaker terminals to denote the positive and negative connections,... -
Page 9: Dolby Digital Or Dts (Or Other Digital Surround Mode) Connection
Speaker Connections Dolby Digital or DTS ® (or Other Digital Surround Mode) Connection Use this installation method for Dolby Digital, ® or other digital surround processors: Use the line-level input jack marked "SUB" for the Low-Frequency Effects channel. Connect this Front Left –... -
Page 10: Dolby Pro Logic (Non-Digital) - Line Level
Speaker Connections Dolby Pro Logic (Non-Digital) – Line Level Use this installation method for Dolby Pro Logic applications (not Dolby Digital, DTS ® or other digital processing), where the receiver/processor is equipped with a subwoofer output, or a volume-controlled preamp (line-) level output: Use RCA-type patch cords to connect the line- level subwoofer output on your receiver or to amplifier either the left or right line-level input... -
Page 11: Dolby Pro Logic (Non-Digital) - Speaker Level
Speaker Connections Dolby* Pro Logic* (Non-Digital) – Speaker Level Use this installation method for Dolby Pro Logic applications (not Dolby Digital, DTS ® or other digital processing), where the receiver/processor does not have a subwoofer output, or a volume- controlled preamp (line-) level output: Front Left –... -
Page 12: Operation
Operation Move the Master Power switch (marked “Power” ) to the “•” (On) position to use the subwoofer. The SUB-TS11 subwoofer will auto- matically turn itself on or go into standby mode depending on whether or not a signal is being sent to it by your receiver or surround processor, and provided that the Music Sense On/Off Switch... -
Page 13: Troubleshooting
Troubleshooting If there is no sound from any of the speakers: If there is no sound coming from one speaker: If there is no sound from the center speaker: If the system plays at low volumes but shuts off as volume is increased: If there is low (or no) bass output:... -
Page 14: Specifications
Specifications HKTS 11 System Frequency Response 35Hz – 20kHz (–6dB) SAT-TS14 Satellites Recommended Power 10 – 120 Watts Impedance 8 Ohms nominal Sensitivity 86dB @ 1 Watt/1 meter Tweeter One 1/2" dome, video-shielded Midrange Dual 3" drivers, video-shielded Dimensions (H x W x D) - Page 15 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com Harman Consumer International: 2, Route de Tours, 72500 Château-du-Loir, France © 2004 Harman Kardon, Incorporated Part 406-000-01010...
