Summary of Contents for Harman Kardon HKTS 200BQ

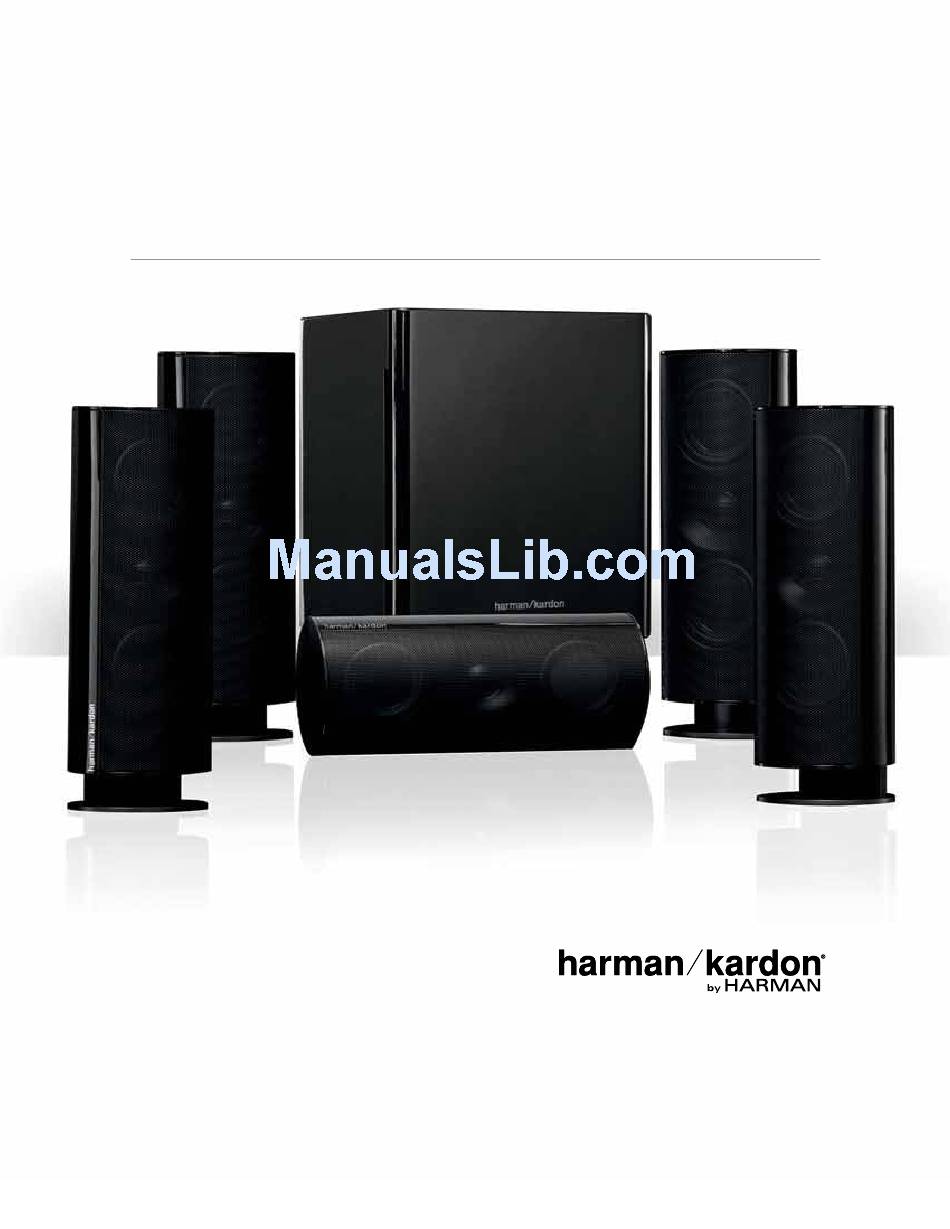

- Page 1 HKTS 60BQ Home theater speaker system Owner's Manual...
- Page 2 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
- Page 4 HKTS 60BQ Connections PL0004-01001 0 Subwoofer Level Control: Use this control to adjust the HKTS200SUB’s filtered, use the HKTS200SUB’s Line-Level L/R In Connectors 6 instead. volume. Turn clockwise to increase the volume; turn counterclockwise 6 Line-Level L/R In Connectors: Use these connectors if your receiver or pre- to decrease the volume.
-
Page 5: Speaker Placement
HKTS 60BQ Speaker Placement Placing the Front Speakers Mounting Options for Satellite 0 – 2ft and Center Speakers Place the front speakers the same dis- tance from each other as they are from the Front Left Front Right listener’s position. Place them at about Speaker Speaker Apply Pressure Evenly... - Page 6 HKTS 60BQ Speaker Placement NOTE: If you’re running the speaker wire through the wall, you can bring it out 8. Connect the speaker wire to the speaker terminals as shown in directly behind the bracket location and insert it through the bottom opening in the illustration: the wall portion of the bracket, as shown in the illustration.
-
Page 7: Speaker Connections
Speakers and receivers/amplifiers have corresponding ( + ) and ( – ) connec- the holes shown in the illustration. tion terminals. Most electronics manufacturers, including Harman Kardon, use red to denote the ( + ) terminal and black for the ( – ) terminal. Newer Harman Kardon receivers conform to the CEA standard and therefore use a color other than red to denote the ( + ) terminal for some speaker positions. -
Page 8: Setup Instructions
HKTS 60BQ Setup Instructions Front Left Center Front Right Front Left Center Front Right Speaker Cable Speaker Cable Speaker Cable (White Bands) (Green Bands) (Red Bands) – – – FRONT SURROUND CENTER + – + – – RIGHT LEFT LFE OUT + –... - Page 9 HKTS 60BQ Setup Instructions Front Left Center Front Right Front Left Center Front Right Speaker Cable Speaker Cable Speaker Cable (White Bands) (Green Bands) (Red Bands) – – – FRONT SURROUND CENTER + – + – – RIGHT LINE-LEVEL LEFT OUTPUTS + –...
- Page 10 HKTS 60BQ Setup Instructions Receiver FRONT SURROUND CENTER + – + – – RIGHT LFE SUB LEFT TRIGGER OUTPUT + – + – OUTPUT – – Subwoofer Trigger Cable (Black Ends) PL0004-01001 Connecting to a Trigger-Voltage Source If your preamp/processor or another audio/video component has a trigger-voltage NOTE: Please do not connect the subwoofer ON/OFF trigger cable to the Remote connection that supplies between 3V and 30V (AC or DC), connect it to the HKTS- Control Output (IR Out) of your home cinema system or surround receiver.
-
Page 11: Operation
HKTS 60BQ Operating Instructions Operation Turning the Subwoofer On and Off Set the HKTS200SUB’s Power Switch 7 to the ON position. • If the Power On Mode Switch 3 is set to AUTO, the HKTS200SUB will automatically turn itself on when it receives an audio signal, and it will go into standby mode after it has received no audio signal for 15 minutes. -
Page 12: Troubleshooting
This unit is designed for trouble-free operation. Most problems that users encounter are due to operating errors. So if you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon service center. -
Page 13: Specifications
HKTS 60BQ Specifications Specifications HKTS 60 System Frequency response 45Hz – 20kHz (–6dB) SAT-TS60 Satellites Recommended power 20 ~ 150 watts Impedance 8 ohms nominal Sensitivity 83dB @ 2.83V/1 meter Tweeter One 1" (25mm) CMMD ® Lite dome, video-shielded Midrange Dual 3"... - Page 14 Made in P.R.C. © 2010 Harman International Industries, Incorporated. All rights reserved. Features, specifications and appearance are subject to change without notice. Harman Kardon and CMMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
