SB 15/230
Active Speaker Soundbar
User Guide
English
Designed to Entertain.
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB 15/230 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Kardon SB 15/230

Summary of Contents for Harman Kardon SB 15/230

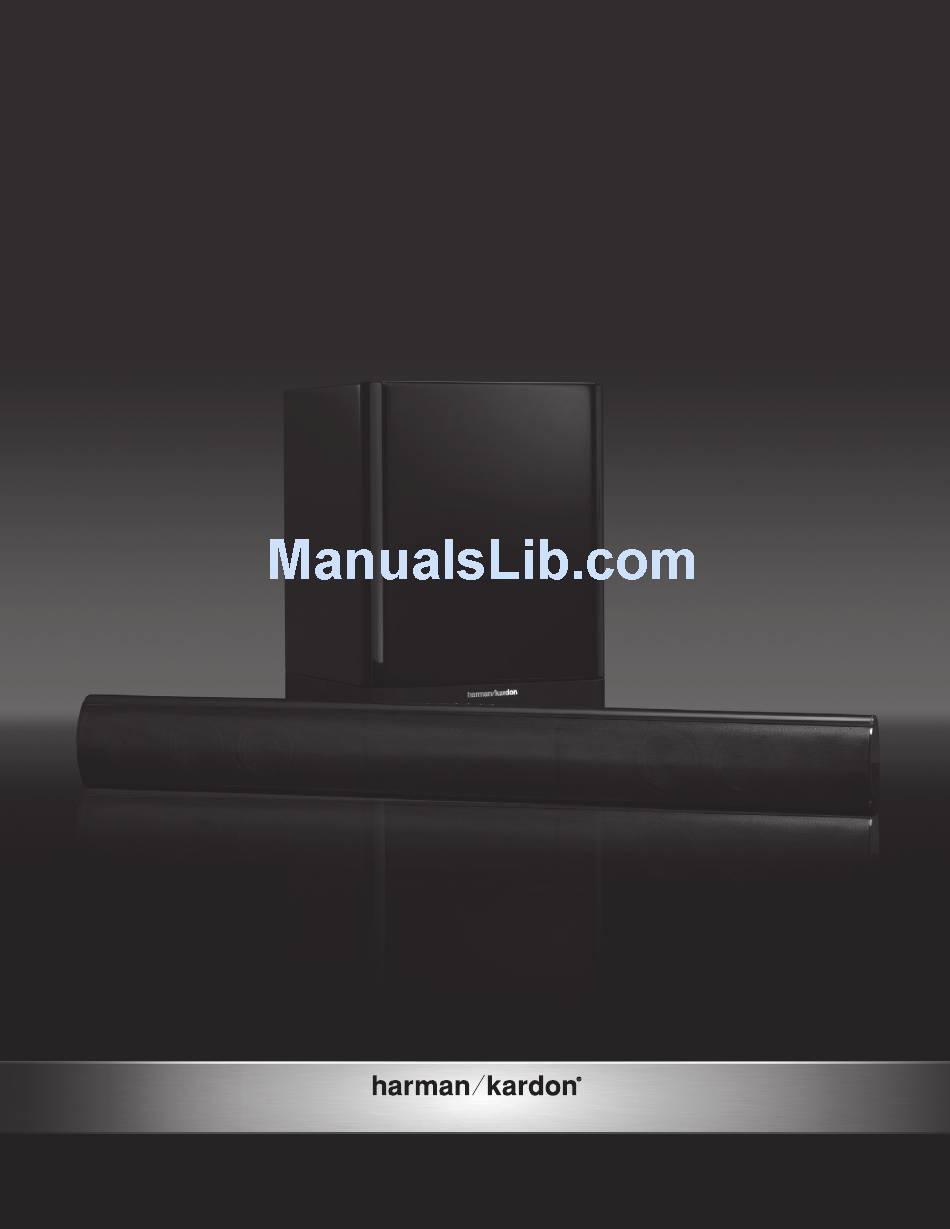

  • Page 1 SB 15/230 Active Speaker Soundbar User Guide English Designed to Entertain. ™...

  • Page 2: Table Of Contents

    SB 15/230 Soundbar Home Theater Speaker System Owner’s Manual Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Description and Features .

  • Page 3: Introduction

    Harman Kardon® SB 15/230 Introduction Thank you for purchasing the Harman Kardon® SB 15/230 speaker system, with which you’re about to begin many years of listening enjoyment . The SB 15/230 has been custom-designed to provide the excitement and power of the cinema experience in your own living room .

  • Page 4: Soundbar Top-Panel Controls

    Soundbar Top-Panel Controls Surround Power Mode Up/Down Button Button Buttons Power Surround Indicator Mode Indicator Power Button: When the soundbar is in the Standby mode (the Power Indicator is amber), press this button to turn the SB 15/230 system On . (The Power Indicator turns blue .) NOTE: When the soundbar is in the Standby mode, it will automatically turn On whenever it detects an audio signal at the Source 1 (analog) inputs .

  • Page 5: Subwoofer Rear-Panel Controls

    Subwoofer Rear-Panel Controls CROSSOVER Crossover Knob VOLUME Volume Knob PHASE Phase Switch Wireless Code Switch Crossover Knob: This knob adjusts the subwoofer’s crossover between 50Hz and 150Hz .The higher you set the Crossover knob, the higher in frequency the subwoofer will operate and the more its bass will “overlap”...

  • Page 6: Speaker Placement

    Speaker Placement Placing the Soundbar on a Table If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen . As long as the surface of the table is flat, the soundbar will rest on its rubber bumpers .

  • Page 7: Connections

    Connections Source Connections Analog: Use the supplied stereo audio cable to connect the soundbar’s Source 1 (analog) input to your TV’s stereo audio output . If your TV has two sets of audio output jacks, use the set that has a fixed (not variable) output level . This will let you turn your TV’s speakers all the way off while the TV still supplies a constant audio signal to the soundbar .

  • Page 8: Operation

    Operation Turning the Soundbar On and Off Set the soundbar’s Power switch to On (press the switch’s white dot) . Power Switch To turn the soundbar On automatically: The soundbar will automatically turn itself on when it receives an audio signal at the Source 1 (analog) inputs . To turn the soundbar On manually: Momentarily press the soundbar’s Power button to turn the soundbar On .

  • Page 9: Subwoofer Volume Knob

    Subwoofer Volume Knob Use the subwoofer’s Volume knob to balance the bass with the rest of the sound . Play music or movies that you are familiar with and adjust the subwoofer’s Volume knob so the bass sounds balanced on both music and films . Listen to several different music recordings and film soundtracks that contain strong bass passages and find a setting for the Volume knob that doesn’t over-emphasize the bass or make it sound weak .

  • Page 10: Programming The Soundbar To Respond To Your Tv Remote

    Volume Up, Volume Down and Source commands . This lets you control your whole home theater system with a single remote . Before beginning to program the soundbar, have your TV remote handy . We recommend sitting down in front of the soundbar .

  • Page 11: Troubleshooting

    Troubleshooting If the soundbar does not turn on: Check that the soundbar power supply’s AC cord is plugged into a working AC • outlet, and that the power supply is plugged into the soundbar . • Check that the soundbar’s Power switch is in the On position . If the subwoofer does not turn on: •...

  • Page 12: Specifications

    Specifications SB 15/230 System Frequency Response 50Hz–20kHz SB 15CNTR Soundbar SB 15SUB Subwoofer Input Rating Input rating: DC 24V, 2 .5–2 .7A AC 230V, 50Hz, 100W Amplifier Power Amplifier Power 25 watts x 2 100 watts RMS Tweeter Woofer Two 3/4" domes (one per channel), 10"...
