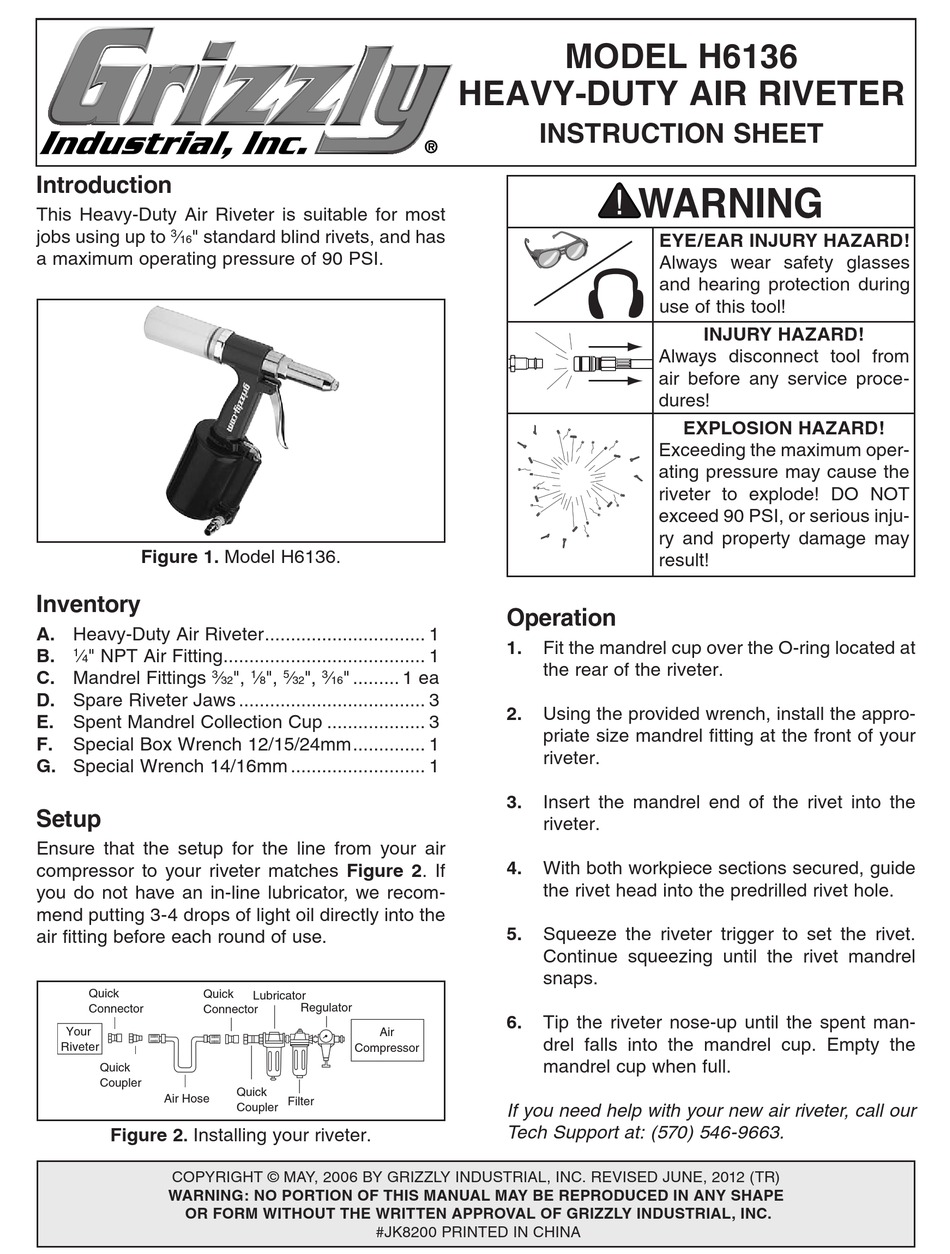

Grizzly H6136 Instruction Sheet

Introduction
This Heavy-Duty Air Riveter is suitable for most
jobs using up to ⁄ " standard blind rivets, and has
3
16
a maximum operating pressure of 90 PSI.
Figure 1. Model H6136.
Inventory
A. Heavy-Duty Air Riveter ............................... 1
B. ⁄ " NPT Air Fitting ....................................... 1
1
4
C. Mandrel Fittings
3
D. Spare Riveter Jaws .................................... 3
E. Spent Mandrel Collection Cup ................... 3
F.
Special Box Wrench 12/15/24mm .............. 1
G. Special Wrench 14/16mm .......................... 1
Setup
Ensure that the setup for the line from your air
compressor to your riveter matches Figure 2. If
you do not have an in-line lubricator, we recom-
mend putting 3-4 drops of light oil directly into the
air fitting before each round of use.
Quick
Quick
Connector
Connector
Your
Riveter Tool
Quick
Coupler
Air Hose
Figure 2 Installing your riveter.
.
COPyRIgHT © MAy, 2006 By gRIzzly INDUSTRIAl, INC. REvISED JUNE, 2012 (TR)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ ", ⁄ ", ⁄ ", ⁄ " ......... 1 ea
1 5 3
32 8 32 16
Lubricator
Regulator
Air
Compressor
Quick
Filter
Coupler
#JK8200 PRINTED IN CHINA
MODEL H6136
HEAVY-DUTY AIR RIVETER
INSTRUCTION SHEET
Operation
1.
Fit the mandrel cup over the O-ring located at
the rear of the riveter.
2.
Using the provided wrench, install the appro-
priate size mandrel fitting at the front of your
riveter.
3. Insert the mandrel end of the rivet into the
riveter.
4. With both workpiece sections secured, guide
the rivet head into the predrilled rivet hole.
5.
Squeeze the riveter trigger to set the rivet.
Continue squeezing until the rivet mandrel
snaps.
6.
Tip the riveter nose-up until the spent man-
drel falls into the mandrel cup. Empty the
mandrel cup when full.
If you need help with your new air riveter, call our
Tech Support at: (570) 546-9663.
EYE/EAR INJURY HAZARD!
Always wear safety glasses
and hearing protection during
use of this tool!
INJURY HAZARD!
Always disconnect tool from
air before any service proce-
dures!
EXPLOSION HAZARD!
Exceeding the maximum oper-
ating pressure may cause the
riveter to explode! DO NOT
exceed 90 PSI, or serious inju-
ry and property damage may
result!
