Introduction
The Model H6233 50 Ton Shop Press (Figure 1)
features 50 tons of pressure to handle forming,
bending, straightening, and bearing and wheel
installation.
The Model H6233 was carefully packed when
it left our warehouse. If you discover this shop
press is damaged after you have signed for deliv-
ery, please immediately call Customer Service at
(570) 546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, you should inventory the
contents.
Figure 2 - Main Contents.
A. Press Frame (Not Shown) ........................ 1
B. Hydraulic Pressure Gauge ......................... 1
C. Base Supports ............................................ 2
D. Spreaders ................................................... 2
E. Hydraulic Pump .......................................... 1
F.
Hydraulic Pump Handle ............................. 1
G. Winch ......................................................... 1
H. Crank Handle ............................................. 1
I.
Support Rods ............................................. 2
J.
Table Plates ............................................... 2
K. Bolt Bag ...................................................... 1
—Hex Bolts M12-1.75 x 40 ........................ 4
—Hex Nuts M12-1.75 ................................. 8
—Lock Washers 12mm .............................. 8
—Hex Bolts M12-1.75 x 25 ........................ 4
—Cable Clamps ......................................... 2
—Hex Nuts for Cable Clamps .................... 4
—U-Bolts .................................................... 2
—Hex Bolt
M8-1.25 X 20
—Flat Washer 8mm ................................... 1
............................. 1

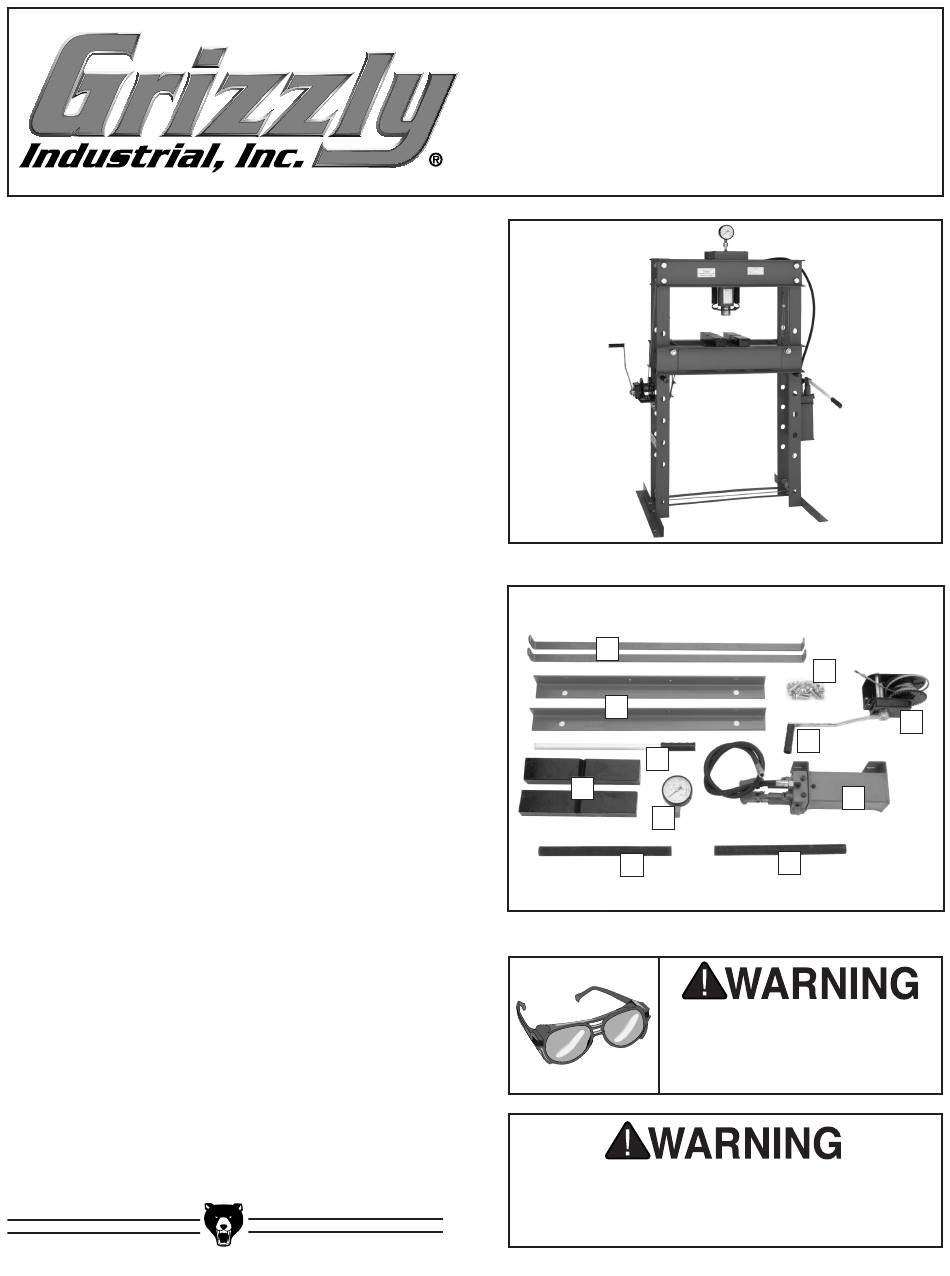

50 Ton Shop Press
MODEL H6233
INSTRUCTION SHEET

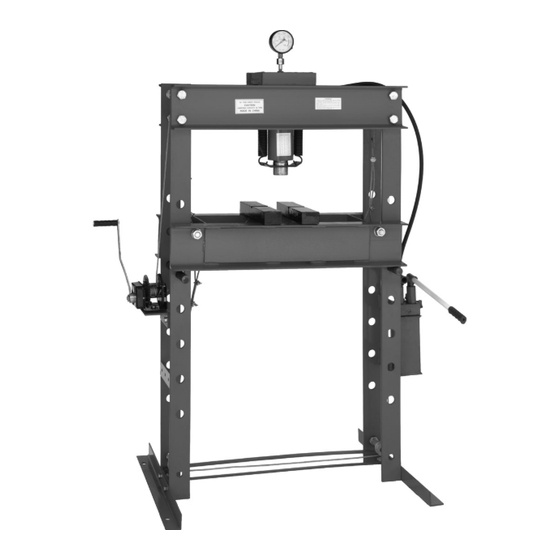

Figure 1. Model H6233.
D
C
F
J
B
I
Figure 2. Inventory parts.
Always use ANSI approved
safety glasses when operat-
ing machinery.
This Shop Press is not a toy. DO NOT allow
children to use this press. Serious injury
may occur if this press is used incorrectly.
K
G
H
E
I

Advertisement

loading
Need help?

Need help?

Do you have a question about the H6233 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly H6233

  • Page 1 50 Ton Shop Press MODEL H6233 INSTRUCTION SHEET Introduction The Model H6233 50 Ton Shop Press (Figure 1) features 50 tons of pressure to handle forming, bending, straightening, and bearing and wheel installation. The Model H6233 was carefully packed when it left our warehouse.
  • Page 2 ASSEMBLY Hold the end of the cable against the hang- ing part of cable and place a U-bolt around the cables. Place the cable clamp over the U-bolt and thread the hex nuts onto the ends of the U-bolt and tighten. Install the second Get assistance to tilt the press upright, and cable clamp a few inches from the first.
  • Page 3 OPERATIONS MAINTENANCE Wipe all dirt and dust off the press DO NOT compress springs or other objects Apply light oil to the surface of the ram. that could be ejected from the press. DO NOT compress objects that could shatter. Check hoses, pressure head, and support rods for cracks or damage.
  • Page 4 PARTS PART # DESCRIPTION PART # DESCRIPTION PH6233001 HEADER 19-4 PH6233019-4 EXTENSION SPRING PH6233002 HYDRAULIC HOSE 19-5 PH6233019-5 PISTON SEAL RING PH6233004 PUMP ASSEMBLY 19-6 PH6233019-6 PISTON HEAD PH6233005 UPRIGHT 19-7 PH6233019-7 PISTON ROD PH6233006 SUPPORT ROD 19-8 PH6233019-8 O-RING 8 X 70 PN09M HEX NUT M12-1.75 19-9...
