Summary of Contents for Smeg KFV92

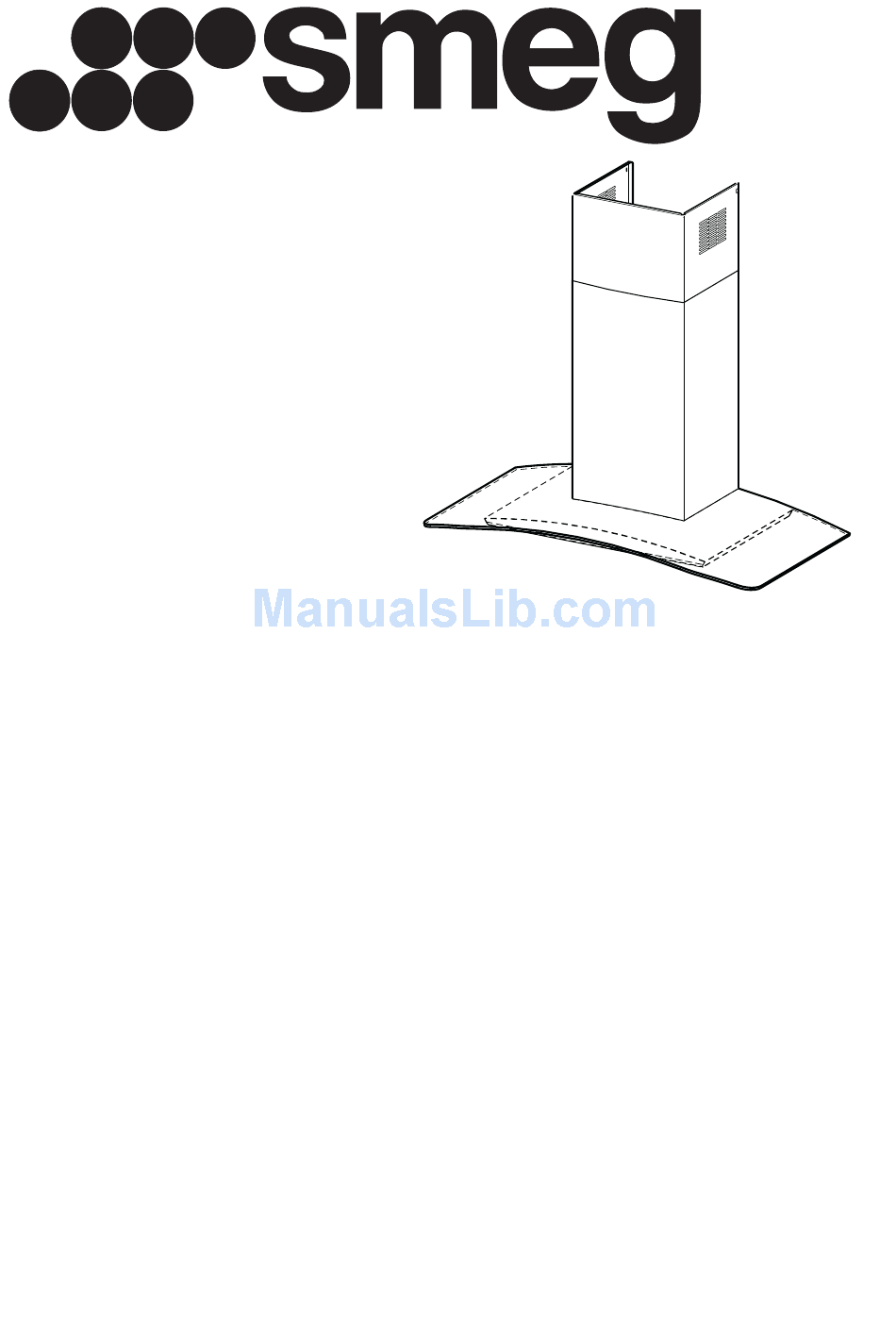

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Руководство по эксплуатации Bruksanvisning Brugsvejledning KFV92...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 4 CARATTERISTICHE................................5 INSTALLAZIONE ................................... 6 USO......................................9 MANUTENZIONE ................................10 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................11 CHARACTERISTICS ................................12 INSTALLATION..................................13 USE ...................................... 16 MAINTENANCE ................................... 17 SOMMAIRE CONSEILS ET SUGGESTIONS............................18 CARACTERISTIQUES................................. 19 INSTALLATION..................................20 UTILISATION ..................................
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES............................46 CARACTERÍSTICAS ................................47 INSTALAÇÃO..................................48 UTILIZAÇÃO ..................................51 MANUTENÇÃO..................................52 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ............................53 ХАРАКТЕРИСТИКИ................................54 УСТАНОВКА..................................55 ЭКСПЛУАТАЦИЯ................................58 УХОД....................................59 INNEHÅLL REKOMMENDATIONER OCH TIPS ........................... 60 EGENSKAPER..................................61 INSTALLATION..................................62 ANVÄNDING..................................65 UNDERHÅLL..................................
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. - Page 5 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support Wall Plugs...
-
Page 6: Installation
INSTALLATION Wall drilling and bracket fixing Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. •... -
Page 7: Recirculation Version Air Outlet
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. - Page 9 Light Switches the lighting system on and off. Motor running led. Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours. Speed Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
-
Page 10: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
