Summary of Contents for Smeg KFV92E

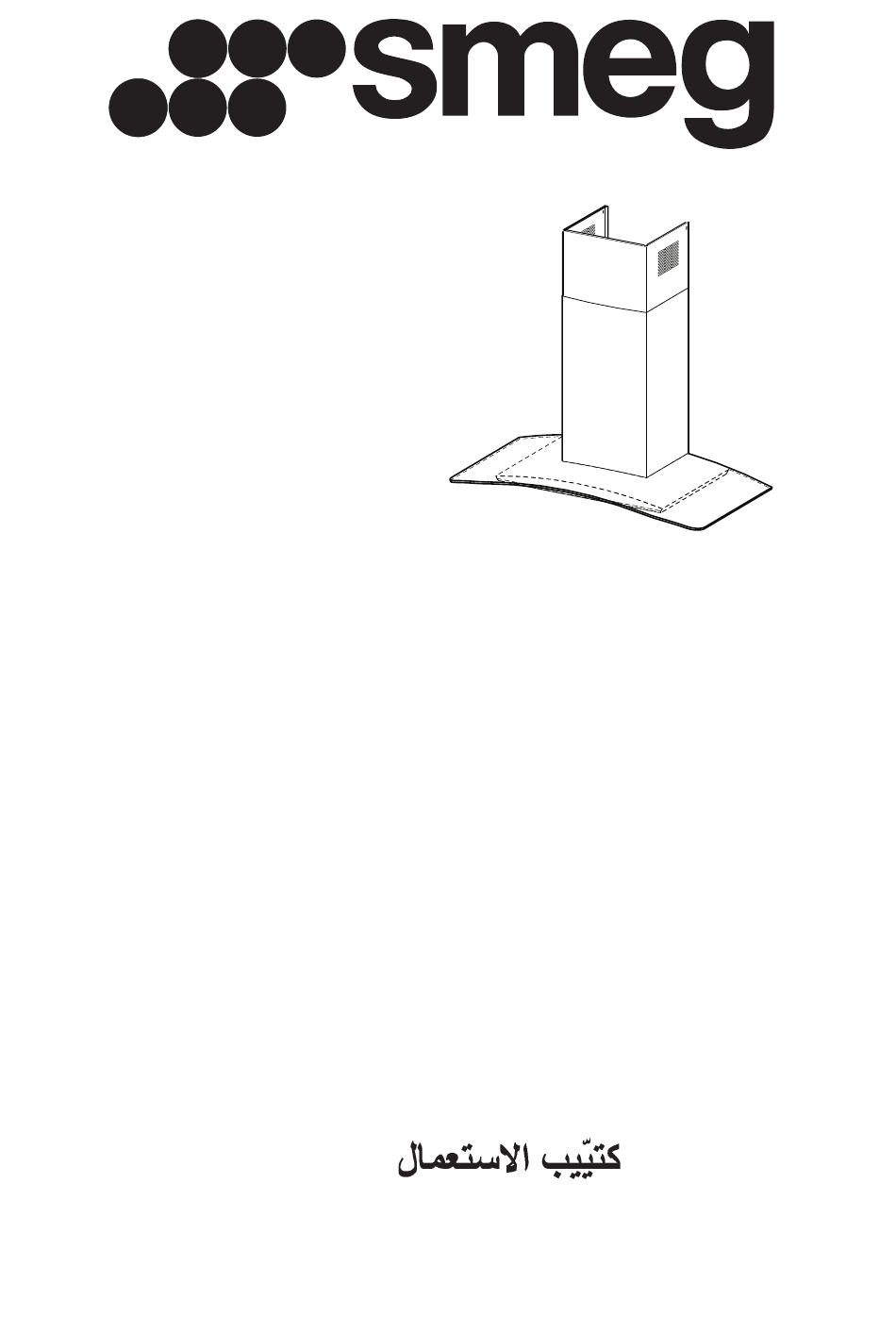

- Page 1 Libretto istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Brugsvejledning Bruksanvisning Руководство по эксплуатации Instrukcja Obsługi Bruksanvisning Käyttöohje KFV92E...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 5 CARATTERISTICHE................................8 INSTALLAZIONE ................................... 9 USO...................................... 12 MANUTENZIONE ................................13 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................14 CHARACTERISTICS ................................17 INSTALLATION..................................18 USE ...................................... 21 MAINTENANCE ................................... 22 SOMMAIRE CONSEILS ET SUGGESTIONS............................23 CARACTERISTIQUES................................. 26 INSTALLATION..................................27 UTILISATION ..................................
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES............................59 CARACTERÍSTICAS ................................62 INSTALAÇÃO..................................63 UTILIZAÇÃO ..................................66 MANUTENÇÃO..................................67 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ............................68 ХАРАКТЕРИСТИКИ................................71 УСТАНОВКА..................................72 ЭКСПЛУАТАЦИЯ................................75 УХОД....................................76 INNEHÅLL REKOMMENDATIONER OCH TIPS ........................... 77 EGENSKAPER..................................80 INSTALLATION..................................81 ANVÄNDING..................................84 UNDERHÅLL..................................
- Page 4 SISÄLTÖ OHJEET JA SUOSITUKSET ............................. 113 MITAT JA OSAT ................................116 ASENNUS ..................................117 KÄYTTÖ ..................................... 120 HUOLTO .................................... 121 اﻟﻔﻬﺮس 221............................ارﺷ ﺎدات و اﻗﺘﺮاﺣ ﺎت 521.................................اﻟﺨﺼ ﺎﺋﺺ ﺐ 621................................اﻟﺘﺮآﻴ 921................................اﻻﺳ ﺘﺨﺪام 031..............................ﻋﻤﻠﻴ ﺔ اﻟﺼ ﻴﺎﻧﺔ...
-
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 6 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 7: Maintenance
• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •... - Page 8 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components 14.1 Hood Body, complete with: Controls, Light, Blower, Filters 12a 7.2.1 Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support...
- Page 9 INSTALLATION Wall drilling and bracket fixing 7.2.1 Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. •...
-
Page 10: Recirculation Version Air Outlet
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... -
Page 11: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. - Page 12 Light Switches the lighting system on and off. Motor running led. Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours. Speed Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
-
Page 13: Replacing The Activated Charcoal Filter
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
