Sharp XL-HP535H Operation Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Stereo System
  5. Illustration XL-HP535H
  6. Operation manual

Sharp XL-HP535H Operation Manual

Micro component system
Hide thumbs Also See for XL-HP535H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Enlarged version

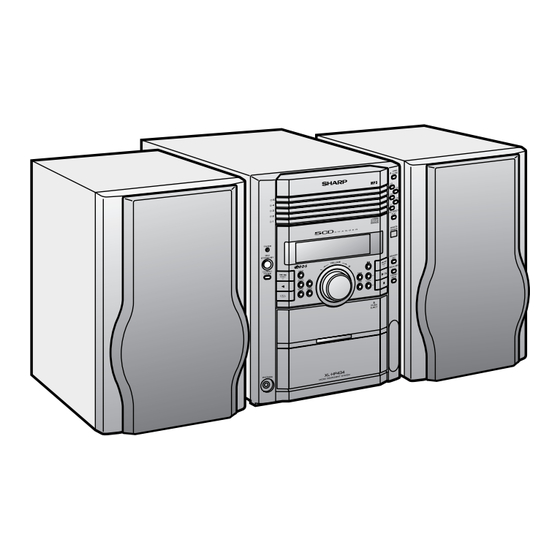

MIKRO KOMPONENTEN SYSTEM
MICRO-CHAÎNE
SISTEMA MICRO
MIKRO KOMPONENT SYSTEM
MICRO SISTEMI
MICRO SYSTEEM
SISTEMA DE MICRO COMPONENTE
MICRO COMPONENT SYSTEM
MODELL
MODELLO
MODÈLE
MODEL
MODELO
MODELO
MODELL
MODEL
XL-HP535H
BEDIENUNGSANLEITUNG
MANUALE DI ISTRUZIONI
MODE D'EMPLOI
GEBRUIKSAANWIJZING
MANUAL DE MANEJO
MANUAL DE OPERAÇÃO
BRUKSANVISNING
OPERATION MANUAL
Mikro Komponenten System XL-HP535H besteht aus XL-HP535H (Hauptgerät)
und CP-HP535H (Lautsprechersystem).
Micro-chaîne XL-HP535H composée de XL-HP535H (appareil principal) et CP-
HP535H (enceinte acoustique).
Sistema micro XL-HP535H que consta de XL-HP535H (aparato principal) y CP-
HP535H (sistema de altavoces).
XL-HP535H mikro komponent system bestående av XL-HP535H (huvudenhet)
och CP-HP535H (högtalarsystem).
Micro sistemi XL-HP535H composto da XL-HP535H (apparecchio principale) e
CP-HP535H (sistema di diffusori).
XL-HP535H micro systeem bestaande uit XL-HP535H (hoofdtoestel) en CP-
HP535H (luidsprekersysteem).
XL-HP535H Sistema de Micro Componente composto de XL-HP535H (unidade
principal) e CP-HP535H (sistema de alto-falante).
XL-HP535H Micro Component System consisting of XL-HP535H (main unit) and
CP-HP535H (speaker system).
DEUTSCH
Siehe Seiten i bis vi und D-1 bis D-44.
FRANÇAIS
Se reporter aux pages i à vi et F-1 à F-44.
Consulte las páginas i a vi y S-1 a S-44.
ESPAÑOL
SVENSKA
Hänvisa till sidorna i till vi och V-1 till V-44.
Leggere le pagine i a vi e I-1 a I-44.
ITALIANO
Raadpleeg de bladzijden i t/m vi en N-1 t/m N-44.
NEDERLANDS
PORTUGUÊS
Favor consultar as páginas i a vi e P-1 a
ENGLISH
Please refer to pages i to vi and E-1 to E-44.
03/12/16
XL-HP535H(H)_FRONT.fm
P-44.
TINSZA029AWZZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-HP535H and is the answer not in the manual?

Questions and answers

michael sherwin
February 3, 2025

how to switch on display unit on sharp stereo centre

0
1 comments:
Mr. Anderson
February 10, 2025

To turn on the display unit of the Sharp XL-HP535H stereo center, press the ON/STAND-BY button on either the main unit or the remote control.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Sharp XL-HP535H

Summary of Contents for Sharp XL-HP535H

  • Page 1 CP-HP535H (Lautsprechersystem). Micro-chaîne XL-HP535H composée de XL-HP535H (appareil principal) et CP- HP535H (enceinte acoustique). MIKRO KOMPONENTEN SYSTEM Sistema micro XL-HP535H que consta de XL-HP535H (aparato principal) y CP- MICRO-CHAÎNE HP535H (sistema de altavoces). XL-HP535H mikro komponent system bestående av XL-HP535H (huvudenhet) SISTEMA MICRO och CP-HP535H (högtalarsystem).
  • Page 2 Spannungen vorhanden. Vor Ausführung von irgendwelchen G Dichiarazione di conformità Kundendienstarbeiten oder bei längerer Nichtverwendung des Gerätes stets den Netzstecker aus der Netzsteckdose ziehen. La società SHARP ELECTRONICS EUROPE GmbH dichiara che il prodotto SHARP MICRO SISTEMI XL-HP535H MINI SISTEMI CD-XP300H è...
  • Page 3 G Cuando el botón ON/STAND-BY está puesto en la posición G Wanneer de ON/STAND-BY toets in de STAND-BY stand XL-HP535H STAND-BY, todavía hay tensión dentro del aparato. staat, loopt er nog steeds stroom (netspanning) in het toestel. Cuando el botón ON/STAND-BY está puesto en la posición...
  • Page 4 XL-HP535H G Audio-visuelles Material kann Urheberrechte umfassen, die G Når ON/STAND-BY-knappen er sat i STAND-BY positionen, ohne Genehmigung des Eigentümers dieser Urheberrechte er der stadig netspaending til stede i apparatet. Når ON/STAND-BY-knappen er sat i STAND-BY position, nicht aufgenommen werden dürfen. Siehe die entsprechenden kan apparatet startes v.hj.a.
  • Page 5 G Vorsicht: G Advarsel: XL-HP535H Das Gerät weder Tropf- noch Spritzwasser aussetzen. Til at forbygge ild og stød risiko, lad vaere med at undsaette Ansonsten besteht die Gefahr eines Brandes oder denne indretning for drypning eller overstaenkning. Der må elektrischen Schlages. Es sollten keine mit Flüssigkeiten ikke anbringes nogen genstande fyldt med vand, som for gefüllten Gegenstände wie Vasen auf dem Gerät abgestellt...
  • Page 6 XL-HP535H Dieses Produkt ist ein Laserprodukt der Klasse 1. Ce produit est classifié comme étant un LASER DE CLASSE 1. Este producto está clasificado como un PRODUCTO LÁSER DE CLASE 1. Denna produkt klassificeras som KLASS 1 LASERPRODUKT. Questo prodotto è classificato come CLASS 1 LASER PRODUCT.
  • Page 7 G VORSICHT G ATTENZIONE XL-HP535H Dieses Produkt ist mit einem Niederleistungs-Laserabtaster Questo prodotto contiene un dispositivo laser a bassa potenza. ausgestattet. Aus Sicherheitsgründen keine Abdeckung Per motivi di sicurezza non rimuovere la copertura né provare entfernen und nicht Innenteile zu berühren versuchen.

  • Page 8: Table Of Contents

    ENGLISH XL-HP535H Introduction Contents ENGLISH Thank you for purchasing this SHARP product. To obtain the best Page ! General Information performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. Precautions ......... . 2 Controls and indicators .

  • Page 9: Precautions

    Plug the AC power lead back in, and dent causing damage. SHARP will not be held responsible for any then turn on your system.

  • Page 10: Controls And Indicators

    Controls and indicators XL-HP535H ENGLISH ! Front panel Reference page 1. Disc Trays ........14 2.
  • Page 11 XL-HP535H ENGLISH ! Display Reference page 1. Disc Number Indicators ......16 2. MP3 Folder Indicator ......19 3.

  • Page 12: Rear Panel

    Controls and indicators (continued) XL-HP535H ENGLISH ! Rear panel Reference page 1. Cooling Fan ........9 2.
  • Page 13 XL-HP535H ENGLISH ! Remote control Reference page 1. Remote Control Transmitter ......10 2. Disc Number Select Buttons ......14 3.

  • Page 14: System Connections

    System connections XL-HP535H ENGLISH Make sure to unplug the AC power lead before any connections. Aerial connection (see page 8) FM aerial AM loop aerial Right speaker Left speaker Wall socket Speaker connection (see page 8) (AC 230 V, 50 Hz)

  • Page 15: Aerial Connection

    XL-HP535H ENGLISH ! Aerial connection ! Speaker connection Supplied FM aerial: Connect the black wire to the minus (-) terminal, and the red wire to Connect the FM aerial wire to the FM 75 OHMS socket and position the plus (+) terminal.

  • Page 16: Extra Bass/Demo Mode Button

    System connections (continued) XL-HP535H ENGLISH ! AC power connection ! Demonstration mode After checking all the connections have been made correctly, plug The first time the unit is plugged in, the the AC power lead of this unit into the wall socket. If you plug in the unit will enter the demonstration mode.

  • Page 17: Remote Control

    Remote control XL-HP535H ENGLISH ! Battery installation Notes concerning use: " Replace the batteries if the operating distance is reduced or if the 1 Remove the battery cover. operation becomes erratic. Purchase 2 "AA" size batteries (UM/ 2 Insert the supplied batteries according to the direction indi- SUM-3, R6, HP-7 or similar).

  • Page 18: General Control

    General control XL-HP535H ENGLISH ! Volume control Main unit operation: When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease. Remote control operation: Press the VOLUME (+ or -) button to increase or decrease the vol- ume.

  • Page 19: Setting The Clock

    Setting the clock XL-HP535H ENGLISH Press the button to adjust the hour and then press the MEMORY/SET button. Press the button once to advance the time by 1 hour. Hold it down to advance continuously. Press the button to adjust the minutes and then press the MEMORY/SET button.

  • Page 20: Cd Or Mp3 Disc Playback

    Listening to a CD or MP3 disc XL-HP535H ENGLISH This system can also play audio CD-R and CD-RW discs, but can- not record. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

  • Page 21: Reference Page 1. Disc Trays

    XL-HP535H ENGLISH " Playback will begin from track 1 on the DISC 1. After that disc fin- Press the ON/STAND-BY button to turn the power on. ishes playing, the next disc will automatically play. " After the last track on the fifth disc is played, the unit will stop Press the CD button.

  • Page 22: Disc Or Tape Stop Button

    Listening to a CD or MP3 disc (continued) XL-HP535H ENGLISH ! Various disc functions Notes: " Track up/track down is possible only within individual discs. Function Main unit Remote Operation " The sound is heard during fast forward/fast reverse with a CD, control but not with an MP3 disc.

  • Page 23: Advanced Cd Or Mp3 Disc Playback

    Advanced CD or MP3 disc playback XL-HP535H ENGLISH ! To specify a disc to play ! Direct track search You can play a disc by specifying the disc number. By using the direct search buttons, the desired tracks on the current disc can be played.

  • Page 24: Disc Play Or Repeat, Tape Forward Play Button

    Advanced CD or MP3 disc playback (continued) XL-HP535H ENGLISH ! Repeat play ! Random play Repeat play can play all 5 discs, all tracks on a chosen disc, or a The tracks on the disc(s) can be played in random order automati- programmed sequence continuously.

  • Page 25: Programmed Play

    XL-HP535H ENGLISH ! Programmed play You can choose up to 32 selections for playback in the order you like. To clear the programmed selections: Press the CLEAR/DIMMER button on the re- Whilst in the stop mode, press mote control whilst the "MEMORY" indicator...

  • Page 26: Mp3 Navigation (Only For Mp3 Files)

    MP3 navigation (only for MP3 files) XL-HP535H ENGLISH MP3 navigation: You can search and play files by folder or title. For example, when you assign three titles to a file, enter genre (such as jazz) as title 1, album name as title 2, and music title as title 3 to search the file by any title.
  • Page 27 XL-HP535H ENGLISH ! File search (by folder or title 1/2/3) Use the button to scroll and select a folder (or title), You can search and play files by folder or title 1/2/3 within one MP3 and then press the ENTER button.
  • Page 28 MP3 navigation (only for MP3 files) (continued) XL-HP535H ENGLISH ! Character search (for folder or title 1/2/3) When finished, press the ENTER button. The unit searches By entering a name, you can search files by folder or title 1/2/3 for the same name within folders (or titles).
  • Page 29 XL-HP535H ENGLISH ! Programmed play (for folder, title 1/2/3) To check, add or delete programmed contents: In the stop mode, select a folder (or title) with the button. If Folders or titles can be programmed within one MP3 disc. the folder (or title) is programmed, "MEMORY" flashes.

  • Page 30: Listening To The Radio

    Listening to the radio XL-HP535H ENGLISH Press the TUNING ( ) button to tune in to the desired station. Manual tuning: Press the TUNING button as many times as required to tune in to the desired station. Auto tuning: When the TUNING button is pressed for more than 0.5 sec- onds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

  • Page 31: Memorising A Station

    XL-HP535H ENGLISH ! Memorising a station ! To recall a memorised station You can store 40 AM and FM stations in memory and recall them at Press the PRESET ( ) button for less than 0.5 seconds to se- the push of a button. (Preset tuning) lect the desired station.

  • Page 32: Tape Playback

    Listening to a cassette tape XL-HP535H ENGLISH ! Tape playback Before playback: " For playback, use normal or low-noise tapes for Press the ON/STAND-BY button to turn the power on. the best sound. (Metal or CrO tapes are not rec- Press the TAPE button.

  • Page 33: Recording On A Cassette Tape

    Main unit Remote Operation ensure that the desired material is properly recorded. control " SHARP is not liable for damage or loss of your recording arising Side A play- Press in the stop from malfunction of this unit. back mode.

  • Page 34: Tape Record Pause Button

    Recording on a cassette tape (continued) XL-HP535H ENGLISH ! Recording from a CD or MP3 disc You can record the desired disc using the CD DIRECT PLAY but- ton. Press the ON/STAND-BY button to turn the power on. Press the CD button.

  • Page 35: Recording From The Radio

    XL-HP535H ENGLISH ! Recording from the radio Sequential recording from several discs: 1 Perform steps 1 - 6 in "Recording from a CD or MP3 disc" on page Tune in to the desired station (see page 23). 2 Within 5 seconds, press the...

  • Page 36: Using The Radio Data System (Rds)

    Using the Radio Data System (RDS) XL-HP535H ENGLISH ! Information provided by RDS RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals Each time the DISPLAY MODE button is pressed, the display along with their regular programme signals.

  • Page 37: Rds Aspm (Auto Station Programme Memory) Button

    XL-HP535H ENGLISH ! Using the Auto Station Programme Memory (ASPM) Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.
  • Page 38 Using the Radio Data System (RDS) (continued) XL-HP535H ENGLISH To stop the ASPM operation before it is complete: Notes: ! The same station name can be stored in different channels. Press the ASPM button whilst it is scanning for stations.

  • Page 39: Rds Programme Type/Traffic Information Search Button

    XL-HP535H ENGLISH " To recall stations in memory To specify programmed types and select stations (PTY search): You can search a station by specifying the programme type (news, sports, traffic programme, etc..see pages 33 - 34) from the sta- tions in memory.
  • Page 40 Using the Radio Data System (RDS) (continued) XL-HP535H ENGLISH Notes: Descriptions of the PTY (Programme Type) codes, TP (Traffic ! If the display has stopped flashing, start again from step 2. If the Programme) and TA (Traffic Announcement). unit finds a desired programme type, the corresponding channel...
  • Page 41 XL-HP535H ENGLISH LIGHT M Classical music for general, rather than specialist COUNTRY Songs which originate from, or continue the musical appreciation. Examples of music in this category tradition of the American Southern States. Charac- are instrumental music, and vocal or choral works.

  • Page 42: Timer And Sleep Operation

    Timer and sleep operation XL-HP535H ENGLISH Timer playback: The unit turns on and plays the desired source (CD, MP3 disc, tuner, tape) at a preset time. Timer recording: The unit turns on and starts recording from the tuner at the preset time.

  • Page 43: 10 2. Timer Indicator

    XL-HP535H ENGLISH Within 10 seconds, press the button to se- Switch input with the button, and then lect "ONCE SET" or "DAILY SET", and press the MEMORY/ press the MEMORY/SET button. SET button. To select the timer playback source: CD, TUNER or TAPE.
  • Page 44 Timer and sleep operation (continued) XL-HP535H ENGLISH Checking the timer setting in the timer stand-by mode: When the preset time is reached, playback or recording will 1 Press the CLOCK/TIMER button. start. 2 Within 10 seconds, press the button to select "ONCE"...

  • Page 45: Radio

    XL-HP535H ENGLISH " Sleep operation To cancel the sleep operation: Press the ON/STAND-BY button whilst "SLEEP" is indicated. The radio, CD, MP3 disc and cassette tape can all be turned off To cancel the sleep operation without setting the system to the automatically.

  • Page 46: Enhancing Your System

    Enhancing your system XL-HP535H ENGLISH " Listening to the playback sounds from VCR, The connection lead is not included. Purchase a commercially avail- able lead as shown below. DVD, etc. VCR, DVD, etc. Use a connection lead to connect the VCR, DVD, etc. to the VIDEO/AUX IN sockets.

  • Page 47: Troubleshooting Chart

    If something is wrong with this product, check the following before connected to this unit, you can enjoy sound with emphasised bass. calling your authorised SHARP dealer or service centre. Connect an RCA lead from a commercially available speaker with a built-in amplifier to the SUBWOOFER PRE-OUT socket.
  • Page 48 Troubleshooting chart (continued) XL-HP535H ENGLISH ! Cassette deck ! Tuner Symptom Possible cause Symptom Possible cause " Cannot record. " Is the erase-prevention tab re- " The radio makes unusual " Is the unit placed near the TV or moved? noises continuously.
  • Page 49 XL-HP535H ENGLISH ! If trouble occurs ! Before transporting the unit When this product is subjected to strong external interference Remove all CDs from the unit. Make sure there is no CD in the disc (mechanical shock, excessive static electricity, abnormal supply tray.

  • Page 50: Maintenance

    Maintenance XL-HP535H ENGLISH ! Cleaning the tape-handling parts ! Cleaning the cabinet " Dirty heads, capstans or pinch rollers can cause poor sound and Periodically wipe the cabinet with a soft cloth and a diluted soap tape jams. Clean these parts with a cotton swab moistened with solution, then with a dry cloth.

  • Page 51: Specifications

    Specifications XL-HP535H ENGLISH ! CD player As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product Type 5-disc multi-play compact disc player improvement without prior notice. The performance specification fig- ures indicated are nominal values of production units.
  • Page 52 SHARP CORPORATION 9906 TINSZA029AWZZ 03M R YT 1 03/12/16 XL-HP535H(H)_BACK.fm TINSZA029AWZZ...
  • Page 53 XL-HP535H MICRO COMPONENT SYSTEM...
