INSTALLATION

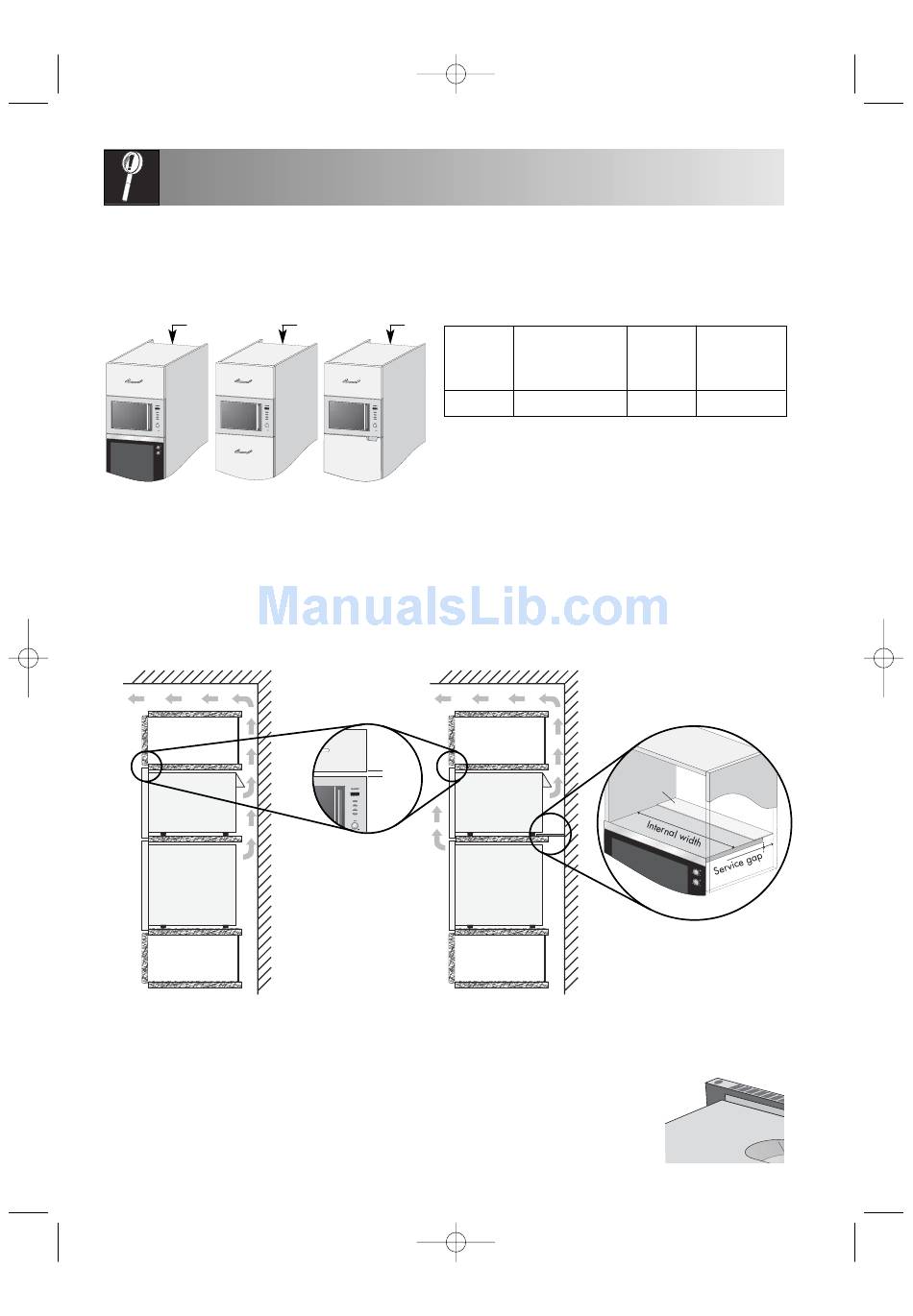

INSTALLING THE APPLIANCE
1. Remove all packaging and check carefully for any signs of damage.
Chimney
Position A
Conventional
oven
2. If fitting the microwave oven above a conventional oven (position A) or a refrigerator (position C) then you
must check the installation instructions for that appliance to determine air intake and exhaust requirements.
A refrigerator needs a chimney to exhaust warm air from the rear. The installation should be as shown
in fig. 1.
A conventional oven exhausts warm air from the front. The installation should be as shown in fig. 2.
If installing the microwave oven above a conventional oven, the Mylar sheet that is supplied with the
microwave oven should be fitted as shown in fig. 3. This prevents warm air from the microwave oven
from being drawn in by the conventional oven.
Figure 1
Microwave
oven
Refrigerator
3. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the oven
seals against the front opening of the cupboard.
4. Ensure the appliance is stable and not leaning. Ensure that a 5 mm gap is kept between the cupboard
door above and the top of the frame (see fig. 4).
5. Fix the oven in position with the screws provided. The fixing points are located on the
top and bottom corners of the oven (see diagram, item 9, on page 3).
6. It is important to ensure that the installation of this product conforms to the
instructions in this operation manual and the conventional oven or refrigerator
manufacturer's installation instructions.
07:43 Page 8
The microwave oven can be fitted in position A, B or C:
Chimney Chimney
Position B Position C
Refrigerator
Figure 4
5 mm
POSITION NICHE SIZE
W D H
A, B + C 562-568x550x380
Measurements in (mm)
NOTE: Ensure the bottom of the oven is 85 cm or
more above the floor.
Figure 2
Microwave
oven
Conventional
oven
8
CHIMNEY Gap Between
(min) Cupboard &
Ceiling
45 100
Figure 3
Mylar sheet
