Installation Instructions
Installer:
Owner:
L
WARNING: If the information in this manual is not followed exactly, a fire or
!
explosion may result causing property damage, personal injury or death.
L
AVERTISSEMENT: Si l'information dans ce manuel n'est pas suivie
!
exactement, une incendie ou une explosion peut résulter, entrainant des
dégats matériels, des blessures ou la mort.

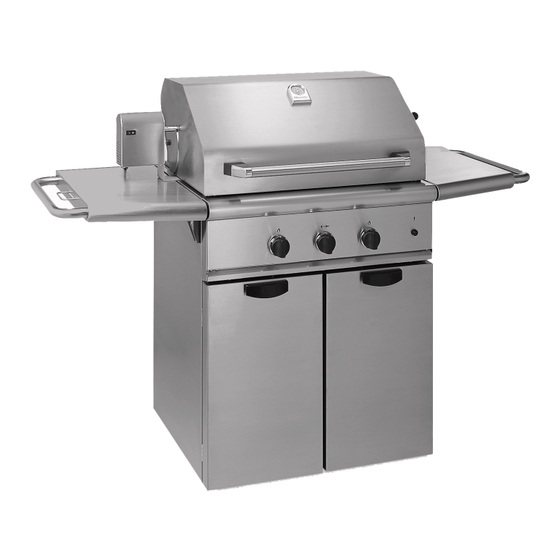

Thermador Char Glo
Outdoor Barbecues
Models:
CGB30RCULP • CGB36RU
CGB48RU • CGB48RSBU
Please leave these instructions with the unit for the owner.
Please retain these instructions for future reference.
for
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thermador CGB30RCULP
Summary of Contents for Thermador CGB30RCULP
-
Page 1: Installation Instructions
Installation Instructions ® Thermador Char Glo Outdoor Barbecues Models: CGB30RCULP • CGB36RU CGB48RU • CGB48RSBU Installer: Please leave these instructions with the unit for the owner. Owner: Please retain these instructions for future reference. WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Page 2 Inside Front Cover...
-
Page 3: Table Of Contents
Contents SECTION 1: Safety Information ..............2 SECTION 2: Gas Requirements ..............3 Natural Gas Requirements ............3 Propane Gas Requirements ............3 Gas Consumption ................ 3 Propane Hook-up ................. 3 SECTION 3: Site Preparation..............5 Built-In Installations ..................5 Cabinet Preparation .................. -
Page 4: Safety Information
SECTION 1: SAFETY INFORMATION FOR YOUR SAFETY AVERTISSEMENT If you smell gas: S’il y a une odeur de gaz: 1. Shut off gas to the appliance. 1. Coupez l’admission de gaz de l’appariel. 2. Extinguish any open flame. 2. Ènteindre toute flamme nue. 3. -
Page 5: Gas Requirements
PROPANE HOOK-UP Tank Gas Regulator Gas Regulator Gas Hose LP Gas Tank GAS CONSUMPTION ® ® The total gas consumption of the Thermador Char Glo barbecues with all burners on "HI" is as follows: CGB30RCULP = 52,000 BTU/Hr CGB36RU =... - Page 6 SECTION 2: GAS REQUIREMENTS For Massachusetts Installations: 1. Shut-off valve must be a “T” handle gas cock. 2. Flexible gas connector must not be longer than 36 inches. 3. Not approved for installation in a bedroom or a bathroom unless unit is direct vent. CAUTION: The appliance must be isolated from the gas supply system by closing its individual manual shut-off valve during any pressure testing of the gas supply...
-
Page 7: Site Preparation
Built-In Island ® CharGlo Outdoor Barbecues Overall Width Model No. Overall Dimensions Cutout Dimensions (Shelves Up) CGB30RCULP CGB36RU CGB48RSBU CGB48RU Note: All height width and depth dimensions are shown in inches. ® All Char-Glo Outdoor Barbecues are CGA and AGA approved. - Page 8 SECTION 3: SITE PREPARATION To combustible construction - Below the cooking surface, non-combustible construc- tion can be placed directly adjacent to the unit. Clear- Below the cooking surface, combustible construction ance of 3" at the lower left rear of the unit must be can be placed adjacent to the unit.
-
Page 9: Electrical Cautions
National Electric Code ANSI/NFPA No. 70, current issue, or Canadian Electric Code C22.1 Part 1. The Thermador® Char Glo® barbecues use an electronic ignition system that requires a 120 VAC, 15A, 60 Hz power supply. A properly grounded duplex outlet must be provided adjacent to the lower left rear corner of the unit. -
Page 10: Unpacking, Moving And Placing The Unit
See conversion instructions below. ONVERSION IT BY ODEL Model No. Orifice Description Part Number Quantity Remarks CGB30RCULP #46 Orifice Hood, Grill Burner 08-04-082-04 To Convert LP To NG #53 Orifice Hood, Infrared Burner 08-04-082-01 Conversion Sticker 08-04-731... - Page 11 SECTION 5: UNPACKING, MOVING AND PLACING THE UNIT TAPE 9. On all models, the bypass jet must be turned clockwise with a small flat-bladed screwdriver until fully seated to set proper low flow rate. See Figures 4 and 5. compartment. Using a flat blade screwdriver, 10.
-
Page 12: Liquid Propane To Natural Gas Conversion
15. Reinstall radiants and grill grates. application. LIQUID PROPANE TO NATURAL GAS CONVERSION Model CGB30RCULP is manufactured at the factory cover on the infrared rotisserie burner housing. for use with propane, and as such requires conversion 5. Locate the infrared burner orifice and remove. -
Page 13: Gas And Electrical Hook-Up
gas flow based on the input rating of the unit certified for use with natural gas in an outdoor (refer to Gas Consumption in Section 2). application. Connect the hose to the regulator. • The regulator must be AGA certified for 12. -
Page 14: Test And Adjustment
SECTION 6: TEST AND ADJUSTMENT CHECKING FOR LEAKS All points of connection to the gas supply should be manifold. Bubbles will form where a leak exists. checked for leaks at time of installation or anytime C. If a leak is present, shut off the gas at the supply. you smell gas. - Page 15 Inside Back Cover...
- Page 16 Thermador reserves the right to change specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products which are transported from the United States for use in Canada. Check with your local Canadian distributor or dealer. Thermador, 5551 McFadden Avenue, Huntington Beach, CA 92649.
