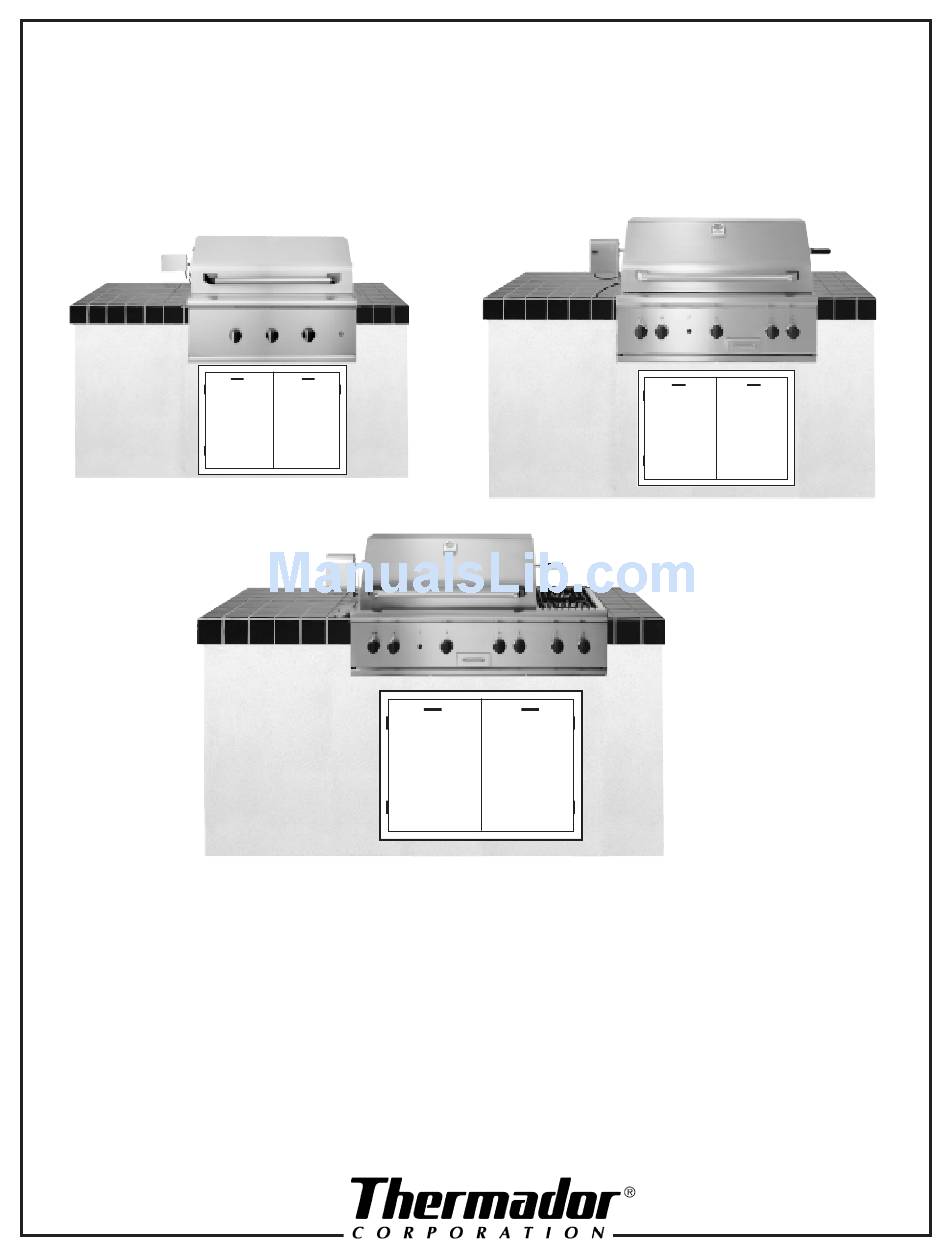

- Page 1 Care Use Manual & CGBD30RX CGBD36RX CGBD48RSBX Thermador Char Glo Outdoor Barbecues ® Models: CGBD30RX • CGBD36RX CGBD48RSBX • CGBD48RX...
- Page 2 A Special Message to Our Customers Thank you for selecting the Thermador® Char Glo® outdoor barbecue. We recommend that you take time to read this entire booklet before using your new appliance for the first time. This booklet contains suggestions we believe will be helpful as well as directions for using all the features of your appliance.
-
Page 3: Table Of Contents
Section 2: Model and Parts Identification ........6 - 8 Model CGBD48RSBX ....................6 Model CGBD36RX, CGBD48RX ................7 Model CGBD30RX ....................8 Installation of LP (Propane) Gas Tank ..............9 LP Lighting Instructions .................... 9 ® Section 3: Using Your Char Glo Barbecue ......... -
Page 4: Warnings For Safe Gas Installations
WARNINGS FOR SAFE GAS INSTALLATIONS Installer: Please leave these instructions with the unit for the owner. Owner: Please retain these instructions for future reference. WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. AVERTISSEMENT FOR YOUR SAFETY Ne pas entreposer ni utiliser de... -
Page 5: Important Information
Thermador® (see the rear cover for contact Keep any electrical supply cord and the fuel supply hose information). If purchased at a retail outlet, the hose away from any heated surfaces. -
Page 6: Section 1: Safety Practices To Avoid Personal Injury
• This appliance is equipped with a three-prong (grounding) plug for your protection against When properly cared for, your new Thermador® Char shock hazard and should be plugged directly into a Glo® barbecue has been designed to be a safe and properly grounded three-prong receptacle. - Page 7 FOR YOUR SAFETY FOR YOUR SAFETY • The gas supply must be turned off at the An LP tank not connected for use shall not LP-gas supply tank when this outdoor cook- be stored in the vicinity of this or any other ing gas appliance is not in use.
-
Page 8: Section 2: Model And Parts Identification
SECTION 2: MODEL AND PARTS IDENTIFICATION MODEL CGBD48RSBX On front of hood Hood / Lid with Handle 11. Control Knobs Thermometer Gauge and Thermador Nameplate 12. Ignition Switch Infrared Rotisserie Burner 13. Lighting Instructions Rotisserie Motor 14. Side Burners (Cover shown on Page 7) Rotisserie Igniter Assembly 15. -
Page 9: Model Cgbd36Rx, Cgbd48Rx
MODEL CGBD36RX On front of hood MODEL CGBD48RX Page 7... -
Page 10: Model Cgbd30Rx
MODEL CGBD30RX On front of hood Literature Pack Contents: Hood / Lid with Handle Product Registration Card – Please complete and Thermometer Gauge and Thermador Nameplate return. Thank You. Infrared Rotisserie Burner User's Manual: Rotisserie Motor Assembly Care & Use Recommendations... -
Page 11: Installation Of Lp (Propane) Gas Tank
INSTALLATION OF LP (Propane) GAS TANK Bottom of unit Type 1 Regulator Coupling 1/2" NPT fitting Regulator Adapter threading compound on these threads must be Main L.P. Regulator hose resistant to LP gas Valve assembly 10" W.C. L.P. Tank (Type 1) LP (Propane) Lighting Instructions •... -
Page 12: Section 3: Using Your Char Glo
® SECTION 3: USING YOUR CHAR GLO BARBECUE (MODEL CGBD48RSBX shown) Thermometer Grate Infrared Knob Grill Burner Knobs Smoker Knob Surface Burner Knobs Page 10... -
Page 13: Before The First Use
Before the First Use light any burners. 1. Record model and serial number of your barbecue ® for future contacts with Thermador or an 1. Make sure that all control knobs are turned to authorized servicer (Located on left-side LP the OFF position. -
Page 14: Lighting Instructions With Automatic Ignition
® SECTION 3: USING YOUR CHAR GLO BARBECUE LIGHTING INSTRUCTIONS WITH AUTOMATIC IGNITION – Read Before Lighting – Main and Smoker Burners: Infrared Rotisserie Burner: 1. Raise hood / lid. 1. Raise hood lid. 2. Light only one burner at a time. 2. -
Page 15: Lighting Instructions For Manual Lighting
® SECTION 3: USING YOUR CHAR GLO BARBECUE MANUAL LIGHTING INSTRUCTIONS** – Read Before Lighting – Follow these steps to light the Main Burners manually: 1. Turn off all the burners. 2. Wait 5 minutes to allow any accumulated gas to dissipate. Middle section of radiant Access Hole for Manual Lighting... -
Page 16: Section 4: The Grill
5. For models using a propane gas tank, close the valve on the tank after cooking. Note: If all burners are in use, a five gallon LP tank can be used for 3-1/2 hours of cooking with model CGBD30RX and 1-1/2 to 2-1/2 hours of cooking with models CGBD36RX, CGBD48RSBX and CGBD48RX. -
Page 17: General Smoker Information
GENERAL SMOKER INFORMATION • The Smoker is used with the hood down and in combination with the grill or rotisserie. WARNING: Never block vent opening at rear of hood. Use with the vent opening blocked will result in damage to the unit and may cause a fire or injury. •... -
Page 18: Grilling Chart
Grilling Chart THICKNESS/ GRILL BURNER INTERNAL DONENESS APPROXIMATE FOOD ITEM WEIGHT METHOD SETTING OR TEMPERATURE (ºF) GRILLING TIME BEEF: Ground Beef Patties 3/4" thick Direct Med Hi No pink color 10 - 15 min. total Roasts: Rib Eye, Sirloin 4 to 6 lbs Indirect Med/O/Med 140 Med Rare... - Page 19 Grilling Chart THICKNESS/ GRILL BURNER INTERNAL DONENESS APPROXIMATE FOOD ITEM WEIGHT METHOD SETTING OR TEMPERATURE (ºF) GRILLING TIME CHICKEN: Breasts, boneless pounded to 3/4 Direct Medium Juices run clear 8 - 12 min. total inch thick Pieces 2 - 3 lbs. Direct Med Low 170 - breast...
-
Page 20: Section 5: The Rotisserie
SECTION 5: THE ROTISSERIE AND ASSEMBLY Heat edge General Rotisserie indicator Skewer with Information center line • Glow igniter for Infrared burner indicator remains on entire time the rotisserie Heat edge is on. indicator • Rotisserie cooking rotates food in front of the Infrared burner. -
Page 21: Trussing Poultry
TRUSSING POULTRY FOR THE ROTISSERIE I. Slip one of the forks on the skewer with the tines pointing to the tip of the skewer. Loosely tighten the screw to keep it from slipping. 2. Insert the skewer through the bird securing with the fork go to frame 80 go to frame 80 4. -
Page 22: Rotisserie Chart
10 minutes before carving. • Timings are affected by weather conditions such as wind and outside temperature. ** Refer to Page 19 for directions on trussing poultry to skewer. TEMPERATURE GAUGE Thermador Nameplate Gauge • Use this feature to view the temperature under the hood/lid during cooking. -
Page 23: Section 6: Extra Features
SECTION 6: EXTRA FEATURES GENERAL SIDE BURNER INFORMATION • Side burners are only available on model CGBD48RSBX. • Each burner is rated at 15,000 BTU on High. • Choose a pan base to fit the flame size. The flame should never extend beyond the base of the pan. •... -
Page 24: Section 7: Care And Maintenance
SECTION 7: CARE AND MAINTENANCE GRILL ASSEMBLY Reversible Grate Radiant (Heat Baffle) Double-U™ shape Burner Quick Clean Method for Grates Immediately after cooking, turn off the burners. Fill a container with very hot water. Using a long handled, brass barbecue brush dipped in hot water, scrub the hot grates. Use a heavy mitt to protect your hand from the heat and steam. -
Page 25: Cleaning Chart
CLEANING CHART As a safety measure, do not store cleaners in the storage drawers in the barbecue. PART and MATERIAL SUGGESTED CARE Exterior Finish - Stainless Steel Finish Protector: Stainless Steel Magic ® and EZ Brite ® Stainless Steel The quality of this material resists most stains and pitting, providing the surface is kept clean and protected. -
Page 26: Section 8: Service
BEFORE PHONING FOR SERVICE Troubleshooting ® ® Power Failure - In the event of a power failure, the Thermador Char Glo barbecue may still be used by lighting the burners with a match according to the Lighting Instructions on Page 13. -
Page 27: Section 9: Warranty
The warranty defective due to materials and workmanship during first applies even if you should move. year. Extended warranties cover parts only, not incurred THERMADOR DOES NOT ASSUME ANY labor. Service must be provided by a Factory Authorized RESPONSIBILITY INCIDENTAL Service Agency during normal working hours. - Page 28 Thermador reserves the right to change specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products which are transported from the United States for use in Canada. Check with your local Canadian distributor or dealer. Thermador, 5551 McFadden Avenue, Huntington Beach, CA 92649.
