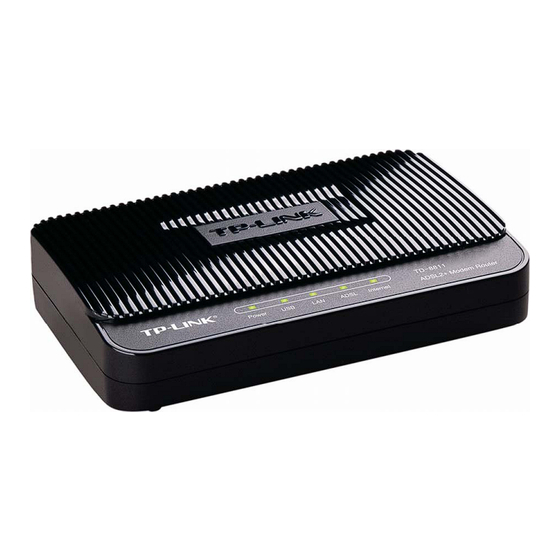

TP-Link TD-8811 User Manual

Adsl2+ modem router
Hide thumbs

Advertisement

Quick Links

TD-8811
ADSL2+ Modem Router
Rev: 1.0.2
1910010224

Advertisement

loading

  Related Manuals for TP-Link TD-8811

  Summary of Contents for TP-Link TD-8811

  • Page 1 TD-8811 ADSL2+ Modem Router Rev: 1.0.2 1910010224...
  • Page 2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Product Overview ...................... 2 Main Features ......................2 Supporting Protocol....................2 Transmit Data-rate ....................3 ATM Property ......................3 System Support......................3 Working Environment ....................3 Conventions ......................3 Chapter 2. Hardware Installation .................
  • Page 5 4.3.4 Security...........................50 4.3.5 Routing ...........................54 4.3.6 DSL..........................56 Diagnostics......................58 Management ......................59 4.5.1 Settings...........................59 4.5.2 System Log ........................61 4.5.3 SNMP Agent........................63 4.5.4 Access Control .......................63 4.5.5 Update Firmware......................66 4.5.6 Save/Reboot........................66 Chapter 5. Software Dial..................68 Appendix A: FAQ....................71 Appendix B: Default Config................... 73...
  • Page 6: Package Contents

    Package Contents The following items should be found in your package: One TD-8811 ADSL2+ Modem Router One Power Adapter for TD-8811 ADSL2+ Modem Router One Resource CD for TD-8811 ADSL2+ Modem Router, including: • This Guide • Quick installation Guide Program •...
  • Page 7: Chapter 1. Introduction

    The TD-8811 is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX. The TD-8811 not only uses html (web mode through Ethernet port) to configure the Router but also...
  • Page 8: Transmit Data-Rate

    Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet Support Auto-MDIX 1.7 Working Environment Operating temperature: 0 ℃ ℃ Storage temperature: -40 ℃ ℃ Humidity: 10%~90% (non-condensing) 1.8 Conventions The Router or TD-8811, or device mentioned in this User Guide stands for TD-8811 ADSL2+...
  • Page 9 TD-8811 ADSL2+ Modem Router User Guide Modem Router without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation. You can set the parameters according to your demand.
  • Page 10: Chapter 2. Hardware Installation

    ADSL2+ Modem Router User Guide Chapter 2. Hardware Installation The TD-8811 maintains three separate interfaces, one Ethernet, one ADSL and one power adapter interface. The Router should not be located where it will be exposed to moisture or excessive heat.
  • Page 11: Rear-Panel

    2.3 Hardware Installation Procedures The procedure to install the Router can be described in the following steps: First Step: Connect the MODEM port of Splitter with the LINE port of the TD-8811 ADSL2+ Modem Router by telephone line. Second Step: Connect category 5 cable with RJ45 jacks to ADSL2+ Modem Router’s LAN port and your computer’s NIC.
  • Page 12 TD-8811 ADSL2+ Modem Router User Guide Figure 2-1...
  • Page 13: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 Computer Configuration After you directly connect your PC to the TD-8811 or connect your adapter to a Hub/Switch which has connected to the Router, you need to configure your PC’s IP address. Now you have...
  • Page 14 TD-8811 ADSL2+ Modem Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 15 TD-8811 ADSL2+ Modem Router User Guide Step 4: Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen below. And then click OK. Figure 3-4 Setting IP address manually The default IP address of the ADSL2+ Modem Router is 192.168.1.1, and the default Subnet Mask is 255.255.255.0.
  • Page 16 TD-8811 ADSL2+ Modem Router User Guide Figure 3-5 Note: Users of Windows 98 can open TCP/IP Properties according to the following: Right-click (Mouse) Network Neighbor Choose Properties - Double-click TCP/IP. Users of Windows 2000/NT/XP can do the following: Right-click Network Neighbor...
  • Page 17: Login

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-6 If the screen looks like the following, the connection has failed. Please try again. Figure 3-7 3.2 Login Startup Internet Explorer, and enter 192.168.1.1;then enter default user name (admin)、 password (admin), When ADSL connection is OK, the following login box will pop up.
  • Page 18: Quick Setup

    TD-8811 ADSL2+ Modem Router User Guide 3.3 Quick Setup Figure 3-9 is the main page of the Router. Figure 3-9 Please select Quick Setup. Enter the VPI and VCI values provided by your Internet Service Provider and click Next. Figure 3-10...
  • Page 19: Pppoa

    TD-8811 ADSL2+ Modem Router User Guide Select the relevant Connection Type and Encapsulation mode as the settings provided by your Internet Service Provider and click Next. 3.3.1 PPPoA Select PPP over ATM (PPPoA) Connection Type, and click Next. Figure 3-11 Enter the Username and Password provided by your Internet Service Provider and click Next.
  • Page 20 TD-8811 ADSL2+ Modem Router User Guide Figure 3-12 Click Save/Reboot.
  • Page 21: Pppoe

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-13 3.3.2 PPPoE Select PPP over Ethernet (PPPoE) Connection Type, and click Next.
  • Page 22 TD-8811 ADSL2+ Modem Router User Guide Figure 3-14 Enter the Username and Password provided by your Internet Service Provider and click Next.
  • Page 23 TD-8811 ADSL2+ Modem Router User Guide Figure 3-15 Click Save/Reboot.
  • Page 24: Mer

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-16 Note: The Router will restart when you complete the configuration, so you have to wait for a while until it restarts successfully. 3.3.3 MER Select MAC Encapsulation Routing (MER) Connection Type, and click Next.
  • Page 25 TD-8811 ADSL2+ Modem Router User Guide Enter the parameter and the way which is provided by your ISP, then click Next.
  • Page 26 TD-8811 ADSL2+ Modem Router User Guide Figure 3-17 Click Save/Reboot.
  • Page 27: Ipoa

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-18 3.3.4 IPoA Select IP over ATM (IPoA) Connection Type, and click Next.
  • Page 28 TD-8811 ADSL2+ Modem Router User Guide Figure 3-19 b) Enter the parameter and the way which is provided by your ISP, then click Next. Figure 3-20 Click Save/Reboot.
  • Page 29: Bridging

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-21 3.3.5 Bridging Select Bridging Connection Type, and click Next.
  • Page 30 TD-8811 ADSL2+ Modem Router User Guide Figure 3-22 Click Save/Reboot.
  • Page 31: Change Password

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-23 Note: After you complete any setup, the new setup must be saved and the Router must be restarted for the configuration to take effect. Please click the Save/Reboot button to restart. 3.4 Change Password...
  • Page 32 TD-8811 ADSL2+ Modem Router User Guide Figure 3-24 Default value of user name and password is “admin”; if you want to change them, please go to “Access control” “Password” changing them. (Figure 3-25) “Management” Figure 3-25...
  • Page 33: Dhcp Ip Reservation

    TD-8811 ADSL2+ Modem Router User Guide 3.5 DHCP IP Reservation When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to servers that require permanent IP settings.
  • Page 34 TD-8811 ADSL2+ Modem Router User Guide as it showed below: Figure 3-26 2. Click New Entry button to add new entries, and the screen showed below pop up, you can modify an address reservation entry in this screen; Figure 3-27 3.
  • Page 35: Usb Configuration

    TD-8811 ADSL2+ Modem Router User Guide Figure 3-28 7. Click Save/Reboot button to save the settings and reboot the router. Note: The function won't take effect until the router reboots. 3.6 USB Configuration If you use the USB interface, firstly, you must install the USB driver to the computer. You can obtain the drives from the provided CD or download from our website.
  • Page 36 TD-8811 ADSL2+ Modem Router User Guide Figure 3-26 After that, the Figure 3-27 will display. Select the “search removable media(floppy, CD-ROM…)” and click Next. Figure 3-27...
  • Page 37 TD-8811 ADSL2+ Modem Router User Guide Then Figure 3-28 is available. The driver will be searched and installed. Note: You must insert the CD first. Figure 3-28 After that, you will see the Figure 3-29. Click Finish to complete the installation.
  • Page 38 TD-8811 ADSL2+ Modem Router User Guide Figure 3-29 Please refer to chapter 3.1 to finish the IP configuration for USB connect. Then you could use the USB device. Note: All of the above settings are under windows XP. If you want to pull out the USB device you must disconnect the network of USB first.
  • Page 39: Chapter 4. Web-Based Configuration

    TD-8811 ADSL2+ Modem Router User Guide Chapter 4. Web-based Configuration 4.1 Device Info The Device Info page provides the current information about the ADSL2+ Modem Router. All information is read-only. Figure 4-1 The information about the Summary, WAN, Statistics, Route, ARP, and DHCP are all displayed.
  • Page 40: Wan

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-2 4.3.1 WAN Choose “Advanced Setup” ”WAN”, and you will see the page of Wide Area Network (WAN) Setup as shown in Figure 4-3. Figure 4-3 There are 4 PVC links in the WAN setup page. Click the Add button or choose the appropriate PVC according to your need.
  • Page 41 TD-8811 ADSL2+ Modem Router User Guide Figure 4-4 Enter VPI/VCI value and service category provided by your ISP. Click Next to enter the next step. You will see the Figure 4-5. Figure 4-5...
  • Page 42 TD-8811 ADSL2+ Modem Router User Guide After choosing the proper protocol, enter the correct parameters supported by your ISP. Enable the configurations, and then you will go to the Internet. Note: The type of network protocol selected may be different in different areas. There are five types (Figure 4-5), so you should ask your ISP to acquire the Connection Type and Encapsulation...
  • Page 43 TD-8811 ADSL2+ Modem Router User Guide PPP IP extension: If this box is checked, the IP address obtained by the Router will be assigned to the computer, and the NAT and Firewall will be disabled. Use Static IP Address: Check this box to use the static IP address to dial. The default value is disabled.
  • Page 44 TD-8811 ADSL2+ Modem Router User Guide Figure 4-8 PPP over Ethernet (PPPoE) If you select the protocol of PPP over Ethernet (PPPoE), you will see the Figure 4-9. Figure 4-9 PPP Username: Enter your username for your PPPoE connection to identify and verify...
  • Page 45 TD-8811 ADSL2+ Modem Router User Guide PPP Password: Enter your password for your PPPoE connection. PPPoE Service Name: Enter a name for the PPPoE connection for recognition. Authentication Method: Choose a method of authentication, AUTO, PAP, CHAP, or MSCHAP. MTU: The default MTU value is 1480 Bytes. It is not recommended that you change the default value unless required by your ISP.
  • Page 46 TD-8811 ADSL2+ Modem Router User Guide Figure 4-11 MAC Encapsulation Routing (MER) If you select the protocol of MAC Encapsulation Routing (MER), you will see the page as shown in Figure 4-12. Figure 4-12 Obtain an IP address automatically: Check this radio button to obtain the IP address automatically.
  • Page 47 TD-8811 ADSL2+ Modem Router User Guide information provided by your ISP to configure the WAN IP settings. Obtain default gateway automatically: This radio button is checked by default. It’s recommended that you keep the default settings to allow the Router to obtain the default gateway automatically.
  • Page 48 TD-8811 ADSL2+ Modem Router User Guide Figure 4-14 IP over ATM (IPoA) If you select the protocol of IP over ATM (IPoA), you will see the Figure 4-15. Enter the parameters provided by your ISP. Figure 4-15 WAN IP Address: Enter the IP Address provided by your ISP.
  • Page 49 TD-8811 ADSL2+ Modem Router User Guide Use the following DNS server addresses: Check this radio button then you can enter the primary DNS server and secondary DNS server. If you have any problems, please ask your ISP for the information.
  • Page 50 TD-8811 ADSL2+ Modem Router User Guide Figure 4-17 Bridging If you select the Bridging protocol, you will see the Figure 4-18. Click the Next button. Figure 4-18 Then you will see the Figure 4-19. Click Save to complete the configuration...
  • Page 51: Lan

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-19 Note: After completing any setup, the new setup must be saved and the Router must be restarted for the configuration to go into effect. Please click the Save/Reboot button to restart as shown in Figure 4-20.
  • Page 52 TD-8811 ADSL2+ Modem Router User Guide Network (LAN) parameters in the screen as shown in Figure 4-21. Figure 4-21 IP Address - Enter an IP address for the Router. Then you can access the Web-based Utility via this IP address. The default setting is 192.168.1.1.
  • Page 53 TD-8811 ADSL2+ Modem Router User Guide default value is 24 hours. Set Address Reservation - Click this button, you can view and add a reserved address for clients via the Address Reservation page as shown in Figure 4-21. When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server.
  • Page 54: Mac Clone

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-23 Enter the MAC address in XX:XX:XX:XX:XX:XX format and reserved IP address in dotted-decimal notation of the computer for which you want to reserve an IP address. Note: The MAC Address and IP Address added in Figure 4-23 are used for illustrating.
  • Page 55: Security

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-24 Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here. WAN MAC Address - This field displays the current MAC address of the WAN port. If your ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX:XX:XX:XX:XX:XX format (X is any hexadecimal digit).
  • Page 56 TD-8811 ADSL2+ Modem Router User Guide 4.3.4.1 MAC Filtering Choose “Security→MAC Filtering” menu, you can configure the MAC filtering rule in the next screen similar to Figure 4-26. The MAC Address Filtering feature allows you to control the access of users on your local network basing on their MAC addresses.
  • Page 57 TD-8811 ADSL2+ Modem Router User Guide Select the protocol type. Enter the destination MAC address. Enter the source MAC address. Select the frame direction. Select the WAN interfaces. Click Save/Apply to save your settings. Figure 4-28 To remove an existing entry, follow the steps below.
  • Page 58 TD-8811 ADSL2+ Modem Router User Guide Figure 4-29 For example: If you don’t want your child_1 to surf the Internet from 18:00 to 20:00 on weekdays. You can follow the steps below. Click the Add button in Figure 4-29 to go to the Time of Day Restriction page as shown in Figure 4-30.
  • Page 59: Routing

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-30 To remove an existing entry, follow the steps below. Check the box in the Remove column of the entry as shown in Figure 4-29. Click the Remove button below. 4.3.5 Routing Choose “Advanced Setup→Routing” menu, you can see two submenus under the Routing menu as shown in Figure 4-31.
  • Page 60 TD-8811 ADSL2+ Modem Router User Guide Figure 4-32 Enable Automatic Assigned Default Gateway - Select this checkbox, and then the Router will accept the first received default gateway assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s). If this checkbox is not selected, you have to enter the static default gateway and/or an interface.
  • Page 61: Dsl

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-33 To add a new entry, follow the steps below. Click the Add button in Figure 4-33 to go to the Static Route Add page as shown in Figure 4-34. Enter the IP address of the destination network. This parameter specifies the IP network address of the final destination.
  • Page 62 TD-8811 ADSL2+ Modem Router User Guide Figure 4-35 If you want to make some advanced settings, click Advanced Settings button in Figure 4-35 to go to the DSL Advanced Settings page as shown in Figure 4-36. Figure 4-36 If you want to select the tone, click the Tone Selection button to go to the ADSL Tone Settings...
  • Page 63: Diagnostics

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-37 4.4 Diagnostics Choose “Diagnostics”, and your modem will test your DSL connection. Then you will see the test results for the connectivity to your local network and your DSL service provider similar to...
  • Page 64: Management

    TD-8811 ADSL2+ Modem Router User Guide Figure 4-38 4.5 Management Choose “Management”, and you can see the submenus as shown in Figure 4-39. Figure 4-39 4.5.1 Settings Choose “Management→Settings” menu, and you will see the submenus as shown in Figure 4-40.
  • Page 65 TD-8811 ADSL2+ Modem Router User Guide 4.5.1.1 Backup Choose “Settings→Backup” menu, and you can save the current configuration of the Router as a backup file in Figure 4-41. Click Backup Settings button to save your current configuration. Figure 4-41 4.5.1.2 Update Choose “Settings→Update”...
  • Page 66: System Log

    TD-8811 ADSL2+ Modem Router User Guide 4.5.1.3 Restore Default Choose “Settings→Restore Default” menu, and you can restore the configurations of the Router to its factory default as shown in Figure 4-43. Click the Restore Default Settings button to begin restoring.
  • Page 67 TD-8811 ADSL2+ Modem Router User Guide Figure 4-45 Click the Configure System Log button, and you will go to the Configuration page as shown in Figure 4-46. Figure 4-46 Log - Check the Disable radio button to disable the system log function. The default setting is enabled.
  • Page 68: Snmp Agent

    TD-8811 ADSL2+ Modem Router User Guide 4.5.3 SNMP Agent Choose “Management→SNMP Agent” menu, and you will go to the SNMP (Simple Network Management Protocol) page as shown in Figure 4-47. SNMP allows a management application to retrieve statistics and status from the SNMP agent in this device. Select the desired values and click Save/Apply to configure the SNMP options.
  • Page 69 TD-8811 ADSL2+ Modem Router User Guide Figure 4-49 4.5.4.2 IP Address Choose “Access Control→IP Address” menu, and can view and configure the IP address access control in the screen as shown in Figure 4-50. If enabled, only PCs with IP addresses listed are allowed to access the Router.
  • Page 70 TD-8811 ADSL2+ Modem Router User Guide Enter the IP address (e.g. 192.168.1.23) you want to add in the IP Address filed. Click Save/Apply to save your configuration. Figure 4-51 4.5.4.3 Password Choose “Access Control → Password” menu, and you can change the factory default password of the Router in the screen as shown in Figure 4-52.
  • Page 71: Update Firmware

    TD-8811 ADSL2+ Modem Router User Guide 4.5.5 Update Firmware Choose “Management→Update Firmware” menu, and you can update the latest version of firmware for the Router in the screen as shown in Figure 4-53. Make sure the firmware or romfile you want to use is on the local hard drive of the computer. Click Browse… to find the local hard drive and locate the firmware or romfile to be used for upgrade.
  • Page 72 TD-8811 ADSL2+ Modem Router User Guide Figure 4-54...
  • Page 73: Chapter 5. Software Dial

    ADSL2+ Modem Router User Guide Chapter 5. Software Dial If TD-8811 CPE is working in bridged (RFC 1483 Bridged) mode when connecting to the Internet, you must install dial software on your PC. There are some software working on WINDOWS in market, examples as EnterNet3000、RASPPPoE、WinPeET.
  • Page 74 TD-8811 ADSL2+ Modem Router User Guide Figure 5-1 Click “Set up a connection or network” in the left of this page. And choose “Set up a dial-up connection” in the new page; click Next. After that, you will see Figure 5-2; click “Set up a connection anyway”...
  • Page 75 TD-8811 ADSL2+ Modem Router User Guide the connection you just created.
  • Page 76: Appendix A: Faq

    TD-8811 ADSL2+ Modem Router User Guide Appendix A: What related parameters are required to acquire ISP when you want to access the internet by ADSL Router? Dial user: Connection protocol, User name, Password, Value of VPI/VCI, Encapsulation mode of AAL5 and so on.
  • Page 77 TD-8811 ADSL2+ Modem Router User Guide and so on, whether you need to install the dial software, such as Winpoet, Enternet. This product has the PPP dial procedure inside so you will not need to use the dial software if your protocol is PPPoA or PPPoE, ADSL Modem will connect automatically.
  • Page 78: Appendix B: Default Config

    TD-8811 ADSL2+ Modem Router User Guide Appendix B: Default Config admin User name admin Password 192.168.1.1 IP Address...
