Summary of Contents for MEMUP MEDIADISK

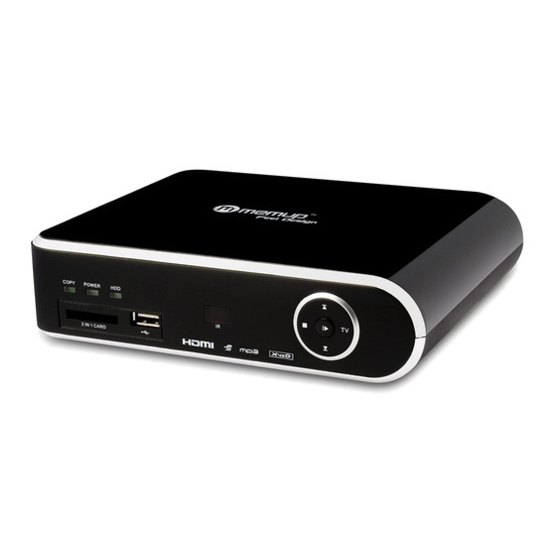

- Page 1 Feel Design User Guide User Guide User Guide Instruction manual Instruction manual Instruction manual MEDIADISK MEDIADISK FX Series FX Series...
-
Page 2: Table Of Contents
USER GUIDE SAFETY AND OTHER INSTRUCTIONS REMARKS PRODUCT VIEW ACCESSORIES REMOTE CONTROL PRODUCT USE MEDIA PLAYBACK SETUP MENU SPECIFICATIONS... -
Page 3: Safety And Other Instructions
SAFETY AND OTHER INSTRUCTIONS Please use Mediadisk FX carefully and read following instructions. >>> Copyright >>> Water / Moisture Software, audio, video or any intellectual Do not contact the Mediadisk FX with water or properties are protected by copyright and liquid. -
Page 4: Remarks
You could either select by media with icons or by explorer with “Explorer” icon. 2. Plug AC adapter 3. Press [Play] button for 3 seconds on front panel or [Power] on remote control, the Mediadisk will switch on as the LED will turn on 4. -
Page 5: Remote Control
REMOTE CONTROL FUNCTION POWER Power ON/OFF MUTE Audio mute ON/OFF TV SYSTEM TV Output Mode(CVBS/HDMI SETUP All kinds of Parameter Settings: Press “Setup “ to Return Menu; Play Video_TS folder Like DVD SUBTITLE SRT.SSA.ASS.SUB.ASS.TXT GOTO Select Playback time when playing Video MENU Main MENU RETURN... -
Page 6: Product Use
PRODUCT USE Coaxial mode Make sure your Mediadisk FX and Hifi System are correctly plugged with a coaxial cable (not included). Connect composite AV cable Make sure your Mediadisk FX and TV are correctly plugged with a jack/RCA cable (included), using scart adapter if necessary. - Page 7 Make sure your Mediadisk FX and TV are correctly plugged with an Scart cable (not included). Then, press [TV SYSTEM] button on Mediadisk FX remote control to choose the AV output mode. The menu appears on TV if correct AV input is selected.
- Page 8 USB Host Once an USB device is connected, select folders in menu “Explorer” to display the content. Warning: Some video playback can slow down if the bitrate is too high (over 7MB / s), indeed, data transfer is too high and is limited by the USB output. Only 500MA electric current supply for USB host. Card Reader Once a memory card is connected, select folders in menu “Card”...
-
Page 9: Media Playback
MEDIA PLAYBACK When you switch on Mediadisk FX for the first time, you will find the main menu after a few seconds. Please use [ ] or [ ] to select the device you want to enter, then chose your media type between “VIDEO”, “MUSIC”, “PHOTO”, “SLIDE”... - Page 10 Photo Menu Use [ ] or [ ] to select the menu you want to enter. Confirm your selection by pressing [Enter] button to play the file you want. Only Photo files will be displayed under “Photo” Menu. Other media files such as Video or Audio files won’t be displayed in this menu.
-
Page 11: Setup Menu
SETUP MENU Press [SETUP] button of the Mediadisk FX remote control, the following interface will appear : General settings OSD Lang: Select the language to display the SETUP MENU, information and Movie subtitle. Screen Saver Control the screen saver. Rom Version: Check the software version. -
Page 12: Specifications
SPECIFICATIONS CONTENT FORMAT SUPPORTED: Video: MPEG1/2/4, XVID, VCD, ISO DVD files Format: AVI / MPG / MPEG / DAT / VOB Photos: JPEG, JPG Audio: MP3 / WMA / AAC / OGG Subtitles: SRT, SSA, SUB, TXT VIDEO OUTPUT SPECIFICATION Image Resolution Up to 1920 x 1080i CONNECTIONS...
