Summary of Contents for MEMUP MEDIADISK
- Page 1 Feel Design User Guide User Guide User Guide Instruction Manual Instruction Manual Instruction Manual MEDIADISK MEDIADISK MX Series MX Series...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL 1. Player View....................1 2. Features....................... 2 3. Specifications ..................... 3 4. Precautions ....................3 5. Installation Connection ................4 6. Remote Control................... 7 7. User interface....................8 8. Upgrading process ................... 11 9. Trouble shooting..................12... -

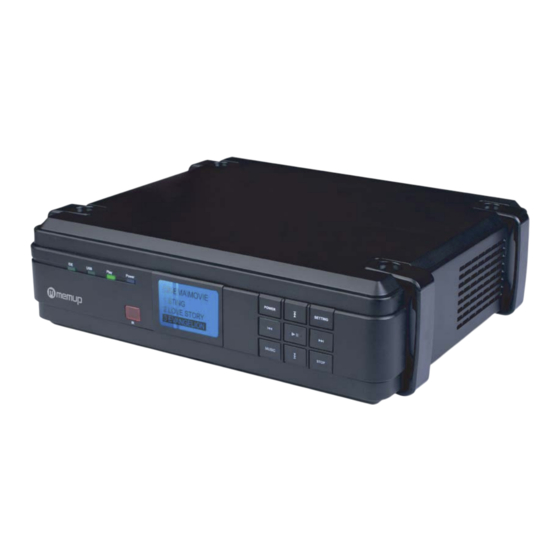

Page 3: Player View
Player View - 1 -... -
Page 4: Features
Features Enjoy Your Movies on TV! You can enjoy favorite movies and home video on TV, because Player supports most of video formats: MPEG1, MPEG2, MPEG4, AVI, Divx3.11, 4x, 5x, XviD, DVD (IFO, VOB), VCD (DAT), etc… Digital Music Box Player can play various audio files such as AC3, MP2, MP3, DTS pass through, WMA, OGG through the TV speaker or your existing audio system. -
Page 5: Specifications
Specifications Video MPEG1/2,Div3.11.div4.0.div5.0.divx,Xvid,DVD(IFO,VOB),VCD(DAT), M2V,ISO Supported File Audio AC3, MP2, MP3, DTS pass through Ogg, WMA. MPGA MPA Photo JPEG USB2.0 480Mbps(Cypress chipset) Component Video: RCA, YPbPr Composite Video: RCA and S-Video Input & Output Audio: RCA L/R/ Coaxial .Optical DVI-I(Digital Visual Interface, support analog signals and digital signals) IR-Ext Full featured IR-Remote control User Interface... -
Page 6: Installation Connection
Installation Connection １、Connection with ordinary (Composite) TV output Connect Player and your TV using the yellow Video cable. Turn on the Player and TV. Select appropriate video input mode on your TV until you can get initial Player screen. 2、Connection with S-Video output Connect Player and TV using S-Video cable .Turn on Player and TV, select appropriate video... - Page 7 4、Connection with 2 CH of Normal TV Connect left (white) and right (red) sound output appropriate terminal of your TV or Hi-Fi 5、Connection with Coaxial output When you have a multi channel decoder/ amplifier with coaxial input, you can enjoy 5.1CH high quality sound through coaxial cable.
- Page 8 7、Connection with computer Connect Player with your computer by USB cable data will be transferred from PC to Player. (Player should be powered on) and then can check new drive at PC without installing driver at Windows ME/2000/XP 8、Connection with DVI output Connect the player and TV with DVI cable, Turn on the player and your TV, please confirm your TV...
-
Page 9: Remote Control
Remote control Remote Controller Description SETUP Enter/Exit the setup menu. VOL- VOLUME DOWN VOL+ VOLUME UP MUTE Mute ON/OFF POWER Power ON/OFF Change the display mode ( NTSC/S-VIDEO, PAL/S-VIDEO) TV out INFO Popup video information OSD during Video Play. SEARCH Popup random access OSD during Video Play PG UP Page Up / skip movie one by one during video play... -
Page 10: User Interface
User Interface 1、Video Setup 1) Video Out Support NTSC/S-Video, YPbPr480i, YPbPr480p. YPbPr720p, YPbPr1080i, PAL/S-Video, YPbPr/PAL. 2) TV Type: Support 4 × 3, 16:9 3) Brightness: You can control brightness in range 0 ~ 100 4) Contrast: You can control contrast in range 0 ~ 100 5) Saturation: You can control contrast in range 0 ~ 100... - Page 11 4、Skin Setup Skin Type: Default Skin 5、Misc Setup 1) Language: Multilingual 2) System Default: You can change setting of the system default 3) Subtitle Size: You can select subtitle font size (Middle/Large) 4) Subtitle Color: You can change color of subtitle and its outline (Black /White, Black/Yellow, White/Yellow) 6、Firmware Setup (1) Firmware upgrade:...
- Page 12 7、Firmware Setup (2) Firmware upgrade: upgrade firmware, should make "firmup" folder at root directory and should copy download file at "firmup" folder. And then you can browser this file at setup F/W menu 8、Play Video Files Select [Media] ->Movie -> Then you will see video files you saved into Player.
-
Page 13: Upgrading Process
How to download firmware 1、Download the latest firmware from http://www.memup.com to your PC. 2、Connect Player with your PC through USB cable and turn it on. 3、Your system will recognize Player as an external hard drive. -
Page 14: Trouble Shooting
Trouble Shooting Description Solution The Player doesn't respond to 1. Make sure to have remote control towards player receiver on front remote control panel. 2. Reduce distance of remote control and player 3. Replace batteries of remote control. No display on TV 1.
