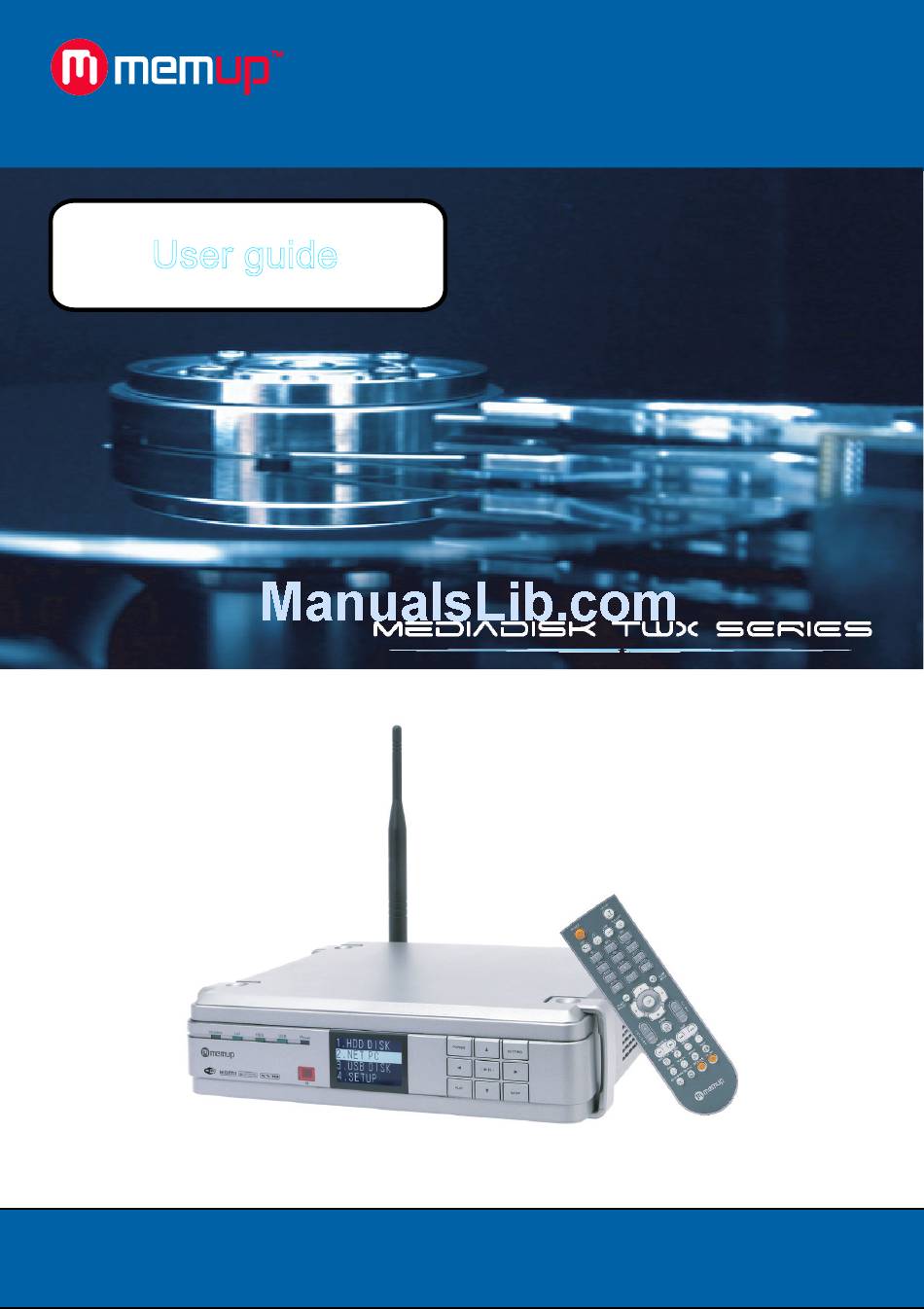

- Page 1 Feel Design User guide User guide MEDIADISK MEDIADISK TWX Series TWX Series...
-
Page 2: Table Of Contents
USER GUIDE 1. PRODUCT FEATURES 2. PLAYER VIEW 3. REMOTE CONTROL 4. INSTALLATION CABLE CONNECTION 5. NETWORK DATA SHARING WITH PC 6. SETUP MENU SHARING 7. MOVIE PLAY 8. MUSIC PLAY 9. PHOTO PLAY 10. FIRMWARE UPGRADE 11. TROUBLE SHOOTING... -
Page 3: Product Features
1. PRODUCT FEATURES Mediadisk TWX Series is a Home Media Center, with a built-in 3.5“ HDD, can play media files (movies, audios and photos) through TV and when connected to PC, can also play shared files via network. SAFETY AND OTHER INSTRUCTIONS Please use TWX carefully and read following instructions. - Page 4 3.5’ SATA hard disk Dimensions 187(W)*193(H)*60(L)mm Temperature 0-60° c Power Adapter 12V 3.5A AC/DC Adapter free voltage (AC100-240V,50-60Hz) PRODUCT CONTENTS Mediadisk TWX Series RCA cable User Guide Remote control YPbPr cable Quick Starter Guide CD Utilities Scart Adapter Wifi antenna...
-
Page 5: Player View
PLAYER VIEW 1. LCD Condition Display Window 13. Power Input Terminal Status window AC adapter Terminal (DC 12V/3.5A) 2. Wireless Connection LED 14. USB HOST Port Working status USB connection x2 3. LAN Connection LED 15. LAN Cable Connection Port Working status LAN port 4. -
Page 6: Remote Control
REMOTE CONTROL 1- Power Button 2- Local Disk Mode 3- Mute 4- Play / Pause 5- OK 6- Volume 7- Home Screen Shortcut Go to Screen Menu 8- Search Forward or backward search (Each double click speeds up search up to 32 times). 9- Subtitle Adjust subtitle settings - Change position with arrows - Change subtitle color with arrows... -
Page 7: Installation Cable Connection
INSTALLATION CABLE CONNECTION ¢ ¡ ¢ ¡ ¢ ¡ ¢ ¡ Connection with ordinary (Composite) TV output Connect TWX and TV using yellow video cable. Select appropriate video input mode on TV and output on TWX through remote control. ¡ ¡ ¡ ¡ Connection with S-Video output Connect TWX and TV using S-Video cable. - Page 8 ¡ ¡ ¡ ¡ Connection with Component output Connect TWX and TV with component cable. Select appropriate video input mode on TV and output on TWX through remote control. ¡ ¡ ¡ ¡ Connection with 2 CH of Normal TV Connect left (white) and right (red) sound output to appropriate terminal of your TV or Hi-fi...
- Page 9 ¡ ¡ ¡ ¡ Connection with Optical output Connect multi channel decoder / amplifier with optical input to enjoy 5.1 quality sound. ¡ ¡ ¡ ¡ Connection with computer Connect with computer to transfer datas through USB cable. - 7 -...
-
Page 10: Network Data Sharing With Pc
2. NETWORK BASED DATA SHARING WITH PC LAN Cable connection between TWX and PC 2.1 Connection to PC Use cross or direct cable. 2.2 HUB Connection For hub or internet router connection, use direct cable. Note: To be connected to TWX, computer should be equipped with a 10/100Mbps LAN card. Whether cross or direct LAN cable can be used for this connection. - Page 11 2.3 Data sharing Setup for Windows XP 1. Select folder you want to share and select “Sharing and security” with right mouse button. 2. Check “Sharing this folder on the network” and type “Share Name”. Ex: My Movie WARNING! “Share Name” should be less than 12 characters. 3.
- Page 12 WARNING! • Permission setting is only required for Windows XP Pro users. If you are an XP home user, go directly to step “6”. • If you cannot see “Administrative Tools”, click on “Switch to Classic view” on left corner. 5.
- Page 13 7. Among displayed items, double-click “Internet Protocol (TCP/IP)”. After checking “Specify an IP address” enter your IP address and subnet mask. Ex: IP address: 192.168.1.3 Subnet Mask: 255.255.255.0. WARNING! If your PC already has “Obtain IP address automatically” checked and IP automatically assigned from an Internet router or DHCP server, you may not need this setup.
- Page 14 After selecting off, click on “ok”. 8. Configure TWX network environment. After pressing “Setup”, select “IP SETUP” among “NETWORK” setup items and set this to manual setup. Then enter your IP address and subnet mask. IP address:192.168.1.10 / Subnet Mask: 255.255.255.0. Main Menu Screen Icons and Screen Components 1.
-
Page 15: Setup Menu Sharing
Setup Menu Setting Figure below is TWX SETUP screen For each menu item, possible options are described below. SYSTEM TV OUT C/S-Video: Signal through composite and S-Video output terminal Component: Signal through component output terminal with 4 Available Resolutions: 480i (576i), 480p (576p), 720p and 1080i HDMI: Signal through HDMI output terminal with 4 Available Resolutions: 480p (576p), 720p, 1080i, 1080p TV Type... - Page 16 PROGRAM Language selection French, English, German, Portuguese, Spanish, Italian. Subtitle Size Selection Small, Big or None. Subtitle Color White/Black, Yellow/Black, Green/Black, White/Blue, Yellow/Blue and Green/Blue Slide Show Interval Set slideshow duration Initialize (Default Setting) Reset all settings to default values. NETWORK Wired / Wireless: Wired:...
- Page 17 1. Enter setup interface 2. “Wireless network setup”: “Network option” enter “Wireless setup interface”, choose available wlan. 3. Encryption No web encryption: Enter "not use" encryption Hex characters encryption: Enter "use", delete characters with "Stop" button, change from numbers to letters with “playlist” button and revise figures by saving encryption. When IP setup mode shows "Auto": IP address will be automatically searched When IP setup mode shows “Manual”: enter required IP address 5.
-
Page 18: Movie Play
Movie Play TWX can play following files: AVI, MPG, MPEG, DAT, VOB, TP, TRP, WMV, ISO etc… Buttons and functions for movie playback Remote Function Description Control Button SUBTITLE 1-Click Change subtitle size (using UP and DOWN arrow). 2-Click Change subtitle color (using UP and DOWN arrow). 3-Click Select multiple subtitles (When subtitle file contains more than two languages, click 3 times and select subtitle language using UP and... -
Page 19: Music Play
Music Play During music files play, system is in music playback mode. You can search folder and files. Buttons and functions for music playback Remote Function Description Control Button BOOKMARK Continuous Support two types: stopped points and bookmarked points(up to 9 Play in order) Volume Adjust... -
Page 20: Firmware Upgrade
TWX firmware will be upgraded for various performances to update and fix bugs to satisfy customer’s needs, firmware version can be confirmed on right upper corner of SETUP screen. 1. Latest firmware can be downloaded from www.memup.com 2. After TWX connected to PC, copy firmware to desired location of TWX 3. -
Page 21: Trouble Shooting
Please refer to Network settings part and follow step by step It could depend on your Operating system, for other OS, please check our FAQ in www.memup.com Make sure your personal firewall is deactivated or correctly set to function with TWX...
