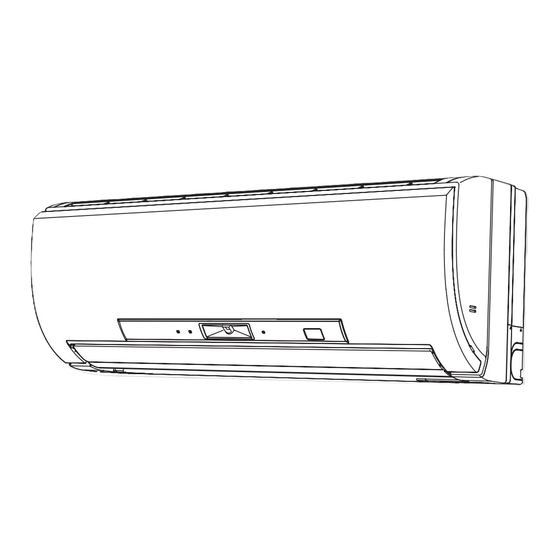

Mitsubishi Electric Mr. Slim MSZ-FE09NA Service Manual
  1. Manuals
  2. Brands
  3. Mitsubishi Electric Manuals
  4. Air Conditioner
  5. Mr. Slim MSZ-FE09NA
  6. Service manual

Mitsubishi Electric Mr. Slim MSZ-FE09NA Service Manual

Split-type indoor unit
Hide thumbs Also See for Mr. Slim MSZ-FE09NA:

Advertisement

Table of Contents

See also: Installation Manual
SPLIT-TYPE AIR CONDITIONERS

INDOOR UNIT

SERVICE MANUAL

Models
MSZ-FE09NA
MSZ-FE12NA
MSZ-FE18NA
MSZ-FE09NA
MSZ-FE12NA
NOTE:
RoHS compliant products have <G> mark on the spec name plate.
Revision A:
• MSZ-FE18NA has been added.
Please void OBH542.
Outdoor unit service manual
MUZ-FE•NA Series (OBH543)
MXZ-A·NA Series
MXZ-B·NA Series
CONTENTS
2. PART NAMES AND FUNCTIONS ····················· 3
3. SPECIFICATION ················································ 5
4. OUTLINES AND DIMENSIONS ························ 6
5. WIRING DIAGRAM ············································ 7
6. REFRIGERANT SYSTEM DIAGRAM ··············· 8
7. SERVICE FUNCTIONS ····································· 9
8. MICROPROCESSOR CONTROL ··················· 11
9. TROUBLESHOOTING ····································· 21
10. DISASSEMBLY INSTRUCTIONS ···················· 35
PARTS CATALOG (OBB542)
No. OBH542
REVISED EDITION-A
(OB444)
(OB560)
2
·······································

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric Mr. Slim MSZ-FE09NA

Summary of Contents for Mitsubishi Electric Mr. Slim MSZ-FE09NA

  • Page 1: Table Of Contents

    Revision A: • MSZ-FE18NA has been added. Please void OBH542. SPLIT-TYPE AIR CONDITIONERS INDOOR UNIT No. OBH542 SERVICE MANUAL REVISED EDITION-A Models MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA Outdoor unit service manual MUZ-FE•NA Series (OBH543) MXZ-A·NA Series (OB444) MXZ-B·NA Series (OB560) CONTENTS 1. TECHNICAL CHANGES ·······································...

  • Page 2: Technical Changes

    Revision A: • MSZ-FE18NA has been added. TECHNICAL CHANGES MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA 1. New model...

  • Page 3: Part Names And Functions

    PART NAMES AND FUNCTIONS MSZ-FE09NA MSZ-FE12NA Display section AREA lamp POWER lamp Operation indicator Remote control lamp receiving section Front panel Air filter Air inlet Remote controller Platinum deodorizing filter Anti-allergy Enzyme Filter i-see Sensor Air outlet Emergency operation switch (E.O. SW)
  • Page 4 MSZ-FE18NA Front panel Air filter (Nano platinum filter) Air cleaning filter (Electrostatic anti-alergy enzyme filter) Air inlet Air outlet Remote controller Heat exchanger Horizontal vane Display section ACCESSORIES Models MSZ-FE09/12NA MSZ-FE18NA Installation plate Installation plate fi xing screw 4 × 25 mm Remote controller holder Fixing screw for 3.5 ×...

  • Page 5: Specification

    SPECIFICATION Indoor model MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA Power supply V, phase, Hz 208/230 , 1 , 60 Max. fuse size (time delay)/ Disconnect switch Min. circuit ampacity Fan motor F.L.A 0.76 COOL Dry 381 - 339 - 226 - 162 410 - 381 - 226 - 162 738 - 628 - 469 - 388 Airfl...

  • Page 6: Outlines And Dimensions

    OUTLINES AND DIMENSIONS Unit: inch MSZ-FE09NA MSZ-FE12NA 7/16 X 1 Oblong hole 7/16 X 13/16 Oblong hole 8-7/8 8-7/8 2-1/2 2-1/2 Installation plate 31-3/8 30-7/8 6-1/8 6-1/8 2-1/8 13-9/16 2-11/16 Indoor unit Wall hole ø2-9/16 Air in Installation plate 10-1/8...

  • Page 7: Wiring Diagram

    WIRING DIAGRAM MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA...

  • Page 8: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM MSZ-FE09NA MSZ-FE12NA Refrigerant pipe Unit: inch (with heat insulator) Indoor coil Indoor thermistor heat RT12 (main) exchanger Flared connection Indoor coil thermistor RT13 (sub) Room temperature thermistor RT11 Flared connection Refrigerant flow in cooling Refrigerant pipe Refrigerant flow in heating...

  • Page 9: Service Functions

    SERVICE FUNCTIONS MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA 7-1. TIMER SHORT MODE For service, set time can be shortened by short circuit of JPG and JPS the indoor electronic control P.C. board. The time will be shortened as follows. (Refer to 9-7.) Set time: 1-minute...
  • Page 10 7-4. REMOTE CONTROLLER (MSZ-FE09NA MSZ-FE12NA) Be sure to set the slide switch inside the remote controller to an appropriate position in accordance with the installed position of the indoor unit.

  • Page 11: Microprocessor Control

    MICROPROCESSOR CONTROL MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA WIRELESS REMOTE CONTROLLER MSZ-FE09NA MSZ-FE12NA Signal transmitting section Operation display section VANE CONTROL button OPERATE/STOP FAN SPEED CONTROL button (ON/OFF) button OFF TIMER button OPERATION SELECT button ON TIMER button POWERFUL button TIME SET buttons...
  • Page 12 INDOOR UNIT DISPLAY SECTION Operation indicator lamp MSZ-FE09NA MSZ-FE12NA The lamps at the center of the indoor unit indicates the operation state. Lamp Operation state AREA Refer to 8-7. Lamp lights during operation. POWER Lamp blinks in abnormal condition. MSZ-FE18NA The operation indicator at the right side of the indoor unit indicates the operation state.
  • Page 13 8-3. HEAT ( ) OPERATION (1) Press OPERATE/STOP (ON/OFF) button. POWER lamp (MSZ-FE09/12NA)/OPERATION INDICATOR lamp (MSZ-FE18NA) of the indoor unit turns on with a beep tone. (2) Select HEAT mode with OPERATION SELECT button. (3) Press TEMPERATURE buttons (TOO WARM or TOO COOL button) to select the desired temperature. The setting range is 61 ~ 88°F (16 ~ 31°C).
  • Page 14 (c) When standby mode (only during multi system operation) starts or finishes. (4) VANE AUTO ( ) mode The microprocessor automatically determines the vane angle to make the optimum room temperature distribution. MSZ-FE09NA MSZ-FE12NA In COOL and DRY operation In HEAT operation Vane angle is fixed to Horizontal position.
  • Page 15 These models are equipped with a stepping motor for the vertical vane. The rotating direction, speed, and angle of the motor are controlled by pulse signals (approx. 12 V) transmitted from microprocessor. (2) The vertical vane angle and mode change as follows by pressing WIDE VANE button. MSZ-FE09NA MSZ-FE12NA (SWING) MSZ-FE18NA...
  • Page 16 8-6. i-see CONTROL OPERATION (MSZ-FE09NA MSZ-FE12NA) The sensors constantly measure the room and floor/wall temperatures to automatically adjust to the set temperature by esti- mating the temperature actually perceived by a person inside the room (“sensory temperature”). Advantages · The air inside the room is conditioned quickly to a comfortable condition.
  • Page 17 Indoor unit installation location and air-conditioning area Installed at left Installed at center Installed at right LEFT RIGHT LEFT RIGHT LEFT RIGHT ·Be sure to set the slide switch inside the remote controller to an appropriate position in accordance with the installed position of the indoor unit.
  • Page 18 Operation and operating range i-see sensor moves 30 degrees from the center in both right and left side. i-see Sensor turning to the right i-see Sensor turning to the center i-see Sensor turning to the left i-see Sensor operates as follows in accordance with AREA setting made with the remote controller. “AUTO”...
  • Page 19 Emergency operation continues until EMERGENCY OPERATION switch is pressed once or twice or the unit receives any signal from the remote controller. In case of latter, normal operation will start. NOTE: Do not press EMERGENCY OPERATION switch during normal operation. MSZ-FE09NA MSZ-FE12NA Operation mode COOL...
  • Page 20 8-10. 3-MINUTE TIME DELAY OPERATION When the system turns OFF, compressor will not restart for 3 minutes as 3-minute time delay function operates to protect compressor from overload. 8-11. Changing temperature indication (°F/°C) • The preset unit is °F. • °F →...

  • Page 21: Troubleshooting

    TROUBLESHOOTING MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA 9-1. CAUTIONS ON TROUBLESHOOTING 1. Before troubleshooting, check the following 1) Check the power supply voltage. 2) Check the indoor/outdoor connecting wire for miswiring. 2. Take care of the following during servicing 1) Before servicing the air conditioner, be sure to turn off the unit first with the remote controller, and then after confirming the horizontal vane is closed, turn off the breaker and/or disconnect the power plug.

  • Page 22: Failure Mode Recall Function

    Even though LED indication listed on the troubleshooting check table (9-4.) disappears, the memorized failure details can be recalled. This mode is very useful when the unit needs to be repaired for the abnormality which does not recur. MSZ-FE09NA MSZ-FE18NA 1. Flow chart of failure mode recall function for the indoor/outdoor unit...
  • Page 23 2. Indoor unit failure mode table POWER lamp Abnormal point Condition Remedy Upper lamp (Failure mode) Not lighted Normal — — The room temperature thermistor short or open 1-time fl ash every Room temperature Refer to the characteristics of the room temperature circuit is detected every 8 seconds during op- 0.5-second thermistor...
  • Page 24 9-3. INSTRUCTION OF TROUBLESHOOTING Start Indoor unit operates. Indoor unit does Indoor unit oper- OPERATION INDICATOR Outdoor unit does ates. not receive the lamp on the indoor unit is not operate normally. signal from re- Outdoor unit fl ashing on and off. mote controller.

  • Page 25: Troubleshooting Check Table

    When the indoor unit has started operation and the following detection method has detected an abnormality (the first detection after the power ON), the indoor electronic control P.C. board turns OFF the indoor fan motor with OPERATION INDICATOR lamp flashing. OPERATION INDICATOR MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA Lighted L AREA R...
  • Page 26 fi rst has manual. not operate. MSZ-FE09/12NA the priority. 9-5. TROUBLE CRITERION OF MAIN PARTS MSZ-FE09NA MSZ-FE12NA MSZ-FE18NA Part name Check method and criterion Figure Room temperature therm- Measure the resistance with a tester.

  • Page 27: Troubleshooting Flow

    9-6. TROUBLESHOOTING FLOW A Check of indoor fan motor The indoor fan motor error has occurred, and the indoor fan does not operate. Turn OFF the power supply. Pay enough attention to the high voltage on the fan motor connector CN211. Turn ON the power supply, wait 5 seconds or more, and then press EMERGENCY OPERATION switch.
  • Page 28 B Check of remote controller and indoor electronic control P.C. board Check if the remote controller is exclusive for this air conditioner. MSZ-FE09NA MSZ-FE12NA Press OPERATE/STOP (ON/OFF) button on the remote controller. Is LCD display on the remote controller Replace the batteries. (Refer to 9-1.4.)
  • Page 29 C Check of indoor electronic control P.C. board and indoor fan motor MSZ-FE09NA MSZ-FE12NA Turn OFF the power supply. Remove indoor fan motor connector CN211, vane motor connector CN151 and the i-see Measure the resistance of the i-see Short/open circuit: Sensor motor connector CN110 from the Sensor motor coil.
  • Page 30 MSZ-FE18NA Turn OFF the power supply. Remove indoor fan motor connector CN211 and Short circuit: Measure the resistance between CN211 Replace the indoor fan motor. vane motor connector CN151 from the indoor electronic of the indoor fan motor connector. control P.C. board and turn ON the power supply. Does the unit operate with the remote controller? Measure the resistance of the horizontal vane Short circuit:...
  • Page 31 D How to check miswiring and serial signal error Turn OFF the power supply. Is there rated voltage in the power supply? Check the power supply. Turn ON the power supply. Is there rated voltage between outdoor terminal block S1 and S2? Check the wiring.
  • Page 32 E Electromagnetic noise enters into TV sets or radios Is the unit grounded? Ground the unit. Is the distance between the antennas Extend the distance between the antennas and and the indoor unit within 9.91 ft., or is the indoor unit, and/or the antennas and the the distance between the antennas and outdoor unit.
  • Page 33 9-7. TEST POINT DIAGRAM AND VOLTAGE MSZ-FE09NA MSZ-FE12NA 1. Indoor electronic control P.C. board Cement resistor 5 VDC 12 VDC (R111) Indoor fan motor (CN211) 294/325 VDC (-) Fiducial terminal of cathode side on measur- ing high-voltage DC 15 VDC...
  • Page 34 MSZ-FE18NA 4. Indoor terminal P.C. board, Indoor electronic control P.C. board, Power monitor receiver SW P.C. board Indoor terminal P.C. board Indoor electronic control P.C. board Release of Auto restart function Indoor coil thermistor Solder the Jumper wire to JR07. Fuse Terminal Varistor...

  • Page 35: Disassembly Instructions

    Locking lever lever. Connector 10-1. MSZ-FE09NA MSZ-FE12NA NOTE: Turn OFF power supply before disassembling. OPERATING PROCEDURE PHOTOS 1. Removing the panel Photo 1 (1) Hold both sides of the front panel and lift the front panel until it is level.
  • Page 36 OPERATING PROCEDURE PHOTOS 2. Removing the electronic control P.C. board, the Photo 2 power monitor receiver P.C. board, i-see Sensor, SW P.C. board and the terminal block Screw of the (1) Remove the panel (Refer to 1.) and the corner box. conduit cover (2) Remove the screw of the conduit cover.
  • Page 37 OPERATING PROCEDURE PHOTOS Photo 5 3. Removing the electrical box (1) Remove the panel (Refer to 1.) and the corner box. (2) Remove the indoor/outdoor connecting wire, the sensor holder, the electrical cover and the ground wire. (Refer to 2.) (3) Disconnect the following connectors on the electronic con- trol P.C.
  • Page 38 OPERATING PROCEDURE PHOTOS 6. Removing the horizontal vane motor Photo 8 Screws of the horizontal (1) Remove the nozzle assembly. (Refer to 4.) vane motor unit cover (2) Remove the screws of the horizontal vane motor unit, and pull out the horizontal vane motor unit. (3) Remove the screws of the horizontal vane motor unit cover.
  • Page 39 10-2. MSZ-FE18NA NOTE: Turn OFF power supply before disassembling. OPERATING PROCEDURE PHOTOS 1. Removing the panel Photo 1 (1) Remove the horizontal vanes. Front panel Horizontal vanes (2) Remove the screw caps of the panel. Remove the screws of the panel. (3) Hold the lower part of both ends of the panel and pull it slightly toward you, and then remove the panel by pushing it upward.
  • Page 40 OPERATING PROCEDURE PHOTOS 3. Removing the indoor electrical box Photo 3 (1) Remove the panel (Refer to 1.) and the corner box. Upper catch (2) Remove the indoor/outdoor connecting wire. (Refer to 2 (2)-(4).) (3) Remove the ground wire connected to the indoor heat Indoor electri- exchanger from the electrical box.
  • Page 41 OPERATING PROCEDURE PHOTOS Photo 5 5. Removing the vertical vane motor unit (1) Remove the nozzle assembly. (Refer to 4.) (2) Remove the crank of the vertical vane motor unit from the arm of the vertical vane. (3) Remove the screw of the vertical vane motor unit, and pull the vertical vane motor unit.
  • Page 42 OPERATING PROCEDURE PHOTOS 7. Removing the water cut, the indoor fan motor, Photo 8 the indoor coil thermistor, and the line flow fan (1) Remove the panel (Refer to 1.) and the corner box. (2) Remove the power monitor receiver holder, the electri- cal box and the nozzle assembly.
