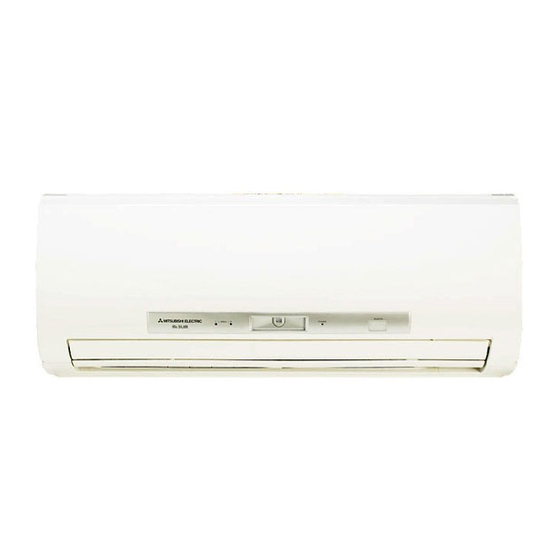

Mitsubishi Electric MSZ-FE18NA Installation Manual
Mitsubishi Electric MSZ-FE18NA Installation Manual

Mitsubishi Electric MSZ-FE18NA Installation Manual

Split-type
Hide thumbs Also See for MSZ-FE18NA:

Advertisement

SPLIT-TYPE AIR CONDITIONERS
INSTALLATION MANUAL

1. BEFORE INSTALLATION

1-1. THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
• Be sure to read these safety precautions and instructions.
• Be sure to observe the warnings and cautions specified here.
• After reading this manual, be sure to store it with the OPERATING INSTRUCTIONS for future reference.
• Please report to your supply authority or obtain their consent before connecting this equipment to the power supply system.
Do not install the unit by yourself (user).
Improper or incomplete installation could cause fire, electric shock, injury due to the
unit falling, or water leakage. Consult a qualified installer or the dealer from whom
you purchased the unit.
Follow the instructions detailed in the installation manual.
Incomplete installation could cause fire or electric shock, injury due to the unit falling,
or leakage of water.
Install the unit securely in a place that can bear the weight of the unit.
If the installation location cannot bear the weight of the unit, the unit could fall causing
injury.
Perform electrical work according to the installation manual and be sure to use
an exclusive circuit. Do not connect other electrical appliances to the circuit.
If the capacity of the power circuit is insufficient or there is incomplete electrical work,
it could result in a fire or an electric shock.
Ground the unit correctly.
Do not connect the ground wire to a gas pipe, water pipe, lightning rod or telephone
ground. Defective grounding could cause electric shock.
Do not damage the wires.
Damaged wires could cause fire.
Be sure to shut off the main power when setting up the indoor P.C. board or
wiring.
Failure to do so could cause electric shock.
Use the specified wires to securely connect the indoor and outdoor units. At-
tach the wires firmly to avoid applying stress to the terminal block.
Improper connection could cause fire.
Do not install the unit in a place where flammable gas may leak.
If gas leaks and accumulates around the unit, it could cause an explosion.
Do not use intermediate connection of the power cord or the extension cord.
Do not connect many devices to one AC outlet.
It could cause a fire or an electric shock.
Use the parts provided or specified parts for the installation work.
The use of defective parts could cause an injury or leakage of water due to a fire, an
electric shock, the unit falling, etc.
When plugging the power supply plug into the outlet, make sure that there is
no dust, blockage, or loose parts both in the outlet and on the plug. Verify that
the power supply plug is completely in the outlet.
If there is dust, blockage, or loose parts on the power supply plug or the outlet, it could
cause electric shock or fire. If loose parts are found on the power supply plug, replace it.
Depending on the installation area, install a Ground Fault Interrupt (GFI) circuit
breaker.
If the Ground Fault Interrupt (GFI) circuit breaker is not installed, an electric shock
could occur.
Perform the drainage/piping work securely according to the installation
manual.
If there is defect in the drainage/piping work, water could drip from the unit, and
damage household items.
JG79A344H01
MSZ-FE18NA
MSZ-GE24NA
MSY-GE24NA
When installing multi units, refer to the instal-
lation manual of the multi unit for outdoor unit
installation.
WARNING
CAUTION
Required Tools for Installation
Phillips screwdriver
Level
Scale
Utility knife or scissors
3 in. (75 mm) hole saw
Torque wrench
Wrench (or spanner)
(Could lead to death or serious injury.)
Securely attach the electrical cover to the indoor unit and the service panel to
the outdoor unit.
If the electrical cover of the indoor unit and/or the service panel of the outdoor unit are
not attached securely, dust, water, etc. could collect in the unit and could cause a fire or
an electric shock.
When installing or relocating the unit, make sure that no substance other than
the specified refrigerant (R410A) enters the refrigerant circuit.
Any foreign substances in the refrigerant circuit can cause abnormal pressure rise
or an explosion.
Do not discharge the refrigerant into the atmosphere. Check that the refrigerant gas
does not leak after installation has been completed. If refrigerant leaks during
installation, ventilate the room.
If refrigerant comes in contact with a fire, harmful gas could be generated.
If refrigerant gas leaks indoors, and comes into contact with the flame of a fan heater,
space heater, stove, etc., harmful gases will be generated.
Use appropriate tools and piping materials for installation.
The pressure of R410A is 1.6 times higher than R22. Not using the appropriate tools
and materials, or improper installation could cause the pipes to burst causing an
injury.
When pumping down the refrigerant, stop the compressor before disconnecting
the refrigerant pipes.
If the refrigerant pipes are disconnected while the compressor is running and the
stop valve is open, air could be drawn in and the pressure in the refrigeration cycle
could become abnormally high, causing the pipes to burst.
When installing the unit, securely connect the refrigerant pipes before starting
the compressor.
If the compressor is started before the refrigerant pipes are connected and the stop
valve is open, air could be drawn in and the pressure in the refrigeration cycle could
become abnormally high, causing the pipes to burst.
Fasten a flare nut with a torque wrench as specified in this manual.
If fastened too tight, a flare nut could break and cause refrigerant leakage.
Install the unit according to national wiring regulations.
(Could lead to serious injury when operated incorrectly.)
Do not touch the air inlet or the aluminum fins of the outdoor unit.
This could cause injury.
Do not install the outdoor unit where small animals may live.
If small animals enter the unit and damage its electrical parts, it could cause a mal-
function, smoke emission, or fire. Keep the area around the unit clean.
5/32 in. (4 mm) hexagonal wrench
Flare tool for R410A
Gauge manifold for R410A
Vacuum pump for R410A
Charge hose for R410A
Pipe cutter with reamer

Advertisement

Table of Contents
loading

Summary of Contents for Mitsubishi Electric MSZ-FE18NA

  • Page 1: Before Installation

    Required Tools for Installation JG79A344H01 MSZ-FE18NA Phillips screwdriver 5/32 in. (4 mm) hexagonal wrench MSZ-GE24NA Level Flare tool for R410A MSY-GE24NA Scale Gauge manifold for R410A Utility knife or scissors Vacuum pump for R410A When installing multi units, refer to the instal- 3 in.
  • Page 2: Selecting The Installation Location

    1-3. SPECIFICATIONS Electrical specifications 1-3-1. POWER SUPPLY AND INDOOR/OUTDOOR WIRE CONNECTION MSZ-FE18NA MODEL MSY-GE24NA • Power should be taken from an exclusive branched circuit. MSZ-GE24NA • Wiring work should be based on applicable technical standards.
  • Page 3: Installation Diagram

    1-4. INSTALLATION DIAGRAM Wall hole cover (D) Use the wall hole sleeve Indoor unit (C) to prevent indoor/out- Seal the wall hole gap with putty (H). ACCESSORIES door connecting wire (A) Check the following parts before installation. f r o m c o n t a c t i n g m e t a l Wall hole Attach the pipe to <Indoor unit>...
  • Page 4: Indoor Unit Installation

    2. INDOOR UNIT INSTALLATION 2-1. ATTACHING THE INSTALLATION PLATE Ceiling 2 1/8 in. (55 mm) or more 4 5/8 in. (118 mm) or more for left • Find a stud in the wall to attach installation plate (1) horizontally on the wall with screws (2). and left back piping (using spacer) •...
  • Page 5: Pipe Forming And Drain Piping

    2-4. PIPE FORMING AND DRAIN PIPING 2-4-1. PIPE FORMING • Place the drain hose below the refrigerant piping. • Make sure that the drain hose is not crowded or bent. Gas pipe Liquid pipe • Do not pull the hose when applying the tape. •...
  • Page 6: Outdoor Unit Installation

    3. OUTDOOR UNIT INSTALLATION 3-1. CONNECTING WIRES FOR OUTDOOR UNIT 1) Remove the service panel. 2) Remove the conduit cover. 3) Attach the conduit connector to conduit plate with lock nut then secure it against unit with screws. 5/8 in. 4) Connect ground wires of indoor/outdoor unit connecting wire (A) and power supply cord (15 mm) 1-3/8 in.
  • Page 7: Purging Procedures, Leak Test, And Test Run

    3-3. PIPE CONNECTION • Fasten flare nut with a torque wrench as specified in the table above. • When fastened too tight, flare nut may eventually break and cause refrigerant leakage. Indoor unit connection Connect both liquid and gas piping to indoor unit. •...
  • Page 8: Relocation And Maintenance

    5. RELOCATION AND MAINTENANCE 5-1. REMOVING AND INSTALLING THE PANEL ASSEMBLY Removal procedure 1) Remove the three screws that attach the panel assembly. 2) Remove the panel assembly. Be sure to remove its bottom end first. Installation procedure 1) Install the panel assembly following the removal procedure in reverse. 2) Be sure to press the positions as indicated by the arrows in order to attach the assem- bly completely to the unit.
