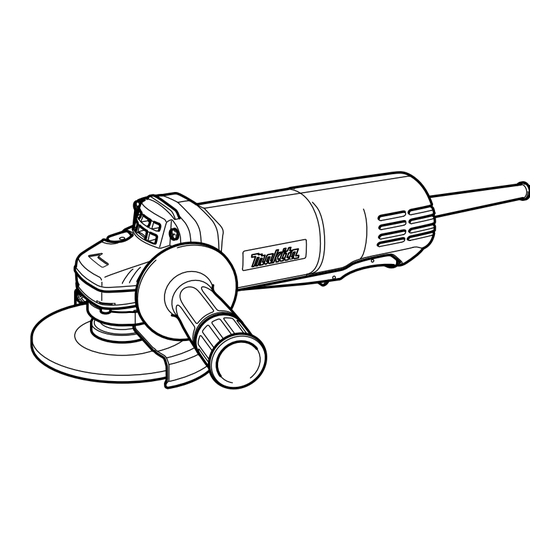

- Page 1 Angle Grinder MODEL 9556PB MODEL 9557PB MODEL 9558PB 006110 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
8JD, ENGLAND compatible recycling facility. Responsible manufacturer: Intended use Makita Corporation Anjo Aichi Japan The tool is intended for grinding, sanding and cutting of metal and stone materials without the use of water. Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS ENA001-2 WARNING: When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before operating this product and save these instructions. For safe operations: tion and changing accessories. -
Page 4: Additional Safety Rules
ADDITIONAL SAFETY RULES ENB031-6 13. Hold the tool firmly. Always use eye and ear protection. Other per- sonal protective equipment such as dust mask, 14. Keep hands away from rotating parts. gloves, helmet and apron should be worn. 15. Make sure the wheel is not contacting the work- Always be sure that the tool is switched off and piece before the switch is turned on. - Page 5 FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Shaft lock 006111 CAUTION: • Never actuate the shaft lock when the spindle is moving. The tool may be damaged.
- Page 6 Installing or removing wheel guard 006114 9556PB CAUTION: • The wheel guard must be fitted on the tool so that the closed side of the guard always points toward the operator. Mount the wheel guard with the protrusion on the wheel guard band aligned with the notch on the bearing box.
-
Page 7: Operation
Installing or removing diamond wheel (optional accessory) 006120 CAUTION: • Make sure that the arrow on the tool should point in the same direction as the arrow on the diamond wheel. Mount the inner flange onto the spindle. Fit the diamond wheel on over the inner flange and screw the lock nut onto the spindle. -
Page 8: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspec- tion and replacement, any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always using Makita replacement parts. 1. Exhaust vent... - Page 9 CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
- Page 10 Memo...
- Page 11 Memo...
- Page 12 Makita Corporation Anjo, Aichi, Japan 884596A223...
