OPAL 1010S
The Teledex one-line
speakerphone specifically
designed for the international
hospitality industry.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPAL 1010S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledex OPAL 1010S

Summary of Contents for Teledex OPAL 1010S

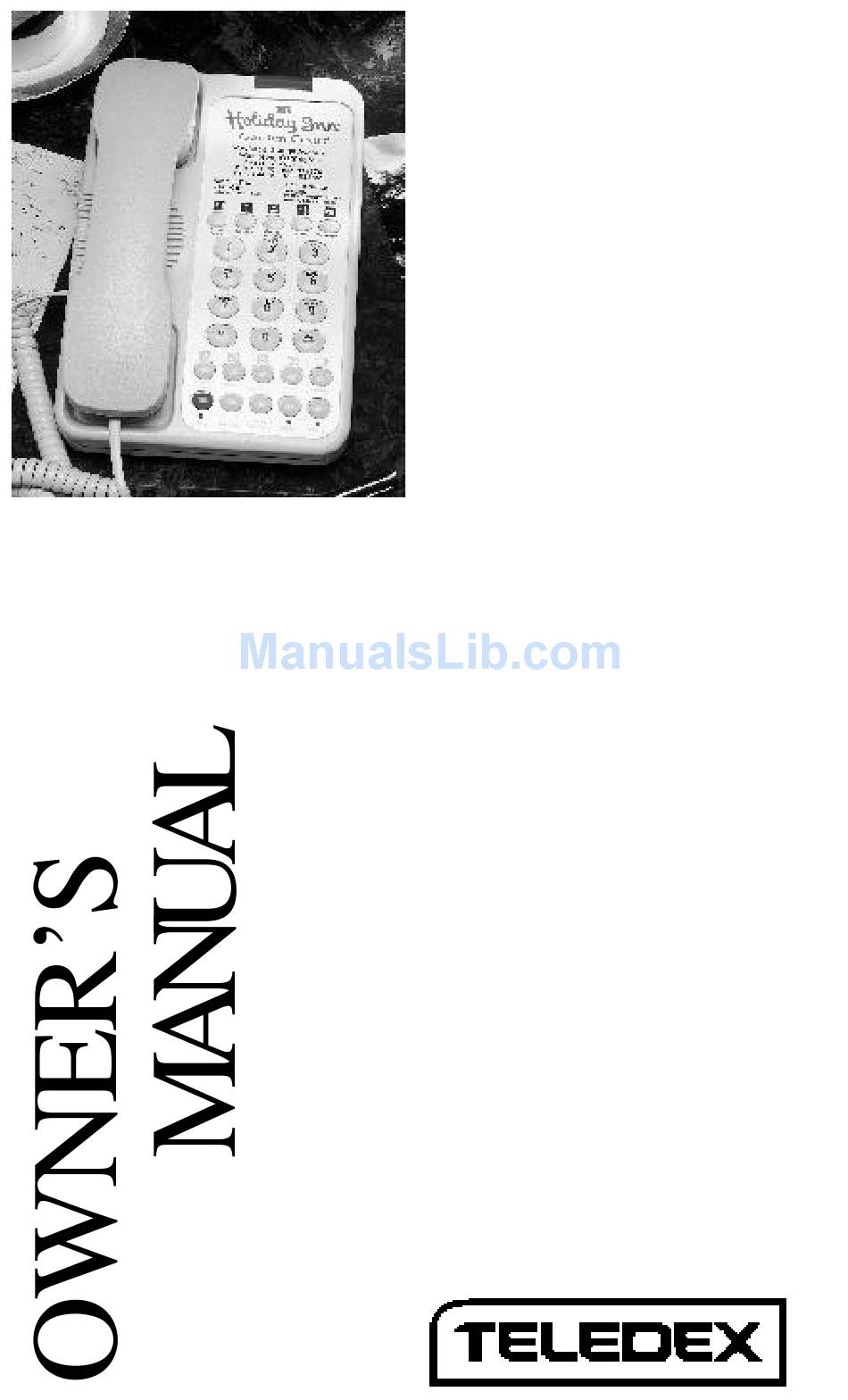

  • Page 1 OPAL 1010S The Teledex one-line speakerphone specifically designed for the international hospitality industry.

  • Page 2: Included In Your Package

    User Guide CONNECTING THE OPAL 1010S 1. Located on the left side of the Opal 1010S (as the phone is facing you) is a modular jack. Insert one end of the coiled handset cord into this jack (you should hear the coil cord click when properly inserted).

  • Page 3: Adjusting Speakerphone Volume

    USING THE SPEAKERPHONE With the handset in the cradle, press the SPEAKER key. The Opal will select the ringing line and answer with the speakerphone active. Note: The red SPEAKER LED will indicate that the speakerphone is active. ADJUSTING SPEAKERPHONE VOLUME Locate the slide switch (labeled SPKR VOL) on the right side of the tele- phone.

  • Page 4: To Mute Speakerphone And Handset Calls

    TO CHANGE PHONES AFTER PLACING A CALL ON HOLD 1. Place the call on hold at the Opal. 2. Pickup the call at another telephone. The Opal will detect the pickup and remove the hold condition at the original Opal. TO MUTE SPEAKERPHONE AND HANDSET CALLS 1.

  • Page 5: Pause Key

    (ie: “3” = 3 seconds). 5. Press the STORE key. AUTO DIAL KEYS The Opal 1010S has ten (10) programmable AUTO DIAL keys. These keys can be programmed to automatically dial telephone numbers, or activate telephone system features.

  • Page 6: Converting From Desk To W All Mount

    2. Flip the clip over (top to bottom) so that the protruding edge is towards the top of the phone. This edge will hold the handset. 3. Turn the Opal 1010S over so the bottom is up facing you. Place the Opal on a nonabrasive surface to prevent scratching.
  • Page 7 OPAL 1010S DIAGRAM MESSAGE WAITING LIGHT RING VOLUME MODULAR PHONE LINE JACK DATA PORT FLASH KEY (RECESSED) STORE KEY (RECESSED) SPEAKER VOLUME AUTO DIAL KEYS AUTO DIAL KEYS HANDSET HOLD SPEAKER PHONE VOLUME REDIAL MUTE...

  • Page 8: Requirements Of Part 68 - Fcc Rules

    REQUIREMENTS OF PART 68 - FCC RULES This device has been granted a registration number by the Federal Communications Commission, under Part 68 rules and regulations for direct connection to the telephone lines. In order to comply with these FCC rules, the following instructions must be carefully read and applicable portions followed completely: 1.

  • Page 9: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE FOLLOWING: 1. READ AND UNDERSTAND ALL INSTRUCTIONS. 2. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE PRODUCT. 3.
  • Page 10 Teledex Corporation, 6311 San Ignacio Avenue, San Jose, CA 95119 www.teledex.com For Customer Service Call +408-363-3100...
