SHR-2160/2162/2080/2082 USER'S MANUAL
Do not install DVR on the carpet or other soft material to prevent clogging of the air ventilator.
To install DVR on the cabinet or rack, be sure to check the ventilation condition.

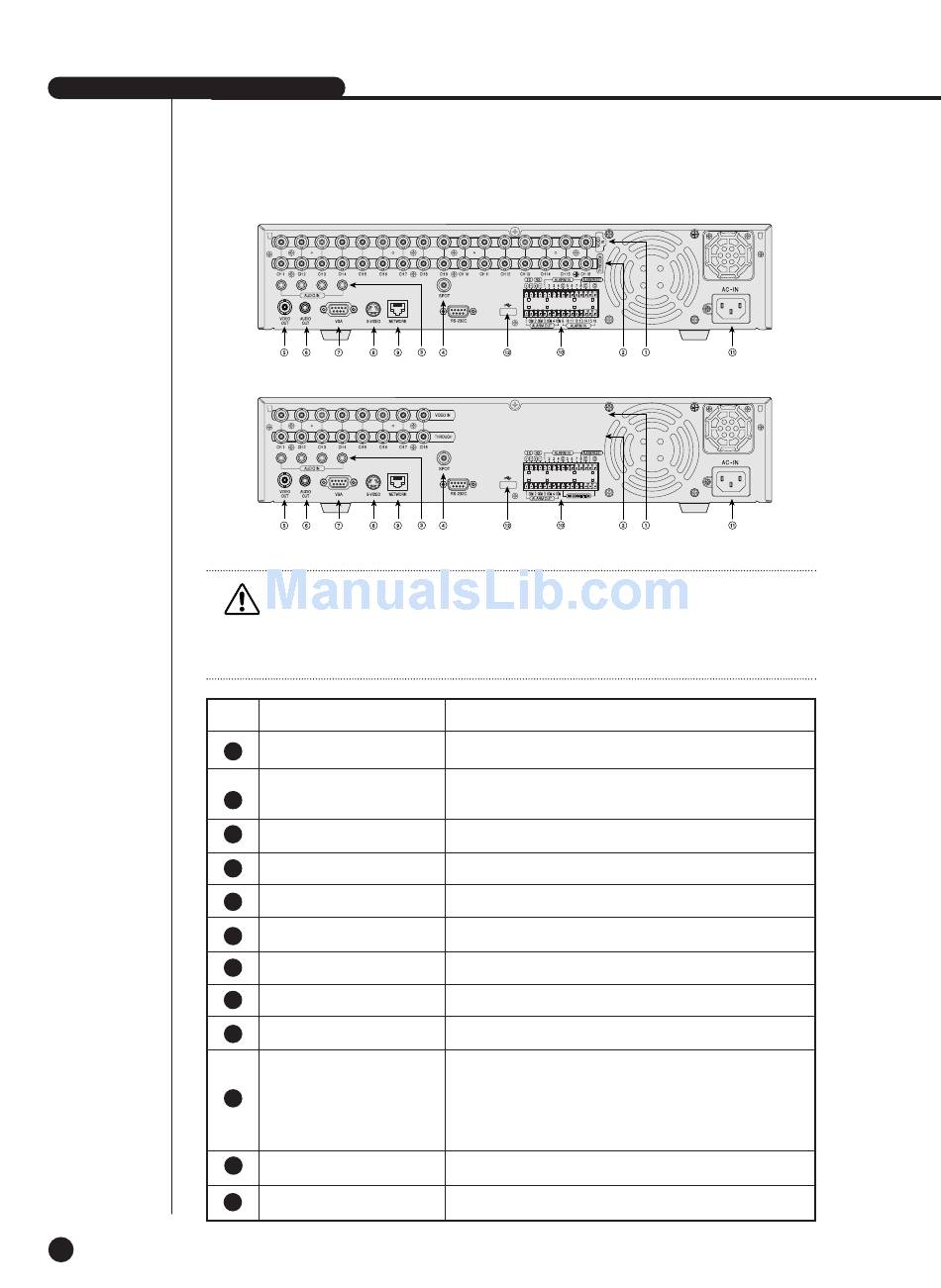

No.
1
2
3
4
5
6
7
8
9
10
11
12
1-7
English
Caution
Caution
Name
VIDEO IN
THROUGH
AUDIO IN
SPOT
VIDEO OUT
AUDIO OUT
VGA
S-VIDEO
NETWORK
ALARM
AC-IN
USB
[SHR-2160/2162]
[SHR-2080/2082]
Function
Composite Video Signal Input Port (BNC Style Connector)
You may use THROUGH port to transmit a video signal to the
other video equipment.
Audio Signal Input Port (RCA Jack)
The port (BNC style connector) for SPOT out output.
Composite Video Signal Output Port (BNC Style Connector)
Audio Signal Output Port (RCA Jack)
VGA Video Signal Output Port
S-VIDEO Video Signal Output Port
Network Connection Port
- ALARM IN 1~16 (SHR-2160/2162) : Alarm Input Port
- ALARM IN 1~8 (SHR-2080/2082) : Alarm Input Port
- ALARM RESET IN : Alarm Reset Port
- ALARM OUT1~4 : Alarm Output Port
- TX+, TX-, RX+, RX- : RS-485 Communication
AC 110-220V Power Socket Support
USB connection Port
