Summary of Contents for Panasonic WV-CM1470

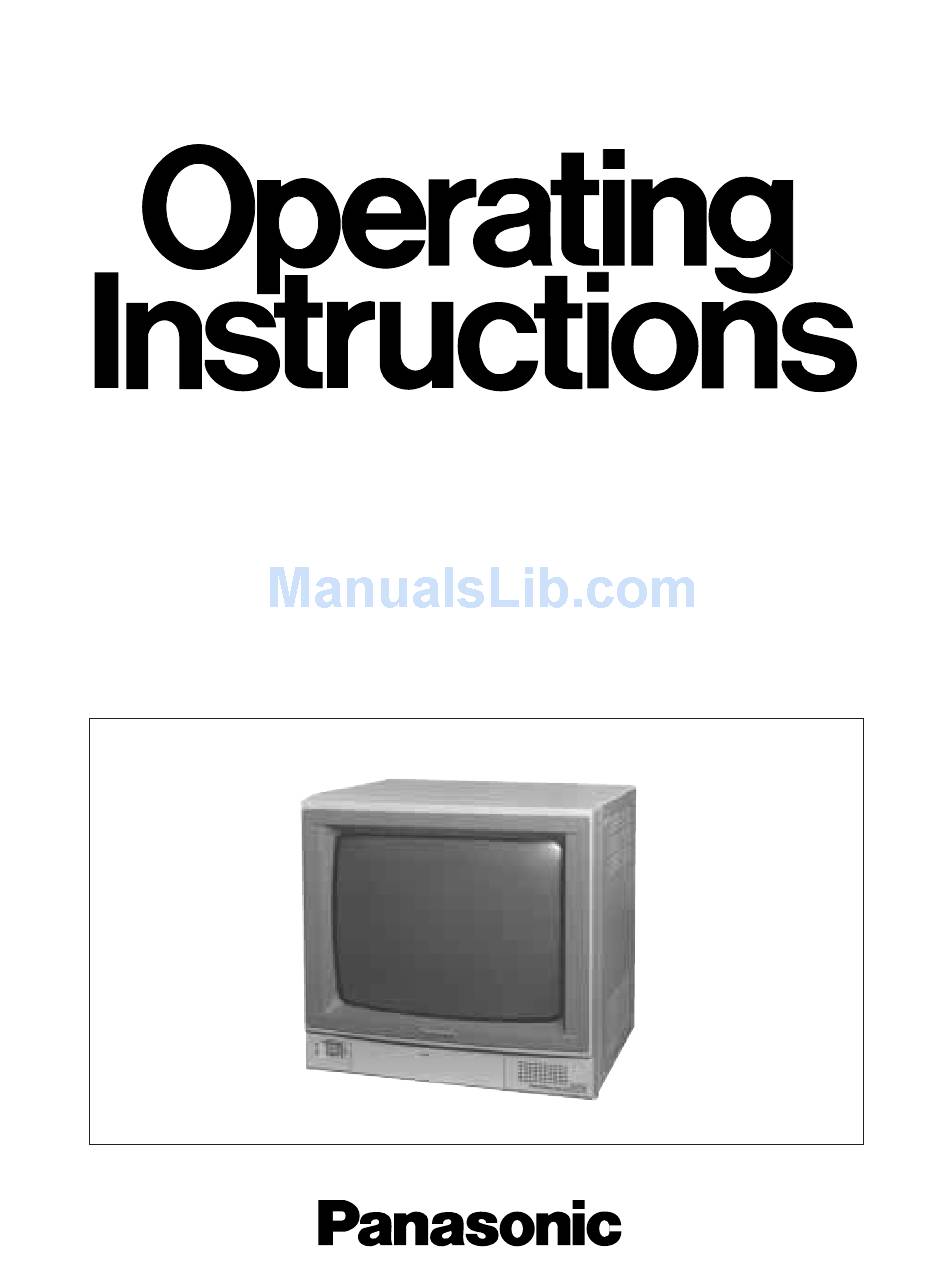

- Page 1 Colour Monitor WV-CM1470 Before attempting to connect or operate this product, please read these instructions completely...
- Page 2 DO NOT REMOVE COVER (OR BACK), NO USER If you lose the fuse cover the plug must not be used until a replacement SERVICEABLE PARTS INSIDE. cover is obtained. A replacement fuse cover can be purchased from your local Panasonic REFER SERVICING TO QUALIFIED SERVICE Dealer. PERSONNEL.
-
Page 3: Table Of Contents
RACK MOUNTING ..................................... 7 SPECIFICATIONS ....................................8 PREFACE The Panasonic WV-CM1470 Colour Monitor is a high reso- Standard BNC and S-video input and output connectors lution S-VIDEO to ensure high-defining picture quality for enabled WV-CM1470 to be used with other CCTV monitors monitoring camera picture. -
Page 4: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS FRONT VIEW POWER PUSH 1470 Colour Monitor WV-CM S-VIDEO LONG VIDEO SHORT COLOUR BRIGHT PICTURE AUDIO INPUT CONTRAST q Power Switch (POWER) t AFC Time Selection Switch (AFC, LONG/SHORT) This switch turns the power of the monitor on and off. This switch is used to select the AFC time. -
Page 5: Rear View
!0 Contrast Control (CONTRAST) Turn this control clockwise to increase the picture con- trast. Turn this control counterclockwise to decrease the pic- ture contrast. !1 Contrast Sub Control !2 Picture Adjustment (PICTURE) Turn this control clockwise for a sharp picture. Turn this control counterclockwise for a soft picture. - Page 6 @2 Video Output Connector for INPUT B @6 Video Output Connector for INPUT A (INPUT B, VIDEO OUT) (INPUT A, VIDEO OUT) The video input signal received at the VIDEO IN con- The video input signal received at the VIDEO IN con- nector is looped through to this connector.
-
Page 7: Connections
CONNECTIONS Precautions: Multiple Monitor Connection 1. These connections should be made by qualified per- sonnel or system installers. 2. Keep the power switches on the monitor and optional camera in the OFF position while connecting them. Single Monitor Connection Camera INPUT B INPUT A S-VIDEO... -
Page 8: Cable Information
Audio Circuit Signal Cable Information Power Cable 1. Keep the power switch in the OFF position during installation. 2. Connect the power cord to a grounded electrical out- let. S-Video Output Audio Output Video Cable Follow these cautions to prevent from changing the imped- ance of the cable and causing poor picture quality. -
Page 9: Rack Mounting
RACK MOUNTING To install WV-CM1470 Colour Monitor in an EIA rack, use the rack mounting brackets WV-Q104E (optional) with rack mounting screws. 1. Turn off the power of the monitor. 2. Remove the four screws from the both side panels of the monitor. -
Page 10: Specifications
SPECIFICATIONS Power Source : 220-240 V AC 50 Hz Power Consumption : Approx. 70 W CRT Size : 36.8 cm (14" diagonal) Actual Visual Size : 33.5 cm (13" diagonal) Video Input : 1.0 V[p-p]/75 , composite 2 (BNC) Video Output : Loopthrough 2 (BNC) S-Video Input :... - Page 11 -53-...
- Page 12 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N1197-0 YWV8QA4774AN Printed in Japan N 19 Gedruckt in Japan Imprimé au Japon Impreso en Japón...
