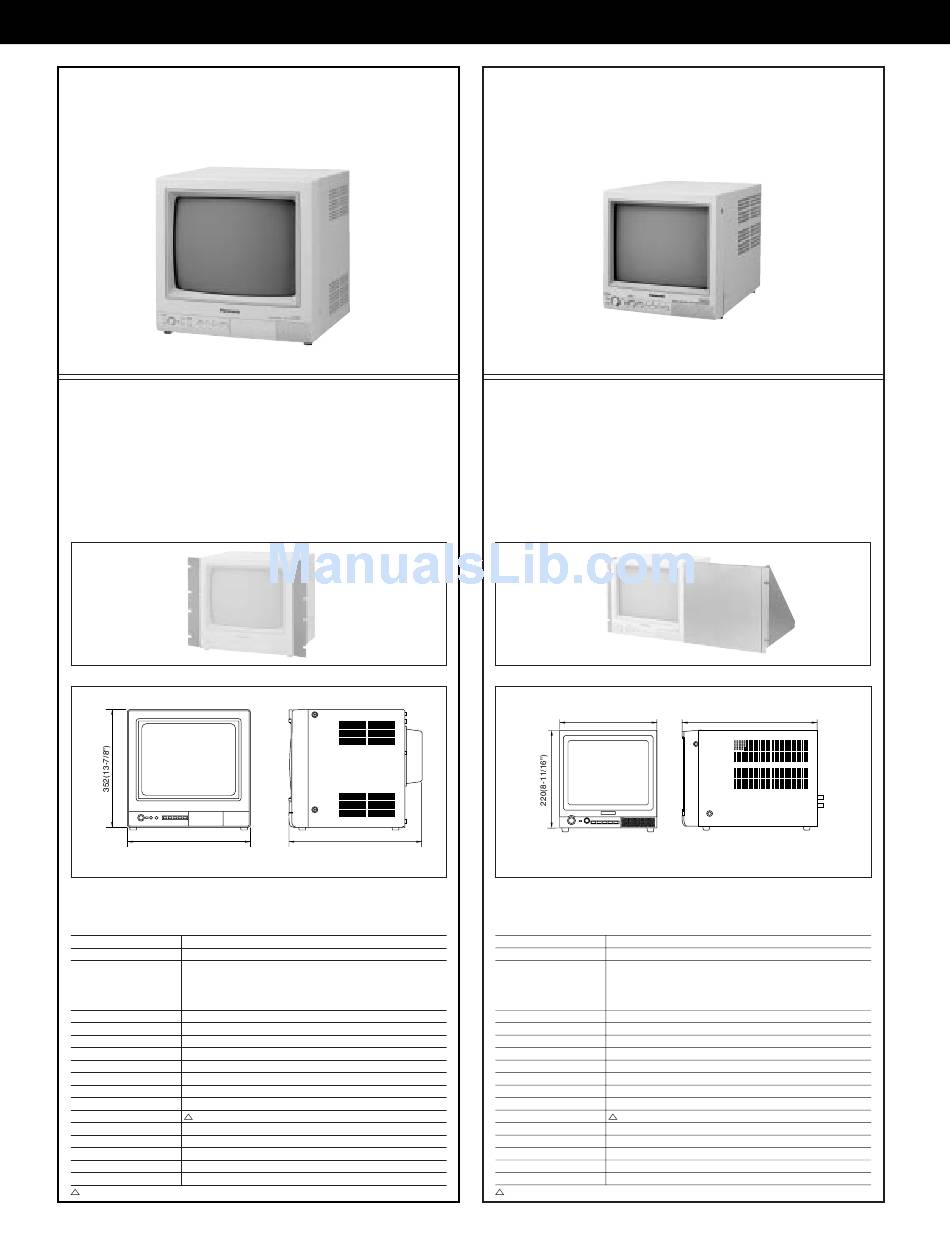

Panasonic WV-CM1020 Specifications

COLOR MONITORS
34cm (13") Color AV Monitor
WV-CM1420
¥ 34cm (13") diagonal actual visual size.
¥ 370 TV lines h.resolution.
¥ Selectable 2 channels A/B.
¥ Max. 0.5W speaker output.
¥ Optional adaptor WQ-LM140 for EIA 19-type rack.
WQ-LM140
(Optional)
DIMENSIONS
370(14-9/16")
SPECIFICATIONS
Power Source 120 V AC, 60 Hz
Power Consumption 60 W (Approx.)
Input/Output Video (Input: 2 / Output: 2) -- BNC;
1.0 V [p-p] composite / 75 ½ or Hi-z looping through
Audio--RCA;
1 Input / 1 Output
TV System NTSC
Horizontal Resolution 370 lines at center
PS-Data Link Connector No
Sweep Linearity Less than 5%
Sweep Geometry Less than 2%
Overscaning 8%
Actual Visual Size (Approx.) 34 cm (13") diagonal
CRT Size (Approx.) 37 cm (14") diagonal
19-type Rack-Mount Yes
Ambient Operating Temperature Ð10ûC - + 50ûC (+14ûF - +122ûF)
Ambient Operating Humidity Less than 90%
Speaker Output 0.5 W
Dimensions (W x H x D) 370 x 352 x 399 mm (14-9/16" x 13-7/8" x 15-11/16")
Weight 13 kg (28.7 lbs.)
: with optional rack angle bracket.
22cm (9") Color AV Monitor
WV-CM1020
¥ 22cm (9") diagonal actual visual size.
¥ 300 TV lines h.resolution.
¥ Selectable 2 channels A/B.
¥ 2 loop through video/audio connectors.
¥ Max. 0.5W speaker.
¥ Optional adaptor WV-Q52A for EIA 19-type rack (up to two monitors).
WV-Q52A
(Optional)
DIMENSIONS
399(15-11/16")
Unit : mm (inches)
SPECIFICATIONS
Power Source
Power Consumption
Input/Output
TV System
Horizontal Resolution
PS-Data Link Connector No
Sweep Linearity
Sweep Geometry
Overscaning
Actual Visual Size (Approx.) 22 cm (8-3/4") diagonal
CRT Size (Approx.)
19-type Rack-Mount
Ambient Operating Temperature Ð10ûC - + 50ûC (+14ûF - +122ûF)
Ambient Operating Humidity
Speaker Output
Dimensions (W x H x D)
Weight
220(8-11/16")
120 V AC, 60 Hz
48 W (Approx.)
Video (Input: 2 / Output: 2) -- BNC;
1.0 V [p-p] composite / 75 ½ or Hi-z looping through
Audio--RCA;
1 Input / 1 Output
NTSC
300 lines at center
Less than 5%
Less than 2%
8%
25 cm (9-13/16") diagonal
Yes
Less than 90%
0.5 W
220 x 220 x 309 mm (8-11/16" x 8-11/16" x 12-3/16")
6.5 kg (14.3 lbs.)
: with optional rack angle bracket.
309(12-3/16")
Unit : mm (inches)
