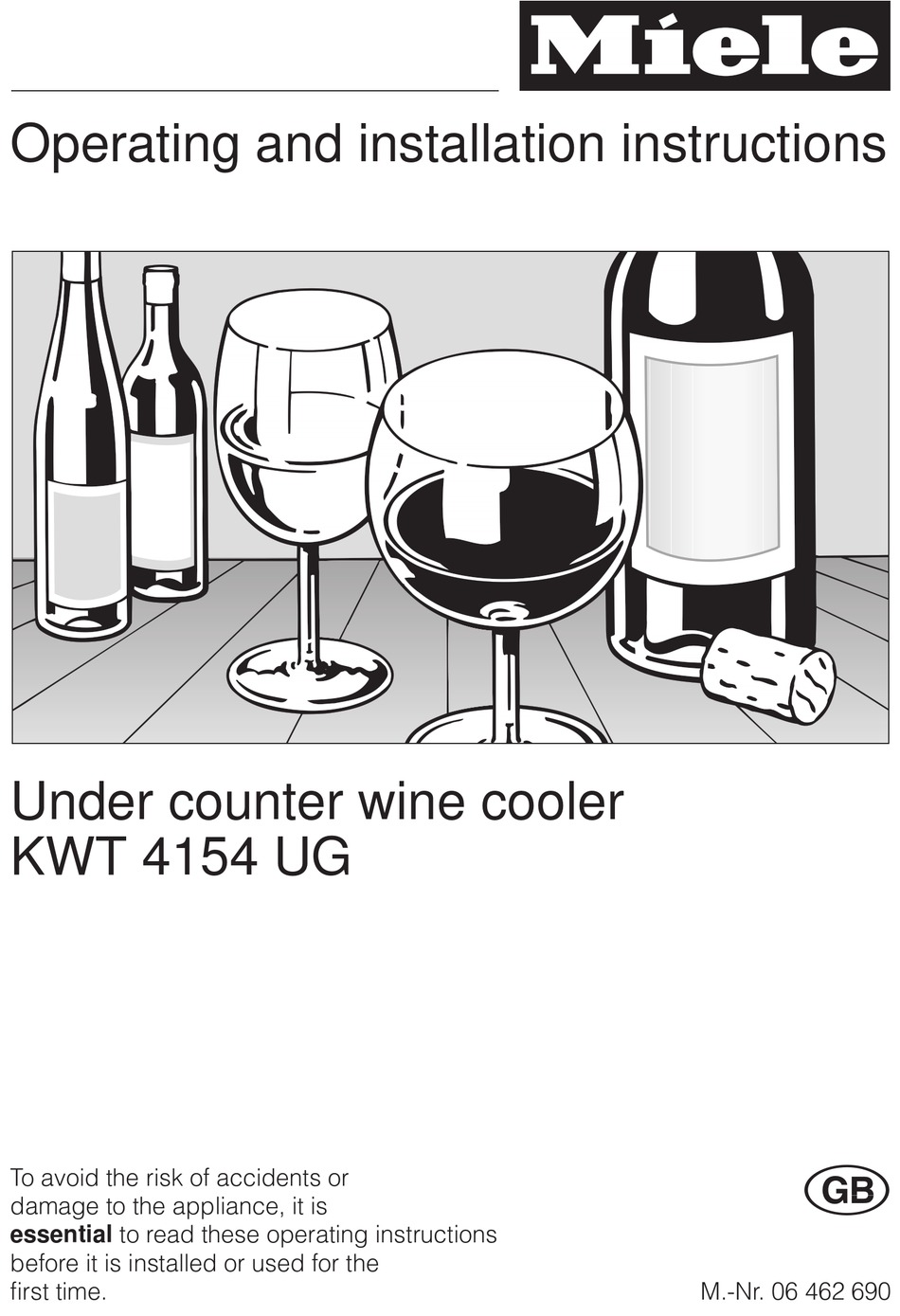

Operating and installation instructions
Under counter wine cooler
KWT 4154 UG
G
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time.
M.-Nr. 06 462 690

Advertisement

loading

  Related Manuals for Miele KWT 4154 UG

  Summary of Contents for Miele KWT 4154 UG

  • Page 1 Operating and installation instructions Under counter wine cooler KWT 4154 UG To avoid the risk of accidents or damage to the appliance, it is essential to read these operating instructions before it is installed or used for the first time.
  • Page 2: Table Of Contents

    Contents Description of the appliance ......... 4 Caring for the environment .
  • Page 3 Contents Problem solving guide..........22 Noises .
  • Page 4: Description Of The Appliance

    Description of the appliance a On/Off button e Safety lock indicator light b Temperature display for upper zone f Alarm "off" button c Temperature selector buttons for g Temperature display for lower zone upper zone h Temperature selector buttons for left hand button: warmer lower zone right hand button: colder...
  • Page 5 Description of the appliance a Interior lighting b Isolation shelf for thermal separation c Wooden shelf with décor strip for descriptive labels d Active charcoal filter e Condensate channel and drain hole To ensure the correct functioning of the appliance in tropical climates where the ambient temperature exceeds 38°C and air humidity levels exceed 70% the appliance must only be used in a climate controlled room.
  • Page 6: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Please ensure that the appliance presents no danger to children while The transport and protective packing being stored for disposal. has been selected from materials which are environmentally friendly for It should be unplugged or disposal, and can normally be...
  • Page 7: Warning And Safety Instructions

    Warning and Safety instructions Technical safety This appliance complies with all This appliance contains the coolant relevant legal safety requirements. Isobutane (R600a), a natural gas Improper use of the appliance can, which is environmentally friendly. It is, however, present a risk of both however, flammable and care must be personal injury and material taken during transportation and setting...
  • Page 8 Warning and Safety instructions The electrical safety of this The appliance is only completely appliance can only be guaranteed isolated from the electricity supply when continuity is complete between when: the appliance and an effective earthing – it has been switched off at the wall system which complies with local and socket and the plug has been national safety regulations.
  • Page 9: Disposal Of Your Old Appliance

    Warning and Safety instructions Disposal of your old appliance The appliance is designed for use within certain climate ranges Before disposing of an old (ambient temperatures), and should not appliance, first make the door latch be used outside this range. The climate or lock unusable.
  • Page 10: Switching On And Off

    Switching on and off Before using for the first time Switching off ^ Clean the inside of the appliance and ^ Press the On/Off button until the the accessories with warm water and temperature displays go dark. a little washing up liquid, and then The cooling system switches off.
  • Page 11: Switching Off For Longer Periods Of Time

    Switching on and off ^ Press the constant humidity button to save the setting. The safety lock indicator light will light up when the safety lock has been activated. ^ Press the On/Off button to come out of setting mode. If you do not do this the electronics will switch over to normal operation automatically after a couple of minutes.
  • Page 12: The Correct Temperature And Humidity

    The correct temperature and humidity Wine keeps on maturing depending on Isolation shelf for thermal separation the surrounding conditions. The length The appliance has a fixed isolation of time for which wine can be kept in shelf which divides the cabinet into two good condition will therefore depend zones.
  • Page 13: Temperature Range

    The correct temperature and humidity Approx. 5 seconds after letting go of Temperature display brightness the button, the current temperature The appliance is supplied with the inside the applicable zone is brightness of the temperature display automatically shown. set as low as possible. The two temperature zones are cooled You can adjust the brightness of the alternately, which means that...
  • Page 14: Humidity Level

    The correct temperature and humidity ^ Press the constant humidity button to Constant humidity (Dynamic cooling) button m save the setting. This setting enables the relative humidity inside the wine cooler and the temperature to be distributed evenly around the interior so you can store all ^ Press the On/Off button to come out your wine under the exactly the same of the setting mode.
  • Page 15: Switching Off

    Replace the active charcoal filters with new ones once a year (see "Cleaning and care"). These are available from your dealer or the Miele Spare Parts Department.
  • Page 16: Interior Lighting

    Interior lighting There is lighting in both the upper and Adjusting the brightness lower zones of the wine cooler so that The brightness of the interior lighting both zones can be lit up. can be adjusted. ^ Press and hold the interior lighting Do not remove the lamp covers.
  • Page 17: Storing Wine Bottles

    Additional labels can be purchased on the same shelf. Removing a bottle of from your Miele dealer or from the one type will then leave the other types Spare Parts Department. undisturbed and will avoid the need to move different bottles around.
  • Page 18: Alarm

    Alarm Activating the alarm system Your appliance is fitted with a warning system which ensures that the The alarm system is always active. It temperature cannot rise or fall does not have to be switched on unnoticed and impair the wine. manually.
  • Page 19: Defrosting

    Defrosting Condensate and frost can build up on the back wall of the appliance whilst it is in use. These are automatically removed and defrosted by the appliance. The condensate is drained away via a channel and drain hole into an evaporation system at the back of the appliance.
  • Page 20: Cleaning And Care

    E-Cloth circuit. A microfibre "E-Cloth" is available from the Miele UK Spare Parts Department, The data plate located inside the which is suitable for cleaning surfaces appliance must not be removed. It such as stainless steel, glass, plastic...
  • Page 21: Door Seal

    Active charcoal filter Replace the active charcoal filters with new ones once a year. These can be purchased from your Miele dealer or from the Spare Parts Department. ^ Turn the filters 90° clockwise or anti-clockwise.
  • Page 22: Problem Solving Guide

    ^ Check that the fuse is not defective . . . "F0" or "F1" appears in the and that the mains fuse has not temperature display. blown. If it has, contact the Miele Ser- There is a fault. Call the Service vice Department. Department.
  • Page 23 Problem solving guide If you still cannot remedy the fault having followed these suggestions, please contact the Miele Service Department. To prevent unnecessary loss of temperature it is advisable not to open the door while waiting for the appliance to be serviced.
  • Page 24: Noises

    Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes.
  • Page 25: How To Save Energy

    How to save energy Normal energy consumption Increased energy consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven).
  • Page 26 How to save energy Normal energy Increased energy consumption consumption Defrosting Defrost the freezer when a layer of A layer of ice hinders the cold ice one centimetre thick has built from reaching the frozen food, and causes an increase in energy consumption.
  • Page 27: After Sales Service

    In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact: – your Miele Dealer – the Miele Service Department (see back cover for address). When contacting your Dealer or the Service Department, please quote the model and serial number of your appliance.
  • Page 28: Electrical Connection Irl, U.k., Za

    Electrical connection IRL, U.K., ZA All electrical work should be carried out Non-rewireable plugs (BS 1363) by a suitably qualified and competent The fuse cover must be re-fitted when person in accordance with local and changing the fuse, and if the fuse cover national safety regulations.
  • Page 29: Electrical Connection Aus, Nz

    Electrical connection AUS, NZ All electrical work should be carried out WARNING by a suitably qualified and competent THIS APPLIANCE MUST BE person in accordance with local and EARTHED national safety regulations. The appliance is supplied with a mains cable and moulded plug ready for connection to 220-240 V 50 Hz supply.
  • Page 30: Installation

    The appliance housing unit must controlled room. be constructed to allow sufficient space for ventilation. Miele kitchen units are Location designed to provide this ventilation. The appliance should be installed in a The air inlet and outlet must not be dry, well-ventilated room.
  • Page 31: Changing The Door Hinging

    Changing the door hinging The appliance is supplied right hand hinged. If left hand door hinging is required, follow the instructions below. ^ Unscrew the top hinge plate e, turn it around and refit it on the opposite side. ^ Unscrew the lower hinge plate f. ^ Close the door, and unscrew the top hinge pin from the door a.
  • Page 32 Changing the door hinging ^ Swap over the plug h and the hinge pin guide i in the top of the door. ^ Hang the door on the lower hinge pin j, and close the door k. ^ Refit the top hinge pin l through the hinge pin plate into the door.
  • Page 33: Building Under

    Building under Make sure that the ventilation gaps in the plinth are at least 300 cm so that warm air can disperse unhindered. Otherwise the appliance has to work harder, resulting in an increase in electricity consumption. Aligning the appliance to taller unit doors ^ Align the appliance to the height of the niche by altering the adjustable...
  • Page 34: Securing The Appliance

    Building under Securing the appliance ^ If the door is right hand hinged, the fixing bracket a should be fixed right aligned to the back of the filler ^ Secure the appliance by tightening panel b; if the door is left hand the screws in the niche through the hinged, then the fixing bracket fixing strip.
  • Page 36 Alteration rights reserved / 3305 M.-Nr. 06 462 690 / 03 en - GB KWT 4154 UG...
