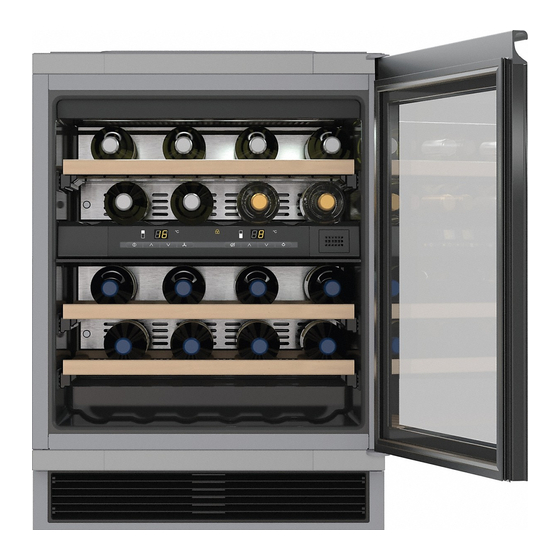

Miele KWT 6321 UG Operating And Installation Instructions

Miele KWT 6321 UG Operating And Installation Instructions

Wine conditioning unit
Hide thumbs Also See for KWT 6321 UG:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating and installation
instructions
Wine conditioning unit
It is essential to read these operating and installation instructions
before installing and using the appliance. This prevents both personal
injury and damage to the appliance.
en-AU, NZ
M.-Nr. 09 886 943

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KWT 6321 UG and is the answer not in the manual?

Questions and answers

Related Manuals for Miele KWT 6321 UG

Summary of Contents for Miele KWT 6321 UG

  • Page 1 Operating and installation instructions Wine conditioning unit It is essential to read these operating and installation instructions before installing and using the appliance. This prevents both personal injury and damage to the appliance. en-AU, NZ M.-Nr. 09 886 943...

  • Page 2: Table Of Contents

    Contents Warning and Safety instructions ................Caring for the environment ..................12 Saving energy......................... 13 Guide to the appliance....................14 Accessories ........................16 Accessories supplied ..................... 16 Optional accessories ..................... 16 Switching the wine conditioning unit on and off............ 17 Before using for the first time..................
  • Page 3 Contents Cleaning and care ......................32 Cleaning agents ......................32 Before cleaning the wine conditioning unit ..............33 Interior, accessories, and appliance door ..............33 Cleaning the ventilation gaps ..................33 Cleaning the door seal ....................33 Cleaning the air filter ...................... 34 After cleaning ........................

  • Page 4: Warning And Safety Instructions

    "Installation", as well as in the "Warning and Safety instructions". Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any future owner.

  • Page 5: Correct Application

    Miele cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance. This appliance is not intended for use by persons (including ...
  • Page 6 Warning and Safety instructions Safety with children Young children must not be allowed to use this appliance.  Older children may only use the wine conditioning unit if its  operation has been clearly explained to them and they are able to use it safely.

  • Page 7: Technical Safety

    - Ventilate the room in which the wine conditioning unit is located for several minutes. - Call Miele. The more coolant there is in a wine conditioning unit, the larger the  room should be in which it is installed. In the event of a leakage, if the appliance is in a small room, there is the danger of a combustible gas/air mixture building up.
  • Page 8 The protective measures provided in the installation and in this Miele product must also be assured in their function and operation in isolated operation or in non-mains synchronous operation, or replaced with equivalent measures in the installation.

  • Page 9: Correct Use

    Faulty components must only be replaced with genuine Miele  original spare parts. Miele can only guarantee the safety standards of the appliance when Miele spare parts are used. This wine conditioning unit is supplied with a special lamp to cope ...

  • Page 10: Accessories And Spare Parts

    Only use original Miele accessories. Using spare parts or  accessories from other manufacturers will invalidate the warranty, and Miele cannot accept liability. Miele will guarantee to supply functional spare parts for a  minimum of 10 years and up to 15 years following the discontinuation of your wine unit.
  • Page 11 Warning and Safety instructions Transport Always transport the wine conditioning unit upright and in its  packaging to avoid it being damaged. Risk of injury and damage! The wine conditioning unit is very heavy  and must be transported by two people. Disposing of your old appliance ...

  • Page 12: Caring For The Environment

    Please dispose of it at your local community waste collection/recycling centre for electrical and electronic appliances, or contact Miele. You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal. You should...

  • Page 13: Saving Energy

    Saving energy Normal energy Increased energy consumption consumption Installation/ In a ventilated room. In an enclosed, unventilated Maintenance room. Protected from direct In direct sunlight. sunlight. Not situated near a heat Situated near a heat source source (radiator, oven). (radiator, oven). Where the ideal ambient Where the ambient room room temperature is approx.

  • Page 14: Guide To The Appliance

    Guide to the appliance a For switching the entire g For switching the temperature or wine conditioning unit on and off door alarm off b For setting the temperature in the h For setting the temperature in the upper wine conditioning zone lower wine conditioning zone (...
  • Page 15 Guide to the appliance a Lighting strip (in both wine conditioning zones) b Active AirClean filter c Control panel for the upper and lower wine conditioning zones/ Isolation plate for thermal separation of the zones d Isolation strips for thermal separation of the temperature zones e Wooden shelves f Safety glass door with UV filter...

  • Page 16: Accessories

    Accessories Accessories supplied Optional accessories Miele has a large range of accessories Active AirClean filter and cleaning and care products which The Active AirClean filter ensures are designed for use with the wine optimum air quality in the wine conditioning unit. conditioning unit by filtering the incoming air.

  • Page 17: Switching The Wine Conditioning Unit On And Off

    Switching the wine conditioning unit on and off Before using for the first time Switching on the wine conditioning unit Removing packaging material  Remove all packaging material from the inside of the appliance. Cleaning the wine conditioning unit  Touch the On/Off sensor for the Please refer to the relevant whole appliance so that the instructions in "Cleaning and care".

  • Page 18: Switching Off For Longer Periods Of Time

    Switching the wine conditioning unit on and off Switching off for longer periods of time If, during a long absence, the wine conditioning unit is switched off but not cleaned and the door is left shut, there is a danger of mould building up inside the appliance.

  • Page 19: Selecting Further Settings

    Selecting further settings Safety lock  The safety lock can be activated to prevent the wine conditioning unit being switched off by mistake.  To save the setting, touch the DynaCool On/Off sensor. Switching the safety lock on/off When the lock function is activated, its indicator ...

  • Page 20: Changing The Brightness Of The Temperature Display

    Selecting further settings Changing the brightness of the temperature display The default brightness for the wine conditioning unit temperature display is  Touch the DynaCool On/Off sensor set to . again.  will light up in the display. To change the brightness of the ...

  • Page 21: The Optimum Temperature And Air Quality

    The optimum temperature and air quality Recommended drinking temperatures Perfectly storing wine Wine keeps on maturing depending on Type of wine Recommended the surrounding conditions. The length drinking of time for which wine can be kept in temperature* good condition will therefore depend Light, fruity reds: 14 °C to 16 °C not only on the temperature but also on...

  • Page 22: Setting The Temperature

    The optimum temperature and air quality Safety features with low ambient Setting the temperature temperatures You can set the respective temperatures In order to protect the wine from low using the two sensors below the ambient temperatures, a safety temperature displays. thermostat ensures that the ...

  • Page 23: Temperature Range

    The optimum temperature and air quality Air quality and humidity The two temperature zones are cooled alternately which means that, In most refrigerators, the humidity is too depending on the amount of wine low for wine and therefore a refrigerator being stored, it may take a few hours is not suitable for wine storage.

  • Page 24: Dynacool  (Constant Humidity)

    12 months. conditioning unit will come on Active AirClean filters can be automatically when the cooling system obtained directly from Miele, or from switches on. This ensures the the Miele website. optimum climate for your wine is maintained.

  • Page 25: Temperature And Door Alarm

    Temperature and door alarm The wine conditioning unit is equipped Switching the temperature alarm off with a warning system so that the early temperature cannot rise or fall You can switch the alarm off early if you unnoticed and therefore damage the wish.
  • Page 26 Temperature and door alarm Door alarm An alarm will sound if the appliance door has been left open for longer than 60 seconds. As soon as the door is closed, the alarm will stop. Switching the door alarm off early You can switch the alarm off early if you wish.

  • Page 27: Feature Lighting

    Feature lighting The interior lighting can be set to remain Setting the brightness of the feature on when the appliance door is closed so lighting your wines can be on display at all The brightness of the feature lighting times. can be adjusted.

  • Page 28: Storing Wine Bottles

    Storing wine bottles Vibration and movement have a  Risk of injury from falling wine negative effect on the maturing process, bottles. which can in turn affect the taste of the Wine bottles may become wedged in wine. the wooden shelves above and fall To avoid disturbing other bottles when out of the wine conditioning unit removing a bottle of wine, store bottles...

  • Page 29: Wooden Shelves

    Storing wine bottles Wooden shelves  To replace the shelf, place it on the extended rails. The notches in the The wooden shelves are on telescopic wooden shelf fit onto the retaining runners which can be pulled out to bolts on the runners. make it easier to store and remove bottles.

  • Page 30: Maximum Capacity

    Storing wine bottles Maximum capacity Up to 34 Bordeaux-type bottles (0.75 l) can be stored in the wine unit, with 14 in the upper zone and 20 bottles in the lower zone. The total of 34 bottles can only be achieved by using all wooden shelves. ...

  • Page 31: Automatic Defrosting

    Automatic defrosting The wine conditioning unit defrosts automatically.

  • Page 32: Cleaning And Care

    Cleaning and care Cleaning agents Do not let water get into the electronic module, the ventilation To avoid damaging the surfaces of your grille or the lighting. appliance, do not use: - cleaning agents containing soda,  Risk of damage due to moisture ammonia, acids or chlorides ingress.

  • Page 33: Before Cleaning The Wine Conditioning Unit

    (you could  Take out all other removable parts for use a Miele Vacuum Cleaner dusting cleaning. brush, for example). Interior, accessories, and Cleaning the door seal appliance door ...

  • Page 34: Cleaning The Air Filter

    Cleaning and care Cleaning the air filter The air filter behind the ventilation grille should be cleaned at least once a year.  Remove the air filter and clean both sides using a vacuum cleaner. A dirty air filter can result in the wine conditioning unit not cooling sufficiently.

  • Page 35: Active Airclean Filter

     Insert the filter.  Remove the filter.  Push the filter in and then let go. The filter will lock automatically and you will hear it click. Active AirClean filters can be obtained from Miele directly, or from the Miele website.

  • Page 36: Problem Solving Guide

    Problem solving guide Many malfunctions and minor faults that can occur in daily operation can be corrected without contacting Miele. This will save you time and money because you will not need a service call. You can find information on how to remedy faults yourself at www.miele.com.au/service or www.miele.co.nz/service and on the Miele website.
  • Page 37 Problem solving guide Problem Possible cause and remedy The compressor is The temperature in the wine conditioning unit is set switching on more too low. frequently and for longer  Correct the temperature setting. periods of time. The The door is not properly closed. temperature in the wine ...
  • Page 38 F0 or F1 appears in the There is a fault. temperature display.  Call Miele. The alarm is sounding The temperature in the zone concerned has risen and the temperature higher or fallen lower than the temperature set.
  • Page 39 Do not look from a close range directly into the lighting with optical instruments (e.g. magnifying glass or similar).  Call Miele. The LED interior lighting The feature lighting is switched on. is on even when the ...
  • Page 40 Problem solving guide General problems with the wine conditioning unit Problem Possible cause and remedy An alarm sounds. The appliance door has been open for longer than approx. 60 seconds.  Close the appliance door. The wine conditioning The safety lock is switched on. unit cannot be switched ...

  • Page 41: Noises

    Noises Completely What causes them normal noises Brrrrr ... A humming noise is made by the motor (compressor). The humming noise can get louder for brief periods when the motor switches on. Blubb, blubb ... A gurgling noise can be heard when coolant is circulating through the pipes.

  • Page 42: After Sales Service And Warranty

    Contact in case of fault In the event of a fault which you cannot remedy yourself, please contact Miele. You can book a Miele customer service call-out online at www.miele.com.au/ service or www.miele.co.nz/service. Contact information for Miele can be found at the end of this booklet.

  • Page 43: Electrical Connection

    For safety reasons, do not use an The protective measures provided in the extension cable or multi-socket domestic installation and in this Miele adapter. product must also be assured in their All electrical work must be carried out function and operation in isolated...

  • Page 44: Installation Advice

    The side-by-side installation kit is This appliance should be installed in a available from Miele. dry, well-ventilated room. Miele will be able to advise you which When deciding on the installation combination of models is possible location, please bear in mind that the with your wine conditioning unit.

  • Page 45: Climate Range

    Installation advice Climate range Ventilation This wine conditioning unit is designed Ventilation of the wine conditioning unit for use within specific ambient occurs via the ventilation gaps in the temperatures (climate range). Do not appliance plinth. These must not be use it in ambient temperatures for covered or blocked.
  • Page 46 Installation advice Before building-in the wine unit  Take any accessories out of the appliance.  Remove the cable clip from the back of the appliance (depending on model).

  • Page 47: Building-In Dimensions

    Installation advice Building-in dimensions Before installation, ensure the the niche dimensions are the correct size. Before installation, ensure that the ventilation gap dimensions are the correct size. The cut-out in the plinth facing for the supplied ventilation grille must be aligned centrally with the appliance in order to ensure the correct functioning of the wine unit.

  • Page 48: View From Above

    Installation advice View from above...

  • Page 49: Changing The Door Hinging

    Changing the door hinging The wine conditioning unit is supplied right-hinged. If left-hand hinging is required, the hinges must be changed. To change the door hinging, you will need the following tools:  Risk of injury and damage! The glass door is breakable. The glass door is heavy.
  • Page 50 Changing the door hinging  Place the appliance door with the  Remove the hinge bracket at the top outer side upwards on a stable  and the cover cap  on the surface. opposite side.  Push out the bushing. ...
  • Page 51 Changing the door hinging  Screw the door into the drill holes .  Now install the wine conditioning unit.  Screw the hinge bracket with the door opening angle limiter onto the bottom left of the door .  Fit the other hinge bracket to the top left of the door.

  • Page 52: Installing The Wine Conditioning Unit

    Installing the wine conditioning unit Preparing the wine conditioning  Risk of damage and injury from unit the wine conditioning unit tipping over. The air filter prevents soiling of the There is an increased risk of injury compressor compartment. This will and damage if the wine conditioning help to avoid impaired functioning of unit is installed by a single person.
  • Page 53 Installing the wine conditioning unit  Turn the screw feet  clockwise until the appliance is 4 mm from the top of the niche.  You can unscrew the feet with either the supplied open-ended spanner  or with an Allen key .

  • Page 54: Aligning The Wine Conditioning Unit To Taller Furniture Doors

     when having the filler furniture doors". panel made. A retaining bracket  is required to secure the filler panel. This is available from Miele or from specialist retailers. The retaining bracket can be fitted above or below the wine conditioning unit as required:...
  • Page 55 Installing the wine conditioning unit  You can now push the wine conditioning unit into the niche.  To avoid damaging the wine conditioning unit, the ventilation grille must be positioned precisely in front of the vent outlet. If you wish to fit a plinth facing across the front of the wine unit, make sure it provides adequate ventilation.

  • Page 56: Pushing The Wine Conditioning Unit Into The Niche

    Installing the wine conditioning unit Pushing the wine conditioning Securing the wine conditioning unit into the niche unit in the niche  The wine conditioning unit must  stand proud of furniture fronts evenly When pushing the appliance into its by 2 mm.

  • Page 57: Adjusting The Lateral Alignment Of The Appliance Door

    Installing the wine conditioning unit Adjusting the lateral alignment of the appliance door If the appliance door is not aligned with the housing side walls, the appliance door can be adjusted using the screws underneath the hinges.  Screw the wine conditioning unit at the bottom left and right to adjacent furniture units.
  • Page 58 Installing the wine conditioning unit  Fit the plinth facing  in position.  The cut-out in the plinth facing must be aligned centrally with the wine  Fit the covers . unit.  Insert the foam block  supplied into ...
  • Page 59 Miele Australia Pty. Ltd. ACN 005 635 398 ABN 96 005 635 398 Level 4, 141 Camberwell Road Hawthorn East, VIC 3123 1300 464 353 (1300 4 MIELE) info@miele.com.au www.miele.com.au Miele New Zealand Limited IRD 98 463 631 8 College Hill...
  • Page 60 KWT 6321 UG en-AU, NZ M.-Nr. 09 886 943 / 00...
