so will may cause damage to the fan or personal injury.
If the power cord is damaged, the unit must be discarded to avoid a hazard.
This product must be disposed of properly according to local authority. By recycling, you
help save the environment.

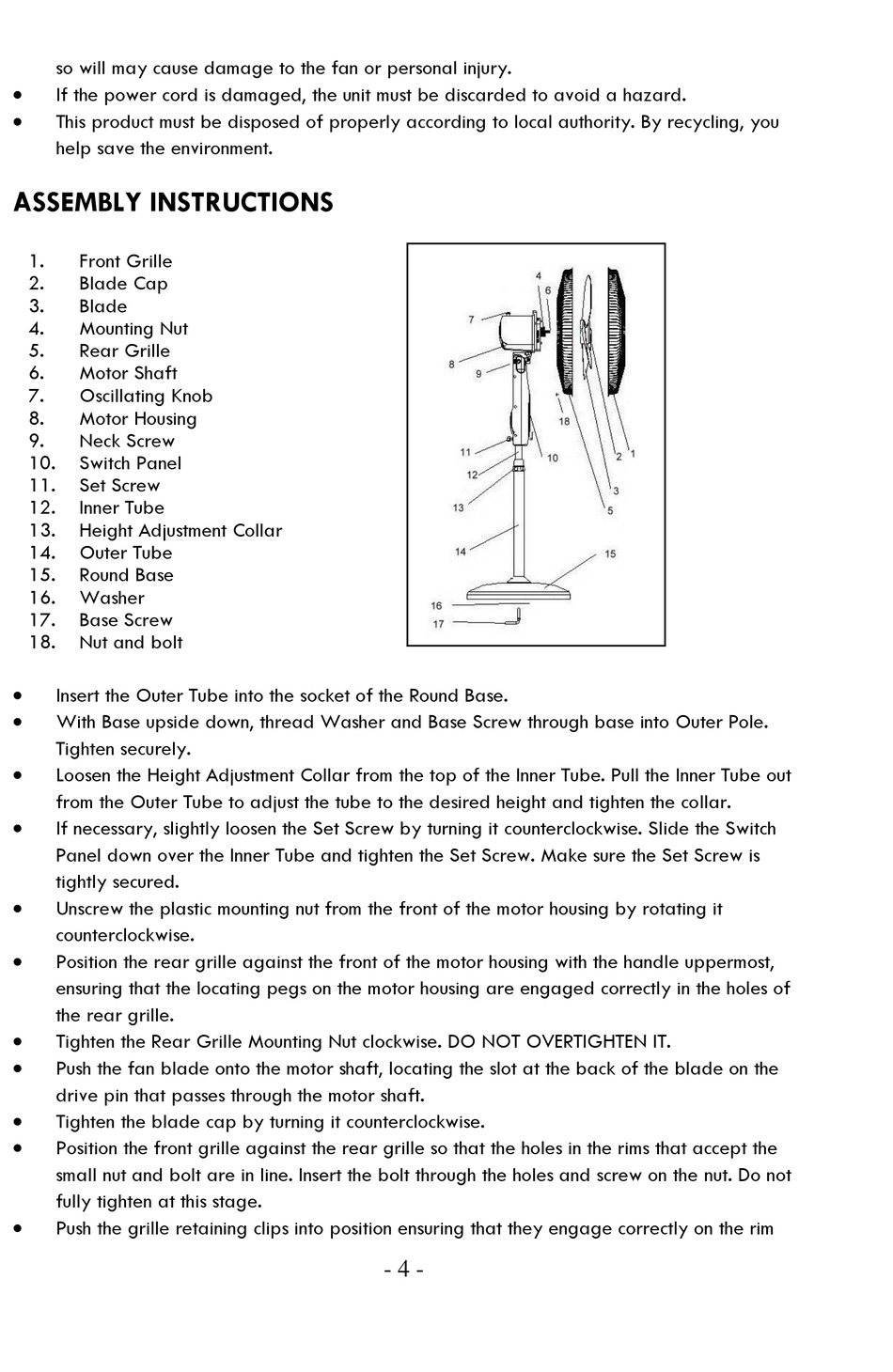

ASSEMBLY INSTRUCTIONS

1.
Front Grille
2.
Blade Cap
3.
Blade
4.
Mounting Nut
5.
Rear Grille
6.
Motor Shaft
7.
Oscillating Knob
8.
Motor Housing
9.
Neck Screw
10.
Switch Panel
11.
Set Screw
12.
Inner Tube
13.
Height Adjustment Collar
14.
Outer Tube
15.
Round Base
16.
Washer
17.
Base Screw
18.
Nut and bolt
Insert the Outer Tube into the socket of the Round Base.
With Base upside down, thread Washer and Base Screw through base into Outer Pole.
Tighten securely.
Loosen the Height Adjustment Collar from the top of the Inner Tube. Pull the Inner Tube out
from the Outer Tube to adjust the tube to the desired height and tighten the collar.
If necessary, slightly loosen the Set Screw by turning it counterclockwise. Slide the Switch
Panel down over the Inner Tube and tighten the Set Screw. Make sure the Set Screw is
tightly secured.
Unscrew the plastic mounting nut from the front of the motor housing by rotating it
counterclockwise.
Position the rear grille against the front of the motor housing with the handle uppermost,
ensuring that the locating pegs on the motor housing are engaged correctly in the holes of
the rear grille.
Tighten the Rear Grille Mounting Nut clockwise. DO NOT OVERTIGHTEN IT.
Push the fan blade onto the motor shaft, locating the slot at the back of the blade on the
drive pin that passes through the motor shaft.
Tighten the blade cap by turning it counterclockwise.
Position the front grille against the rear grille so that the holes in the rims that accept the
small nut and bolt are in line. Insert the bolt through the holes and screw on the nut. Do not
fully tighten at this stage.
Push the grille retaining clips into position ensuring that they engage correctly on the rim
- 4 -
