PN: 6410T0021
Version 2.0
Rev: 1/5/2011

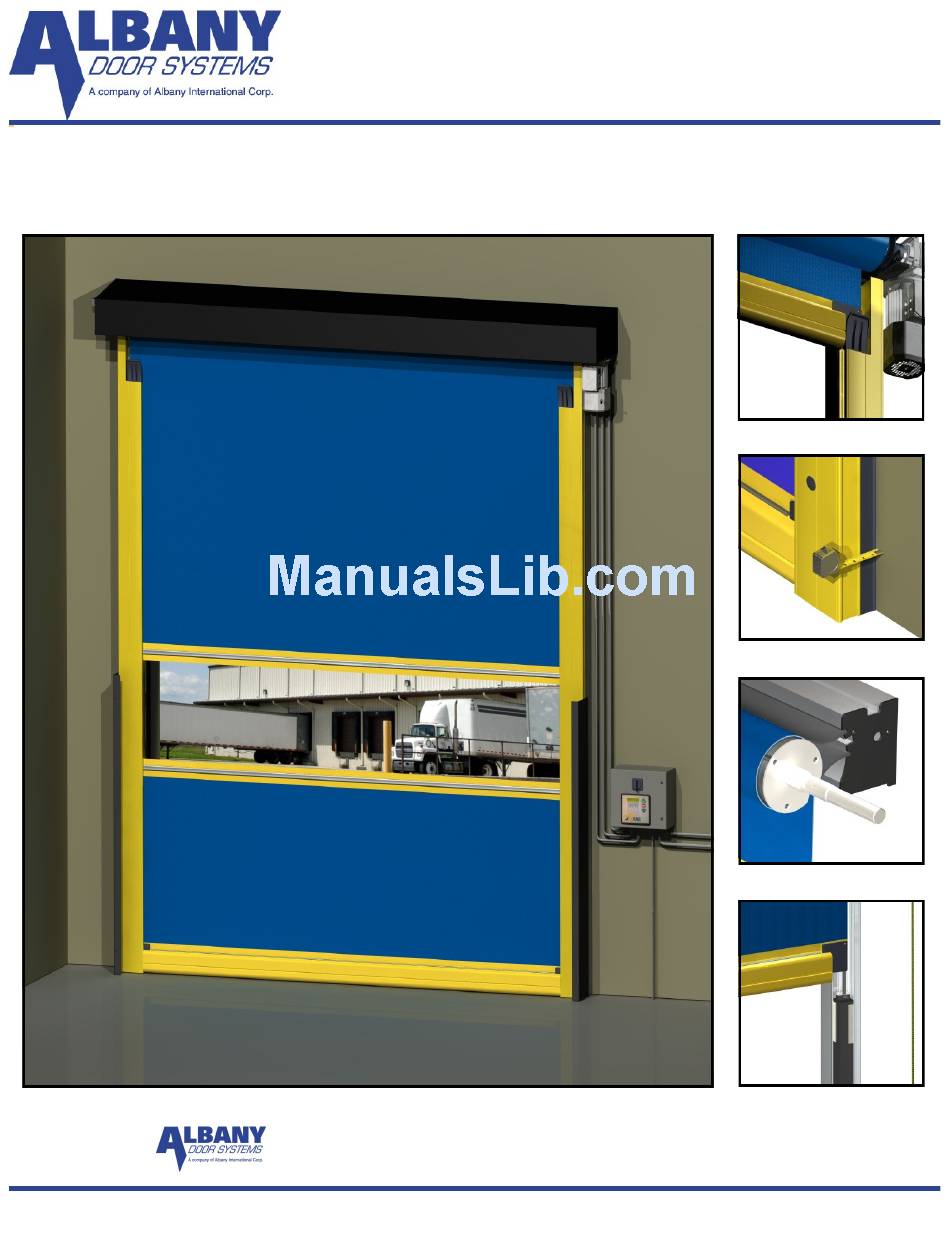

UltraFabric
Mechanical Installation and Owner's Manual
Doors are Ultra-Tough, Ultra-Reliable, and Ultra-Affordable.
Albany Door Systems - A Company of Albany International Corp. All Rights Reserved
975-A Old Norcross Road, Lawrenceville, Georgia 30046
800-252-2691 www.albanydoors.com
Advertisement
Table of Contents
Related Manuals for Albany UltraFabric
Summary of Contents for Albany UltraFabric
- Page 1 PN: 6410T0021 Version 2.0 Rev: 1/5/2011 UltraFabric Mechanical Installation and Owner’s Manual Doors are Ultra-Tough, Ultra-Reliable, and Ultra-Affordable. Albany Door Systems - A Company of Albany International Corp. All Rights Reserved 975-A Old Norcross Road, Lawrenceville, Georgia 30046 800-252-2691 www.albanydoors.com...
- Page 2 No other oral or written representations made by Albany Door Systems or its agents are a part of this warranty unless specifically set forth in writing by an authorized Albany Door Systems official.
- Page 3 INTRODUCTION The contents of this manual are designed to help you operate and maintain Albany UltraLite™, UltraFast™, UltraCool™, and Ultra- Freeze™ high speed doors. DO NOT operate or perform maintenance on the high speed door unless you have read through the instructions in this manual.
-
Page 4: Site Preparation
1. Inspect and unpack the components. Report any all applicable regulating body(s) electrical codes damage immediately to Albany at (262) 268-9885. and standards. . See applicable electrical manual Refer to the serial number tag located on the right for specifications and wiring instructions.. - Page 5 Installation & Operation WALL ANCHORING GUIDE Albany Doors does not supply hardware for mounting the door to the wall. Use proper hardware best suited for each particular door installation. Some examples are shown below. It is the respon- sibility of the door owner to ensure that the wall material is strong enough to support the forces of the door and all anchoring hardware.
- Page 6 INSTALLATION REFERENCE MARKS DETAIL BELOW SHOWN FOR 1. Measure from the inside of the left door jamb to the inside of STANDARD REAR COLUMN the right door jamb and place a mark on the floor on the door MOUNTING. SEE PAGE 8 FOR opening centerline.
- Page 7 Albany High Speed Doors Installation & Operation MOUNTING THE DOOR ASSEMBLY (optional methods shown) ASSEMBLE ON FLOOR ASSEMBLE ON WALL 1. Hold the left side column in place against the wall. 1. Lay the head assembly on its back on the floor in a Align the base with the marking placed on the floor clean area in front of the door opening.
- Page 8 ASSEMBLE ON FLOOR (continued…) ASSEMBLE ON WALL (continued…) 8. Align the base of each side column with the mark- 6. Position the head assembly over the side columns ings place on the floor earlier and bring the columns with the mounting brackets in line with the side col- into plumb.
- Page 9 Albany High Speed Doors Installation & Operation MOUNTING THE DOOR ASSEMBLY (continued…) 11. The photo safety cables are marked and bundled on top of the head assembly at the junction box. Route the light curtain cables through the holes located at the rear bottom of the mounting brackets as shown.
- Page 10 MOUNTING ULTRALITE AND LOW PROFILE DOORS 1. Lay the head assembly on its back on the floor in a clean area in front of the door opening. 2. Slide each side column onto the head assembly. Install the two 1/2” flat washers, lock washers, and 1/2”x1”...
- Page 11 Albany High Speed Doors Installation & Operation MOUNTING THE CHAIN HOIST The fabric panel of the head assembly must remain strapped to itself until the chain hoist assembly is fully installed with the roller chain taught and the hand chain properly secured to the wall.
- Page 12 MOUNTING THE DEFROST SYSTEM 1. Lay the components of the defrost system on a clean area in front of the opening on the side of the wall to be installed. When lifting the defrost assembly, position the lifting straps to balance the assembly. 2.
- Page 13 Albany High Speed Doors Installation & Operation MOUNTING THE DEFROST SYSTEM (continued…) The blower assembly is heavy. Use proper lifting devices and tech- niques to securely and safely lift the assembly. Failure to properly secure the head assembly could result in death or serious injury.
- Page 14 Manual #6410T0021 1/5/2011...
- Page 15 Albany High Speed Doors Installation & Operation Version 2.0 Manual #6410T0021...
- Page 16 Manual #6410T0021 1/5/2011...
- Page 17 Albany High Speed Doors Installation & Operation Version 2.0 Manual #6410T0021...
- Page 18 Manual #6410T0021 1/5/2011...
- Page 19 Albany High Speed Doors Installation & Operation Version 2.0 Manual #6410T0021...
- Page 20 PART # DESCRIPTION 000804 Manual Chain Hoist Assembly 000823 Drum sprocket #40 Chain 60 tooth 1.125" bore 001373 Shaft collar 1.125"ID x 0.5" 001374 #40 Chain 48' Length 001375 Key Stock 1/4" x 5/16" Zinc Plated Undersized 001376 Split bushing 1.125"ID x 1.25"OD x 3" 001175 Viscous Spped governor 1.25"...
-
Page 21: Installation Checklist
Albany High Speed Doors Installation & Operation Installation Checklist Please fill out below and return to Albany Door Systems Customer: Installation Date(s): Location: Door Serial #(‘s): Contact: Contact Phone #: Install Company: Contact & Phone #: Mechanical Installation (All Doors):... - Page 22 Were the factory supplied cables (motor, encoder & 7 – wire) cables long enough? If No, which cables were too short? If No, was Albany Customer Support contacted and new cables sent? Were the schematics easy to read for electrical hook-up?
- Page 23 Albany Door Systems - A Company of Albany International Corp. All Rights Reserved 975-A Old Norcross Road, Lawrenceville, Georgia 30046 800-252-2691 www.albanydoors.com...
