CABLE FREE WEATHER STATION
WITH 3 REMOTE SENSORS
MODEL: BAA968HG
USER'S MANUAL
INTRODUCTION
Congratulations on your purchasing of BAA968HG Top Weather
Station.
BAA968HG is an all-in-one clock and weather device. It forecasts
the weather with kinetic-moving graphic illustrations and gives
indoor and outdoor temperature. It also shows a trend indicator and
records minimum and maximum temperatures.
Apart from temperature, BAA968HG shows the indoor and outdoor
relative humidity and rates the comfort level. It also retains the
maximum and minimum relative humidity readings. 3 remote
thermo-hygro sensors are included with the unit. BAA968HG is
able to receive and display readings from up to 3 remote sensors.
The built-in barometer enables BAA968HG to display the atmos-
pheric pressure with user-selectable altitude adjustment. A bar
graph will show the pressure trend of the last 24 hours.
What is more, BAA968HG is equipped with a moon phase scanner,
which lets you check the moon phase of any day between 1990 and
2089.
Other features include a HiGlo backlight, daily crescendo alarm
with eight-minute snooze function, and extra-large display.
No wire installation is required between the main and remote units
as BAA968HG operates at 433MHz.

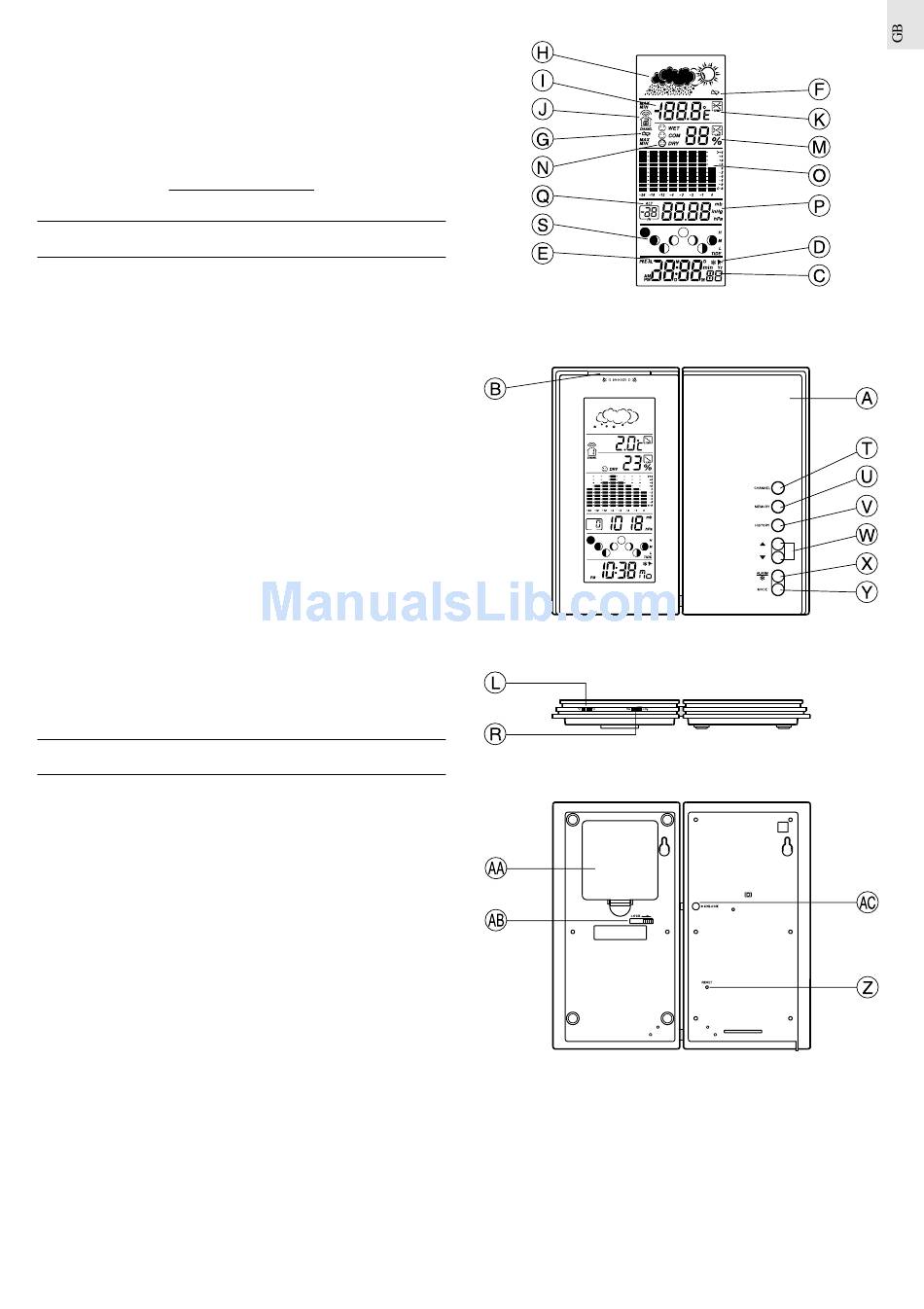

MAIN FEATURES: MAIN UNIT
A TABLE AND CONTROL STAND
Acts as control panel and supports the unit when lying flat
B SNOOZE / LIGHT BUTTON
Activates the snooze function when an alarm goes off or turn
on the backlight for five seconds
C CLOCK WINDOW
Displays the current time and date
D ALARM ON ICON
Appears when the alarm is activated
E ALARM ICON
Appears when the alarm time is displayed
F MAIN UNIT BATTERY LOW (BATT) INDICATOR
Lights up and blinks when the batteries of the main unit are
running dry
G REMOTE UNIT BATTERY LOW (BATT) INDICATOR
Lights up when the batteries of the remote unit are running
dry
H WEATHER FORECAST WINDOW
Displays the weather pattern
I
TEMPERATURE WINDOW
Shows the current temperature or the maximum or minimum
recorded temperature
J
IN/OUT - REMOTE INDICATOR
Indicates if the current reading is displayed as indoor or outdoor-
remote
K TEMPERATURE TREND ARROWS
Indicates the trend of temperature changes
L °C/°F SLIDE SWITCH
Selects between Centigrade (°C) and Fahrenheit (°F) display
1
