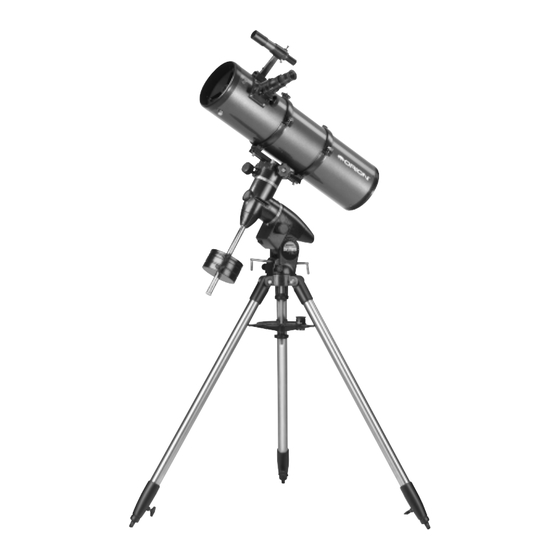

- Page 1 INSTRUCTION MANUAL Orion ® SkyView Pro 6 EQ ™ #9866 Equatorial Reflector Telescope Customer Support (800) 676-1343 E-mail: support@telescope.com Corporate Offices (831) 763-7000 P.O. Box 1815, Santa Cruz, CA 95061 Providing Exceptional Consumer Optical Products Since 1975 IN 188 Rev. A 09/02...
- Page 2 Finder scope Finder scope bracket Eyepiece Tube rings Mirror cell Declination slow-motion control knob Safety thumbscrew Tube ring mounting plate Mounting plate securing knob Counterweight shaft Right Ascension slow-motion control knob Counterweight lock knobs Latitude scale Counterweights Latitude adjustment L-bolts Center support shaft Tripod support tray Tripod leg...
-
Page 3: Table Of Contents
® ongratulations on your purchase of an Orion telescope. Your new SkyView Pro 6 EQ is designed for high-resolution viewing and astrophotography of astronomical objects. With its precision optics and stur- dy equatorial mount, you’ll be able to enjoy hundreds of fascinating celestial denizens. These instructions will help you set up, properly use, and care for your telescope. - Page 4 Finder scope bracket Nylon alignment thumbscrews Finder scope Azimuth adjustment Post knobs Tensioner Focus lock ring Figure 2. Orient the equatorial mount so that the post on the tripod head lines up between the azimuth adjustment knobs on the equatorial mount. Figure 3a.
-
Page 5: Balancing The Telescope
® Figure 4a-d. Proper operation of the equatorial mount requires that the telescope tube be balanced on both the R.A. and Dec. axes. (a) With the R.A. lock lever released, slide the counterweights along the counterweight shaft until it just counterbalances the tube. (b) When you let go with both hands, the tube should not drift up or down. - Page 6 to position the object in the center of the telescope’s eyepiece by turning the R.A. and declination slow-motion control knobs (the R.A. and Dec. lock levers must be tightened to use the slow-motion control knobs). Now look in the finder scope. Is the object visible? Ideally it will Naked-eye view be somewhere in the field of view.
-
Page 7: Setting Up And Using The Equatorial Mount
® Dec. slow-motion Dec. lock lever control knob Dec. setting circle Front opening R.A. R.A. lock lever setting circle R.A. slow-motion control knob Polar axis finder scope (optional) Latitude scale Latitude adjustment L-bolts Figure 6. The SkyView Pro Equatorial Mount, shown from both sides. Keep in mind that as you increase magnification, the bright- ness of the object viewed will decrease;... - Page 8 Eyepiece Alighment Objective Azimuth focus ring set screws (3) lens adjustment knobs Focus lock ring Figure 8. For polar alignment, position the tripod so that the "N" Figure 9a. The optional polar axis finder scope. label at the base of the mount faces north. The azimuth fine adjustment knobs above it are used to make small adjustments to the mount’s azimuth position.
- Page 9 cle so the constellations depicted match their current ori- entation in they sky when viewed with the naked eye. To do this, release the R.A. lock lever and rotate the main tele- scope around the R.A. axis until the reticle is oriented with sky.
- Page 10 Dec. setting circle R.A. Dec. setting circle setting circle thumbscrew Dec. indicator arrow R.A. indicator arrow R.A. setting circle thumbscrew (2) Figure 11. The R.A. and Dec. setting circles. scan the surrounding area of sky. When the object is visible in The Dec.
-
Page 11: Collimating (Aligning The Mirrors)
Figure 12a-d. This illustration shows the telescope pointed in the four cardinal directions (a) north, (b) south, (c) east, (d) west. Note that the tripod and mount have been moved; only the telescope tube has been moved on the R.A. and Dec. axes. Rotate the setting circle until the R.A. - Page 12 In addition to the collimation cap, the primary mirror is marked with a circle at its exact center. This “center mark” allows you to achieve a precise collimation of the primary mirror; you don’t have to guess where the center of the mirror is. You sim- ply adjust the mirror position (described below) until the reflec- tion of the hole in the collimation cap is centered in the ring.
- Page 13 Figure 14. Figure 16. To center the secondary mirror under the focuser, The three small thumbscrews that lock the primary hold the secondary mirror holder in place with one hand while mirror in place must first be loosened before any adjustments can adjusting the center bolt with a Phillips screwdriver.
-
Page 14: Astronomical Observing
Out of collimation Collimated Figure 18. A star test will determine if a telescope’s optics are properly collimated. An unfocused view of a bright star through the Figure 19. eyepiece should appear as illustrated on the right if the optics are Megrez connects the Big Dipper’s handle to it's “pan”. - Page 15 view and you will be able to see fainter details in objects you sure cameras and have “false color” added. Our eyes are not view in your telescope. Exposing your eyes to very bright day- sensitive enough to see color in deep-sky objects except in a light for extended periods of time can adversely affect your few of the brightest ones.
-
Page 16: Astrophotography
watch the ever-changing positions of its four largest moons— To starhop, only a minimal amount of additional equipment is Io, Callisto, Europa, and Ganymede. Higher power eyepieces necessary. A star chart or atlas that shows stars to at least should bring out the cloud bands on the planet’s disk. magnitude 5 is required. - Page 17 Turn the motor drive on. Adjust the telescope’s focuser so that the image appears sharp in the camera’s viewfinder. The cam- era’s shutter is now ready to be opened. A remote shutter release must be used or the image will be blurred beyond recognition.
-
Page 18: Care And Maintenance
Cleaning Mirrors locking shutter release cable and lock it. You are now expos- ing your first deep-sky object. You should not have to clean the telescope’s mirrors very often; normally once every year or so. Covering the telescope While exposing through the camera lens, you will need to with the dust cover when it is not in use will prevent dust from monitor the accuracy of the mount’s tracking by looking accumulating on the mirrors. -
Page 19: Specifications
11. Specifications Primary mirror diameter: 150mm (5.9") Primary mirror coating: Aluminized, SiO 2 overcoat Focal Length: 750mm Focal Ratio: f/5.0 Secondary mirror: 52mm minor axis Secondary mirror holder: Four-vaned spider, .4mm thick vanes Eyepieces: 25mm and 10mm Sirius Plössls, fully coated, 1.25"... - Page 20 One-Year Limited Warranty This Orion SkyView Pro 6 EQ is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076.
