Summary of Contents for Chauvet Led FollowSpot 75ST

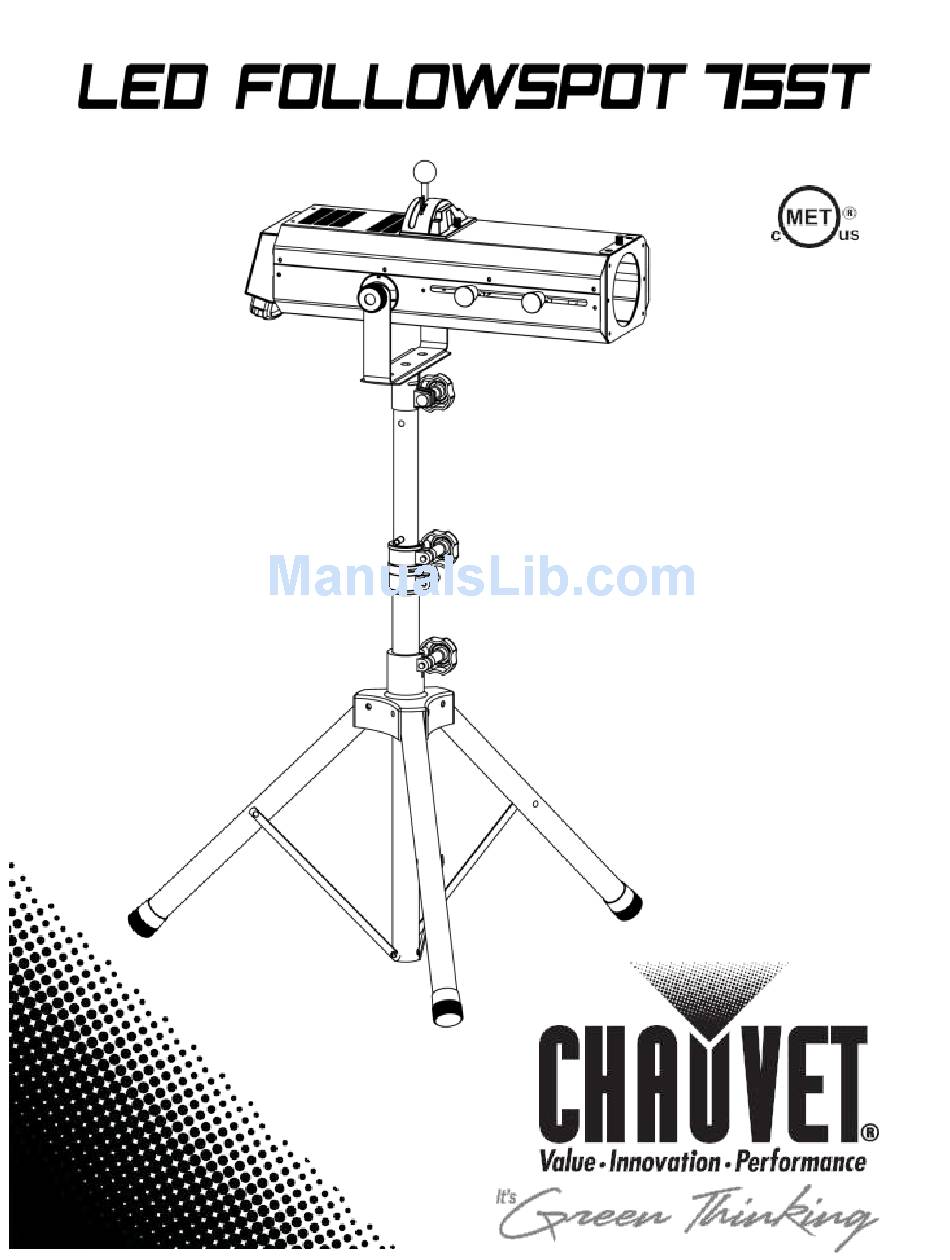

- Page 1 User Manual...
-
Page 2: Table Of Contents
Returning Products to CHAUVET® ..............14 DMX Primer ..................... 15 Starting Address ....................... 15 Product Linking (Daisy Chain) .................. 15 DMX Cabling ......................16 DMX Connectors ...................... 16 6. Technical Specifications ..............17 Page 2 of 17 LED Followspot 75ST User Manual (Rev. 04) -
Page 3: Before You Begin
For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving the merchandise. Text... -
Page 4: Product At A Glance
Please contact the nearest authorized technical assistance center. Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. Page 4 of 17 LED Followspot 75ST User Manual (Rev. 04) -
Page 5: Introduction
Control Panel Focus Lens Text here Adjustment Knobs Bracket Adjustment Knob Mounting Bracket Button Menu Fuse holder On/Off Switch Gel frame holder Iris Adjustment Power In Iris Adjustment DMX In/Out LED Followspot 75ST User Manual (Rev. 04) Page 5 of 17... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 17 LED Followspot 75ST User Manual (Rev. 04) -
Page 7: Setup
Although the safety cap does have room for a spare fuse, this product ships with no spare fuse. Always replace a blown fuse of the same type and rating. LED Followspot 75ST User Manual (Rev. 04) Page 7 of 17... -
Page 8: Mounting
Before mounting this product, read and follow the safety recommendations indicated in the Safety Notes section (page 2 of this manual). The LED Followspot 75ST may be mounted in any position; however, make sure Orientation adequate ventilation is provided around the product. -
Page 9: Operation
Remove the plastic cover. Remove the gobo holder inside. Change the gobo. Replace everything in reverse order to use your chosen gobo. Iris Adjustment Knob Thumb Screw Plastic Cover LED Followspot 75ST User Manual (Rev. 04) Page 9 of 17... -
Page 10: Configuration (Dmx)
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The LED Followspot 75ST uses up to 3 DMX channels in its 3-channel DMX mode, which defines the highest configurable address to 510. -
Page 11: Configuration (Standalone)
Function Select In DMX Mode, select Changes color of LED light output. Choose Toggles between Manual starting address. color on the menu to change to desired color. and DMX Modes. LED Followspot 75ST User Manual (Rev. 04) Page 11 of 17... -
Page 12: Technical Information
Softly drag any dirt or grime to the outside of the lens surface. Gently polish the lens surfaces until they are free of haze and lint. Always dry the lens surfaces carefully after cleaning them. Page 12 of 17 LED Followspot 75ST User Manual (Rev. 04) -
Page 13: General Troubleshooting
Terminator not connected Install a terminator, as indicated in the DMX Primer section. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. LED Followspot 75ST User Manual (Rev. 04) Page 13 of 17... -
Page 14: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 15: Dmx Primer
The maximum recommended number of products on the same daisy chain is 32. Connecting more than 32 products on one daisy chain without the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. LED Followspot 75ST User Manual (Rev. 04) Page 15 of 17... -
Page 16: Dmx Cabling
You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. If you choose to make your own DMX cable, you must use a data-grade cable such as... -
Page 17: Technical Specifications
Maximum External Temp. Cooling System Thermal 104° F (40° C) I/O Connectors Connector Type Channel Range 3-pin XLR Sockets Product Name Item Code Item Number Ordering LED Followspot 75ST 08040503 LEDFOLLOWSPOT75ST LED Followspot 75ST User Manual (Rev. 04) Page 17 of 17...
