Summary of Contents for Chauvet COLORado Zoom TOUR
- Page 1 User Manual...
- Page 2 CHAUVET® to notify any person or company of such revision or changes. This does not constitute in any way a commitment by CHAUVET® to make such changes. CHAUVET® may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ....................1 What Is Included ......................... 1 Unpacking Instructions ......................1 Typographic Conventions ....................1 Icon Meaning ........................1 Product at a Glance ......................1 ... - Page 4 Table of Contents DMX Values ........................16 Tour ............................16 Tour (Cont.) ..........................17 ARC1 ............................17 ARC1 + D ..........................17 ARC2 ............................17 ARC2 + D ..........................17 ARC2 + S ..........................18 ...
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin One COLORado™ Zoom Tour What Is One Gel Frame Included One NEUTRIK® powerCON® to Edison Plug Input Power Cord 5° Color Blending Filter One Safety Cable One Warranty Card ... -
Page 6: Safety Notes
There are no user serviceable parts inside this product. Any reference to servicing you may find from now on in this User Manual will only apply to properly CHAUVET® certified technicians. Do not open the housing or attempt any repairs unless you are certified to do so. -
Page 7: Introduction

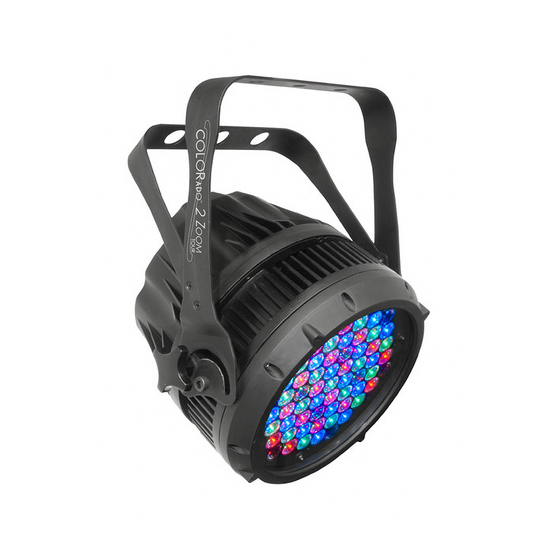

Introduction 2. Introduction Product The COLORado™ Zoom Tour is a RGBW LED wash light. This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, Description the LED boards, and motorized moving lenses, as well as the power and signal connectors. -
Page 8: Product Overview
Introduction Product Overview Power in / power out Dmx in / DMX out Bottom View Double-bracket yoke Front View COLORado™ Zoom Tour User Manual Rev. 07... -
Page 9: Product Dimensions
Introduction Product Dimensions COLORado™ Zoom Tour User Manual Rev. 07... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download the Sizing the Circuit Breakers document from the CHAUVET® web site: www.chauvetpro.com Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch. -
Page 11: Dmx Linking
If you are not familiar with the DMX standard, or if you need information about the DMX cables needed to link this product to a DMX controller, download the DMX Primer document from the CHAUVET® web site: www.chauvetpro.com. DMX Modes The COLORado™... -
Page 12: Mounting
Rigging The COLORado™ Zoom Tour consists of the double-bracketed yoke and the body of the fixture. CHAUVET® recommends following the general guidelines below when mounting this product. When selecting an installation location, consider ease of access to this product for operation, programming adjustments, and routine maintenance. -
Page 13: Operation
Operation 4. Operation Button Function Control Panel <MENU> Exits from the current menu or function Description Enables the currently displayed menu or <ENTER> sets the currently selected value into the current function Navigates upward through the menu list and <UP> increases the numeric value when in a function Navigates downward through the menu list... -
Page 14: Dmx Control
Operation DMX Control In this mode, each unit will respond to a unique starting address from the DMX controller. All units with the same starting address will respond in unison. 1. Select a DMX personality as shown in DMX Personality. 2. -
Page 15: Master/Slave
Operation Master/Slave The Master/Slave mode allows a group of COLORado™ Zoom Tours (the slave units) to simultaneously duplicate the output of another COLORado™ Zoom Tour (the master unit) without a DMX controller. 1. Set each of the slave units: a. Go to RUN. b. -
Page 16: Control Panel Lock
Green indicates that the upload process completed successfully. Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact Chauvet Technical Support. DO NOT upload the program from a COLORado™ Zoom Tour to a different product. -
Page 17: Reset
Operation Reset This setting allows the user to reset the COLORado™ Zoom Tour to its default values, including the custom programs. 1. Go to SET. 2. Select REST. 3. When PASS shows, press <ENTER>. 4. Enter the master access password as shown in Control Panel Lock. 5. -
Page 18: Tour Notes
Operation TOUR Notes These notes intend to clarify the way the TOUR DMX personality works. Channel 1 controls the intensity of the currently projected color. Master Dimmer When the slider is at the highest position (100%), the intensity of the output is at its maximum. -
Page 19: Menu Map
Operation Menu Map Main Level Programming Levels Description Combines Red, Green, Blue, and White to generate a custom color (0~100%) 000~255 STATIC Changes the beam angle 0~20 Strobe frequency (0~20 Hz) Choose from 10 automatic programs AUTO 1~10 Choose from 10 customizable programs 001~512 Sets the DMX starting address Receives signals from DMX controller... -
Page 20: Dmx Values
Operation DMX Values Tour Channel Function Value Percent/Setting 000 255 Dimmer 0~100% 0~100% 000 255 Step Time When CUS. 01-10 in CH. 8 is activated Green 0~100% 000 255 Step Time When CUS. 01-10 in CH. 8 is activated 000 ... -
Page 21: Tour (Cont.)
Operation Continued from previous page Tour Channel Function Value Percent/Setting (Cont.) 191 200 Custom 8 201 210 Auto + Custom Custom 9 211 220 (Cont.) Programs Custom 10 221 255 No function 000 255 Auto Speed Only when CH. -
Page 22: Arc2 + S
Operation Continued from previous page Channel Function Value Percent/Setting ARC2 + S 000 255 Master Dimmer 0~100% 000 255 0~100% 000 255 Green 0~100% 000 255 Blue 0~100% 000 255 White 0~100% 000 009 No Function Strobe 010 ... -
Page 23: Technical Information
Technical Information 5. Technical Information Product To maintain optimum performance and minimize wear, the user should clean this product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, the user should clean this product at least twice a month. Dust build up reduces light output performance and can cause overheating. -
Page 24: Troubleshooting Guide
Faulty Display/Main/DMX interface board Send unit for repair If you still experience technical problems after trying the above solutions or if you need to send the unit for repair, contact CHAUVET® Technical Support. -20- COLORado™ Zoom Tour User Manual Rev. 07... -
Page 25: Returns Procedure
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper FedEx packing or double boxing is the method Chauvet® recommends. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it. -
Page 26: Technical Specifications
Technical Information Technical Specifications Length Width Height Weight Dimensions and Weight 8.0 in (203 mm) 9.8 in (250 mm) 13.1 in (334 mm) 14.5 lbs (6.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal) - Page 27 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com. COLORado™ Zoom Tour User Manual Rev. 07 August 2011...
