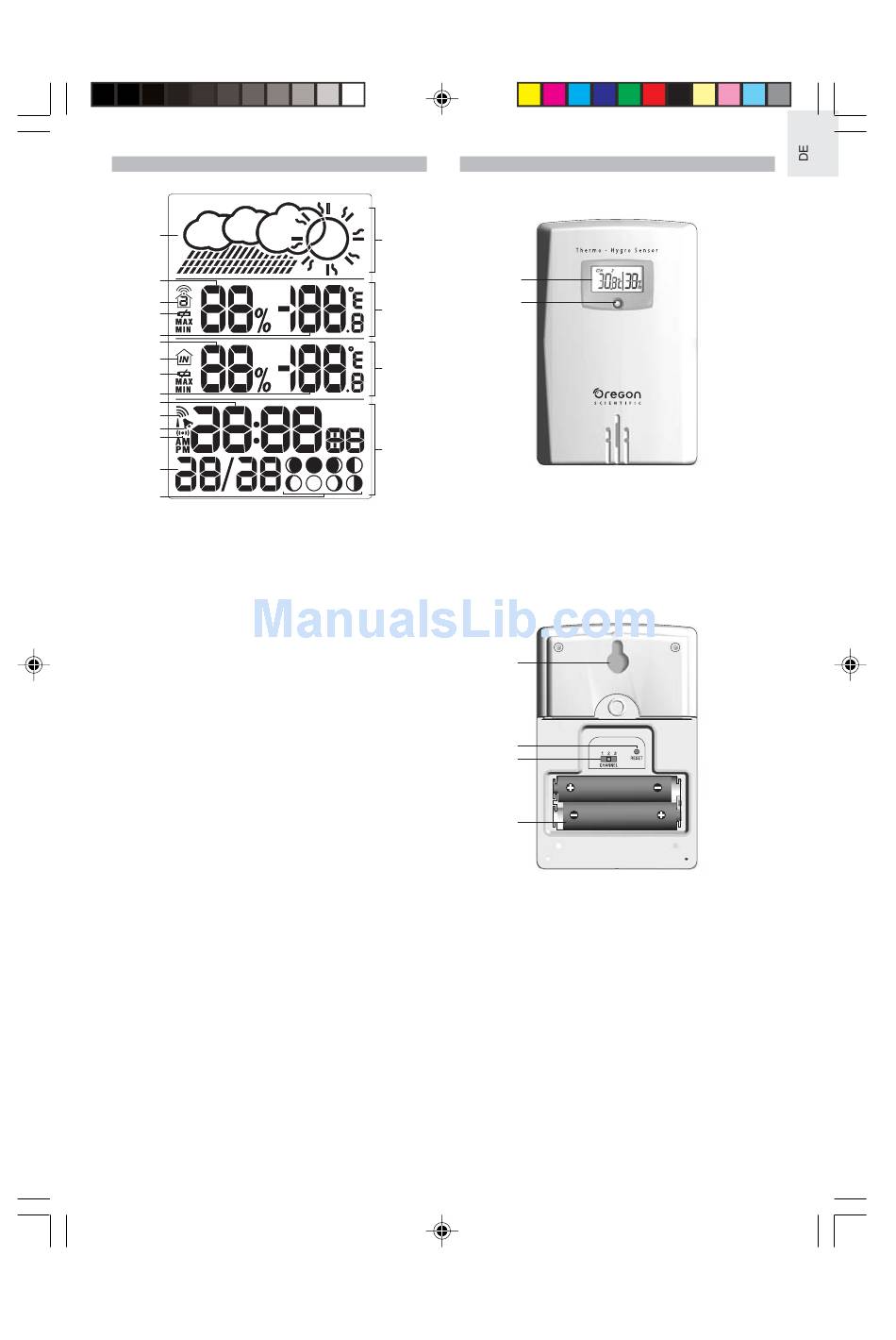

LCD-ANZEIGE

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A. Wettervorhersagen-Anzeigefeld
B. Außen-, Innentemperaturen- und Luftfeuchtigkeits-
Anzeigefeld
C. Innentemperaturen- und Luftfeuchtigkeits-
Anzeigefeld
D. Uhr / Alarm / Kalender-Anzeigefeld
1. Wetteranzeige
2. Außenluftfeuchtigkeit
3. Funksendeinheits-Signal
4. Anzeige für schwache Batterie der Funksendeinheit
5. Außentemperatur
6. Innenluftfeuchtigkeit
7. Innenraumsymbol
8. Symbol für schwache Batterie der Empfangseinheit
9. Innentemperatur
10. Zeit
11. Funkfrequenz-(HF)-Empfangssymbol
12. Alarm aktiviert
13. Alarmeinstellung
14. Kalender
15. Mondphase
BAR628HG(DE)2

FUNKSENDEEINHEIT (THGR122NX)

A
B
C
D
1. LCD-Anzeige
2. LED-Statusanzeige
1. Öse für die Wandaufhängung
2. RESET
3. CHANNEL (Kanalnr. 1-3)
4. Batteriefach
(Ohne Batteriefachdeckel abgebildet)
3
3
1
2
1
2
3
4
