Desi n Guide

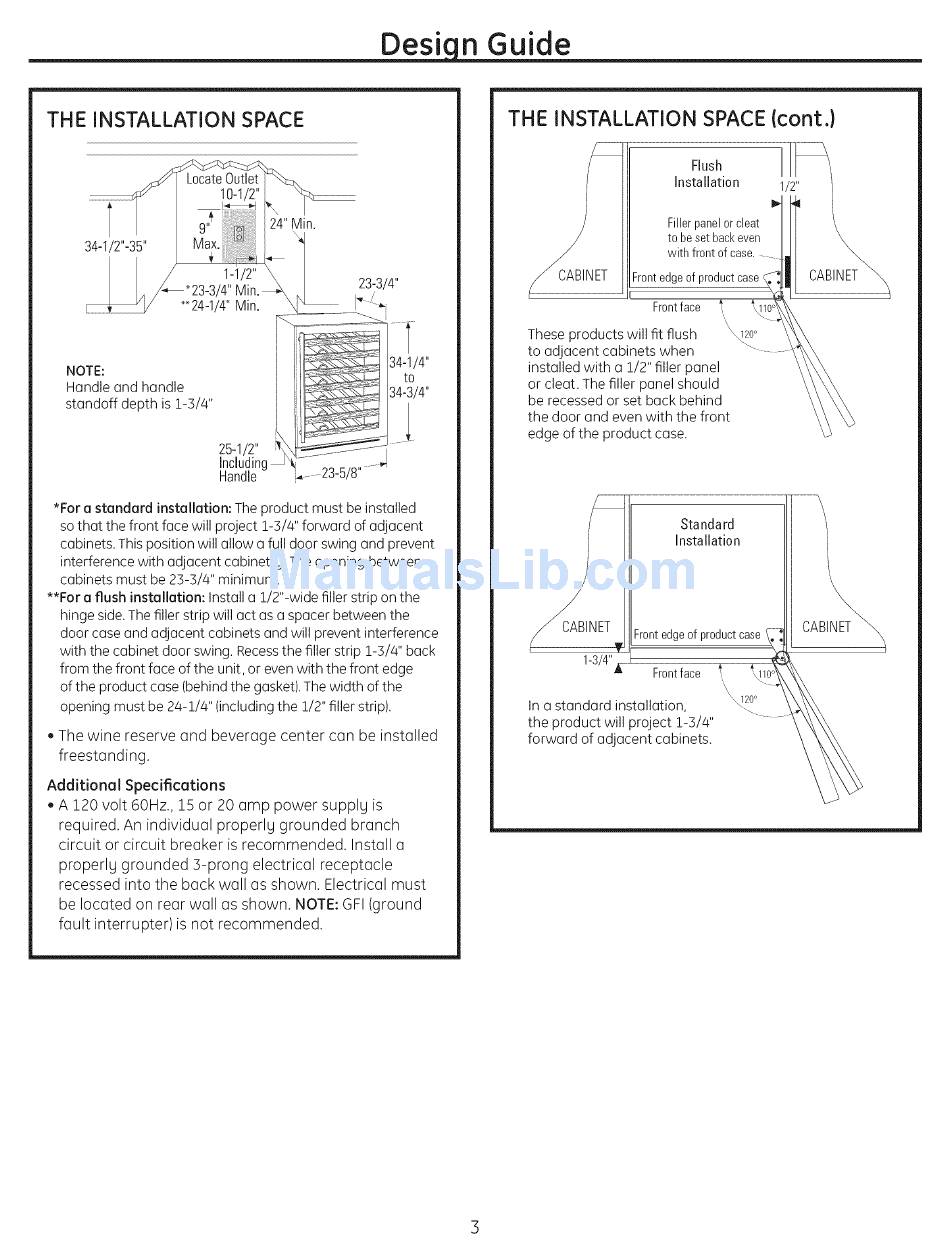

THE INSTALLATION
SPACE
24" Min.
NOTE:
Handle and handle
standoff depth is 1-3/4"
34-1/4"
tI
34- /4"
25-1/2" __i
..........
Including
....
Handle
........ 2 3-5/8"
*For a standard installation: The product must be installed
so that the front face will project 1-3/4" forward of adjacent
cabinets. This position will allow a full door swing and prevent
interference with adjacent cabinetrg. The opening between
cabinets must be 23-3/4" minimum.
**For a flush installation: Install a 1/2"-wide filler strip on the
hinge side. The filler strip will act as a spacer between the
door case and adjacent cabinets and will prevent interference
with the cabinet door swing. Recessthe filler strip 1-3/4" back
from the front face of the unit, or even with the front edge
of the product case (behind the gasket). The width of the
opening must be 24-1/4" (including the 1/2" filler strip).
• The wine reserve end beverage center can be installed
freestanding.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supplg is
required. An individual properlg grounded branch
circuit or circuit breaker is recommended. Install a
properlg grounded 3-prong electrical receptacle
recessed into the back wall as shown. Electrical must
be located on rear well as shown. NOTE: GFI (ground
fault interrupter)is not recommended.
THE INSTALLATION
SPACE (cont.)
.................................
.......................
Installation
1/2"
!
Fillerpanel o r cleat
to besetback even
withfrontof case.
Front
e dge of
product case
CABINET
I
Front face
\
These products will fit flush
\
to adjacent cabinets when
installed with a 1/2" filler panel
or cleat. The filler panel should
be recessed or set back behind
the door and even with the front
edge of the product case.
Standard
Installation
Frontedgeof productcase
1-3/4"
Front f ace
In a standard installation,
the product will project 1-3/4"
forward of adjacent cabinets.
CABINET
