ZDWT240PBS
GE Monogram Wine Reserve with Liquid Crystal Privacy Glass
Dimensions and Installation Information

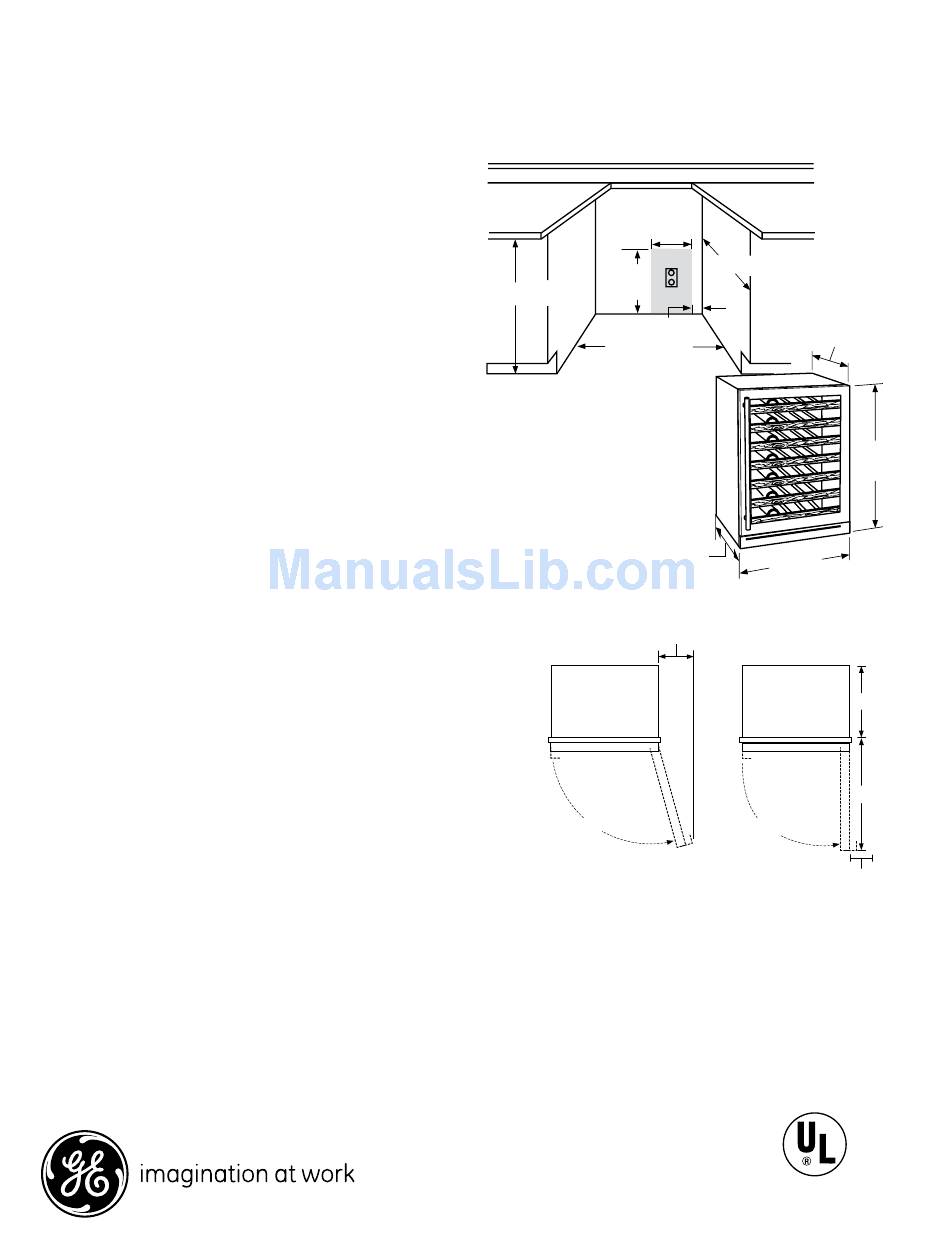

Installation Space

The Monogram
Wine Reserve may be installed beneath a
®
countertop or can be used free-standing.
• If installing between frameless cabinets, a 1/2"-wide filler
strip or side panel may be required. The filler strip will act
as a spacer between the door case and adjacent cabinet
and will prevent interference with cabinet door swing. The
width of the opening must include filler panels.
Note: When installed, the door should project forward 1" of
adjacent 24"-deep cabinets.

Location Requirements

All Monogram Refrigeration Modules may be closed in on
the top and sides as long as the front is unobstructed for air
circulation and door swing.
• Do not install these products where the temperatures will
go below 55°F (13°C) or above 90°F (32°C).
• Do not install where they will be subject to direct sunlight,
heat or moisture.
• These products are not designed to be stacked one over
the other.
Side-by-Side Installation
For a complete refreshment center, install a Monogram Wine
Reserve and Beverage Center together.
• Products must operate from separate properly grounded
receptacles.
• Do not install where they will be subject to direct sunlight,
heat or moisture.
Door Swing Clearances
All Monogram Refrigeration Modules are factory set for a
110° door swing. When installed in a corner:
• Allow the minimum door swing clearances shown.
• The minimum clearance shown at 90° will allow full
extension of drawers and shelves.
For answers to your Monogram,
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
800.626.2000.
GE Profile
or
®
service,
®
Locate Outlet
10-1/2"
9"
Max.
34-1/2"-35"
1-1/2"
23-3/4" Min.
25-1/2"
Including
Handle
Dimensions and installation instructions are shown in inches.
Minimum to Wall
Minimum to Wall
110° Door
Swing
110°
Electrical
A 120V, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-prong electrical recessed into the back wall as shown.
Electrical must be located on rear wall as shown. Note: GFCI
(ground fault circuit interrupter) is not recommended.
24" Min.
23-3/4"
23-3/4"
10"
A
90° Door
Swing
90°
Minimum to Wall
Minimum to Wall
Specification Revised 12/06
34-1/4"-
34-3/4"
21-5/8"
23-5/8"
B
4"
Listed by
Underwriters
Laboratories
120040
