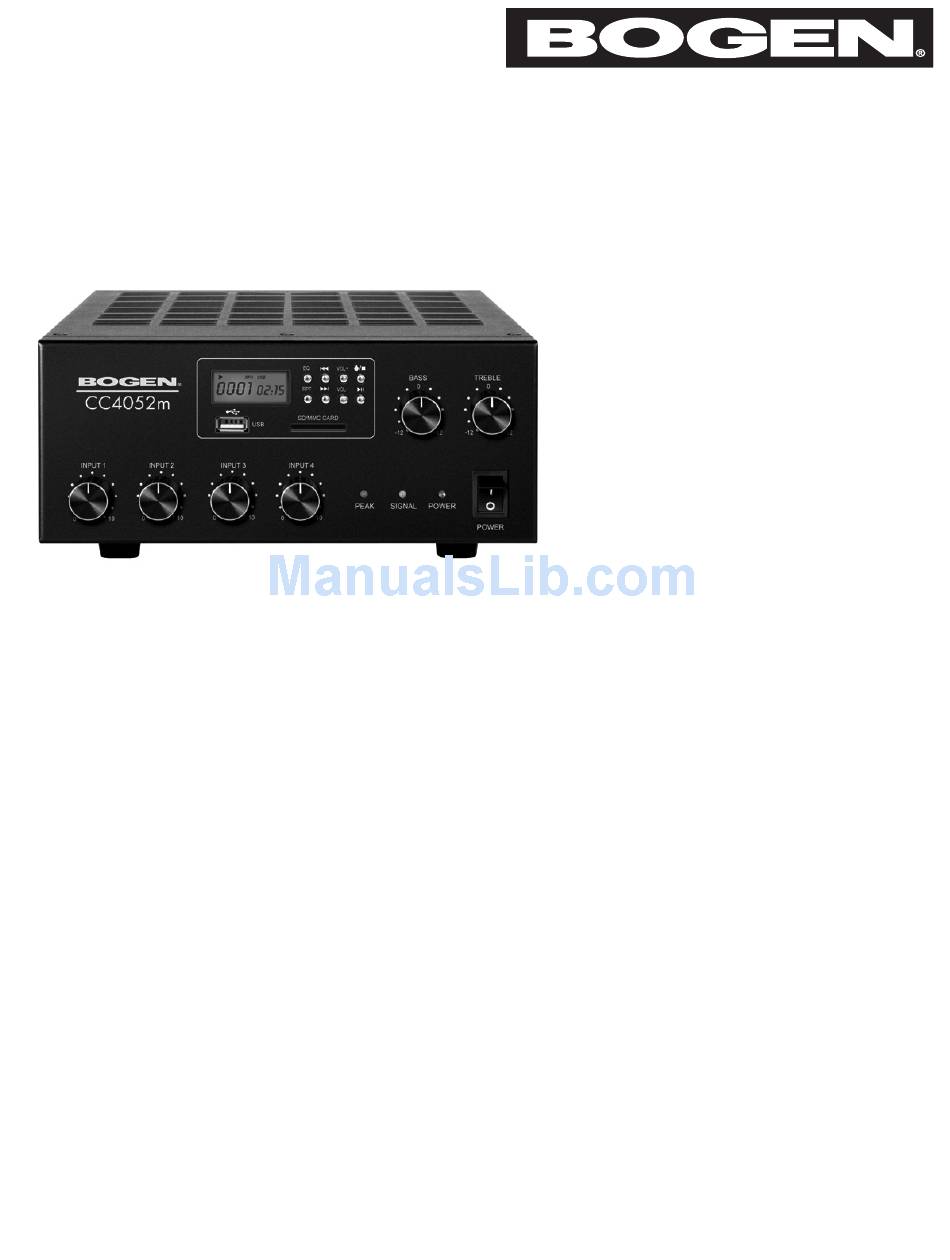

- Page 1 CC Series Amplifier Model CC4052m Installation and Use Manual ©2012 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2212-01A 1303...
-
Page 2: Important Safety Instructions
NOTICE: Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. WARNING: To reduce the risk of Fire or Electric Shock, Do Not Expose this apparatus to rain or moisture. -
Page 3: Table Of Contents
Contents Important Safety Information .........2 Panel Descriptions . -
Page 4: Panel Descriptions

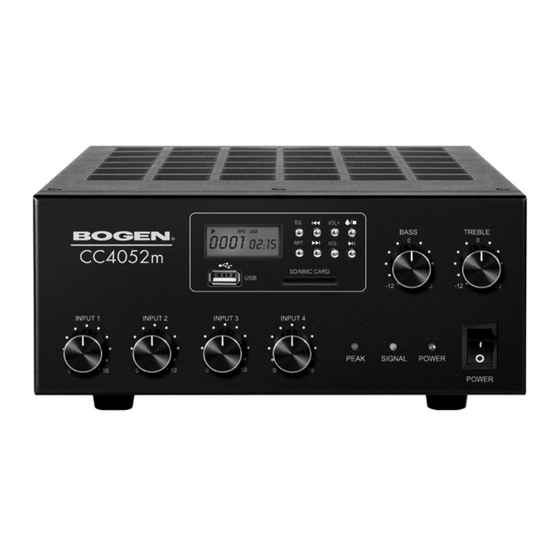

Panel Descriptions Front Panel MP3 USB BASS OOO 1 TREBLE O2:15 CC4052m INPUT 1 INPUT 2 INPUT 3 INPUT 4 PEAK SIGNAL POWER POWER 1. Media Player Play MP3 files from either an SD card or a USB memory stick. Media player program material can be used as the MOH source. -
Page 5: Rear Panel
Panel Descriptions Rear Panel CLASS 2 WIRING ACCEPTABLE 24V DC IN OUTPUT TEL IN – LEVEL LEVEL SOURCE SELECT PLAYER INPUT 1 INPUT 3 INPUT 2 LINE PP MIC LINE PP MIC LINE PP MIC PHANTOM POWER MUTE SEND REC OUT INPUT 4 7. -
Page 6: Output Connections
Output Connections Speaker Outputs The amplifierʼs speaker output terminal strip provides connections for 70V and 25V speaker systems, as well as low-impedance speakers loads of 4- or 8-ohm impedance. Connect one end of the speaker load to the COM terminal and the other side of the load to the terminal corresponding to the type of system being driven (transformer-coupled 70/25V speaker or low-impedance speakers without transformers). -
Page 7: Input Connections
Input Connections Balanced - TEL Input The TEL input is a transformer-balanced input. The telephone signal should be Dry Audio with no DC voltage between the signal lines. If the telephone has a DC voltage across it, a telephone interface adapter should be used to provide a compatible signal for this input. -
Page 8: Operation
Operation Level Controls The amplifier provides separate input level controls on the unit front panel for rear inputs 1 through 4. Turn knobs clockwise to increase, or counterclockwise to decrease levels. Bass & Treble Controls Bass and treble controls are located on the front of the unit to provide tailoring of the unitʼs frequency response. -
Page 9: Media Player
Operation Media Player The Media Player can play MP3 or WMA files from either an SD card or a USB memory stick inserted into the player on the front panel of the amplifier. Pushbuttons on the front of the media player control operation functions and an LCD screen displays status information (see below). -
Page 10: Cooling
Cooling Ventilation The amplifier is passively cooled so care must be taken to make cool air available to the amplifier. Do not operate this amplifier in environments that get hotter than 100 deg. F. If the amplifier is to be free standing, do not remove the feet on the amp since they provide a space on the bottom of the amp for cooling air intake. -
Page 11: Limited Warranty; Exclusion Of Certain Damages
Limited Warranty; Exclusion of Certain Damages The Bogen CC4052m Amplifier is warranted to be free from defects in material and workmanship for three (3) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective (as con- firmed by Bogen upon inspection) during the applicable warranty period, will be repaired or replaced by Bogen, at Bogenʼs option, provided... - Page 12 50 Spring Street, Ramsey, NJ 07446, USA Tel. 201-934-8500 • Fax: 201-934-9832 www.bogen.com...
