MODEL CHS100

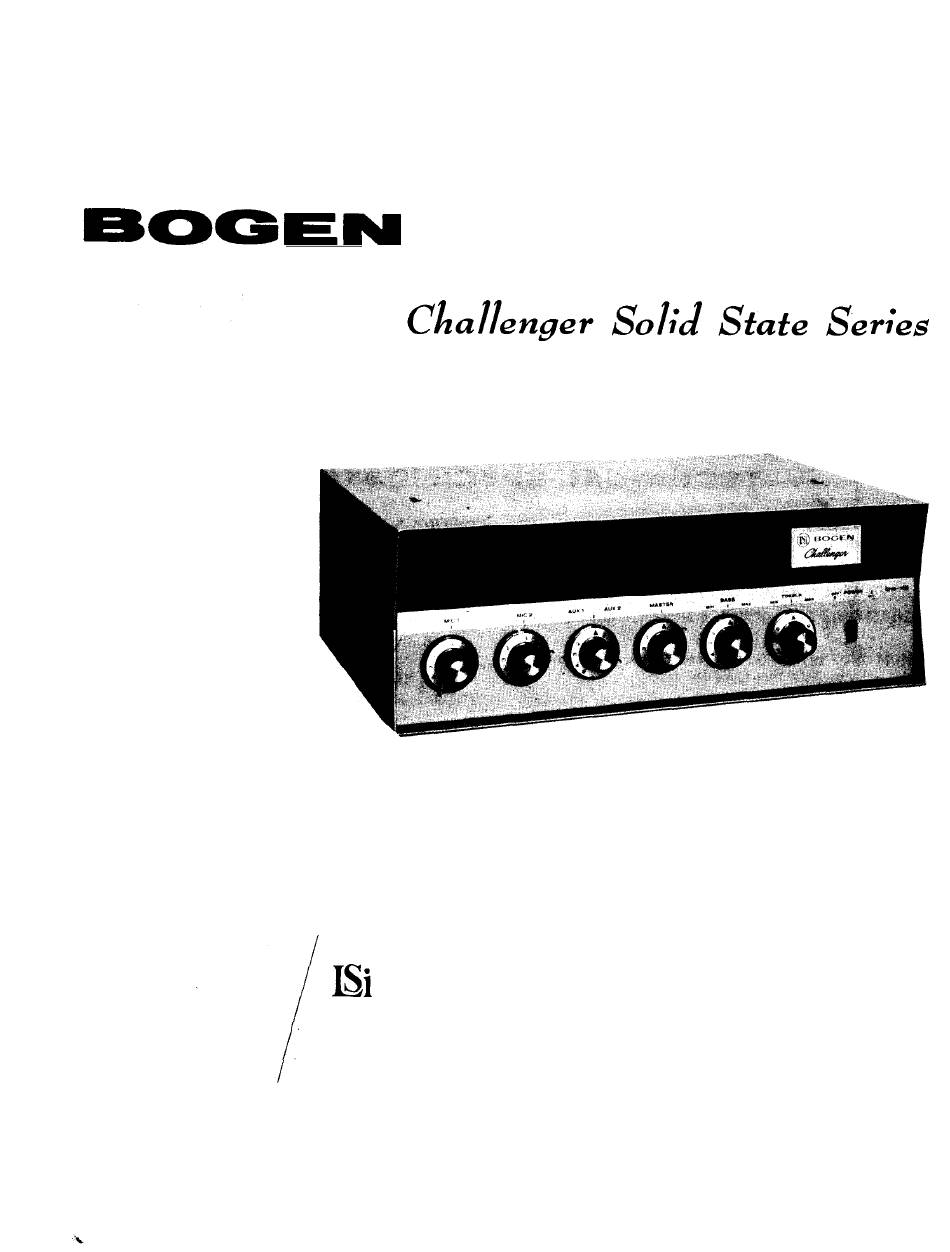

100 WATT TRANSISTOR
PUBLIC ADDRESS AMPLIFER
. 0
L E A R SIEGLER, I N C .
BOGEN COMMUNICATIONS DlVlSlON
P.O. BOX 500
PARAMUS, N. J. 07652
Installation AND OPERATING MANUAL
R E A D
T H O R O U G H L Y
B E F O R E
O P E R A T I N G
E Q U I P M E N T
Advertisement
Table of Contents
Related Manuals for Bogen Challenger Solid State Series
Summary of Contents for Bogen Challenger Solid State Series
- Page 1 MODEL CHS100 100 WATT TRANSISTOR PUBLIC ADDRESS AMPLIFER L E A R SIEGLER, I N C . BOGEN COMMUNICATIONS DlVlSlON P.O. BOX 500 PARAMUS, N. J. 07652 INSTALLATION AND OPERATING MANUAL R E A D T H O R O U G H L Y...
- Page 2 500/600 ohm line. As an input matching trans- The Bogen Model PMA-2 Preamplifier is designed former it may be used with the Bogen amplifier for to provide two additional microphone channels for the distributing background music which has been trans- CHSlOO amplifier.
- Page 3 Bogen amplifier. The LVP-1 may also be used record player. volume control in conjunction with the a remote Model RVC-1 remote volume control. LK-IO CONTROL GUARD LOCKING PLATE RVC-I REMOTE VOLUME CONTROL...
- Page 4 (see figure 2). This is not re- nished with the LVP-1 and RVP-1 accessories. quired when using the Bogen Model LPC-4 phono player accessories. AUXILIARY radio tuner, tape recorder or any other high- level, high-impedance signal source may also be con- nected to the AUX inputs.
- Page 5 M I C i n p u t o f t h e a m p l i f i e r . H o w e v e r , t h e by means of the Bogen LVP-1 accessory unit and an WMT-1 wiring must first be modified, as de- ordinary single-pole, single-throw switch.
- Page 6 C O N T R O L F U N C T I O N S POWER SWITCH skirt of the knob. This marker is used to log a par The POWER switch on the front panel turns the ticular setting. This is done as follows. Adjust the amplifier ON and OFF.
- Page 7 Check the amplifier to determine BOGEN SERVICE the cause of the overload, or consult a Bogen repre- We are interested in your Bogen amplifier for as sentative or competent serviceman. long as you have it. If trouble ever develops with...
