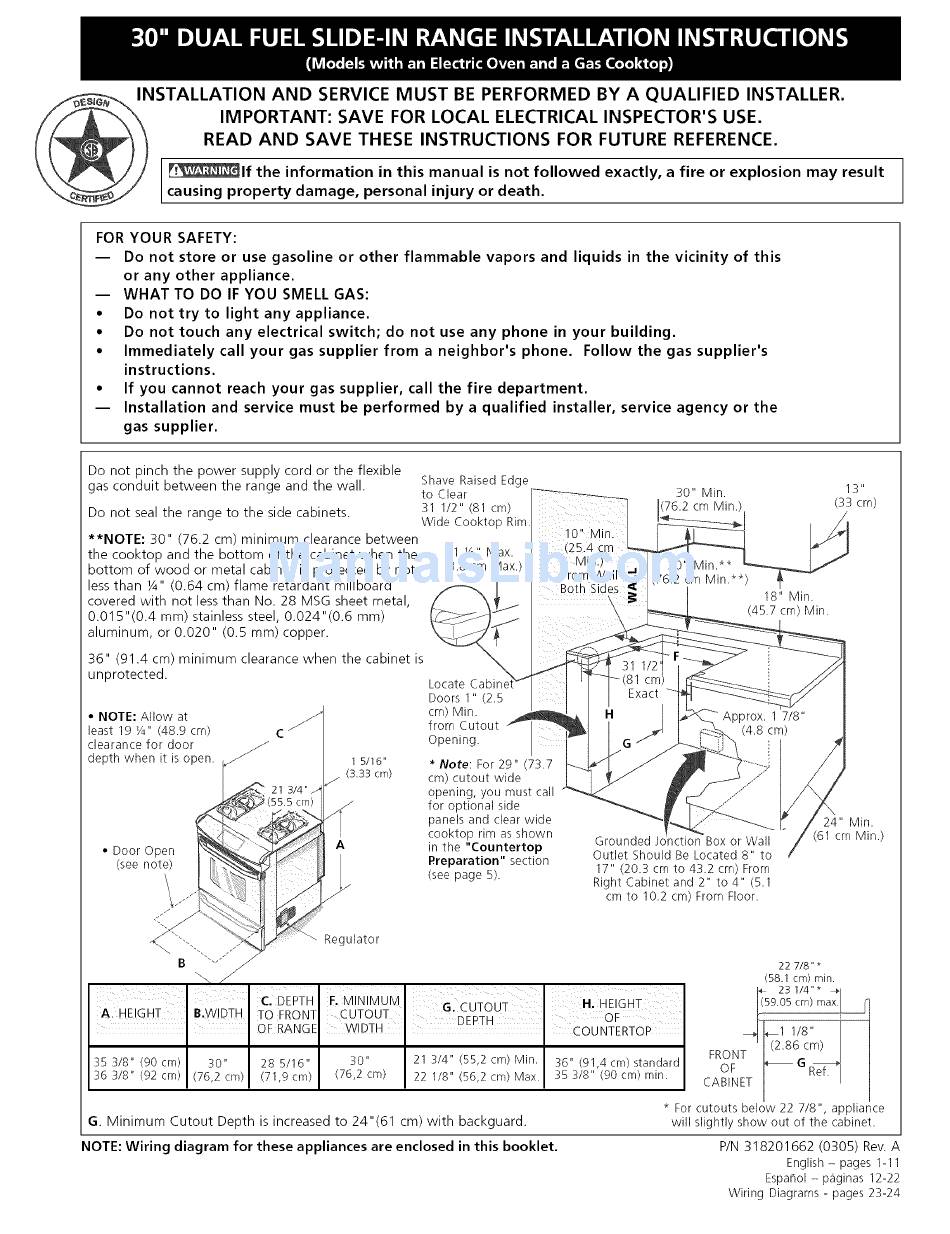

Kenmore 79047153403 Installation Instructions Manual

NSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR_UTURE_REFERENCEI. I_
_lf the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
i WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
° Do not touch any electrical switch; do not use any phone in your building.
° Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
i Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
Do not pinch the power supply cord or the flexible
gas conduit between the range and the wall.
Do not seal the range to the side cabinets.
**NOTE: 30" (76.2 cm) minimum clearance between
the cooktop and the bottom of the cabinet when the
bottom of wood or metal cabinet is protected by not
less than ¼" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet metal,
0.015"(0.4 ram) stainless steel, 0.024"(0.6 ram)
aluminum, or 0.020" (0.5 ram) copper.
Shave Raised Edge
to Clear 30" Min.
31 1/2" (81 cm) 76.2 crn Min.
Wide Cooktop Rim.
1 Y2" Max.
(3.8 cm Max.)
36" (91.4 cm) minimum clearance when the cabinet is
unprotected. Locate Cabine
• NOTE: Allow at
least 19 Y4" (48.9 cm)
clearance for door
depth when it is open.
• Door Open
(see note)
B "'"J _
J
cm)
1 5/16"
(3.33 cm)
//
Doors 1" (2.5
crn) Min.
from Cutout
Opening.
* Note: For 29" (73.7
cm) cutout wide
opening, you must call
for optional side
panels and clear wide
cooktop rim as shown
in the "Countertop
Preparation" section
(see page 5}.
Regulator
I
A. HEIGHT BIWIDTH
35 3/8" (90 cm) 30"
36 3/8" (92 cm) (76,2 cm)
Grounded Jc qction Box or Wall
Outlet Should Be Located 8" to
17" (20.3 crn to 43.2 crn) From
Right Cabinet and 2" to 4" (5.1
cm to 10.2 cm) From Floor.
C. DEPTH F. MINIMUM G H HEIGHT
TO FRONT CUTOUT ' n " _
OF RANGE WDTH DEPTH cOu_RTOP
28 5/16" 30" 21 314" (55,2 cm) Min. 36" (91,4 cm) standard
(71,9 crn) (76,2 cm) 22 1/8" (56,2 cm) Max. 35 3/8" (90 crn) rnin.
FRONT
OF
CABINET
13"
(33 cm)
18" Min.
(45.7 crn) Min.
24" Min.
61 crn Min.)
22 7/8" *
(58.1 cm) min.
÷ 23 1/4"*
(59.05 cm
max.
_1 1/8"
(2.86 cm)
_G _
Ref.
G. Minimum Cutout Depth is increased to 24"(61 cm) with backguard.
NOTE: Wiring diagram for these appliances are enclosed in this booklet.
* For cutouts below 22 7/8", appliance
will slightly show out of the cabinet.
P/N 318201662 (0305) Rev. A
English - pages 1-11
Espahol - paginas 12-22
Wiring Diagrams - pages 213-24
