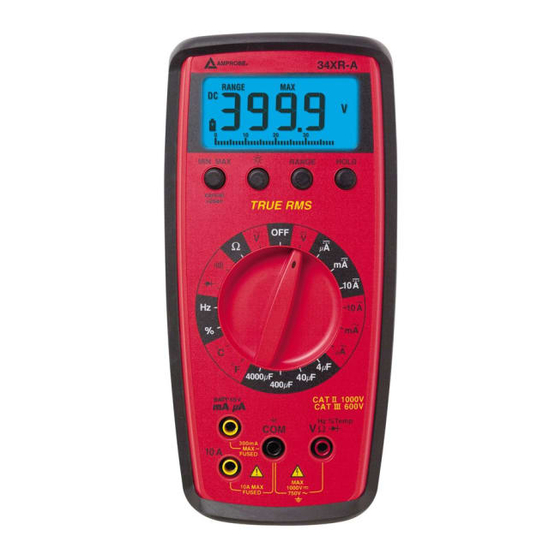

Meterman 34XR User Manual

Meterman 34XR User Manual

Professional digital multimeter true-rms with temperature and backlight
Hide thumbs Also See for 34XR:

Advertisement

34XR
Professional
Digital
Multimeter
True-RMS with
Temperature and Backlight
Users Manual
• Mode d'emploi
• Bedienungshandbuch
• Manuale d'Uso
• Manual de uso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34XR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meterman 34XR

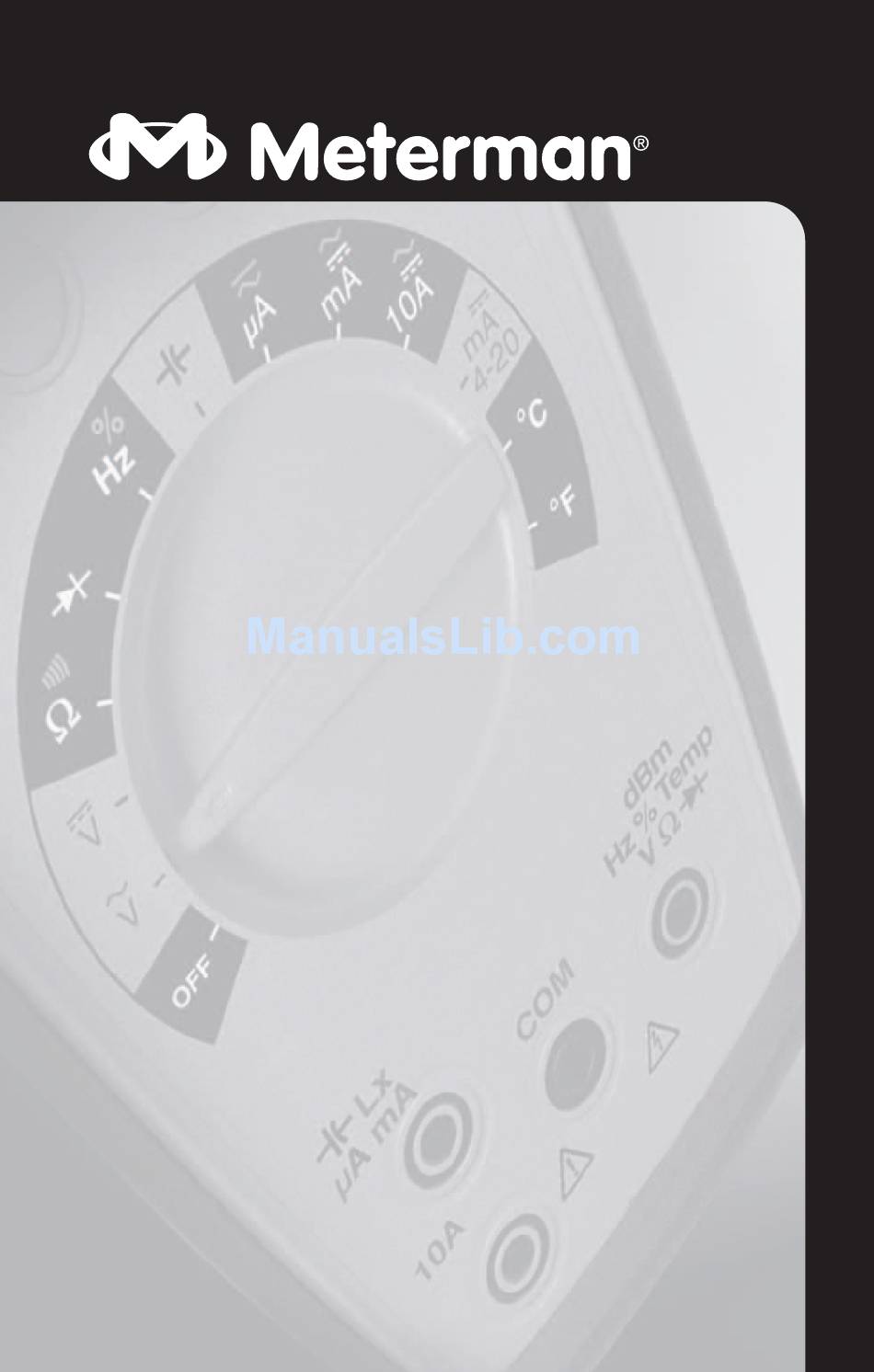

  • Page 1 34XR Professional Digital Multimeter True-RMS with Temperature and Backlight Users Manual • Mode d'emploi • Bedienungshandbuch • Manuale d'Uso • Manual de uso...
  • Page 2 MADE IN TAIWAN PATENTS PENDING metermantesttools.com...
  • Page 3: Table Of Contents

    34XR Digital Multimeter Contents Safety Information ..................2 Introduction....................3 Making Measurements................. 3 Verify Instrument Operation ..............3 Range Selection..................3 Correcting an Overload ( ) Indication ............3 Measuring DC Voltage ......... See Figure ....3 Measuring AC Voltage (True rms) ....See Figures -2- &...
  • Page 4: Safety Information

    Safety Information • The 34XR Digital Multimeter is UL, cUL, and EN61010-1 certified for Installation Category III – 600V and Category II – 1000V. It is recommended for use with local level power distribution, appliances, portable equipment, etc, where only smaller transient overvoltages may occur, and not for primary supply lines, overhead lines and cable systems.
  • Page 5: Introduction

    Range Selection In addition to autoranging the 34XR allows you to manually select and lock a range by pressing the RANGE button. RANGE appears on the display to indicate that manual ranging is active. Each subsequent press of the range button steps the meter to the next higher range.
  • Page 6: Measuring Ac Voltage (True Rms)

    Measuring AC Voltage (True rms) See Figures -2- & -3- See Additional Features to find out the advantages of true rms. 1. Set the Function Switch to 2. If RANGE is displayed, press the RANGE button to enable autoranging. 3. Connect the Test Leads: Red to , Black to COM 4.
  • Page 7: Measuring Resistance

    Match the polarity of the adapter to the polarity of the thermocouple. 3. Connect the TEMP adapter to the E and COM inputs. Note: The 34XR is compatible with all K-type thermocouples. The K-type bead thermocouple supplied with the meter is not intended for contact with liquids or electrical circuits.
  • Page 8: Measuring Frequency

    Measuring Frequency See Figure -11- 1. Set the Function Switch to Hz. 2. Connect the Test Leads: Red to Hz, Black to COM 3. Connect the Test Probes to the signal source. 4. Read the display. The Meter will autorange for the best resolution. Measuring Dutycycle See Figure -12-...
  • Page 9: Auto Power Off

    Auto Power Off Auto Power Off is a battery saving feature that puts the meter into a sleep mode if the Function/Range Switch has not changed position in the last 30 minutes. To wake the meter turn it off and then on. The Auto Power Off feature can be disabled to keep the meter from going to sleep.
  • Page 10: Repair

    During the warranty period any defective test tool can be returned to your Meterman Test Tools distributor for an exchange for the same or like product. Please check the “Where to Buy” section on www.metermantesttools.com for a list of distributors near you.
  • Page 11: Warranty

    (3) year period. Meterman Test Tools shall not be liable for loss of use of the multimeter or other incidental or consequential damages, expenses, or economical loss or for any claim or claims for such damage, expenses or economical loss.
  • Page 12: Electrical Specifications

    Ω Approvals: Input impedance: 400mV: >100 M Ω Ω 4V: 10 M ; 40V to 1000V: 9.1 M LISTED AC coupled true rms specified from 950Z 5 % to 100 % of range Safety: Conforms to UL1244; EN61010-1: Overload protection: 1000 V dc or 750 V ac rms Cat II - 1000V / Cat III - 600V;...
  • Page 13 RESISTANCE DUTY CYCLE Ω Ω Ω Ω Ω Ranges: 400 , 4k , 40k , 400k , 4M Ranges: 0 to 90 % Ω Resolution: 0.1 % Ω Resolution: 100 m Pulse widh: >10 µs Accuracy: ±(1.0 % rdg + 4 dgts) on Frequency range: 40 Hz to 20 kHz Ω...
  • Page 15 Input Waveform Signal d’entrØe Eingangsschwingungsform Forma d’onda d’ingresso Forma de onda de entrada Sine Wave Sinuso dale Sinusschwingung Onda sinusoidale Onda sinusoidal Full Wave, Sine Wave Onde complŁte, Sinuso dale Volle Schwingung, Sinusschwingung Onda sinusoidale, onda intera Onda completa, Onda sinusoidal Half-Wave, Sine Wave Demi-onde, sinuso dale Halbschwingung, Sinusschwingung...
  • Page 22 400 Britannia Rd. E. Unit #1 Mississauga, ON L4Z 1X9 Tel: 905-890-7600 Fax: 905-89-6866 European Correspondence Address* Meterman Test Tools Europe P.O. Box 1186 5602 BD Eindhoven The Netherlands *Correspondence only - no repair or replacement available from this address. European customers please contact your distributor.
