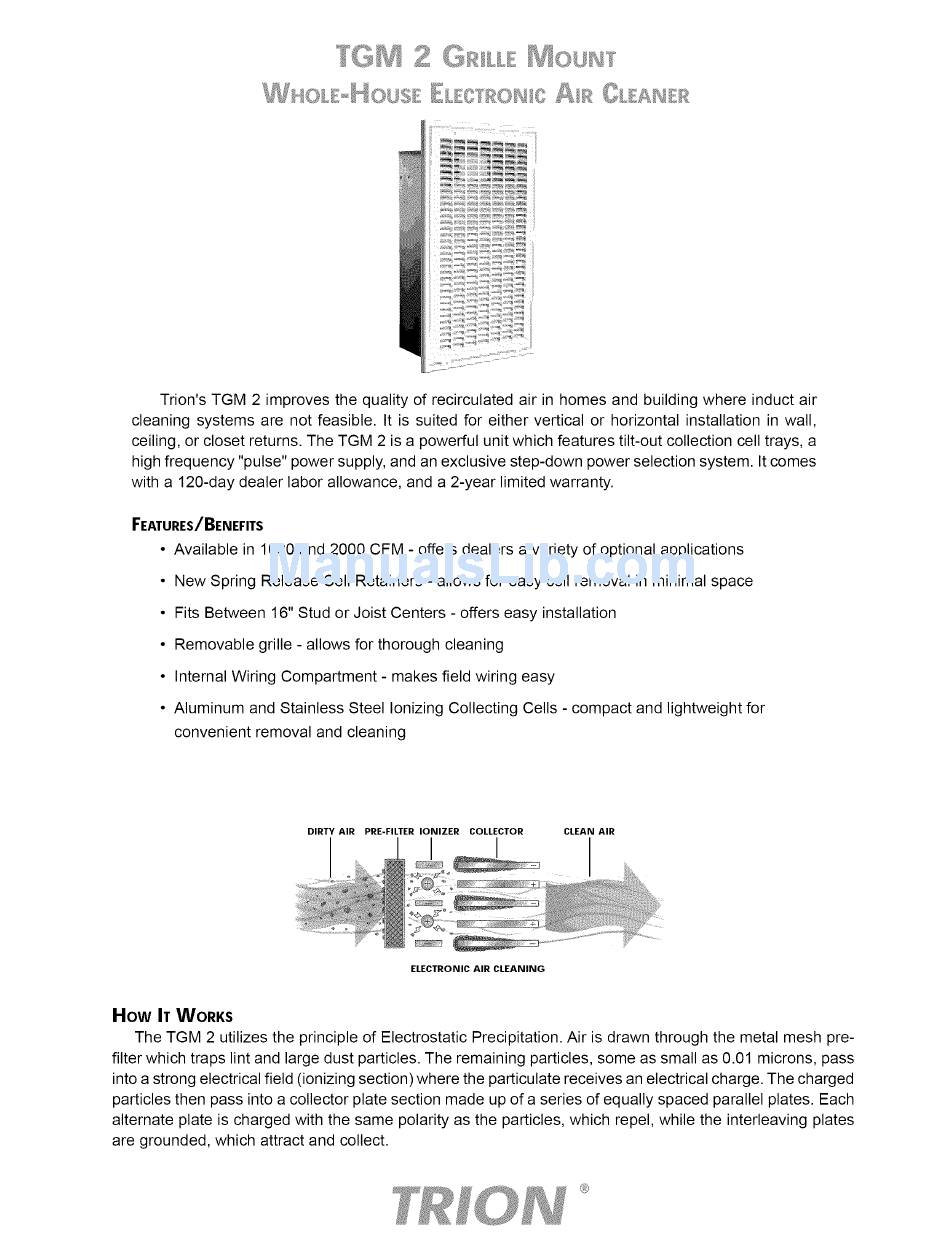

Trion's TGM 2 improves the quality of recirculated air in homes and building where induct air
cleaning systems are not feasible. It is suited for either vertical or horizontal installation in wall,
ceiling, or closet returns. The TGM 2 is a powerful unit which features tilt-out collection cell trays, a
high frequency "pulse" power supply, and an exclusive step-down power selection system. It comes
with a 120-day dealer labor allowance, and a 2-year limited warranty.
FEATURES/BENEFITS
• Available in 1000 and 2000 CFM - offers dealers a variety of optional applications
• New Spring Release Cell Retainers - allows for easy cell removal in minimal space
• Fits Between 16" Stud or Joist Centers - offers easy installation
• Removable grille - allows for thorough cleaning
• Internal Wiring Compartment - makes field wiring easy
• Aluminum and Stainless Steel Ionizing Collecting Cells - compact and lightweight for
convenient removal and cleaning
DIRTY AIR PRE-FILTER IONIZER COLLECTOR CLEAN AIR
;o
ELECTRONIC AIR CLEANING
How
IT WORKS
The TGM 2 utilizes the principle of Electrostatic Precipitation. Air is drawn through the metal mesh pre-
filter which traps lint and large dust particles. The remaining particles, some as small as 0.01 microns, pass
into a strong electrical field (ionizing section) where the particulate receives an electrical charge. The charged
particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each
alternate plate is charged with the same polarity as the particles, which repel, while the interleaving plates
are grounded, which attract and collect.
®
