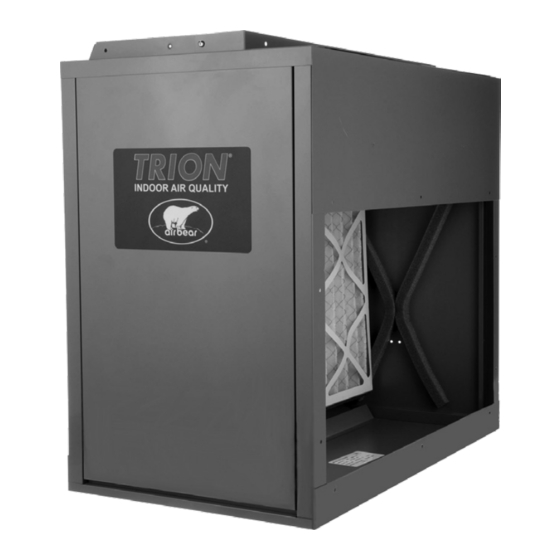

- Page 1 Air Bear Right Angle ® READ AND SAVE THESE INSTRUCTIONS Media Air Cleaner UNITS NOT FOR COMMERCIAL USE T R I O N | w w w . t r i o n i a q . c o m ®...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................1 Dimensions ....................2 Installation ....................3 Maintenance ....................4 Warranty ...................... 5 A i r B e a r R i g h t A n g l e ®... -
Page 3: Introduction
Introduction Your media air cleaner is a high efficiency air filtration device designed to remove dirt, dust, pollen, and other microscopic particles from the air passing through it. How It Works Dirty air enters the air cleaner by way of the return air duct system in your home. Particles are collected by the special pleated filter media. -
Page 4: Dimensions
24” Specifications 8” or 10” Airflow Dimensions 24” 24” 1/2” 10” 1 1/4” 0.187” TYP Airflow 1/2” 8” 10 3/4” Airflow 24” 8” or 10” 1/2” 10” Adjustable 4 1/2” 1 1/4” 23” 0.187” TYP 1/2” 7 1/2” 1/2” 13 1/2” 1”... -
Page 5: Installation
Allow a minimum of 30” clearance in front of the access panel for filter cartridge replacement. AIR B Air Cleaner Installation and Maintenance RIGHT TRION’S AIR BEAR ® The right angle media air cleaner has been designed SPACE TYPICAL INSTALLATION... -
Page 6: Maintenance
Maintenance Maintenance The filter cartridge in the air cleaner must be replaced periodically. The frequency of filter replacement is best determined by visual examination. On average, MERV 11 filter cartridges should be replaced every 4-6 months of normal usage. Steps for Replacing Filter Cartridge Open access door by lifting the handle and pulling the bottom of the door toward you. -
Page 7: Warranty
This limited warranty covers TRION residential type media air cleaners, excluding door latch, disposable media cartridge, charcoal filter, accessories, ductwork, and installation. TRION warrants that all new TRION media residential air cleaners are free from defects in material and workmanship under normal, noncommercial use and service. TRION will remedy any... - Page 8 TRION ® 101 McNeill Rd. | Sanford, NC 27330 P: 800.884.0002 | F: 800.458.2379 | www.trioniaq.com | customerservice@trioniaq.com Form No. 247381-001 Rev. 10/17 © TRION 2017. All Rights Reserved.
