QuickSpecs
Overview
1. Removable Media Bays
2. 48x IDE (ATAPI) CD-ROM
3. Four Hot-Plug Drive Bays
4. Four Expansion Slots (Two PCI-X, Two PCI Express)
What's New
What's New
What's New
What's New
Support for Dual-core Intel® Pentium® D 900 Series processors with 2 x 2M cache
DA - 12364
Worldwide — Version 21 — February 16, 2007

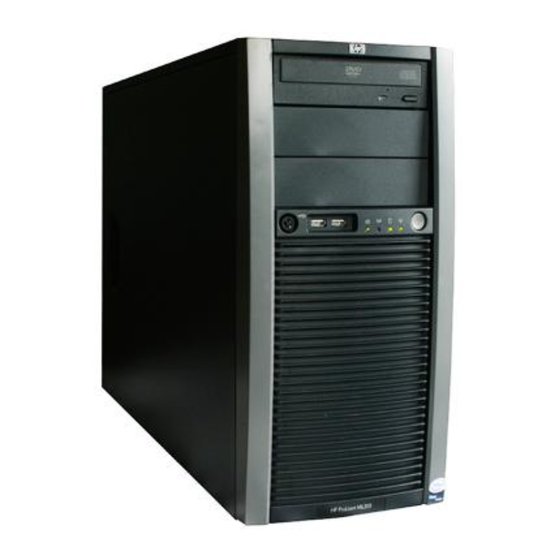

HP ProLiant ML310 Generation 3 (G3)
HP ProLiant ML310 Generation 3 (G3)
HP ProLiant ML310 Generation 3 (G3)
HP ProLiant ML310 Generation 3 (G3)
5. Processor Socket (Intel® Pentium® D or Pentium® 4)
6. Four DIMM Sockets for up to 8GB DDR2 memory
7. System Fan
8. 370W Power Supply
Page 1

Advertisement

   Related Manuals for HP ProLiant ML310 Generation 3

   Summary of Contents for HP ProLiant ML310 Generation 3

  • Page 1

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Overview 1. Removable Media Bays 5. Processor Socket (Intel® Pentium® D or Pentium® 4) 2. 48x IDE (ATAPI) CD-ROM 6.

  • Page 2

    At A Glance The HP ProLiant ML310 G3 is an affordable, single processor tower server designed to provide the solid network foundation essential to fuel thriving small offices. Dual-core Intel Pentium D or Pentium 4 processing power combines with industry-leading management and essential data protection features for a secure, affordable platform that helps you run your business efficiently.

  • Page 3: Standard Features

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Standard Features Processor Processor Processor Processor Dual-core Intel® Pentium® D 940 (3.2 GHz/800 - 2 x 2MB L2)

  • Page 4

    Storage Controllers Storage Controllers The HP ProLiant ML310 G3 offers both SCSI and Serial models. SCSI models support U320 SCSI hard One of the following drives. Serial models support Serial Attached SCSI (SAS) and Serial ATA (SATA) hard drives. Use of SAS depending on Model hard drives in Serial models requires installation of a SAS controller or HBA.

  • Page 5

    HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs.

  • Page 6

    Software Maintenance Pack. Survey Utility and The most advanced configuration analysis, reporting and troubleshooting diagnostics utilities utilities used by HP and at your fingertips, available in SmartStart. Optional ProLiant Optional software offerings that selectively extend the functionality of an Essentials Value Packs...

  • Page 7

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Standard Features HP Systems Insight Manager Manageability Manageability Manageability Manageability Online ROM Flash Utility Automatic Server Recovery-2 (ASR-2)

  • Page 8

    Support Matrix at: http://www.hp.com/go/supportos NOTE: NOTE: NOTE: NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML310, please see: http://h18023.www1.hp.com/support/files/server/us/index.html. NOTE: NOTE: NOTE: NOTE: For more Linux OS support & certification information, please visit our the ProLiant &...

  • Page 9

    Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

  • Page 10

    HP ProLiant ML310 Generation 3 (G3) Standard Features Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays NOTE:...

  • Page 11

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Models NOTE: NOTE: NOTE: NOTE: In addition to the models listed below, ProLiant Smart Buys are also available in North America. For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.

  • Page 12

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Models Hot Plug Serial Models (SATA/SAS) Hot Plug Serial Models (SATA/SAS) Hot Plug Serial Models (SATA/SAS)

  • Page 13

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Models ML310T03 p640 HP- ML310T03 p640 HP- ML310T03 p640 HP- ML310T03 p640 HP- Processor(s) Processor(s)

  • Page 14

    1. Additional options selected in Step 4 will also be integrated when applicable. NOTE: NOTE: NOTE: NOTE: Standard models of this product offering (see previous section of this document) do not support HP Factory Express Server Configuration Level 1. NOTE: NOTE: NOTE: NOTE: FIO indicates that this option only available as a Factory Installable Option.

  • Page 15

    NOTE: NOTE: NOTE: This cable is required when the HP 6-port SATA RAID controller is installed on hot plug SATA/SAS models of the ML310 G3. See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.

  • Page 16

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Configuration Information - Factory Integrated Models (North America only) Step 4: Choose Additional Options for Factory Integration...

  • Page 17

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Options NOTE: NOTE: NOTE: NOTE: Some options may not be factory configurable. Please contact your local sales representative for additional information.

  • Page 18

    Serial-Attached SCSI (SAS) Hot Plug Hard Drive (SAS) Hot Plug Hard Drive (SAS) Hot Plug Hard Drive (SAS) Hot Plug Hard Drive (SATA/SAS Hot Plug Models Only) HP 300GB 3G SAS 15K 3.5" SP HDD 431944-B21 HP 146GB 3G SAS 15K 3.5" SP HDD 375872-B21 HP 72GB 3G SAS 15K 3.5"...

  • Page 19

    (RoHS) initiative, the Smart Array 641, 642, 6402, and 6404 RAID controllers will not be installed in ProLiant ML310 G3 servers sold on or after July 1, 2006. Installation of these options into the ProLiant ML310 G3 would create a non-compliant server configuration.

  • Page 20

    NOTE: In compliance with the European Union's Reduction of Hazardous Substances (RoHS) initiative, the HP 6-port SATA RAID Controller will not be installed in ProLiant ML310 G3 servers sold on or after July 1, 2006. Installation of this option into the ProLiant ML310 G3 would create a non-compliant server configuration.

  • Page 21

    HP NC360T PCI Express Dual Port Gigabit Server Adapter 412648-B21 NOTE: NOTE: NOTE: NOTE: When either the standard NC7761 or the NC1020 is teamed with other HP NICs, Jumbo Frames and LSO features are automatically disabled. 2006 Agere PCI high-speed international soft modem EK694AA Tape Drives...

  • Page 22

    HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library AG326B HP StorageWorks MSL2024 1 Ultrium 920 Drive Library AH169A HP StorageWorks MSL2024 2 Ultrium 920 Drive Library...

  • Page 23

    ProLiant Rack Enabling Kit (RoHS Compliant) 417705-B21 NOTE: NOTE: NOTE: NOTE: This is a 5U Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant ML310 servers. NOTE: NOTE: NOTE: NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24"...

  • Page 24

    Support Plus Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4458E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Support Plus 24 Support Plus 24 Support Plus 24...

  • Page 25

    Standard Memory Standard Memory All HP ProLiant ML310 G3 models ship with unbuffered, Advanced ECC PC2-4200 DDR2 SDRAM running at 533MHz. Standard models include a single 512 MB DIMM. Factory Integrated Models include the memory capacity of your choice. Standard Memory Replaced with Optional Memory...

  • Page 26

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Storage A, B Removable Media Bays (1.6" each) 48x IDE (ATAPI) CD-ROM 0, 1, 2, 3...

  • Page 27

    HP 8 Internal Port SAS HBA with RAID 80GB 1.5G SATA 7.2K NOTE: NOTE: NOTE: NOTE: Hot plug capability and drive LED status support requires installation of the HP 6-port SATA RAID Controller, the Smart Array P600 Controller, or a SAS HBA. NOTE: NOTE: NOTE: NOTE: The HP 4-port SATA/SAS target fan cable (P/N 389653-B21) is required when the HP 6-port SATA RAID controller (P/N 372953-B21) is installed.

  • Page 28

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Storage NOTE: NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:...

  • Page 29

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Storage HP StorageWorks HP StorageWorks External 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 374654-B21 HP StorageWorks...

  • Page 30: Technical Specifications

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 17.0 x 7-7/8 x 22 in (43.0 x 20.0 x 55.0 cm)

  • Page 31

    QuickSpecs HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) HP ProLiant ML310 Generation 3 (G3) Technical Specifications Data Transfer Rate Data Transfer Rate Sustained 3000 to 7200 KB/s (20X to 48X)

  • Page 32

    Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
