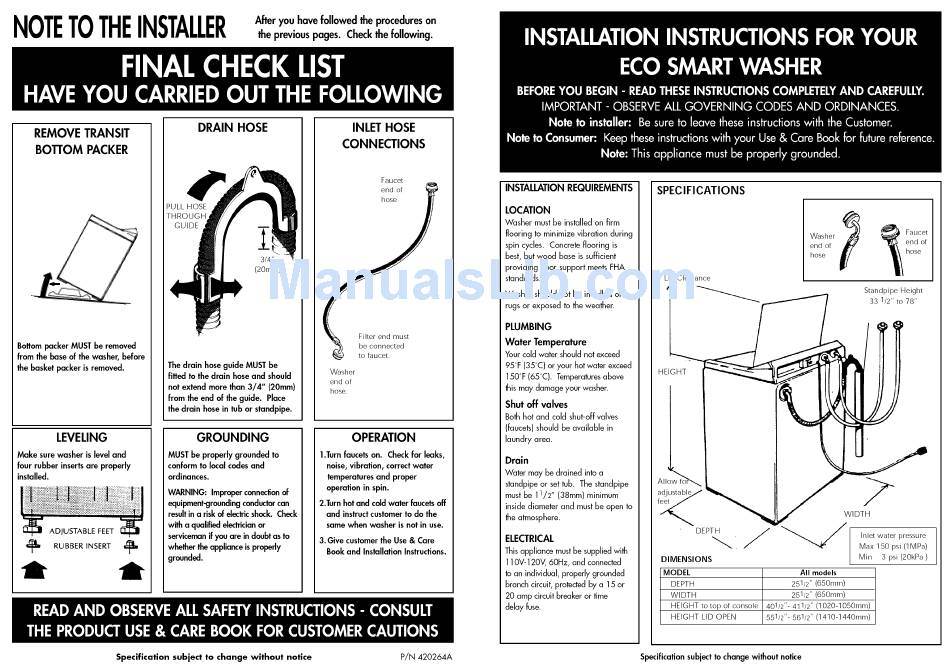

Fisher & Paykel IWL12-96154B Installation Instructions

NOTE TO THE I NSTALLER
Afteryou havefollowedthe procedures on
theprevious pages. Checkthefollowing.
REMOVE TRANSIT
BO'I'rOM PACKER
Bottom packer MUST be removed
from the base of the washer, before
the basket packer is removed.
LEVELING
Make sure washer is level and
four rubber inserts are properly
installed.
ADJUSTABLE FEET
_m RUBBER INSERT _'_
DRAIN HOSE
PULL HOSE
THROUGH
GUIDE
m
3/4"
(20mm)
The drain hose guide MUST be
fitted to the drain hose and should
not extend more than 3/4" (20mm)
from the end of the guide. Place
the drain hose in tub or standpipe.
GROUNDING
MUST be properly grounded to
conform to local codes and
ordinances.
WARNING: Improper connection of
equipment-grounding conductor can
resultin a risk of electricshock. Check
with a qualified electricianor
servicemanif you are in doubt as to
whether the appliance is properly
grounded.
INLETHOSE
CONNECTIONS
Faucet
end of
hose
Filter end must
be connected
to faucet.
Washer
end of
hose.
OPERATION
1.Turnfaucets on. Check for leaks,
noise, vibration, correct water
temperatures and proper
operation in spin.
2.Turn hot and cold water faucetsoff
and instruct customer to do the
same when washer is not in use.
3. Give customer the Use & Care
Book and Installation Instructions.
INSTALLATION REQUIREMENTS
LOCATION
Washer must be installed on firm
flooring to minimize vibration during
spin cycles. Concrete flooring is
best, but wood base is sufficient
providing floor support meets FHA
standards.
Washer should not be installed on
rugs or exposed to the weather.
PLUMBING
Water Temperature
Your cold water should not exceed
95°F (35°C) or your hot water exceed
150°F (65°C). Temperaturesabove
this may damage your washer.
Shut off valves
Both hot and cold shut-off valves
(faucets) should be available in
laundry area.
Drain
Water may be drained into a
standpipe or set tub. The standpipe
must be 11/2" (38mm) minimum
inside diameter and must be open to
the atmosphere.
ELECTRICAL
This appliance must be supplied with
110V-120V, 60Hz, and connected
to an individual, properly grounded
branch circuit, protected by a 15 or
20 amp circuit breaker or time
delay fuse.
SPECIFICATIONS
Lid Clearance
Washer
end of
hose
_ Faucet
end of
hose
Standpipe Height
33 1/2" to 78"
HEIGHT
! I
Allow fo_
adjustablee//
DEPTH
DIMENSIONS
WIDTH
/
Inlet water pressure /
Max 150 psi (1MPa)
J
Min 3 psi (20kPa)
MODEL All models
DEPTH 251/2" (650mm)
WIDTH 251/2" (650mm)
HEIGHT to top of console 401/2 "- 411/2" (1020-1050mm)
HEIGHT LID OPEN 551/2 "- 561/2" (1410-1440mm)
Specification subject to change without notice P/N 420264A Specification subject to change without notice
