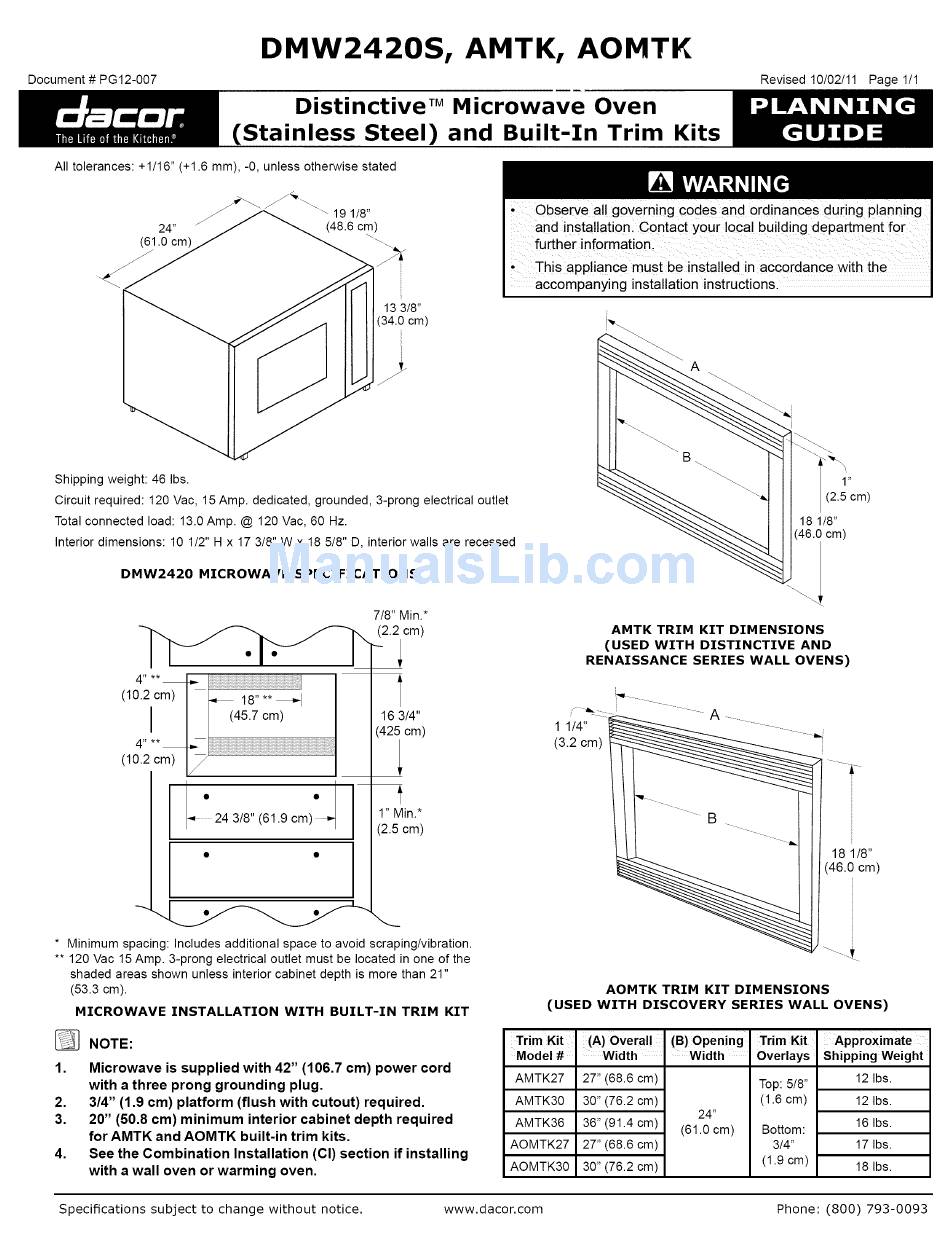

Dacor Distinctive DMW2420S Planning Manual

DMW2420S, AMTK,
AOMTK
Document # PG12-007
Distinctive
TM
Microwave Oven
(Stainless Steel) and Built-In Trim Kits
All tolerances: +1/16" (+1.6 mm), -0, unless otherwise stated
Revised 10/02/11 Page 1/1
24"
(61.0 cm)
13 3/8"
(34.0 cm)
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
This appliance must be installed in accordance with the
accompanying installation instructions.
A
Shipping weight: 46 Ibs.
Circuit required: 120 Vac, 15 Amp. dedicated, grounded, 3-prong electrical outlet
Total connected load: 13.0 Amp. @ 120 Vac, 60 Hz.
Interior dimensions: 10 1/2" H x 17 3/8" W x 18 5/8" D, interior walls are recessed
DMW2420 MICROWAVE SPECIFICATIONS
7/8" Min.*
4" ** 1
(10.2 c
I
L J
(14'2 c j
..... .243J8 6190m '_ I
1"
(2.5 cm)
18 1/8"
(46.0 cm)
\\_\ y
AMTK TRIM KIT DIMENSIONS
(USED WITH DISTINCTIVE AND
RENAISSANCE SERIES WALL OVENS)
16 3/4"
(425 cm) 1 1/4"
t
1" Min.*
(2.5 cm)
* Minimum spacing: Includes additional space to avoid scraping/vibration.
** 120 Vac 15 Amp. 3-prong electrical outlet must be located in one of the
shaded areas shown unless interior cabinet depth is more than 21"
(53.3 cm).
MICROWAVE INSTALLATION WITH BUILT-IN TRIM KIT
A
(3.2 cm) _ i
{ I I 18 i/8'--)cm
AOMTK TRIM KIT DIMENSIONS
(USED WITH DISCOVERY SERIES WALL OVENS)
NOTE:
1. Microwave is supplied with 42" (106.7 cm) power cord
with a three prong grounding plug.
2. 3/4" (1.9 cm) platform (flush with cutout) required.
3. 20" (50.8 cm) minimum interior cabinet depth required
for AMTK and AOMTK built-in trim kits.
4. See the Combination Installation (CI) section if installing
with a wall oven or warming oven.
Trim Kit
Model #
AMTK27
AMTK30
AMTK36
AOMTK27
AOMTK30
(A) Overall
Width
27" (68.6 cm)
30" (76.2 cm)
36" (91.4 cm)
27" (68.6 cm)
30" (76.2 cm)
(B) Opening Trim Kit
Width Overlays
24"
(61.0 cm)
Top: 5/8"
(1.6 cm)
Bottom:
3/4"
(1.9 cm)
Approximate
Shipping Weight
12 Ibs.
12 Ibs.
16 Ibs.
17 Ibs.
18 Ibs.
Specifications subject to change without notice, www.dacor.com Phone: (800) 793-0093
