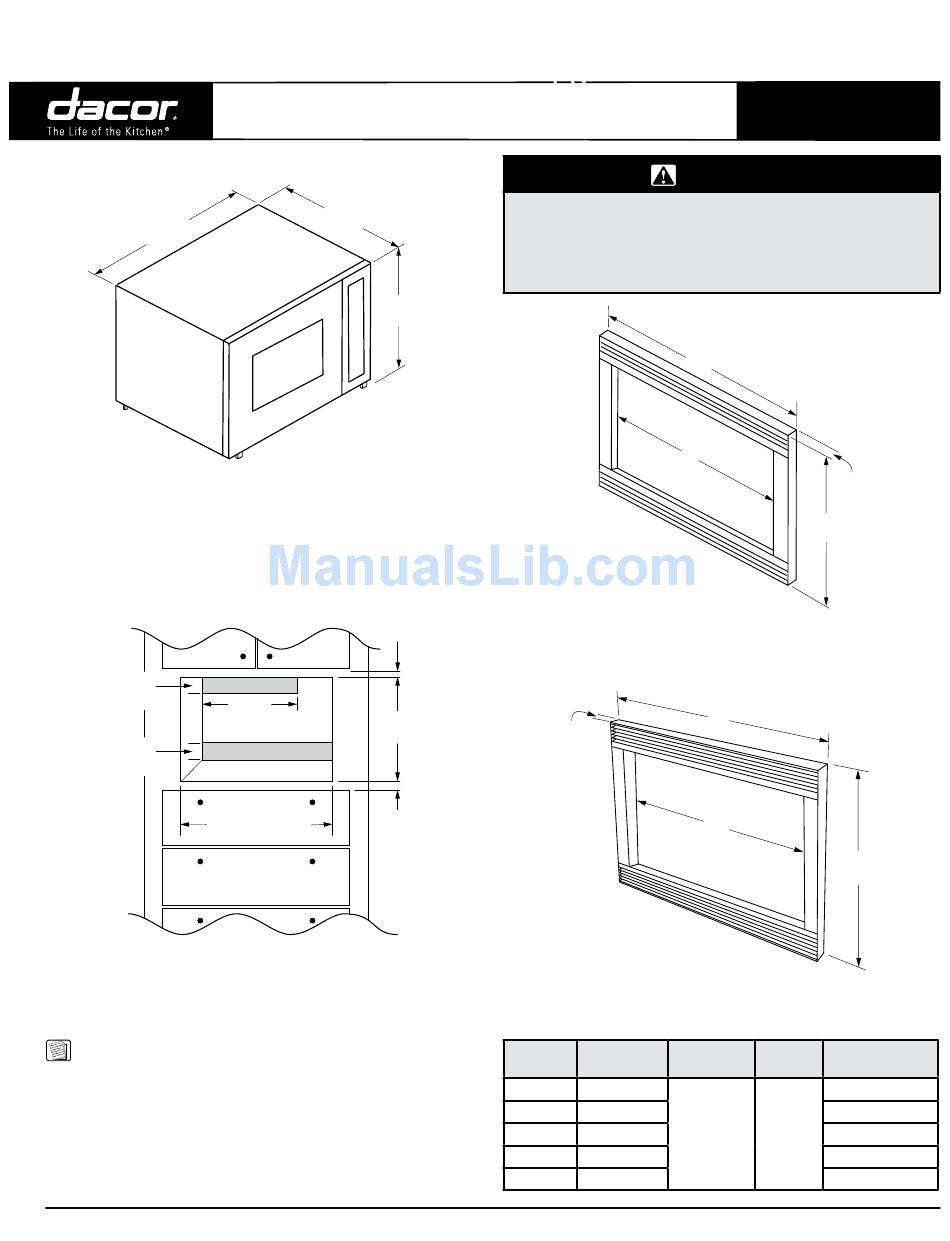

Dacor DMW2420S Planning Manual

Document # PG12-007
All tolerances: +1/16", -0, (+1.6 mm, -0) unless otherwise stated
24"
(61.0 cm)
Shipping weight: 46 lbs.
Circuit required: 120 Vac, 15 Amp. dedicated, grounded, 3-prong electrical outlet
Total connected load: 13.0 Amp. @ 120 Vac, 60 Hz.
Interior dimensions: 10 1/2" H x 17 3/8" W x 18 5/8" D, interior walls are recessed
DMW2420 MIcrOWAvE SPEcIfIcATIONS
4" **
(10.2 cm)
4" **
(10.2 cm)
* Minimum spacing: Includes additional space to avoid scraping/vibration.
** 120 Vac 15 Amp. 3-prong electrical outlet must be located in one of the
shaded areas shown unless interior cabinet depth is more than 21"
(53.3 cm).
MIcrOWAvE INSTALLATION WITh BUILT-IN TrIM KIT
NOTE:
1. Microwave is supplied with 42" (106.7 cm) power cord
with a three prong grounding plug.
2. 3/4" (1.9 cm) platform (flush with cutout) required.
3. 20" (50.8 cm) minimum interior cabinet depth required
for AMTK and AOMTK built-in trim kits.
4. See the Combination Installation (CI) section if installing
with a wall oven or warming oven.
Specifications subject to change without notice.

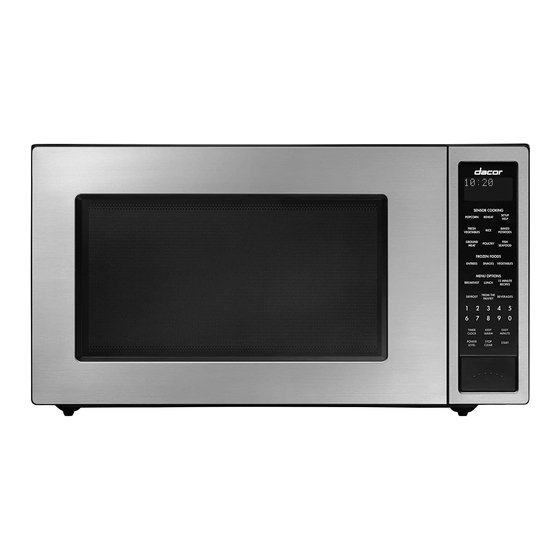

DMW2420S, AMTK, AOMTK
Microwave Oven (Stainless Steel)
and Built-In Trim Kits
19 1/8"
(48.6 cm)
13 3/8"
(34.0 cm)
7/8" Min.*
(2.2 cm)
18" **
(45.7 cm)
16 3/4"
(425 cm)
1" Min.*
24 3/8" (61.9 cm)
(2.5 cm)
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
AMTK TrIM KIT DIMENSIONS
(USED WITh DISTINcTIvE AND
rENAISSANcE SErIES WALL OvENS)
1 1/4"
(3.2 cm)
AOMTK TrIM KIT DIMENSIONS
(USED WITh DIScOvEry SErIES WALL OvENS)
Trim Kit (A) Overall
Model # Width
AMTK27 27" (68.6 cm)
AMTK30 30" (76.2 cm)
AMTK36 36" (91.4 cm)
AOMTK27 27" (68.6 cm)
AOMTK30 30" (76.2 cm)
www.Dacor.com
Revised 01/24/11 Page 1/1
PLANNING
GUIDE
WArNINg
A
B
1"
(2.5 cm)
18 1/8"
(46.0 cm)
A
B
18 1/8"
(46.0 cm)
(B) Opening Trim Kit Approximate
Width Overlays Shipping Weight
Top: 5/8"
(1.6 cm)
24"
(61.0 cm) Bottom:
3/4"
(1.9 cm)
Phone: (800) 793-0093
12 lbs.
12 lbs.
16 lbs.
17 lbs.
18 lbs.
12.1
