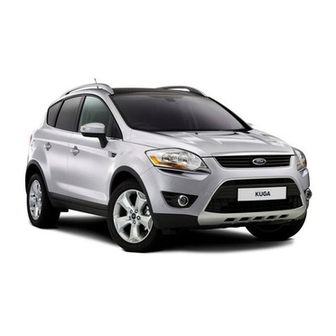

FORD KUGA Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Ford Kuga

Summary of Contents for Ford Kuga

  • Page 1 FORD KUGA Owner's Manual...
  • Page 2 No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2011 All rights reserved. Part Number: (CG3542en) 08/2011 20110725131049...

  • Page 3: Table Of Contents

    Table of Contents Introduction Alarm About This Manual...........7 Arming the alarm..........37 Symbols Glossary..........7 Disarming the alarm........37 Parts and Accessories........7 Steering Wheel At a Glance Adjusting the Steering Wheel....39 At a Glance............10 Audio Control...........39 Voice Control...........40 Child Safety Wipers and Washers Child Seats............17 Child Seat Positioning........18 Windscreen Wipers........41...
  • Page 4 Table of Contents Satellite Navigation Unit Holder....98 Instrument Cluster Floor Mats............98 Gauges...............62 Warning Lamps and Indicators....63 Starting and Stopping the Audible Warnings and Indicators.....65 Engine General Information........99 Information Displays Keyless Starting..........99 General Information........67 Diesel Particulate Filter.......101 Trip Computer..........70 Switching Off the Engine......101 Personalised Settings........72 Information Messages........74 Fuel and Refuelling...
  • Page 5 Table of Contents Rear view camera Maintenance Principle of Operation........116 General Information........141 Using the Rear View Camera....116 Opening and Closing the Bonnet....141 Under Bonnet Overview - 2.5L Duratec (VI5)..............143 Cruise Control Under Bonnet Overview - 2.0L Principle of Operation........119 Duratorq-TDCi (DW) Diesel....144 Using Cruise Control........119 Engine Oil Dipstick - 2.5L Duratec (VI5)..............146...
  • Page 6 Table of Contents Capacities and Specific- Compact disc player ations Loading compact discs......188 Technical Specifications......170 Track selection..........188 Loading the compact disc changer..188 Audio introduction Unloading the compact disc changer............189 Important audio information....173 Compact disc playback......189 Audio unit overview Fast forward/reverse........189 Shuffle/random..........189 Audio unit overview........174 Compact disc track compression..190...
  • Page 7 Table of Contents Climate control commands......217 Connectivity General Information........220 Connecting an external device....221 Connecting an external device - Vehicles With: Bluetooth.........221 Using a USB device........222 Using an iPod..........224 Navigation introduction Road Safety...........228 Navigation system Getting started..........229 Appendices Type approvals..........231 Type approvals..........231 Type approvals..........231 Electromagnetic compatibility....232...

  • Page 9: Introduction

    All materials used in the manufacture of the interior of this vehicle meet strict requirements of the TÜV TOXPROOF Now you can be sure that your Ford Criteria Catalogue for Vehicle Interiors by parts are Ford parts TÜV Produkt and Umwelt GmbH and are...
  • Page 10 Should the unexpected occur and a major part needs replacing, we recommend that you accept nothing less than Ford Original Parts. The use of Ford Original Parts ensures that your vehicle is repaired to its pre-accident condition and maintains its maximum residual value.
  • Page 11 Introduction E98917 E89939 Exterior mirror Lighting Rear lamps Rear fog lamp Headlamp E98918 Glass Rear window Side glass E98920 Windscreen...

  • Page 12: At A Glance

    At a Glance Instrument panel overview Left-hand drive E78209...
  • Page 13 At a Glance Right-hand drive E78210 Lighting control. See Lighting Control (page 45). Front fog lamps. See Front Fog Lamps (page 46). Rear fog lamp. See Rear Fog Lamps (page 46). Headlamp levelling control. See Headlamp Levelling (page 46). Multi-function lever: Information display controls. Direction indicators. See Direction Indicators (page 49).
  • Page 14 At a Glance Horn. Wiper lever. See Wipers and Washers (page 41). Card holder. Air vents. See Air Vents (page 80). Hazard warning flasher switch. See Hazard Warning Flashers (page 47). Start button. See Keyless Starting (page 99). Heated windscreen switch. See Heated Windows and Mirrors (page 85). Heated rear window switch.
  • Page 15 At a Glance Keyless entry * only in combination with four electric windows. Opening the luggage compartment lid E78276 Passive locking and unlocking requires a valid passive key to be located within one of the three external detection ranges. Unlocking the vehicle E78278 E139497 Pull a door handle to unlock all the doors...
  • Page 16 At a Glance Locking the vehicle E87384 Locking buttons are located on each of the E95178 front doors. See Keyless Entry (page 32). Keyless starting E85766 E95179 Press the start button. WARNING See Keyless Starting (page 99). Make sure that you fully engage the Adjusting the steering wheel locking lever when returning it to its original position.
  • Page 17 At a Glance Manual climate control See Automatic Climate Control (page 83). Defrosting and demisting the windscreen Autolamps E71382 Rapid heating of vehicle interior E73840 The headlamps will come on and go off E71377 automatically depending on the ambient light. See Manual Climate Control (page 81).
  • Page 18 At a Glance Autowipers See Child Safety (page 17). See Disabling the passenger airbag (page 26). Manual transmission Reverse gear 6-speed transmission E71014 Move the lever up one position. The rain sensor will continuously measure the amount of water on the windscreen and adjust the speed of the front wipers automatically.

  • Page 19: Child Safety

    Child Safety CHILD SEATS WARNINGS Do not leave unattended children in your vehicle. If your vehicle has been involved in an accident, have the child restraints checked by properly trained technicians. Note: Mandatory use of child restraints E133140 varies from country to country. Only child restraints certified to ECE-R44.03 (or later) have been tested and approved for use in your vehicle.

  • Page 20: Child Seat Positioning

    WARNINGS belt without slack remaining, adjust the Please consult your Dealer for the seatback to the fully upright position and latest details relating to Ford raise the height of the seat. See Seats recommended child seats. (page 89). Extreme Hazard! Do not use a...

  • Page 21: Child Safety

    Child Safety Mass group categories 9 - 18 kg 15 - 25 kg 22 - 36 kg Up to 10 kg Up to 13 kg Seating positions (20 - 40 (33 - 55 (49 - 79 (22 lbs) (29 lbs) lbs) lbs) lbs)

  • Page 22: Booster Seats

    At time of publishing the recommended Group O+ ISOFIX baby safety seat is the Britax Roemer Baby Safe. Please consult your Dealer for the latest details relating to Ford recommended child seats. At time of publishing the recommended Group 1 ISOFIX child seat is the Britax Roemer Duo.

  • Page 23: Isofix Anchor Points

    Child Safety Booster cushion (Group 3) A third anchor point has been provided for child seats that are equipped with a top tether, available for use in the forward facing configuration. The top tether anchors in your vehicle are located on the floor of the luggage compartment.

  • Page 24: Child Safety Locks

    Child Safety Right-hand side Route the tether strap to the anchor point. Tighten the tether strap to the Turn clockwise to lock and anti-clockwise manufacturer's instructions. to unlock. WARNINGS Make sure the top tether strap is not slack or twisted and is properly located on the anchor point.

  • Page 25: Occupant Protection

    Occupant protection Driver and front passenger airbags PRINCIPLE OF OPERATION Airbags WARNINGS Do not modify the front of your vehicle in any way. This could adversely affect deployment of the airbags. Original text according to ECE R94.01: Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of it! E74302...

  • Page 26: Occupant Protection

    Occupant protection Seat belts The side airbags will deploy during significant lateral collisions. Only the airbag WARNINGS on the side affected by the collision will deploy. The airbags will inflate within a few Wear a seat belt and keep sufficient thousandths of a second and deflate on distance between yourself and the contact with the occupants, thus providing...

  • Page 27: Fastening The Seat Belts

    Occupant protection FASTENING THE SEAT BELTS SEAT BELT HEIGHT ADJUSTMENT WARNING Insert the tongue into the buckle until you hear a distinct click. You have not fastened the seat belt properly if you do not hear a click. E87511 Note: Lifting the slider slightly while pressing the locking button makes it easier to release the locking mechanism.

  • Page 28: Using Seat Belts During Pregnancy

    Occupant protection Deactivating the seat belt reminder See your dealer. USING SEAT BELTS DURING PREGNANCY E71313 Fitting the passenger airbag deactivation switch WARNING If you need to fit a child restraint on a seat protected by an operational E68587 airbag in front of it, have a passenger airbag deactivation switch fitted.
  • Page 29 Occupant protection Turn the switch to position A. When you switch the ignition on, check that the passenger airbag deactivation warning lamp illuminates. Enabling the passenger airbag WARNING Make sure that the passenger airbag is enabled when you are not using a child restraint on the front passenger seat.

  • Page 30: Keys And Remote Controls

    Keys and Remote Controls GENERAL INFORMATION ON RADIO FREQUENCIES CAUTIONS The radio frequency used by your remote control can also be used by other short distance radio transmissions (e.g. amateur radios, medical equipment, wireless headphones, remote controls and alarm systems). If the frequencies are jammed, you will not be able to use your remote control.
  • Page 31 Keys and Remote Controls Install the key blade.

  • Page 32: Locks

    Locks Note: The direction indicators will flash LOCKING AND UNLOCKING twice as soon as you activate central locking. They will not flash again when you Central locking press the lock button on the remote control You can only centrally lock the doors if they or turn the key for the second time, i.e.
  • Page 33 Locks Luggage compartment lid Double locking the doors and the luggage compartment lid with the Opening the luggage compartment lid remote control Press button B twice within three seconds. Locking and unlocking the doors from inside Driver's door E99606 Lock all doors Unlock all doors Front and rear passenger doors E139497...

  • Page 34: Keyless Entry

    Locks Reprogramming the unlocking Opening the upper luggage function compartment lid with the remote control Note: When you press the unlock button Press and hold button C on the remote either all the doors are unlocked or only the control. driver s door and the luggage compartment lid are unlocked.
  • Page 35 Locks Locking buttons are located on each of the front doors. To activate central locking and arm the alarm: Press a locking button once. To activate double locking, to arm the alarm and the interior sensors: Press a locking button twice within three seconds.

  • Page 36: Global Opening And Closing

    Locks Disabled keys Any keys left inside the vehicle interior when it is locked will be disabled. A disabled key cannot be used to turn the ignition on or start the engine. In order to use these passive keys again, they have to be enabled.

  • Page 37: Global Opening

    Locks Note: Global closing will only operate if you have set the memory correctly for each window. See Power Windows (page 59). Global opening E99679 E71955 To open all the windows, press and hold the unlock button for at least three E87384 seconds.

  • Page 38: Engine Immobiliser

    If you lose a key, you can obtain a replacement from your Ford Dealer. If possible, provide them with the key number from the tag provided with the original keys. You can also obtain additional keys from your Ford Dealer.

  • Page 39: Alarm

    Alarm Unauthorised entry into the vehicle’s ARMING THE ALARM interior will trigger the alarm in the same way as the anti-theft system. The system is armed as soon as the vehicle is locked and acts as a deterrent to The sensors are located in the interior lamp unauthorised persons who attempt to unit.
  • Page 40 Alarm Britain and Ireland only If the vehicle is unlocked using the key blade, a 12 second delay chime starts as soon as the driver’s door is opened. The alarm will be deactivated during this period.

  • Page 41: Steering Wheel

    Steering Wheel ADJUSTING THE STEERING WARNING WHEEL Make sure that you fully engage the locking lever when returning it to its original position. WARNING Never adjust the steering wheel AUDIO CONTROL when the vehicle is moving. Select radio, CD or cassette mode on the Note: Make sure that you are sitting in the audio unit.

  • Page 42: Voice Control

    Steering Wheel Seek In radio mode, this will locate the next pre-set radio station. In CD mode, this will select the next CD if a CD changer is fitted. In all modes to abort a traffic message during broadcasting. Press and hold the button on the side: In radio mode to change the waveband.

  • Page 43: Wipers And Washers

    Wipers and Washers Automatic wiper system WINDSCREEN WIPERS Some models without autowipers are fitted with a speed-dependent front screen wiper system. When the vehicle is slowed to walking speed or is brought to a standstill, the wiper speed will automatically switch to the next lower wiper speed setting.

  • Page 44: Windscreen Washers

    Wipers and Washers WARNING Do not operate the washer for more than 10 seconds at a time, and never when the reservoir is empty. While the button at the end of the lever is pressed the washer will work in conjunction with the wipers.

  • Page 45: Headlamp Washers

    Wipers and Washers Rear window washer CHECKING THE WIPER BLADES E71018 WARNING Do not operate the washer for more than 10 seconds at a time, and never E66644 when the reservoir is empty. Run the tip of your fingers over the edge of the blade to check for roughness.
  • Page 46 Wipers and Washers Service position E72899 Press the locking button. 2. Remove the wiper blade. Note: Make sure that the wiper blade locks into place. 3. Install in the reverse order. E85833 Rear window wiper blade Lift the wiper arm. E99280 E86456 Turn on the ignition.

  • Page 47: Lighting

    Lighting Main and dipped beam LIGHTING CONTROL Lighting control positions E71095 Pull the lever fully towards the steering wheel to switch between main and dipped beam. Headlamp flasher E71094 Pull the lever slightly towards the steering wheel. Side and tail lamps Home safe lighting Headlamps Switch the ignition off and pull the...

  • Page 48: Autolamps

    Lighting AUTOLAMPS WARNING Only use the front fog lamps when WARNING visibility is considerably restricted by fog, snow or rain. In severe weather conditions, it may be necessary to switch your headlamps on manually. Note: You cannot switch the front fog lamps on if you have switched autolamps Note: If you have switched autolamps on, you can only switch the main beam on when...

  • Page 49: Hazard Warning Flashers

    Lighting You can adjust the level of the headlamp beams according to the vehicle load. E65990 Recommended headlamp levelling control positions Load Load in luggage Control position compartment Front seats Rear seats See Vehicle Identification Plate (page 169). HAZARD WARNING FLASHERS E71943 For item location: See At a Glance (page Note: Depending on applicable laws and...

  • Page 50: Adaptive Headlamps

    Lighting ADAPTIVE HEADLAMPS E72897 without AFS with AFS A message will appear in the information The AFS adjusts the headlamp dipped display and the headlamp indicator flashes beam depending on vehicle direction and if the system malfunctions. See speed. It improves visibility when you are Information Messages (page 74).

  • Page 51: Direction Indicators

    Lighting If you set the switch to position B, the DIRECTION INDICATORS courtesy lamp will come on when you unlock or open a door or the luggage compartment lid. If you leave a door open with the ignition switch off, the courtesy lamp will go off automatically after some time to prevent the vehicle battery from discharging.

  • Page 52: Removing A Headlamp

    Lighting Vanity mirror lamps E72900 E99388 2. Remove the screw. 3. Using a suitable implement, remove the trim panel. If you switch off the ignition, the vanity mirror lamps will go off automatically after a short time to prevent the vehicle battery from discharging.

  • Page 53: Changing A Bulb

    Lighting Headlamp Direction indicator Remove the headlamp. See Removing a Headlamp (page 50). E99390 5. Disconnect the electrical connector. 6. Disconnect the headlamp washer hose. Remove the headlamp. Note: When fitting the headlamp, make E99482 sure that you fully engage the headlamp in 2.
  • Page 54 Lighting Side repeaters 2. Turn the bulb holder anti-clockwise and remove it. 3. Remove the bulb. Side lamp Remove the headlamp. See Removing a Headlamp (page 50). E99397 Remove the cover. E99437 2. Remove the cover. 3. Pull the bulb holder and remove it. Remove the bulb.
  • Page 55 Lighting Approach lamp Front fog lamps E72264 E99405 Note: Position the mirror glass as far Note: You cannot separate the fog lamp inwards as possible. bulb from the bulb holder. Insert a screwdriver into the gap Using a suitable implement, remove between the mirror housing and the the cover.
  • Page 56 Lighting 5. Turn the bulb holder anti-clockwise and remove it. Rear fog lamps E99408 E107752 Direction indicator Carefully remove the lamp. Reverse lamp 2. Turn the bulb holder anti-clockwise and remove it. 2. Disconnect the electrical connector. 3. Remove the bulb. 3.
  • Page 57 Lighting Number plate lamp E72789 Carefully release the spring clip. E99412 2. Remove the lamp. 2. Remove the nut. 3. Remove the bulb. Interior lamp Vehicles without interior sensors E99413 E99452 3. Gently press the bulb into the bulb Carefully prise out the lamp. holder, turn it anti-clockwise and remove it.
  • Page 58 Lighting Vehicles with interior sensors Vehicles with interior sensors E72786 E72787 Carefully prise out the lamp. Carefully prise out the lens. 2. Turn the bulb holder anti-clockwise 2. Remove the lens. and remove it. 3. Remove the bulb. Reading lamps Vehicles without interior sensors E73939 3.

  • Page 59: Bulb Specification Chart

    Lighting Luggage compartment lamp Carefully prise out the lamp. 2. Remove the bulb. E99429 Carefully prise out the lamp. 2. Remove the bulb. BULB SPECIFICATION CHART Lamp Specification Power (watt) Front direction indicator H21W Headlamp main beam Headlamp dipped beam Side repeater Front fog lamp Side lamp...
  • Page 60 Lighting Lamp Specification Power (watt) Reading lamp Vanity mirror lamp Luggage compartment lamp Festoon...

  • Page 61: Windows And Mirrors

    Windows and Mirrors Opening and closing the windows POWER WINDOWS automatically WARNING Press or lift the switch to the second action point and release it completely. Press or Do not operate the electric windows lift it again to stop the windows. unless they are free from obstruction.

  • Page 62: Exterior Mirrors

    Windows and Mirrors Overriding the anti-trap function Open the window and try to close it automatically. CAUTION 8. Reset and repeat procedure if the While you close the window for the window does not close automatically. third time, the anti-trap function is disabled.

  • Page 63: Electric Exterior Mirrors

    Windows and Mirrors Electric folding mirrors ELECTRIC EXTERIOR MIRRORS Note: When the mirrors are operated often during a short period of time, the system may become inoperable for a period of time to prevent damage due to overheating. Note: The switch must be in position B. The electric folding mirrors operate with the ignition on.

  • Page 64: Instrument Cluster

    Instrument Cluster GAUGES E98738 Tachometer Engine coolant temperature gauge Fuel gauge Speedometer Information display CAUTION Engine coolant temperature gauge Do not restart the engine until the All vehicles cause of overheating has been resolved. Shows the temperature of the engine coolant.

  • Page 65: Warning Lamps And Indicators

    Instrument Cluster Airbag warning lamp If the needle enters the red section, the engine is overheating. Stop the engine, If it illuminates when you are switch the ignition off and determine the driving, this indicates a cause once the engine has cooled down. malfunction.
  • Page 66 Instrument Cluster Engine warning lamp Ignition warning lamp If it illuminates with the engine If it illuminates when you are running, this indicates a driving, this indicates a malfunction. If it flashes when malfunction. Switch off all you are driving, reduce the speed of your unnecessary electrical equipment.

  • Page 67: Audible Warnings And Indicators

    Instrument Cluster Power steering warning lamp AUDIBLE WARNINGS AND INDICATORS It illuminates to indicate a malfunction of the power Automatic transmission steering system. Full steering will be maintained but you will need to exert If position P is not selected, a warning greater force on the steering wheel.
  • Page 68 Instrument Cluster Lights on A warning chime will sound if the driver’s door is opened with the exterior lights switched on and the ignition switched off. Low fuel A warning chime will sound at the following ranges: 80 km (50 miles), 40 km (25 miles), 20 km (12 miles), 0 km (0 miles).

  • Page 69: Information Displays

    Information Displays to scroll through the trip computer GENERAL INFORMATION displays to scroll through and highlight the WARNING options within a menu. Do not operate the information Note: To scroll automatically, hold the display controls when the vehicle is rotary control in the upward or downward moving.
  • Page 70 Information Displays Menu structure Reset Trip Trip Odo Avg Fuel Avg Speed Messages Steering Standard Sport Comfort Clock Set Clock 24 Hour Mode Setup Display Configure Help Screen Always off NAV Info On Guidance Always on E98875...
  • Page 71 Information Displays Language English Deutsch Italiano Français Español Türkçe Pyccкий Nederlands Polski Svenska Português Measure Unit Metric Imperial Chimes Low Fuel General Warn General Info Aux. Heater E98876...

  • Page 72: Trip Computer

    Information Displays TRIP COMPUTER Type 2 and 3 Park Heater Time 1 on 10:20 Set Time 1 Monday Tuesday Wednesday Average Fuel Thursday 100km Friday Saturday 123456 km Sunday Time 2 on 234.2 km Set Time 1 E74428 Monday A: Trip computer Tuesday Wednesday B: Odometer...
  • Page 73 Information Displays Average fuel consumption Indicates the average fuel consumption Trip since the function was last reset. Ford ECO mode Dist to empty Enters the ECO mode menu. Average speed Instant Fuel Indicates the average speed calculated since the function was last reset.

  • Page 74: Personalised Settings

    Information Displays To reset all three displays, highlight All and Use the rotary control to enter the main press and hold the SET/RESET button. menu. 2. Highlight Steering and press the SET/RESET button. PERSONALISED SETTINGS 3. Highlight the desired setting and press Use the rotary to enter the main menu.
  • Page 75 Information Displays Use the rotary control to enter the main 5. Highlight Nav Info and press the menu. SET/RESET button. 2. Highlight Setup and press the 6. Highlight the desired setting and press SET/RESET button. the SET/RESET button to confirm the setting.

  • Page 76: Information Messages

    Information Displays Note: The units of measure for outside air INFORMATION MESSAGES temperature and the automatic climate control can be toggled independent of the other displays. When showing the outside air temperature, press and hold the SET/RESET button for a short time. Use the rotary control to enter the main menu.
  • Page 77 Information Displays Viewing current messages Have the system checked at the next service. Press the SET/RESET button to enter the main menu. Have the system checked as 2. Scroll to the messages display using soon as possible. the rotary control and press the SET/RESET button.
  • Page 78 Information Displays Message Warning lamp Action Vehicle is moving. Stop the vehicle Bonnet open as soon as safely possible and close. Door ajar close door amber Vehicle not moving. Close. Keyless system Message Warning lamp Action Have the system checked by a Immobiliser malfunction properly trained technician.
  • Page 79 Information Displays Lighting Message Warning lamp Action Brake lamp switch. The vehicle can be driven as normal. However, cruise control cannot be switched Brake light fault on. Have the system checked by a properly trained technician as soon as possible. Have the system checked by a Adaptive front light failure amber...
  • Page 80 Information Displays Power steering Message Warning lamp Action Full steering will be maintained but you will need to exert greater force on the steering wheel. Have Power steering malfunction amber the system checked by a properly trained technician as soon as possible.
  • Page 81 Information Displays Message Warning lamp Action The transmission is too hot. In these extreme conditions the transmission will disengage drive Transmission too hot in order to prevent damage. You will not be able to drive until the transmission has cooled. Have the system checked by a Transmission malfunction amber...

  • Page 82: Climate Control

    Climate Control Warming the interior PRINCIPLE OF OPERATION Direct the air towards your feet. In cold or Outside air humid weather conditions, direct some of the air towards the windscreen and the Keep the air intakes forward of the door windows. windscreen free from obstruction (snow, leaves etc.) to allow the climate control Cooling the interior...

  • Page 83: Manual Climate Control

    Climate Control Blower MANUAL CLIMATE CONTROL Air distribution control E75470 E71379 Note: If you switch the blower off, the windscreen may mist up. Windscreen Footwell and windscreen Recirculated air Footwell Press the button to toggle Face level and footwell between outside air and E73059 recirculated air.
  • Page 84 Climate Control Ventilation Defrosting and demisting the windscreen E71382 E71378 When the temperature is above 4°C Set the air distribution control, blower and (39°F), the air conditioning will switch on air vents to suit your requirements. automatically. Make sure that the blower Air conditioning is on.

  • Page 85: Automatic Climate Control

    Climate Control AUTOMATIC CLIMATE CONTROL E91390 Note: For information on the automatic The system controls the temperature, climate control, on vehicles fitted with a amount and distribution of the air flow combined Navigation and automatic automatically and adjusts them according climate control system, see separate to the driving and weather conditions.
  • Page 86 Climate Control To switch mono mode off Select a temperature for the passenger’s side with the rotary control on the passenger’s side. Mono mode will switch off and MONO disappears from the display. The temperature for the driver’s side will remain unchanged. You can now E70308 adjust the driver and passenger side temperatures independently of each...

  • Page 87: Heated Windows And Mirrors

    Climate Control Heated exterior mirrors A/C ON appears in the display when the air conditioning is switched on. Electric exterior mirrors are fitted with a heating element that will defrost or demist Recirculated air the mirror glass. They will switch on Press the recirculated air button automatically when you switch the heated to toggle between outside air...
  • Page 88 Climate Control Used properly, the parking heater provides the following benefits: It preheats the interior of the vehicle. It keeps the windows clear of ice in the event of frost and prevents condensation. It avoids cold starts and allows the engine to reach operating temperature sooner.
  • Page 89 Climate Control Programming the functions Program 1 Press the SET/RESET button to and Program 2 confirm the setting. Press the SET/RESET button to exit the menu. Program 1 Parkheater [07:55] Program 1 Monday Tuesday Wednesday Thursday 07:55 Friday 01:12:2006 E74468 OK = change Use the rotary control to enter the main E74469...
  • Page 90 Climate Control Active now Highlight Active now and press the SET/RESET button. A cross appears in the box next to the function to show that the heater is activated. To deactivate the heater, highlight Active now and press the SET/RESET button again.

  • Page 91: Seats

    Seats bend your legs slightly so that you can SITTING IN THE CORRECT press the pedals fully. POSITION position the shoulder strap of the seat belt over the centre of your shoulder and position the lap strap tightly across your hips. Make sure that your driving position is comfortable and that you can maintain full control of your vehicle.

  • Page 92: Manual Seats

    Seats Adjusting the lumbar support MANUAL SEATS All vehicles WARNINGS Do not use any accessory seat covers that are not specifically designed for seats with side airbags. These seat covers must be fitted by properly trained technicians. Do not adjust the seats while the vehicle is moving.

  • Page 93: Power Seats

    Seats Adjusting the angle of the seatback When the seats are slid fully forward the seatbacks can be fully reclined. E70731 POWER SEATS 6-way electric seat E78060 WARNINGS REAR SEATS Make sure that the seats and the seatbacks are secure and fully WARNINGS engaged in their catches.

  • Page 94: Heated Seats

    Seats Folding the seatbacks down CAUTION Lower the head restraints. E86612 Insert your fingers between the seat cushion and seatback and fold the seat cushion forwards. 2. Press the unlock buttons down and hold them there. E86611 3. Push the seatback forwards. Press the unlock buttons down and Folding the seatbacks up hold them there.

  • Page 95: Convenience Features

    Convenience features SUN SHADES INSTRUMENT LIGHTING DIMMER Panoramic roof E70454 CUP HOLDERS WARNING Do not place hot drinks in the cup holders when the vehicle is moving. Seat back trays WARNING Do not use the trays when the vehicle is moving. Make sure that you secure the trays in the lowered position before setting off.

  • Page 96: Cigar Lighter

    Note: You can use the socket to power 12 volt appliances that have a maximum current rating of 10 Amperes. Use only Ford E72630 accessory connectors or connectors specified for use with SAE standard sockets.

  • Page 97: Storage Compartments

    Convenience features STORAGE COMPARTMENTS CAUTIONS Do not exceed the maximum power Front storage compartment output. If you do, the LED will flash twice. Remove the plug and re-insert If the LED flashes three or four times, have the system checked by a properly trained technician.

  • Page 98: Glasses Holder

    Convenience features To gain access to the storage area, fold up TOLL READER the rear seat cushions. See Rear Seats (page 91). Note: Do not overload the storage areas under the rear seats. Ensure that the rear seat cushions can be folded back completely.

  • Page 99: Usb Port

    Convenience features E91511 E91511 E99438 E92035 USB PORT See Using a USB device (page 222).

  • Page 100: Satellite Navigation Unit Holder

    Convenience features SATELLITE NAVIGATION UNIT HOLDER Adjusting the holder E112711 Unlock. 2. Adjust the holder to the desired position. 3. Lock. Note: Make sure that the navigation unit holder is locked in position. FLOOR MATS WARNING When using the floor mats, always make sure the floor mat is properly secured using the appropriate fixings and positioned so that it does not interfere...

  • Page 101: Starting And Stopping The Engine

    Starting and Stopping the Engine GENERAL INFORMATION General points on starting If the battery has been disconnected the vehicle may exhibit some unusual driving characteristics for approx. 8 kilometres (5 miles) after reconnecting the battery. E85766 This is because the engine management system must realign itself with the engine.

  • Page 102: Starting And Stopping The Engine

    Starting and Stopping the Engine Failure to start 2. Remove the key blade. See Keyless Entry (page 32). The passive starting system will not function if: The passive key frequencies are jammed. The passive key battery is flat. If you are unable to start your vehicle carry out the following procedure.

  • Page 103: Diesel Particulate Filter

    Starting and Stopping the Engine Stopping the engine when the Note: During regeneration at low speed or vehicle is moving engine idle, you may smell a hot metallic odour and could notice a clicking metallic WARNING sound. This is due to the high temperatures reached during regeneration and is normal.
  • Page 104 Starting and Stopping the Engine Release the accelerator pedal. Wait until the engine has reached idle speed and then switch it off.

  • Page 105: Fuel And Refuelling

    Fuel spillage could be Note: The use of additives or other engine hazardous to other road users. treatments not approved by Ford is not Do not use any kind of flames or heat recommended. near the fuel system. The fuel system Note: We do not recommend the prolonged is under pressure.

  • Page 106: Fuel And Refuelling

    Fuel and Refuelling WARNING Stop refuelling after the fuel nozzle stops the second time. Additional fuel will fill the expansion space in the fuel tank which could lead to fuel overflowing. Fuel spillage could be hazardous to other road users. E86613 Open the flap fully until it engages.

  • Page 107: Catalytic Converter

    This is a potential fire driving, air conditioning usage, the hazard. accessories fitted and towing etc. Your Ford dealer can give you advice on improving your fuel consumption.

  • Page 108: Technical Specifications

    Fuel and Refuelling TECHNICAL SPECIFICATIONS 6-speed manual transmission - 2WD Fuel Consumption Figures CO2 Emis- Urban Extra-Urban Combined sions Variant l/100 km l/100 km l/100 km g/km (mpg) (mpg) (mpg) 2.0L Duratorq-TDCi stage V 7.4 (38.2) 5.0 (56.5) 5.9 (47.9) 5-speed automatic transmission - AWD Fuel Consumption Figures CO2 Emis-...
  • Page 109 Fuel and Refuelling 6-speed automatic transmission - AWD Fuel Consumption Figures CO2 Emis- Urban Extra-Urban Combined sions Variant l/100 km l/100 km l/100 km g/km (mpg) (mpg) (mpg) 2.0L Duratorq-TDCi stage V 8.5 (33.2) 5.8 (48.7) 6.8 (41.5)

  • Page 110: Transmission

    Transmission MANUAL TRANSMISSION Neutral Drive CAUTION Sport mode and manual shifting Do not engage reverse gear when the vehicle is moving. This can cause WARNING damage to the transmission. Apply the brakes before moving the selector lever and keep them applied until you are ready to move off.
  • Page 111 Transmission Sport mode and manual shifting - Neutral Vehicles with a 6 speed In this position, power is not transmitted transmission to the drive wheels but the transmission is not locked. You can start the engine with Note: A shift will occur only when the the selector lever in this position.
  • Page 112 Transmission 2. Release the brake pedal and press the accelerator pedal. Stopping Release the accelerator pedal and press the brake pedal. 2. Apply the parking brake. Kickdown Press the accelerator pedal fully with the selector lever in the drive position to select the next lowest gear for optimum performance.

  • Page 113: All-Wheel Drive

    Transmission ALL-WHEEL DRIVE CAUTION A vehicle fitted with AWD must be recovered with either ALL wheels on the ground or ALL wheels off the ground. See Vehicle recovery (page 139). The AWD system, fitted to certain front-wheel drive variants, will automatically provide driving torque to the rear wheels when road conditions become slippery with rain, snow or ice etc.

  • Page 114: Principle Of Operation

    Brakes Press the foot brake pedal firmly. PRINCIPLE OF OPERATION Pull the parking brake lever up smartly Disc brakes to its fullest extent. Do not press the release button while Wet brake discs result in reduced braking pulling the lever up. efficiency.

  • Page 115: Stability Control

    Stability Control Stability control (ESP) warning lamp PRINCIPLE OF OPERATION The ESP warning lamp will flash when the Electronic stability programme system is operating. See Warning Lamps (ESP) and Indicators (page 63). WARNING Emergency brake assist ESP does not relieve you of your WARNING responsibility to drive with due care and attention.

  • Page 116: Parking Aids

    Parking Aids Note: The parking aid may emit false tones PRINCIPLE OF OPERATION if it detects a signal using the same frequency as the sensors or if the vehicle is WARNING fully laden. The parking aid does not relieve you Note: The outer sensors may detect the of your responsibility to drive with side walls of a garage.

  • Page 117: Parking Aids

    Parking Aids You will hear an intermittent tone at a distance of up to approximately 150 centimetres (59 inches) between the obstacle and rear bumper, 80 centimetres (31 inches) between the obstacle and front bumper and 50 centimetres (20 inches) to the side.

  • Page 118: Rear View Camera

    Rear view camera PRINCIPLE OF OPERATION The camera is a visual aid for use when reversing. WARNING The system does not relieve you of your responsibility to drive with due care and attention. CAUTIONS If you use a high pressure spray to wash your vehicle, only spray the camera briefly from a distance not E99105...
  • Page 119 Rear view camera CAUTIONS Marks are for general guidance only, and are calculated for vehicles in maximum load conditions on an even road surface. The lines show a projected vehicle path (based on the current steering wheel angle) and the distance from the exterior mirrors and rear bumper.
  • Page 120 Rear view camera Amber - 2 metres (79 inches) Amber - centre line of the projected vehicle path Note: When reversing with a trailer, the lines on the screen show the vehicle direction and not the trailer. Deactivating the rear view camera Note: Disengage reverse gear.

  • Page 121: Cruise Control

    Cruise Control Setting a speed PRINCIPLE OF OPERATION WARNING The system does not relieve you of your responsibility to drive with due care and attention. Cruise control allows you to control your speed using the switches on the steering wheel. You can use cruise control when you exceed approximately 30 km/h (20 mph).

  • Page 122: Cruise Control

    Cruise Control Resuming the set speed E95393 E75453 Accelerate The cruise control indicator will illuminate Decelerate and the system will attempt to resume the speed that you previously set. Cancelling the set speed Switching cruise control off E75453 Press the brake pedal or the RES switch. E75455 The system will not retain the speed that Note: The system will no longer control...

  • Page 123: Load Carrying

    Load Carrying GENERAL INFORMATION WARNINGS Use load securing straps to an approved standard, e.g. DIN. Make sure that you secure all loose items properly. Place luggage and other loads as low and as far forward as possible within the luggage or loadspace. Do not drive with the tailgate or rear E97377 door open.

  • Page 124: Rear Under Floor Storage

    Load Carrying E112588 To remove or install the cover, push either end of the case inwards. E112571 Pull out the cover until it locks. Stowing the luggage cover - vehicles with tyre repair kit Space is provided under the luggage compartment floor.

  • Page 125: Roof Racks And Load Carriers

    E78097 Note: The side mounting tracks are designed such that crossbars (for bicycle ROOF RACKS AND LOAD carriers, ski carriers etc.) from the Ford CARRIERS accessories range can be fitted. Note: Before installing the crossbars, clean Roof rack the side mounting tracks with water and a sponge.
  • Page 126 Load Carrying 4 Nm E98207 Pull the handle out. E98208 2. Turn the handle clockwise to bring the 4. Push the handle in. Turn the key crossbar in contact with the rail. clockwise to lock. 5. Remove the key. Accessing the T-notch E98222 Note: Make sure there is no gap between crossbar and rail (A).
  • Page 127 Load Carrying E99775...

  • Page 128: Towing

    Towing In high altitude regions above 1 000 metres TOWING A TRAILER (3 281 feet), the stipulated maximum permitted gross train weight must be WARNINGS reduced by 10% for every additional 1 000 Do not exceed the maximum gross metres (3 281 feet). train weight stated on the vehicle identification plate.
  • Page 129 Towing Unlocking the tow ball arm mechanism E99477 Detach the keyhole protective cap. 2. Insert the key and turn it anti-clockwise to unlock (1). E99484 3. Hold the tow ball arm. Pull the Pull out the plug (1). handwheel out and turn it clockwise 2.
  • Page 130 Towing Driving with a trailer E71331 WARNING If any of the below conditions cannot be met, do not use the tow bar and have it checked by a properly trained technician. E99485 Before starting your journey, make sure Unhitch the trailer. that the tow ball arm is properly locked.
  • Page 131 Towing Keep the system clean. Periodically lubricate bearings, sliding surfaces, and locking balls with resin-free grease or oil and the lock with graphite. Keep a note of the key number. In case of loss, replacement keys are available from the manufacturer by stating the three digit key number.

  • Page 132: Driving Hints

    Driving Hints In an emergency, the vehicle can be driven RUNNING-IN through water to a maximum depth of 200 millimetres (8 inches) and at a maximum Tyres speed of 10 km/h (6 mph). Extra caution should be exercised when driving through WARNING flowing water.

  • Page 133: Roadside Emergencies

    Roadside Emergencies FIRST AID KIT Space is provided in the under floor storage compartment. See Rear Under Floor Storage (page 122). WARNING TRIANGLE Space is provided in the under floor storage compartment. See Rear Under Floor Storage (page 122).

  • Page 134: Status After A Collision

    Status after a collision Turn the ignition switch to position II. FUEL CUT-OFF SWITCH After a few seconds return the key to position I. Vehicles with a Duratec engine Make a further check for leaks in the fuel system. E72531 The fuel supply may be cut off as a result of an accident or sudden vibrations (e.g.

  • Page 135: Fuse Box Locations

    Fuses Install in the reverse order. FUSE BOX LOCATIONS Engine compartment fuse box CHANGING A FUSE WARNINGS Do not modify the electrical system of your vehicle in any way. Have repairs to the electrical system and the replacement of relays and high current fuses carried out by properly trained technicians.

  • Page 136: Fuse Specification Chart

    Fuses FUSE SPECIFICATION CHART Engine compartment fuse box E79716 Ampere Fuse Circuits protected rating Cooling fan Power steering Passenger junction box supply 1 Passenger junction box supply 2 PTC heater Glow plugs (diesel only) ESP pump ESP valves Powertrain control module Climate control blower Ignition switch...
  • Page 137 Fuses Ampere Fuse Circuits protected rating Ignition relay 15l Starter solenoid Heated windscreen, right-hand side Not used Heated windscreen, left-hand side Not used Power converter ESP module Horn Auxiliary heater Power steering module Headlamp washer Diesel fuel heater Ignition, relays Automatic transmission Air conditioning clutch Glow plug monitoring (diesel only)

  • Page 138: Passenger Compartment Fuse Box

    Fuses Passenger compartment fuse box E88709 Fuse Ampere rating Circuits protected Electronic modules ignition supply Driver’s electric seat Heater control, remote control receiver Lighting control battery supply Battery saver, interior lamps Heated rear window Keyless start Instrument cluster battery supply, on-board diagnostics Accessory to cluster (audio and navigation unit)
  • Page 139 Fuses Fuse Ampere rating Circuits protected Daytime running lamps igni- tion supply to lighting control switch Fuel pump (diesel only) Fuel pump (petrol only) Audio modules battery supply Daytime running lamps (parking lamps) Instrument cluster ignition supply, engine immobiliser Lighting control ignition supply Fog lamps Number plate lamps...
  • Page 140 Fuses Fuse Ampere rating Circuits protected Not used Not used Windscreen wipers AWD module Rear window wiper Brake lamps Central locking relays, passenger door module Central locking relays, driver door module Daytime running lamps Washer pump, heated washer jets Battery backup sounder Powertrain control module, accelerator pedal, auto- matic transmission, keyless...

  • Page 141: Vehicle Recovery

    Vehicle recovery Towing eye location TOWING POINTS Front towing eye E99490 E99468 Rear towing eye The screw-in towing eye is located in the luggage compartment next to the spare wheel well. The towing eye must always be carried in the vehicle. Prise off the cover and install the towing eye.

  • Page 142: Vehicle Recovery

    Vehicle recovery WARNINGS CAUTIONS The brake servo and the power Do not tow your vehicle if the ambient steering pump do not operate unless temperature is below 0ºC (32ºF). the engine is running. Press the brake pedal harder and allow for increased stopping distances and heavier steering.

  • Page 143: Maintenance

    Have your vehicle serviced regularly to help (page 146). maintain its roadworthiness and resale Brake fluid level. See Brake and value. There is a large network of Ford Clutch Fluid Check (page 147). Authorised Repairers that are there to help you with their professional servicing Washer fluid level.

  • Page 144: Closing The Bonnet

    Maintenance E78141 E78142 E78143 Closing the bonnet Note: Make sure that the bonnet is closed properly. Lower the bonnet and allow it to drop from under its own weight for the last 20 – 30 centimetres (8 - 12 inches).

  • Page 145: Under Bonnet Overview - 2.5L Duratec (Vi5)

    Maintenance UNDER BONNET OVERVIEW - 2.5L DURATEC (VI5) E78890 Screen washer fluid reservoir : See Washer Fluid Check (page 148). Engine coolant reservoir : See Engine Coolant Check (page 147). Brake and clutch fluid reservoir (right-hand drive) : See Brake and Clutch Fluid Check (page 147).

  • Page 146: Under Bonnet Overview - 2.0L Duratorq-Tdci (Dw) Diesel

    Maintenance Engine compartment fuse box: See Fuses (page 133). Air cleaner: No maintenance necessary. Engine oil dipstick : See Engine Oil Check (page 146). For easy identification, filler caps and the engine oil dipstick are marked in colour. UNDER BONNET OVERVIEW - 2.0L DURATORQ-TDCI (DW) DIESEL E78893...
  • Page 147 Maintenance E125377 Screen washer fluid reservoir : See Washer Fluid Check (page 148). Engine coolant reservoir : See Engine Coolant Check (page 147). Brake and clutch fluid reservoir (right-hand drive) : See Brake and Clutch Fluid Check (page 147). Engine oil filler cap : See Engine Oil Check (page 146).

  • Page 148: Engine Oil Dipstick - 2.5L Duratec (Vi5)

    Maintenance Air cleaner: No maintenance necessary. Engine oil dipstick : See Engine Oil Check (page 146). For easy identification, filler caps and the engine oil dipstick are marked in colour. ENGINE OIL DIPSTICK - 2.5L ENGINE OIL CHECK DURATEC (VI5) CAUTION Do not use oil additives or other engine treatments.

  • Page 149: Engine Coolant Check

    Do not top up further than the MAX may ignite if spilt on a hot exhaust. mark. CAUTIONS Top up with fluid that meets the Ford specification. See Technical In an emergency, you can add just Specifications (page 149). water to the cooling system to reach a vehicle service station.

  • Page 150: Power Steering Fluid Check

    Note: The brake and the clutch systems are Top up with fluid that meets the Ford supplied from the same reservoir. specification. See Technical Specifications (page 149).

  • Page 151: Technical Specifications

    High Performance Brake 4925 Class 6 Fluid Providing it meets the specification defined by WSS-M2C913-C, you can also use Ford Engine Oil or an alternative engine oil. Note: If you operate your vehicle in temperatures below -20°C (-4°F), you must not use SAE 10W-40 engine oil.
  • Page 152 Maintenance Variant Item Capacity in Litres (gallons) 2.0L Duratorq-TDCi (DW) Engine oil - with filter 5.5 (1.2) 2.0L Duratorq-TDCi (DW) Engine oil - without filter 5.0 (1.1) 2.5L Duratec (VI5) Engine oil - with filter 5.8 (1.3) 2.5L Duratec (VI5) Engine oil - without filter 5.5 (1.2)

  • Page 153: Vehicle Care

    Vehicle Care Cleaning the chrome trim CLEANING THE EXTERIOR CAUTION WARNING Do not use abrasives or chemical If you use a car wash with a waxing solvents. Use soapy water. cycle, make sure that you remove the wax from the windscreen. Body paintwork preservation CAUTIONS CAUTIONS...

  • Page 154: Repairing Minor Paint Damage

    You should repair paintwork damage caused by stones from the road or minor scratches as soon as possible. A choice of products is available from your Ford Dealer. Read and follow the manufacturer’s instructions.

  • Page 155: Vehicle Battery

    Vehicle battery To connect the booster cables JUMP-STARTING THE VEHICLE CAUTIONS Connect batteries with only the same nominal voltage. Always use booster cables with insulated clamps and adequate size cable. Do not disconnect the battery from the vehicle’s electrical system. E99387 Flat battery vehicle Booster battery vehicle...

  • Page 156: Vehicle Battery

    Vehicle battery Position the vehicles so that they do not touch one another. 2. Switch off the engine and any electrical equipment. 3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal of vehicle A (cable C). 4.

  • Page 157: Wheels And Tyres

    Wheels and Tyres GENERAL INFORMATION WARNINGS Drive the shortest possible distances. CAUTIONS Use only approved wheel and tyre Do not fit more than one spare wheel sizes. Using other sizes could damage on your vehicle at any one time. the vehicle and will make the National Type Approval invalid.
  • Page 158 Wheels and Tyres Jacking and lifting points Note: Use a jack with a minimum lifting capacity of 1.5 tonnes and a lifting plate with CAUTION a minimum diameter of 80 millimetres (3.1 inches). Use only the specified jacking points. If you use other positions, you may Vehicles without tyre repair kit or run damage the body, steering, flat tyres...
  • Page 159 Wheels and Tyres Vehicles with side skirts E93184 Indentations in the sills A show the E95345 location of the jacking points. Assembling the wheel brace Type one WARNING When returning the wheel brace extension to its original position, take care not to get your fingers caught. Note: Make sure that the wheel brace is fully extended.
  • Page 160 Wheels and Tyres Removing a road wheel WARNINGS Park your vehicle in such a position that neither the traffic nor you are hindered or endangered. Set up a warning triangle. Make sure that the vehicle is on firm, level ground with the wheels pointing E122502 straight ahead.
  • Page 161 Wheels and Tyres Install the locking wheel nut key. CAUTION Do not install alloy wheels using wheel nuts designed for use with steel wheels. Note: Make sure the wheel and hub contact surfaces are free from foreign matter. Note: Make sure that the cones on the wheel nuts are against the wheel.

  • Page 162: Tyre Repair Kit

    Wheels and Tyres Drive with caution and avoid TYRE REPAIR KIT making sudden steering or driving manoeuvres, especially if the vehicle Your vehicle is not equipped with a spare is heavily loaded or you are towing a tyre, but does include an emergency tyre trailer.
  • Page 163 Wheels and Tyres Leave the engine running while the kit CAUTION is in use, but not if the vehicle is in an Screwing the bottle onto the bottle enclosed or poorly ventilated area (for holder will pierce the seal of the example, inside a building).
  • Page 164 Wheels and Tyres Remove the power plug G from the Power plug with cable cigar lighter socket or auxiliary power Compressor switch socket. Label Quickly unscrew the hose C from the tyre valve and replace the protective Bottle lid cap A. Fasten the valve cap again. Sealant bottle Leave the sealant bottle K in the bottle holder E.

  • Page 165: Run Flat Tyres

    Wheels and Tyres 3. If the pressure of the sealant-filled tyre Empty sealant bottles can be disposed of is 1.3 bar (19 psi) or more, adjust it to together with normal household waste. the specified pressure. See Technical Return remains of sealant to your dealer Specifications (page 166).
  • Page 166 Wheels and Tyres Run flat tyre do not drive more than 80 kilometres (50 miles) after the defect is detected have the defective tyre replaced as soon as possible. Replacing run flat tyres WARNINGS Make sure that the workshop is aware that your vehicle is equipped with special run flat tyres.

  • Page 167: Tyre Care

    Wheels and Tyres TYRE CARE USING SNOW CHAINS WARNINGS Do not exceed 40 km/h (25 mph) when using 14 mm ( 0.6 inch) snow chains or 50 km/h (30 mph) when using 10 mm ( 0.4 inch) snow chains. Do not use snow chains on snow-free roads.

  • Page 168: Technical Specifications

    Wheels and Tyres Note: The system will still function WARNINGS correctly, but there may be an increased Do not drive on significantly detection time. under-inflated tyres. This may cause the tyres to overheat and fail. If a low pressure warning message is Under-inflation reduces fuel efficiency, tyre displayed in the information display, check tread life and may also affect your ability...
  • Page 169 Wheels and Tyres Tyre pressures (cold tyres) Up to 80 km/h (50 mph) Tyre Pressures Normal Load Full Load Front Rear Front Rear Variant Tyre Size (lbf/in²) (lbf/in²) (lbf/in²) (lbf/in²) T135/90 R 17 4.2 (61) 4.2 (61) 4.2 (61) 4.2 (61) Up to 160 km/h (100 mph) Tyre Pressures Normal Load...
  • Page 170 Wheels and Tyres Normal Load Full Load Front Rear Front Rear Variant Tyre Size (lbf/in²) (lbf/in²) (lbf/in²) (lbf/in²) 235/60 R16 2.3 (33) 2.3 (33) 2.4 (35) 2.8 (41) 235/55 R17 2.3 (33) 2.3 (33) 2.4 (35) 2.8 (41) 235/55 RF17 2.3 (33) 2.3 (33) 2.4 (35)

  • Page 171: Vehicle Identification

    Vehicle identification VEHICLE IDENTIFICATION VEHICLE IDENTIFICATION PLATE NUMBER Note: The vehicle identification plate design may vary to that shown. Note: The information shown on the vehicle identification plate is dependant upon market requirements. E87496 The vehicle identification number is stamped into the floor panel on the right-hand side, beside the front seat.

  • Page 172: Capacities And Specifications

    Capacities and Specifications TECHNICAL SPECIFICATIONS Towing equipment dimensions Dimension description Dimension in mm (inches) Maximum length 4443 (174.9) Overall width including exterior mirrors 2128 (83.8) Overall height - EC kerb weight without roof bars 1655 - 1677 (65.2 - 66) Overall height - EC kerb weight including roof bars 1687 - 1710 (66.4 - 67.3) Wheelbase...

  • Page 173: Capacities And Specifications

    Capacities and Specifications Towing equipment dimensions E99436...
  • Page 174 Capacities and Specifications Item Dimension description Dimension in mm (inches) Bumper – end of tow ball 98 (3.9) Attachment point – centre of tow ball 87 (3.4) Wheel centre – centre of tow ball 918 (36.1) Centre of tow ball – side member 518 (20.4) Distance between side members 1031 (40.6)

  • Page 175: Audio Introduction

    Audio introduction IMPORTANT AUDIO INFORMATION WARNINGS Due to technical incompatibility, E66257 recordable (CD-R) and rewritable Disc labels (CD-RW) discs may not function correctly. Audio CD These units will play compact discs that conform to the International Red Book standard audio specification.

  • Page 176: Audio Unit Overview

    Audio unit overview 6000CD E138367 CD select. See Compact disc player (page 188). CD aperture. See Loading compact discs (page 188). CD eject. See Ejecting compact discs (page 191). On, off and volume control. See On/off control (page 179). Waveband select. See Waveband button (page 181). Clock.
  • Page 177 Audio unit overview Sony CD and Sony CD DAB E138370 Scan. See Station tuning control (page 183). See Compact disc track scanning (page 191). Information. See Audio unit operation (page 179). See Audio unit menus (page 185). See Compact disc player (page 188). See Audio troubleshooting (page 194).
  • Page 178 Audio unit overview Tone. See Bass/treble control (page 179). Phone menu. See Telephone (page 195). Radio and waveband select. See Waveband button (page 181). Auxiliary and CD select. See Auxiliary input (AUX IN) socket (page 193). See Compact disc player (page 188). CD eject.

  • Page 179: Audio System Security

    Audio system security The number of attempts will be shown in SECURITY CODE the display. Each unit incorporates a unique code that If the display reverts to CODE another must be entered before the unit will entry attempt may be made immediately. operate.

  • Page 180: Audio Unit Clock And Date Displays

    Audio unit clock and date displays Sony and Sony DAB SETTING THE CLOCK AND DATE ON THE AUDIO UNIT Changing the date and time Press the CLOCK button. 6000CD 2. Press the left or right navigation button Changing the date and time until the date or time value that you wish to change flashes in the display.

  • Page 181: Audio Unit Operation

    Audio unit operation ON/OFF CONTROL BALANCE/FADE CONTROL Press the on/off control. This will also The balance function is used to adjust the operate the unit for up to one hour with the sound distribution between the left and ignition turned off. right speakers.
  • Page 182 Audio unit operation 6000CD Menu functions First level Second level During radio recep- During tape playback During CD playback During all functions tion Manual tuning 12/24 hour Scan Traffic local or distant Scan tuning Shuffle 12/24 hour ADV menu Repeat Comp News ADV menu...

  • Page 183: Waveband Button

    Audio unit operation Menu functions During radio reception During CD playback volume volume Traffic local or distant Traffic local or distant Regional ON/OFF Shuffle Repeat Comp ON/OFF Note: The sequence in which functions appear may vary for different audio units and vehicles.

  • Page 184: Autostore Control

    Audio unit operation TP will be shown within a box in the display AUTOSTORE CONTROL when you are tuned to a station providing traffic information from a linked RDS (radio Note: This function will overwrite the data system) or EON (enhanced other previously stored autostore preset stations.

  • Page 185: Station Tuning Control

    Audio unit operation Ending traffic announcements 3. Press the seek up or seek down button to select either local (TA LOCAL) or The audio unit will return to normal distant (TA DIST) traffic operation at the end of each traffic announcements.
  • Page 186 Audio unit operation Sony CD Sony and Sony DAB Select a waveband and briefly press the Press the SCAN button. SCAN flashes up or down navigation button. The unit will or SCANNING is shown in the display. stop at the first station it finds in the 2.

  • Page 187: Audio Unit Menus

    Audio unit menus Changing the DSP settings AUTOMATIC VOLUME CONTROL Press the DSP button once for occupancy and twice for equaliser. For When available, automatic volume control item location: See Audio unit (AVC) adjusts the volume level to overview (page 174). compensate for engine noise and road 2.

  • Page 188: Alternative Frequencies

    Audio unit menus 3. Using the seek up or seek down button ALTERNATIVE FREQUENCIES select the required setting. Many programmes broadcast on the FM 4. Press the MENU button or allow the waveband have a programme system to time out to confirm your identification (PI) code, which can be selection.

  • Page 189: News Broadcasts

    Audio unit menus 3. Using the seek up or seek down button 3. Press the button between the turn the function on or off. navigation buttons to make your selection. 4. Press the MENU button or allow the system to time out to confirm your 4.

  • Page 190: Compact Disc Player

    Compact disc player LOADING COMPACT DISCS LOADING THE COMPACT DISC CHANGER 6000CD, Sony and Sony DAB CAUTIONS Always check that the CD aperture is empty before inserting a CD. Do not insert more than one disc into each slot. Insert a CD, label side up, into the audio unit.

  • Page 191: Unloading The Compact Disc Changer

    Compact disc player Compact disc changer playback UNLOADING THE COMPACT DISC CHANGER 6000CD Press the CD button twice to start CD CAUTION playback. Keep the door closed when the Note: If the CD button is pressed when no magazine is installed. discs are loaded, NO CDS will be shown in the display.

  • Page 192: Compact Disc Track Compression

    Compact disc player Sony and Sony DAB Press the MENU button repeatedly until SHUF is shown in the display. Press the MENU button. 2. Using the seek up or seek down button 2. Using the up or down navigation button scroll through the display until SHUF scroll through the display until COMP ALL or SHUFF CD is shown in the...

  • Page 193: Compact Disc Track Scanning

    Compact disc player 6000CD COMPACT DISC TRACK SCANNING Press the EJECT button at any time and remove the CD. The SCAN function allows you to preview Sony CD each track for approximately 10 seconds. Note: If no CD is loaded when the EJECT 6000CD button is pressed, NO CD will be shown in Note: When selected, SCAN will be shown...

  • Page 194: Mp3 Display Options

    Compact disc player When the playback of a file is finished the ENDING COMPACT DISC playback of the other files in the same PLAYBACK directory continues. Directory change takes place automatically when all files in the All except Sony and Sony DAB current directory have been played back.

  • Page 195: Auxiliary Input (Aux In) Socket

    Auxiliary input (AUX IN) socket Note: For optimum performance when using any auxiliary device set the volume on the device high. This will reduce audio interference when charging the device via the vehicle power supply socket. When fitted the Auxiliary input (AUX IN) socket permits an auxiliary device, such as an MP3 player, to be linked into the vehicle audio system.

  • Page 196: Audio Troubleshooting

    Audio troubleshooting Audio unit display Rectification General error message for CD fault conditions, for example cannot read the CD, data-CD inserted. May CD ERROR also indicate a audio unit malfunction. Make sure that PLEASE CHECK CD the disc is correctly loaded, clean and re- load the CD CDC ERROR or replace the CD with a known music CD.

  • Page 197: Telephone

    To avoid this Office situation, only recommended phones should be used. E87993 Please visit the website www.ford- mobile-connectivity.com for full details. E87994 TELEPHONE SETUP Making a phone an active phone When using the system for the first time, Phonebook no phone is connected to the system.

  • Page 198: Bluetooth Setup

    Note: In some cases the Bluetooth 2. In the Bluetooth menu on your phone, connection must also be confirmed on the search for Ford Audio and select it. phone. 3. Enter the code number shown on the Bond another Bluetooth phone vehicle display using the phone keypad.

  • Page 199: Telephone Controls

    Telephone Making a call TELEPHONE CONTROLS Dialling a number using voice control Remote control Phone numbers can be dialled using voice Voice and mode button control. See Telephone commands (page 212). Dialling a number using the address book You can access your phone address book via Bluetooth.
  • Page 200 Telephone Dialling a number using the telephone Redialling a number - Sony radio keypad Press the PHONE or the call accept If you have an audio unit with a telephone button. keypad (buttons 0-9, * and #): 2. Press the seek button until the desired list is displayed.
  • Page 201 Telephone Accepting a second incoming call Using the audio unit menu Second incoming calls can be accepted Note: After bonding a phone to the system, by pressing either the call accept button, this becomes the active phone. the PHONE button, or the MODE button Press the PHONE or call accept on the remote control.

  • Page 202: Using The Telephone - Vehicles With: Navigation System

    Telephone 3. Scroll through the different phones by Rejecting an incoming call using the seek buttons and display the Incoming calls can be rejected by pressing phone to be debonded. either the call reject button, the CD or 4. Press the OK button to be debond. AM/FM buttons on the unit, or by using the REJECT option in the menu.
  • Page 203 Telephone Changing the active phone Note: Phones must be bonded to the system before they can be made active. Note: After bonding a phone to the system, this becomes the active phone. Press the PHONE button on the unit. 2. Using the BT SETTINGS option in the menu, select the active phone from the list.

  • Page 204: Voice Control

    Voice control Do not try to give any commands until the PRINCIPLE OF OPERATION beep tone has been heard. The voice control system will repeat each spoken CAUTION command back to you. Using the system with the engine off If you are not sure how to continue say will drain the battery.

  • Page 205: Audio Unit Commands

    Voice control Name tag automatic climate control: "TEMPERATURE", "AUTO MODE", The name tag functionality can support "DEFROSTING/DEMISTING ON" and the phone, audio and navigation features "DEFROSTING/DEMISTING OFF" by using the "STORE NAME" function. You radio: "TUNE NAME" can assign name tags to items such as external device (USB): "TRACK"...
  • Page 206 Voice control "CD PLAYER" "REPEAT OFF" * Can be used as a shortcut. ** Only available if the CD contains audio data files like MP3 or WMA. Track You can choose a track on your CD directly. Steps User says System answer "CD PLAYER"...
  • Page 207 Voice control "CD CHANGER" "PLAY" "DISC" "TRACK" "SHUFFLE ALL" "SHUFFLE CD" "SHUFFLE FOLDER" "SHUFFLE OFF" "REPEAT CD" "REPEAT FOLDER" "REPEAT TRACK" "REPEAT OFF" * Can be used as a shortcut. ** Only available if the CD contains audio data files like MP3 or WMA. Disc If you have a CD changer you can choose the disc number.
  • Page 208 Voice control Steps User says System answer "CD CHANGER" "CD CHANGER" "TRACK NUMBER PLEASE" "TRACK" "TRACK <number>" "<a number between 1 and 99>" * Can be used as a shortcut. ** Additionally, numbers can be spoken as up to four single digits (for example "2", "4", "5"...
  • Page 209 Voice control "RADIO" "PLAY" * Can be used as a shortcut. Tune frequency This function allows you to tune your radio by voice commands. Steps User says System answer "RADIO" "RADIO" "AM" "AM FREQUENCY PLEASE" "FM" "FM FREQUENCY PLEASE" "TUNE <frequency>" "<frequency>"...
  • Page 210 Voice control Tune name This function allows you to call up a stored radio station. Steps User says System answer "RADIO" "RADIO" "NAME PLEASE" "TUNE NAME" "<name>" "TUNE <name>" * Can be used as a shortcut. Delete name This function allows you to delete a stored radio station.
  • Page 211 Voice control Steps User says System answer "RADIO" "RADIO" "DELETE DIRECTORY" "DELETE DIRECTORY" "CONFIRM YES OR NO" "YES" "RADIO DIRECTORY DELETED" "NO" "COMMAND CANCELLED" Play This function switches the audio source to the radio mode. Steps User says System answer "RADIO"...
  • Page 212 Voice control "EXTERNAL DEVICE", "USB" "PLAY" "TRACK" "PLAYLIST" "FOLDER" "SHUFFLE ALL" "SHUFFLE FOLDER" "SHUFFLE PLAYLIST" "SHUFFLE OFF" "REPEAT TRACK" "REPEAT FOLDER" "REPEAT OFF" * Can be used as a shortcut. ** Playlists and folders activated by voice control must be assigned special filenames. See General Information (page 220).
  • Page 213 Voice control Steps User says System answer "EXTERNAL DEVICE" "EXTERNAL DEVICE" "USB" "USB" "TRACK" "TRACK NUMBER PLEASE" "TRACK <number>" "<a number between 1 and 99>" * Additionally, numbers can be spoken as up to four single digits (for example "2", "4", "5"...

  • Page 214: Telephone Commands

    Voice control iPod Track You can choose a track off the all titles list of your iPod directly. Steps User says System answer "EXTERNAL DEVICE" "EXTERNAL DEVICE" "IPOD" "IPOD" "TRACK NUMBER PLEASE" "TRACK" "TRACK <number>" "<a number between 1 and 99>" * Can be used as a shortcut.
  • Page 215 Voice control "PHONE" "HELP" "MOBILE NAME" "DIAL NUMBER" "DIAL NAME" "DELETE NAME" "DELETE DIRECTORY" "PLAY DIRECTORY" "STORE NAME" "REDIAL" "ACCEPT CALLS" "REJECT CALLS" * Can be used as a shortcut. Phone functions Dial number Phone numbers can be dialled after giving the name tag voice command.
  • Page 216 Voice control Dial name Phone numbers can be dialled after giving the name tag voice command. Steps User says System answer "PHONE" "PHONE" "NAME PLEASE" "DIAL NAME" "<name>" "DIAL <name>" "CONFIRM YES OR NO" "YES" "DIALLING" "NO" "COMMAND CANCELLED" * Can be used as a shortcut. Redial This function allows you to redial the last dialled phone number.
  • Page 217 Voice control DTMF (Tone dialling) Note: DTMF can only be used during an ongoing call. Operate the VOICE button and This function transfers spoken numbers wait for the system prompt. into DTMF tones. For example, to make a Can only be used with vehicles installed with remote enquiry to your home answering a dedicated VOICE button.
  • Page 218 Voice control Steps User says System answer "PHONE" "PHONE" "DELETE NAME" "NAME PLEASE" "<name>" "DELETE <name>" "CONFIRM YES OR NO" "YES" "<name> DELETED" "NO" "COMMAND CANCELLED" Play directory Use this function to let the system tell you all stored entries. Steps User says System answer...

  • Page 219: Navigation System Commands

    Voice control Steps User says System answer "PHONE" "PHONE" "REJECT CALLS" "REJECT CALLS" "ACCEPT CALLS" "ACCEPT CALLS" * use this command to turn the reject mode off Overview NAVIGATION SYSTEM The overview below shows the available COMMANDS voice commands. The following lists will give further information about the Please refer to your separate Navigation complete command menu in selected...
  • Page 220 Voice control This function allows you to adjust the fan speed. Steps User says System answer "CLIMATE" "CLIMATE" "FAN SPEED PLEASE" "‘FAN" "MINIMUM" "FAN MINIMUM" "<a number between 1 and 7>" "FAN <number>" "MAXIMUM" "FAN MAXIMUM" * Can be used as a shortcut. On vehicles fitted with an English language module the "FAN" shortcut is not available.
  • Page 221 Voice control Steps User says System answer "MAXIMUM" "TEMPERATURE MAXIMUM" * Can be used as a shortcut. Auto mode Steps User says System answer "CLIMATE" "CLIMATE" "AUTO MODE" "AUTO MODE" * Can be used as a shortcut. Can be deactivated by selecting a different temperature or fan speed.

  • Page 222: Connectivity

    Cover the socket connection when not in use. iPod media players (refer to Only use USB Mass-Storage device www.ford-mobile compliant devices. -connectivity.com for latest compatibility list). Always switch your audio unit to a different source (for example the The system is USB 2.0 full speed...

  • Page 223: Connecting An External Device

    Plug in the device, and if necessary secure below: it to prevent movement within the vehicle. Create folders named with the structure "Ford<*>" where <*> is a Connecting an iPod number 1-10. For example "Ford3" For optimum convenience and audio without an extension.

  • Page 224: Using A Usb Device

    Connectivity Bonding the device Information not available Note: Some audio and navigation units E100028 have a separate Bluetooth audio menu. Use this to access setup and control. Sony radio To connect the device to the system follow Operation the same procedure as for Bluetooth hands free phones.
  • Page 225 Connectivity Audio control The display will show the track information, together with other important Press the left and right arrow keys to skip information described below: backwards and forwards through tracks. A vertical scroll bar on the right side of Press and hold the left/right arrow keys to the display shows the current position enable fast rewind/fast forward through...

  • Page 226: Using An Ipod

    Connectivity Press the INFO button to display the "<" to the left hand side of the display following: indicates that a further level up is readable. filename Icons to the left of track/folder text title indicate the type of file/folder. Refer artist to the list for an explanation of these album...
  • Page 227 Connectivity iPod is the active source The display will show the track information, together with other important information described below: E100030 iPod playlist A vertical scroll bar on the right side of the display shows the current position E100031 of the list view. iPod artist ">"...
  • Page 228 Connectivity Press the INFO button to display the To navigate the iPod contents, use the following: rotary scroll/select button to browse through lists. Push the button to expand title the contents within the highlighted playlist, artist album, artist, genre or to commence track number and playing time.
  • Page 229 Connectivity The iPod menu list for browsing contents Press the SCAN button to scan the will be available through the display. currently selected tracks. Navigation of the contents follows the Press the INFO button to display the same principles as for iPod standalone use following: (for example search by artist, title, etc.).

  • Page 230: Navigation Introduction

    Read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines.

  • Page 231: Navigation System

    GPS receiver. system performance. To avoid this situation, only recommended phones Note: The Ford Mobile Navigation must be should be used. installed and activated on your mobile phone. Please visit the website Note: It is possible to activate up to a www.ford-mobile-connectivity.com for...

  • Page 232: Navigation System

    Navigation system E114213 2. Switch your mobile phone on and start the "Ford Mobile Navigation". 3. Choose "Select Destination". 4. Choose "Enter Address". 5. Change route options if necessary and start the route guidance. 6. The vehicle display will show the turn information.

  • Page 233: Appendices

    The Bluetooth word mark and logos are FCC/INDUSTRY CANADA NOTICE owned by the Bluetooth SIG, Inc. and any use of such marks by Ford Motor Company This device complies with Part 15 of the is under license. Other trademarks and FCC Rules.

  • Page 234: Electromagnetic Compatibility

    Appendices E114220 WARNINGS ELECTROMAGNETIC The RF (radio frequency) transmitter COMPATIBILITY equipment (e.g. cellular telephones, amateur radio transmitters etc.) may only be fitted to your vehicle if they comply WARNINGS with the parameters shown in the table Your vehicle has been tested and below.
  • Page 235 Appendices WARNINGS WARNINGS Keep antenna and power cables at any electronic modules and airbags. least 10 centimetres (4 inches) from E85998 Frequency Band Maximum output power Watt (Peak Antenna Positions RMS) 1 – 30 50 W 3, 4 30 – 54 50 W 1, 2, 3 68 –...
  • Page 236 Appendices Check that electromagnetic fields generated inside the vehicle cabin by the transmitter installed do not exceed applicable human exposure requirements.
  • Page 237 Index Audible Warnings and Indicators.....65 Automatic transmission........65 Frost................65 Key-in-ignition............65 See: Climate Control..........80 Key outside car............65 About This Manual...........7 Lights on..............66 Low fuel..............66 See: Brakes.............112 Seat belt reminder..........66 ABS driving hints Audio Control...........39 See: Hints on Driving With Anti-Lock Mode.................40 Brakes..............112 Seek................40 Accessories Volume..............39...
  • Page 238 Index Automatic Transmission......108 Brake and Clutch Fluid Check....147 Brakes..............112 Emergency park position release lever..............110 Principle of Operation........112 Bulb changing Hints on driving with an automatic transmission...........109 See: Changing a Bulb...........51 Bulb Specification Chart......57 Manual shifting - Vehicles with a 5 speed transmission...........109 Selector lever positions........108 Sport mode and manual shifting - Vehicles...
  • Page 239 Index Child Safety Locks..........22 Cruise control Left-hand side............22 See: Using Cruise Control.........119 Cup Holders............93 Right-hand side.............22 Child Seat Positioning........18 Seat back trays.............93 ..................18 Child Seats............17 Child restraints for different mass Daytime Running Lamps......45 groups..............17 Cigar Lighter.............94 Diesel Particulate Filter.......101 Cleaning the Exterior........151 Regeneration............101 Digital signal processing (DSP)....185 Body paintwork preservation......151...
  • Page 240 Index Engine Oil Check...........146 Checking the oil level........146 Topping up............146 Gauges...............62 Engine Oil Dipstick - 2.0L Duratorq-TDCi Engine coolant temperature gauge....62 (DW) Diesel..........146 Fuel gauge..............63 Engine Oil Dipstick - 2.5L Duratec Gearbox (VI5)...............146 See: Transmission..........108 Entering a security code......177 General Information on Radio 6000CD, Sony and Sony DAB......177 Frequencies...........28 Exterior Mirrors..........60...
  • Page 241 Index Information Displays........67 General Information..........67 Information Messages........74 Keyless Entry............32 All wheel drive............75 Disabled keys............34 Doors open..............75 General information..........32 Keyless system............76 Locking and unlocking the doors with the Lighting..............77 key blade............34 Maintenance............77 Locking the vehicle..........33 Message indicator..........74 Passive key..............33 Message symbols..........74 Unlocking the vehicle..........33 Power steering............78 Keyless Starting..........99...
  • Page 242 Parts and Accessories........7 Blower...............81 Look for the Ford logo on the following Heating the interior quickly.......81 parts ...............8 Recirculated air............81 Now you can be sure that your Ford parts Ventilation...............82 are Ford parts............7 Manual Seats..........90 Personalised Settings........72 All vehicles.............90 Chime deactivation..........74 Manual Transmission.........108...
  • Page 243 Index Power Seats............91 Roof Racks and Load Carriers....123 6-way electric seat..........91 Cycle carrier............124 Power Steering Fluid Check.....148 Installing the crossbars........123 Topping up............148 Roof rack..............123 Power Windows..........59 Run Flat Tyres..........163 Anti-trap function..........59 Principle of operation........163 Driver's door switches........59 Replacing run flat tyres........164 Global opening and closing......59 What to do if a run flat tyre has a Opening and closing the windows...
  • Page 244 Index Status after a collision........132 Towing the Vehicle on Four Steering Wheel..........39 Wheels............139 Storage compartments.......95 All vehicles............139 Front storage compartment......95 Vehicles with automatic Storage area under the rear seats....95 transmission............140 Sun Shades............93 Towing..............126 Track selection..........188 Panoramic roof.............93 Switching Off the Engine......101 All except Sony and Sony DAB.....188 Vehicles with a turbocharger......101 Sony and Sony DAB..........188...
  • Page 245 Index Using an iPod..........224 Using Winter Tyres........165 CD Navigation units..........226 SD Navigation units..........226 Sony radio.............225 Using a USB device........222 Vehicle battery..........153 Vehicle Care.............151 CD Navigation units...........223 Vehicle Identification Number....169 SD Navigation units...........224 Vehicle Identification Plate......169 Sony radio.............222 Using Cruise Control........119 Vehicle identification........169 Vehicle recovery..........139 Cancelling the set speed.........120...
  • Page 246 Index Washing See: Cleaning the Exterior........151 Waveband button.........181 All except Sony and Sony DAB.......181 Sony and Sony DAB..........181 Wheels and Tyres.........155 General Information..........155 Technical Specifications.........166 Windows and Mirrors........59 Windscreen Washers........42 Windscreen Wipers........41 Automatic wiper system........41 Intermittent wipe..........41 Winter Tyres See: Using Winter Tyres........165 Wipers and Washers........41...
  • Page 248 (CG3542en)

Table of Contents
