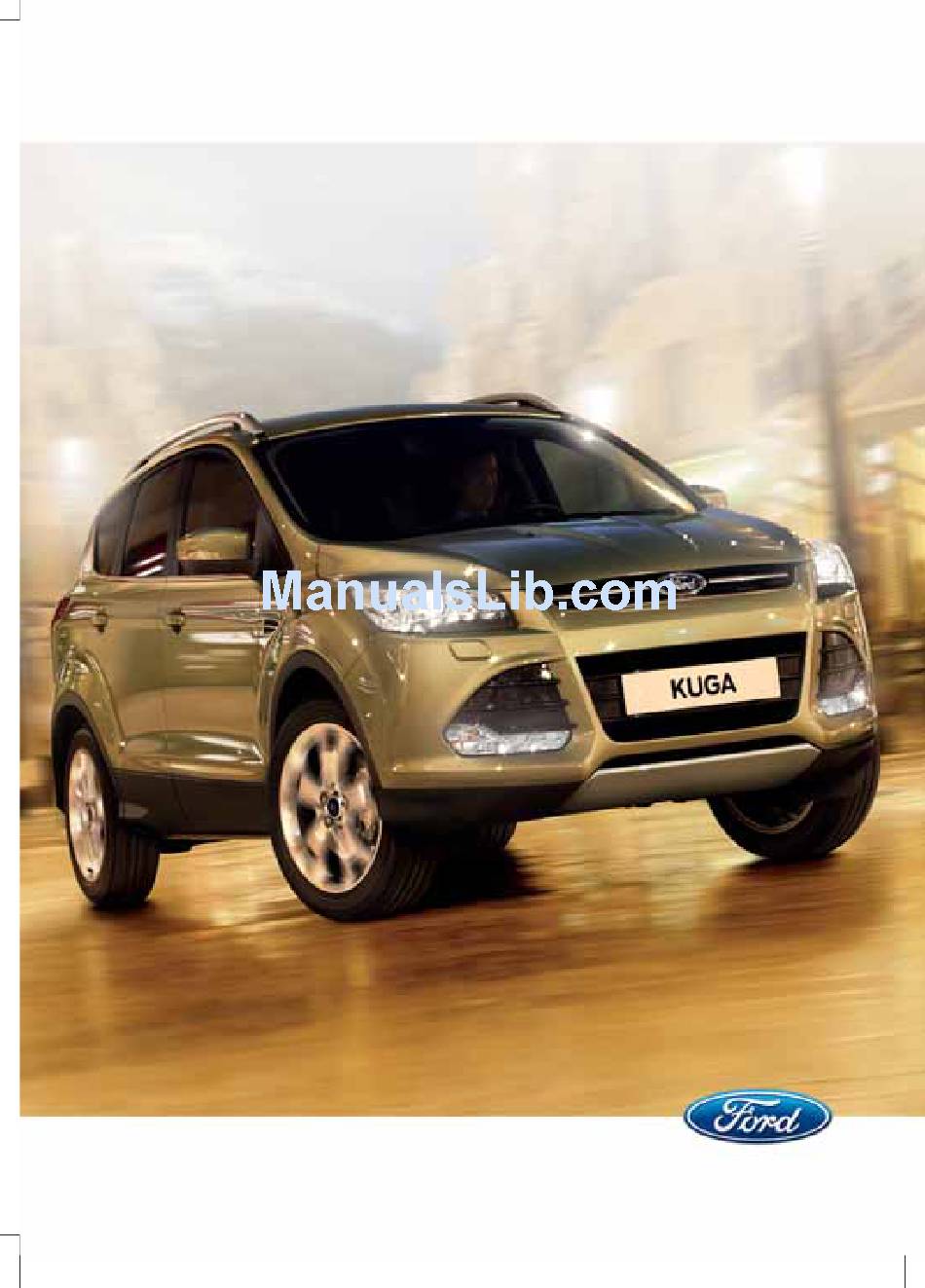

Page 1 FORD KUGA Owner's Manual...
Page 2 No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2012 All rights reserved. Part Number: CG3585en 11/2012 20121121092856...
Page 3: Table Of Contents
Rear Fog Lamps..........51 General Information on Radio Headlamp Leveling.........51 Frequencies..........27 Cornering Lamps..........52 Remote Control..........27 Direction Indicators........52 Replacing a Lost Key or Remote Interior Lamps..........53 Control............29 Ambient Lighting..........54 Locks Locking and Unlocking.........30 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 4 Steering Wheel Lock........138 Broadcast (DAB) Radio/Navigation Starting a Gasoline Engine.......139 System/SYNC/Sony AM/FM/CD..108 Starting a Diesel Engine......140 Digital Audio............114 Diesel Particulate Filter......140 Auxiliary Input Jack........116 Switching Off the Engine......141 USB Port............117 Audio Troubleshooting.........117 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 5 Towing the Vehicle on Four Wheels..194 Using Traction Control........162 Driving Hints Stability Control Breaking-In............195 Principle of Operation.........163 Cold Weather Precautions......195 Using Stability Control.......163 Driving Through Water........195 Floor Mats............195 Parking Aids Principle of Operation........164 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 6 Changing the Wiper Blades......216 Removing a Headlamp.......217 Changing a Bulb..........217 Bulb Specification Chart......223 Technical Specifications......224 Vehicle Care Cleaning the Exterior........226 Repairing Minor Paint Damage....226 Cleaning the Interior........227 Cleaning the Alloy Wheels......227 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 7: Introduction
This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing Anti-lock braking system forward in the seat. Avoid smoking, flames or sparks Battery Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 8 Do not open when hot E91392 Interior luggage compartment Engine air filter release Jack Engine coolant Lighting control Engine coolant temperature Low tire pressure warning Engine oil Maintain correct fluid level Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 9: Data Recording
- possibly, with the assistance of an expert. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 10: Replacement Parts Recommendation
A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 11: At A Glance
See Lane Keeping System (page 181). See Traffic Sign Recognition (page 183). See Active City Stop (page 185). See Changing the Wiper Blades (page 216). See Maintenance (page 210). See Towing Points (page 193). See Changing a Bulb (page 217). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 12 See Transmission (page 150). See Locking and Unlocking (page 30). See Power Windows (page 55). See Exterior Mirrors (page 56). See Head Restraints (page 127). See Fastening the Safety Belts (page 22). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 13 See Manual Seats (page 129). See Power Seats (page 130). See Parking Brake (page 160). See Opening and Closing the Hood (page 210). Instrument Panel Overview Left-Hand Drive V U T E152444 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 14 Start-stop switch. See Start-Stop (page 142). Heated rear window switch. See Heated Windows and Mirrors (page 125). Heated windshield switch. See Heated Windows and Mirrors (page 125). Climate controls. See Climate Control (page 118). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 15 Lighting control. See Lighting Control (page 47). Front fog lamps. See Front Fog Lamps (page 50). Rear fog lamp. See Rear Fog Lamps (page 51). Headlamp levelling control. See Headlamp Leveling (page 51). Instrument lighting dimmer. See (page 118). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 16 See Changing the Wiper Blades (page 216). See Changing a Bulb (page 217). See Refueling (page 147). See Changing a Road Wheel (page 232). Tire pressures. See Technical Specifications (page 239). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 17 Mobility Kit (page 228). Spare wheel, jack and wheel brace. See Changing a Road Wheel (page 232). Towing eye. See Towing Points (page 193). Fuel funnel. See Running Out of Fuel (page 145). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 18: Child Safety
See Seats (page 127). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 19 At time of publishing the recommended Group 1 ISOFIX child seat is the Britax Romer Duo. See an authorized dealer for the latest details relating to our recommended child seats. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 20: Installing Child Seats
Do not modify child seats in any way. Do not hold a child on your lap when your vehicle is moving. Do not leave unattended children in your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 21 Note: When using a child seat on a rear seat, make sure that the child seat rests tightly against the vehicle seat. It may be necessary to lift or remove the head restraint. See Head Restraints (page 127). E68924 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 22 Top Tether Anchor Points E87145 2. Push the child seat back firmly to engage the ISOFIX lower anchor points. 3. Tighten the tether strap in line with the child seat manufacturer's instructions. E142244 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 23: Child Safety Locks
Left-Hand Side Turn counterclockwise to lock and clockwise to unlock. Right-Hand Side Turn clockwise to lock and counterclockwise to unlock. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 24: Safety Belts
The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest. E85817 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 25: Safety Belt Height Adjustment
SAFETY BELT MINDER is moving. You will also hear an audible chime. WARNING The system will only provide protection when you use the safety belt correctly. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 26: Supplementary Restraints System
Use seat covers designed for seats with side airbags. Have these fitted by an authorized dealer. Failure to adhere to this warning could result in serious personal injury or death. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 27: Passenger Airbag
You must switch the airbag off when Turn the switch to position B. using a rearward facing child seat on the front seat. KNEE AIRBAG WARNING Do not attempt to open the airbag cover. E71313 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 28: Side Airbags
E72658 The airbags are located inside the seatback of the front seats. There is a label attached to the side of the seatback to indicate this. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 29: Keys And Remote Controls
Note: When you press the unlock button either all the doors are unlocked or only the driver’s door and the liftgate are unlocked. Pressing the unlock button again unlocks all the doors. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 30 Install the key blade. Remote Control without a Folding Key Blade E119190 4. Twist the screwdriver in the position shown to separate the two halves of the remote control. E87964 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 31: Replacing A Lost Key Or Remote Control
Authorized dealers can program remote controls for your vehicle. See Passive Anti-Theft System (page 38). To re-program the passive anti-theft system see an authorized dealer. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 32: Locks
The door locks and the alarm will Unlocking and starting your vehicle once will return to their previous state. enable the remote control. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 33 Turn the key to the lock position twice Right-hand Side within three seconds. Turn counterclockwise to lock. Unlocking Unlock the driver's door using the key. You can unlock all other doors individually by pulling the interior door handles. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 34: Manual Liftgate
Note: Do not leave the liftgate open while driving. This could damage the liftgate and its components. E155976 A handle is located inside the liftgate to help with closing. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 35: Power Liftgate
Note: You can manually operate the • Press the center console switch. liftgate. • Use the liftgate release handle. • Use the hands-free feature. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 36 Press the button on the remote control twice within three seconds. • Press the center console switch or the liftgate switch. • Use the liftgate release handle. • Use the hands-free feature. • Manually close the liftgate Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 37: Keyless Entry
The system will not function if: • Your vehicle battery has no charge. • The passive key frequencies are jammed. • The passive key battery has no charge. E87384 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 38 All passive keys will then be enabled if you switch the ignition on or you start your vehicle with a valid key. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 39 Locking and Unlocking the Doors with the Key Blade E87964 Carefully remove the cover. 2. Remove the key blade and insert it into the lock. Note: Only the driver's door handle has a lock cylinder. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 40: Security
If you are unable to start the engine with a movement within your vehicle. correctly coded key, have your vehicle checked by an authorized dealer. ANTI-THEFT ALARM Alarm System Your vehicle may have one of the following alarm systems: Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 41 Locks (page 30). In full guard, the interior sensors are on when you arm the alarm. Note: This may result in false alarms if animals or moving objects are inside your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 42 Category One Alarm Disarm and silence the alarm by unlocking the doors and switching the ignition on within 12 seconds or unlocking the doors or the liftgate with the remote control. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 43: Steering Wheel
Select the required source on the audio unit. You can operate the following functions with the control: E95178 Unlock the steering column. 2. Adjust the steering wheel to the desired position. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 44 Press and hold the seek button to: • tune the radio to the next station up or down the frequency band • seek through a track. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 45: Voice Control
CRUISE CONTROL E157482 E145434 See Cruise Control (page 170). Use the arrows on the right side of the steering wheel to navigate through the menus. Press OK to make a selection. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 46: Wipers And Washers
If that does not resolve the issue, install new wiper blades. Note: If you switch autolamps on in conjunction with autowipers, the low beam headlamps will illuminate automatically when the rain sensor activates the windshield wipers continuously. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 47: Windshield Washers
With high sensitivity, the wipers will operate when the sensor detects a small amount of moisture on the windshield. E129193 Intermittent wipe Low speed wipe Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 48: Headlamp Washers
Note: The headlamp washers will not operate every time you use the windshield washers. This is to prevent the washer fluid reservoir from emptying quickly. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 49: Lighting
E130140 Push the lever forward to switch the high beam on. Push the lever forward again or pull the lever toward you to switch the high beam off. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 50: Autolamps
The headlamps will remain on for a period of time after you switch the ignition off. You can adjust the time delay using the information display controls. See Information Displays (page 66). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 51: Daytime Running Lamps
The ambient light is high enough that vehicles are hidden by obstacles (for high beam is not required. example guard rails). • An approaching vehicle's headlamps or tail lamps are detected. • Street lighting is detected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 52: Front Fog Lamps
See Information Displays (page off. 66). The set level determines the speed at which the high beam will be restored after detected traffic leaves the field of view. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 53: Rear Fog Lamps
Recommended Headlamp Leveling Switch Positions Load Load in luggage Switch position compartment Front seats Second row seats See Vehicle Identification Plate (page 241). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 54: Cornering Lamps
Lighting CORNERING LAMPS E72898 Headlamp beam Cornering lamp beam The cornering lamps illuminate the inside DIRECTION INDICATORS of a corner when you are turning. E130141 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 55: Interior Lamps
Press the switch again to turn interior lamps back on. The indicator lamp will illuminate blue. (B) All lamps on and off switch. E160816 (C) Passenger individual lamp on and off switch. E142455 E160817 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 56: Ambient Lighting
The ambient lighting will switch on when the following conditions have been met: • you switch the ignition on • you switch the headlamps on • the outside ambient light level is low. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 57: Windows And Mirrors
One-Touch Up (If Equipped) Lift the switch fully and release it. Press or lift it again to stop the window. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 58: Exterior Mirrors
Note: If you fold the mirrors using the manual fold button, you can only unfold them again manually. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 59: Interior Mirror
Fold-Away Exterior Mirrors Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position. E138666 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 60: Moonroof
Press and release the front of the control to close the moonroof. Bounce-Back The moonroof will stop automatically while closing. It will reverse some distance if there is an obstacle in the way. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 61: Global Opening And Closing
Press the lock or unlock button to stop the closing function. The bounce-back function is also on during global closing. E71955 To open all the windows: Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 62 To close all the windows, press and hold the driver’s door handle for at least three seconds. The bounce-back function is also on during global closing. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 63: Instrument Cluster
Vehicle Settings and Personalization Located in the bottom of the information display, it registers the accumulated See General Information (page 66). distance your vehicle has traveled. Outside Air Temperature Shows the outside air temperature. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 64: Warning Lamps And Indicators
Note: Some warning indicators appear in the information display and function the same as a warning lamp but do not display when you start your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 65 Have your vehicle checked immediately. When the engine does not by an authorized dealer immediately. restart have your vehicle checked by an authorized dealer. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 66 High Beam Indicator acceleration, braking or when It will illuminate when you switch the clutch pedal is pressed. the high beam headlamps on. It will flash when you use the headlamp flasher. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 67: Audible Warnings And Indicators
Headlamps On Warning Chime Sounds when you remove the key from the ignition and open the driver's door and you have left the headlamps or parking lamps Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 68: Information Displays
Note: Some options may appear slightly different or not at all if the items are optional. E138659 Navigation Route Active guidance Route sections list Block next section Unblock rte sctn Destination input Country City/postcode Street Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 69 Near destination Along motorway POIs near address Search by name Tour planning New tour Stored tours Store position Route Fast Short Always ask Route options Driver: Leisurely Normal Fast Eco settings Trailer Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 70 GPS info System info Enter position Demo mode SYNC-Media allows you to access the SYNC features. SYNC-Phone Dial a number Redial Phonebook Call history Speed Dial Text messaging BT Devices Phone settings Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 71 Toll Seasonal roads Toll sticker Map display Map content Arrows on map: Nav time display: Map heading up Best contrast Assistance options Signs / lanes Speed limits Nav icons in list Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 72 Nav audio mixing DSP settings DSP equaliser News Alt. frequency RDS regional DAB service link Bluetooth Clock settings Auto time (GPS) Set time Set date Set time zone Summer time 24-hour mode Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 73: Clock
Changes in driving pattern may cause the value to vary. Average Fuel Indicates the average fuel consumption since the function was last reset. E130248 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 74 Airbag Message Message Action indicator Displays when the system requires service due to Airbag fault Service amber a malfunction. Have your vehicle checked by an authorized dealer as soon as possible. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 75 Displays to warn of a low battery condition. Switch Battery low See off all unneeded electrical accessories. Have your manual vehicle checked by an authorized dealer as soon as possible. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 76 Displays when the system has detected a condi- Child lock fault Service tion that requires service. Have your vehicle amber required checked by an authorized dealer as soon as possible. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 77 Message Indicator Action Driver fatigue warning Stop and rest as soon as it is safe to do so. Rest now Driver fatigue warning amber Take a rest break soon. Rest suggested Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 78 Displays when the door listed is not completely door ajar closed. Displays when the luggage compartment is not Trunk ajar completely closed. Hood open Displays when the hood is not completely closed. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 79 Displays to remind you that the key is in the trunk. vehicle See Keyless Starting (page 136). Switch ign. off Press Displayed as a reminder to switch the ignition off. ENGINE Start/Stop See Keyless Starting (page 136). button Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 80 Low beam Bulb fault burned out. See Changing a Bulb (page 217). Displays when the brake lamp bulb has burned Brake lamp Bulb fault out. See Changing a Bulb (page 217). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 81 Occupant Protection Message Indicator Action Displays when the system has detected a condi- tion that requires service. Have your vehicle Service Beltminder checked by an authorized dealer as soon as possible. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 82 See Parking Brake (page 160). Amber Displays when the system has detected a condi- Park brake fault Service tion that requires service. Have your vehicle checked by an authorized dealer as soon as possible. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 83 Auto StartStop Select Select neutral for the system to restart the engine. neutral See Start-Stop (page 142). Auto StartStop Manual The system is not functioning. A manual restart is Start required required. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 84 Cranking time Displays when your vehicle fails to start. exceeded Towing Message Message Action Indicator Trailer sway Reduce See Trailer Sway Control (page 193). speed Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 85 Transmission Hot Stop Transmission is getting hot. Stop to let it cool or or Speed Up speed up. Transmission Hot Wait Transmission is hot. Wait as needed to let it cool. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 86 Traction Control Message Message Action Indicator Displays when the traction control system has Traction control off been switched off. See Using Traction Control (page 162). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 87: Audio System
Do not clean in a circular motion. Do not expose discs to direct sunlight or heat sources for extended periods of time. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 88: Audio Unit - Vehicles With: Am/Fm/Cd
Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 89 On, Off and Volume: Press the button to switch the audio system on or off. Turn the dial to adjust the volume. Seek down: Press the button to go to the next station down the radio frequency band or the previous track on a CD. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 90 Select a waveband and briefly press one of the seek buttons. The unit will stop at Select a waveband. the first station it finds in the direction you 2. Tune to the station required. have chosen. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 91 TP will also be displayed. Otherwise the unit will search When available, automatic volume control for a traffic program. adjusts the volume level to compensate for engine noise and road speed noise. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 92 Under certain conditions, alternative programming, but can cause random frequencies tuning may temporarily disrupt alternative frequency switches if they are normal reception. not. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 93: Audio Unit - Vehicles With: Am/Fm/Cd/Digital Audio Broadcast (Dab) Radio/Sync
Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 94 Numeric keypad: Press the button to recall a previously stored station. To store a favorite station press and hold until the sound returns. Clock: Press the button to select clock setup. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 95 3. Use the left and right arrow buttons to to the required waveband and press OK. make the necessary adjustment. The display indicates the level selected. 4. Press the OK button to confirm the new settings. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 96 TA momentarily as confirmation. or TRAFFIC is turned off, then on again. You can repeat this on each waveband and for each preset button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 97 4. Press the OK button to confirm your one or if one is not found, the unit will selection. return to the original stored frequency. 5. Press the MENU button to return. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 98: Audio Unit - Vehicles With: Digital Audio Broadcast (Dab) Radio/Navigation System/Sync
Regional mode off: This allows a larger coverage area if neighboring regional networks are carrying the same programming, but can cause random alternative frequency switches if they are not. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 99 Clock: Press the button to select clock setup. Function button 4: Press the button to select different functions of the audio system depending on which mode (i.e. radio or CD) you are in. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 100 3. Use the left and right arrow buttons to to the required waveband and press OK. make the necessary adjustment. The display indicates the level selected. 4. Press the OK button to confirm the new settings. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 101 TP code to signify that 3. Press function button 3 again or OK to they carry traffic program information. continue listening to a station. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 102 The display will show the of music chosen. level selected. Changing the Digital Signal Processing Settings Press the MENU button. 2. Select AUDIO or Audio settings. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 103 'random' alternative frequency switches if they are not. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 104: Audio Unit - Vehicles With: Digital Audio Broadcast (Dab) Radio/Sync/Sony Am/Fm/Cd
Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 105 Seek up: Press the button to go to the next station up the radio frequency band or the next track on a CD when in CD mode. In phone mode, use the button to end a phone call. An incoming call can be rejected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 106 RADIO: Press the button to select different radio bands, it will also cancel the menu or list browsing. CD: Press the button to change source to CD, it will also cancel the menu or list browsing. Volume: Turn the dial to adjust the volume. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 107 3. Press OK to continue listening to a station. Waveband Button Scan Tuning Press the RADIO button to select from the wavebands available. Scan allows you to listen to a few seconds of each station detected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 108 When the search is complete, sound is necessary adjustment during an restored and the strongest signals are incoming traffic announcement stored on the autostore presets. broadcast. The display will show the level selected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 109 Changing the Digital Signal Processing Under certain conditions, however, Settings alternative frequencies tuning may temporarily disrupt normal reception. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 110: Audio Unit - Vehicles With: Digital Audio Broadcast (Dab) Radio/Navigation System/Sync/Sony Am/Fm/Cd
Additionally, there are various icons placed around the display screen which light up when a function is active (for example CD, Radio or Aux.) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 111 Seek up: Press the button to go to the next station up the radio frequency band or the next track on a CD when in CD mode. In phone mode, use the button to end a phone call. An incoming call can be rejected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 112 RADIO: Press the button to select different radio bands, it will also cancel the menu or list browsing. CD: Press the button to change source to CD, it will also cancel the menu or list browsing. Volume: Turn the dial to adjust the volume. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 113 3. Press OK to continue listening to a station. Waveband Button Scan Tuning Press the RADIO button to select from the wavebands available. Scan allows you to listen to a few seconds of each station detected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 114 When the search is complete, sound is necessary adjustment during an restored and the strongest signals are incoming traffic announcement stored on the autostore presets. broadcast. The display will show the level selected. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 115 Changing the Digital Signal Processing Under certain conditions, however, Settings alternative frequencies tuning may temporarily disrupt normal reception. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 116: Digital Audio
3. Select DAB1 or DAB2. alternative frequency switches if they are not. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 117 Note: When linked to a corresponding FM Scan Tuning station, an FM symbol displays below the station name. This feature allows you to listen to the first few seconds of each station while searching through a waveband. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 118: Auxiliary Input Jack
FM station or CD. Do this player to be safely stored while the vehicle by switching back and forth between is in motion. the AUX and FM or CD controls. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 119: Usb Port
CD DRIVE MALFUNCTION General error message for CD fault conditions such as possible mechanism fault. CD DRIVE HIGH TEMP Ambient temperature too hot – unit will not work until it has cooled down. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 120: Climate Control
E159050 General Information on Controlling the Interior Climate Fully close all the windows. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 121: Manual Climate Control
When you select recirculated air, the button illuminates and the air currently in the passenger compartment recirculates. This can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 122: Automatic Climate Control
Make sure that the blower is on. The indicator in the switch will Select to distribute air through illuminate during defrosting and demisting. the windshield and footwell air vents. AUTOMATIC CLIMATE CONTROL E141422 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 123 In position HI, 86°F (30°C), the system switches to permanent heating. Note: If you select either position LO or HI, the system does not regulate a stable temperature. E133115 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 124: Hints On Controlling The Interior Climate
Outside air flows into your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 125 Adjust the temperature control to the Adjust the temperature control to the MAX A/C position. desired setting. Adjust the air distribution control to the instrument panel air vents position. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 126 Press the windshield defrosting and instrument panel and footwell air vents defogging button. positions. Press the A/C button. Adjust the temperature control to the desired setting. Adjust the temperature control to the desired setting. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 127: Heated Windows And Mirrors
Both mirrors are heated to remove ice, mist and fog when the heated rear window is Press the button to clear the window of switched on. thin ice and fog. Heated Rear Window E72507 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 128: Auxiliary Heater
You can switch the heater off using the information display. Note: A cross appears in the box when the heater is on. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 129: Sitting In The Correct Position
• Sit in an upright position with the base of your spine as far back as possible. • Do not recline the seatback more than 30 degrees. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 130 Adjust the seat back to an upright extremely tall, adjust the head restraint to driving or riding position. its highest position. 2. Pivot the head restraint forward toward your head to the desired position. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 131: Manual Seats
Adjusting the Height of the Driver's Seat E70730 Recline Adjustment E130249 WARNING Rock the seat backward and forward after releasing the lever to make sure that it is fully engaged. E138646 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 132: Power Seats
Do not place cargo or any objects behind the seatback before returning it to the original position. 10-Way E138647 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 133: Rear Seats
An overheated seat may cause serious personal injury. E159654 With the seat empty, pull the lever up to fold the seatback forward. Note: Lower the head restraints. See Head Restraints (page 127). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 134: Rear Seat Armrest
Doing so can cause the battery to lose charge. E138653 Adjust the control to the desired heat setting. REAR SEAT ARMREST EQUIPPED) E138656 Fold the armrest down to use the armrest and cupholder. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 135: Auxiliary Power Points
— power point is off, ignition is off • on the rear of the center console or no device is plugged in. • in the luggage compartment. • flashing — power point is in fault mode. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 136 • Measuring devices, which process precise data, such as medical equipment, measuring equipment, etc. • Other appliances requiring an extremely stable power supply: microcomputer-controlled electric blankets, touch sensor lamps, etc. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 137: Storage Compartments
Press near the rear edge of the door to open it. SEAT BACK TRAYS WARNING Do not use the trays when your vehicle is moving. Make sure that you secure the trays in the lowered position before setting off. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 138: Starting And Stopping The Engine
Only use the accelerator pedal Note: The system may not function if the when you have difficulty starting the remote control is close to metal objects or engine. electronic devices such as cell phones. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 139 Move the transmission selector lever Fully depress both the clutch and brake to park. pedals. 2. Fully depress the brake pedal. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 140: Steering Wheel Lock
3. When your vehicle has stopped, move the transmission selector lever to park Vehicles Without Keyless Starting and switch the ignition off. To lock the steering wheel: Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 141: Starting A Gasoline Engine
3. Start the engine. Vehicles with Manual Transmission All Vehicles Note: Do not touch the accelerator pedal. If the engine does not start, repeat the cold or hot engine procedure. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 142: Starting A Diesel Engine
30 minutes. Switch the ignition on and wait until the glow plug indicator goes off. Vehicles With Manual Transmission Note: Do not touch the accelerator pedal. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 143: Switching Off The Engine
• You drive only short distances. switch it off. • You frequently switch the ignition on and off. • Your journeys contain a high level of acceleration and deceleration. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 144: Unique Driving Characteristics
• The driver's safety belt has not been restart the engine. fastened. Note: The start-stop indicator will illuminate green when the engine shuts down. See Warning Lamps and Indicators (page 62). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 145 Note: The transmission selector lever must be in neutral. Depress the clutch pedal. The system may automatically restart the engine under certain conditions, for example: • Low battery voltage. • To maintain the interior climate. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 146: Fuel And Refueling
Consult a physician immediately • Always turn off the vehicle before if you experience an adverse reaction. refueling. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 147: Fuel Quality - Gasoline
This could cause a steep grade, more than 1 gallon (4.6 chemical reaction. liters) may be required. Do not add kerosene, paraffin or gasoline to diesel. This could cause damage to the fuel system. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 148: Catalytic Converter
Do not switch the ignition off when driving. E157452 Locate the plastic funnel inside the foam box in the spare wheel well. 2. Slowly insert the funnel into the capless fuel system. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 149: Refueling
This helps to avoid filling up with the incorrect fuel. 2. Insert the fuel nozzle up to and including the first notch on the fuel nozzle A. Keep it resting on the cover of the fuel pipe opening. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 150: Fuel Consumption
E119081 is filled. 5. Slightly raise the fuel nozzle to remove • Allow no more than two automatic shut-offs when refueling. Results are most accurate when the refueling method is consistent. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 151: Technical Specifications
2.0L Duratorq-TDCi - DW with manual transmission 7.2 (39.2) 5.1 (55.4) 5.9 (47.9) and all-wheel drive 2.0L Duratorq-TDCi - DW 7.4 (38.2) 5.5 (51.4) 6.2 (45.6) with automatic transmission Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 152: Transmission
The transmission selector lever position will be shown in the display. P (Park) WARNINGS Move the transmission selector lever to park only when your vehicle is stationary. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 153 Note: A shift will occur only when your vehicle speed and the engine speed are appropriate. Note: You may temporarily override the current gear selected using the + or - buttons. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 154 Note: Do not rock your vehicle for more than a minute or damage to the transmission and tires may occur, or the engine may overheat. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 155: Hill Start Assist
Note: The system will remain on or off depending on how it was last set. The system makes it easier to pull away when your vehicle is on a slope without the need to use the parking brake. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 156 Transmission Your vehicle comes with this feature already enabled. If required, you can switch this feature off using the information display. See General Information (page 66). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 157: Four-Wheel Drive
Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 158 (i.e. turn the steering wheel only as rapidly and as far as required to avoid the emergency). Excessive steering can result Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 159 Note: Driving through deep water may damage the transmission. If the front or rear axle is submerged in water, the axle E143949 lubricant and power transfer unit lubricant should be checked and changed if necessary. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 160: Brakes
(i.e. lift kits or stabilizer ice. Apply the accelerator slowly and bars) or by using replacement parts not steadily when starting from a full stop. equivalent to the original factory equipment. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 161 We recommend you frequently inspect your vehicle's chassis components when your vehicle is subject to off road usage. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 162: General Information
Note: If you park your vehicle on a hill and facing uphill, move the transmission selector lever to position P and turn the steering wheel away from the curb. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 163 P and turn the steering wheel toward the curb. To release the parking brake: Press the brake pedal firmly. 2. Pull the lever up slightly. 3. Press the release button and push the lever down. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 164: Traction Control
You can switch the system off and on using the information display. See General Information (page 66). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 165: Stability Control
This improves your ability to pull away on slippery roads or loose surfaces, and improves comfort by limiting wheel spin in hairpin bends. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 166: Parking Aids
Do not clean the sensors with sharp objects. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 167 3 mph (5 km/h) and a moving object is approaching the rear of your vehicle at a speed of less than 3 mph (5 km/h). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 168: Active Park Assist
Note: After a tire change the system will go vehicle. through a relearning procedure. During this time the system performance may Note: If you do not make a selection the deteriorate. system will default to the passenger's side. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 169 You can take control of the manoeuvre by holding the steering wheel. If a message appears in the display, press the active park assist switch to resume. See At a Glance (page 9). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 170: Rear View Camera
Switch the ignition and the audio unit on. Press the parking aid switch in the instrument panel or move the transmission selector lever to reverse. The image is displayed on the screen. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 171 Amber - 12 - 24 inches (0.3 to 0.6 meter). • Red - 12 inches (0.3 meter) or less. E142132 Red - up to 12 inches (0.3 meter) Amber - 12 - 24 inches (0.3 - 0.6 meter) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 172: Cruise Control
Press and release OFF or switch the ignition off. E157482 The cruise control switches are located on the steering wheel. Switching Cruise Control On Press and release ON. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 173: Using Adaptive Cruise Control
Note: When you switch the system on, it is possible that you will hear some unusual sounds during automatic braking. This is normal and caused by the automatic braking system. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 174 (C). The detection beam will not follow sharp curves in the road. In these cases the system may brake late or unexpectedly. You should stay alert and intervene if necessary. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 175 E82311 speed. Changing the Set Speed Note: Vehicle speed may be increased and decreased at intervals of 5 mph or 5 km/h depending on your unit of measure setting. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 176 • The radar sensor is covered. neutral or depress the clutch or accelerator • You apply the parking brake. pedal for a long period of time. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 177 See Principle of Operation (page 171). The system is designed to assist you by warning you of the risk of a crash with the vehicle in front of you. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 178: Driving Aids
The system consists of two radar sensors The system displays a yellow warning each located behind the rear wheels, indicator located in the exterior mirrors. It hidden behind the bumpers. will dim when the ambient light decreases. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 179 • Freeway concrete walls. If a sensor becomes blocked the system performance may degrade. A blocked • Construction areas. sensor message may be displayed. • Sharp turns around a building. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 180: Speed Limiter
The set speed will become the effective information display and stored as the set maximum speed of your vehicle, but with speed. the option to temporarily exceed this limit if required. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 181: Driver Alert
Take rest breaks only where it is safe to do so. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 182 The alertness level is shown by six steps as a colored bar. • switching the ignition off and on • stopping your vehicle and then opening and closing the driver's door. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 183: Lane Keeping System
E132099 Switch the system on and off using the Note: Keep the windshield free from button on the direction indicator stalk. obstructions such as bird droppings, insects and snow or ice. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 184 Press the button three times to switch the boundary. Take immediate safe action system on. Press the button again to to reposition your vehicle. switch the system off. • Gray: The relevant lane boundary will be suppressed. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 185: Traffic Sign Recognition
Other bulbs may • Lane markings on the road may not be reduce system performance. detected by the sensor. • You turn the direction indicator for that side of your vehicle on. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 186 Setting the System Speed Warning The system has a number of speed warning levels which can be set using the information display. See General Information (page 66). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 187: Active City Stop
In cold and severe weather Switching the System Off and On conditions the system may not Note: The system is per default on. function. Rain, snow, spray and ice can all influence the sensor. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 188: Eco Mode
See General Information (page 66). Resetting Eco Mode Reset the average fuel consumption by using the information display control. Note: New values may take a short time to calculate Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 189: Load Carrying
Do not allow items to contact the Vehicles with Temporary Mobility Kit rear windows. REAR UNDER FLOOR STORAGE Passenger Compartment Floor E159043 E159047 The under floor storage compartment is located behind the front passenger seat. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 190: Luggage Covers
They may obstruct your vision or strike occupants of your vehicle in a sudden stop or crash. Use the cargo shade to cover items in the E160685 cargo area of your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 191: Roof Racks And Load Carriers
When using the roof rack system, we recommend you use Ford Genuine Accessory crossbars designed specifically for your vehicle. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 192: Towing
In high altitude regions above 3281 feet (1000 meters), the stipulated maximum permitted gross train weight must be reduced by 10% for every additional 3281 feet (1000 meters). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 193 4. Release the handwheel. The tow ball 3. Pull the protecting cap from the key arm is unlocked. bow and press it onto the lock. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 194 4. Release the handwheel. When unlocked in this way, the tow ball arm can be reinserted at any time. Driving without a Trailer WARNING Never unlock the tow ball arm with the trailer attached. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 195: Trailer Sway Control
Remove the cover and install the towing EQUIPPED) eye. Note: This feature does not prevent trailer sway, but reduces it once it begins. Note: This feature cannot stop all trailers from swaying. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 196: Towing The Vehicle On Four Wheels
Do not use a rigid tow bar on the front towing eye. When towing your vehicle you must select neutral. Drive off slowly and smoothly without jerking the vehicle that is being towed. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 197: Driving Hints
Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 198 To install floor mats, position the floor mat so that the eyelet is over the retention post and press down to lock in. To remove the floor mat, reverse the installation procedure. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 199: Roadside Emergencies
Note: Do not disconnect the battery from injury. Ford Motor Company recommends your vehicle’s electrical system. that the fuel system be inspected by an authorized dealer after any collision. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 200 3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal Disconnect the cables in the reverse order. of vehicle A (cable C). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 201: Fuse Box Locations
Engine Compartment Fuse Box E159113 The fuse box is located below the glove box. E152423 WARNINGS Always disconnect the battery before servicing high current fuses. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 202: Fuse Specification Chart
The fuse box is located in the luggage compartment behind the passenger side wheel well. Remove the fuse panel cover to gain access to the fuses. E152425 FUSE SPECIFICATION CHART Engine Compartment Fuse Box E157389 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 203 40A** Heated windshield left-hand side 20A** Auxiliary heater Not used Anti-lock brake system, electronic stability program 15A* Horn Stop light switch 15A* Battery monitor system Relay coils Lighting control Not used Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 204 Electronic power assist steering 20A* Body control module 15A* Rear window wiper 15A* Headlamps Adaptive cruise control (vehicles without start-stop) 10A* Heated washer nozzle 40A** Autowipers Not used 15A* Diesel vaporizer Not used Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 205 Starter relay Micro relay Air conditioning clutch Power relay Cooling fan Mini relay Heater blower Mini relay Engine control relay Power relay Heated rear window Power relay Ignition *Mini fuses **Cartridge fuses Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 206: Passenger Compartment Fuse Box
Fuses Passenger Compartment Fuse Box Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 207 Heating control head (manual air conditioning), duel electronic automatic temperature control 7.5A Steering wheel module Data link connector, battery backup sounder High beam headlamps Fog lamps Reversing lamp Washer pump Ignition switch, start button Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 208 Washer pump Central locking Not used 7.5A Ignition switch Air bag module, occupant classification system, passenger air bag deactivation indicator Not used Not used Not used Luggage Compartment Fuse Box E129927 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 209 (vehicles with start-stop) Audio unit (vehicles with start-stop) Not used Not used Not used Not used Not used Not used Not used Not used AC/DC auxiliary power points Rear auxiliary power points Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 210 Not used Not used Not used Not used Blind spot monitor, front camera sensor, adaptive cruise control, rear view camera with park assist (vehicles with start-stop) Power relay Ignition switch Not used Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 211: Changing A Fuse
If electrical components in your vehicle are not working, a fuse may have blown. A break in the fuse wire will indicate a blown fuse. Check the appropriate fuses before replacing any electrical components. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 212: Maintenance
Exterior lamps. Pull the hood release handle. • Interior lamps. • Warning lamps and indicators. Check When Refueling • Engine oil level. See Engine Oil Check (page 214). • Brake fluid level. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 213 2. Lower the hood and allow it to drop from under its own weight for the last 8 - 11 inches (20 – 30 centimeters). Note: Make sure that you have closed the hood properly. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 214: Under Hood Overview - 1.6L Ecoboost
Air cleaner: No maintenance necessary. Windshield and rear window washer fluid reservoir: See Washer Fluid Check (page 215). The filler caps and the engine oil dipstick are colored for easy identification. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 215: Under Hood Overview - 2.0L Duratorq-Tdci (Dw) Diesel
: See Engine Oil Check (page 214). Windshield and rear window washer fluid reservoir: See Washer Fluid Check (page 215). The filler caps and the engine oil dipstick are colored for easy identification. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 216: Engine Oil Dipstick - 1.6L Ecoboost (132Kw/180Ps) - Sigma
Make sure that your vehicle is on level ground. Note: Soak up any spillage with an absorbent cloth immediately. 2. Switch off the engine and wait 10 minutes for the oil to drain into the oil pan. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 217: Engine Coolant Check
Note: Do not add coolant further than the keycode. MAX mark. The battery is located in the engine Remove the filler cap. Any pressure will compartment. See Maintenance (page escape slowly as you unscrew the cap. 210). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 218: Checking The Wiper Blades
Poor wiper quality can be improved by cleaning the wiper blades and the windshield. E129990 2. Press the locking buttons together. 3. Rotate and remove the wiper blade. 4. Install in the reverse order. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 219: Removing A Headlamp
Note: Only fit bulbs of the correct Note: Do not touch the glass of the bulb. specification. Note: The following instructions describe how to remove the bulbs. Fit replacements in the reverse order unless otherwise stated. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 220 Note: Do not touch the glass of the bulb. position Direction Indicator, Front Fog Lamp and Position Lamp Note: The position and direction indicator bulbs are not serviceable items, see an authorized dealer if they fail. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 221 E72291 2. Remove the bulb holder. 3. Remove the bulb. Approach Lamp Note: Position the mirror glass as far inward as possible. E159629 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 222 Follow the same procedure as type 1 to remove the direction indicator bulb. Note: The tail and brake lamp bulbs are not serviceable items, see an authorized dealer if they fail. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 223 2. Turn the bulb counterclockwise and pull it straight out to remove it. Central High Mounted Brake Lamp These are not serviceable items, see an authorized dealer if they fail. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 224 Footwell Lamp and Liftgate Lamp E99452 Carefully remove the lamp. 2. Turn the bulb holder counterclockwise and remove it. E72784 3. Remove the bulb. Carefully prize out the lamp. 2. Remove the bulb. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 225: Bulb Specification Chart
License plate lamp * High-mount brake lamp * Interior lamps * To replace these lamps - see an authorized dealer. To replace all instrument panel lamps - see an authorized dealer Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 226: Technical Specifications
ISO 4925 Class 6 Brake Fluid The engine has been designed to be used with Castrol and Ford Engine Oil, which gives a fuel economy benefit while maintaining the durability of the engine. Adding oil: If you are unable to find an oil that meets the specification defined by WSS-M2C913-C or WSS-M2C948-B (gasoline engines only), you must use SAE 5W-30 that meets the specification defined by ACEA A5/B5.
Page 227 2.0L Duratorq-TDCi (DW) Diesel Engine lubrication 1.4 (5.4) system - excluding the oil filter Engine Oil Adding Capacities Engine Capacity in gallons (litres) 1.6L EcoBoost 0.1 (0.5) 2.0L Duratorq-TDCi (DW) Diesel 0.4 (1.8) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 228: Vehicle Care
Remove any exterior accessories, including paint chips. the antenna, before using an automatic car wash. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 229: Cleaning The Interior
Note: Do not install stickers or labels to the and follow the manufacturer’s instructions. interior of the rear windows. Using other non-recommended cleaning products can result in severe and permanent cosmetic damage. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 230: Wheels And Tires
Loss of tire pressure can affect vehicle WARNINGS handling, leading to loss of vehicle control. Compressed air can act as an explosive or propellant which could cause serious personal injury. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 231 WARNINGS Check the sidewall of the tire prior to inflation. If there are any cracks, bumps or similar damage, do not attempt to inflate the tire. This could cause personal injury. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 232 Note: After you have switched the compressor off, you may hear air escaping from the damaged tire. This is normal and can be ignored provided that the specified minimum tire pressure has been reached. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 233 Empty sealant bottles can be disposed of replaced. together with normal household waste. Return remains of sealant to an authorized dealer or dispose of it in compliance with local waste disposal regulations. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 234: Tire Care
If winter tires are used, you must make sure in the normal manner. that you use the correct tire pressures. See Technical Specifications (page 239). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 235 WARNINGS suspension, engine, braking system or the The vehicle jack supplied with your fuel lines. vehicle should only be used when changing a wheel in emergency situations. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 236 Wheels and Tires E92658 Emergency use only Maintenance E93184 Indentations in the sills show the location of the jacking points. E142553 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 237 Make sure that the towing eye is fully tightened. E122502 Insert the screw-in towing eye into the wheel brace. E122314 Insert the wheel trim remover. 2. Remove the wheel trim. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 238 Using other sizes could Install the locking lug nut key. damage your vehicle and will make the National Type Approval invalid. See Technical Specifications (page 239). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 239 Stowing the Flat Tire Install the wheel. Unblock the wheels. 2. Install the lug nuts finger tight. 2. Place the flat tire on the luggage 3. Install the locking lug nut key. compartment floor. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 240 5. Locate the front cargo tie-down at the 4. Weave the retainer strap through the opposite corner of the luggage wheel openings. compartment. Thread the retainer strap through the tie-down and pull it tight. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 241: Technical Specifications
(bar) Temporary spare wheel when it 60 psi 60 psi 60 psi 60 psi 155/70 R17 differs from the (4.2 bar) (4.2 bar) (4.2 bar) (4.2 bar) other fitted wheels Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 242 All engines 235/50 R18 (2.3 bar) (2.3 bar) (2.5 bar) (2.8 bar) 33 psi 33 psi 36 psi 41 psi All engines 235/45 R19 (2.3 bar) (2.3 bar) (2.5 bar) (2.8 bar) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 243: Capacities And Specifications
Maximum front axle weight Maximum rear axle weight Your vehicle identification number and maximum weights are shown on a plate, located at the bottom of the lock side of the right-hand door aperture. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 244: Vehicle Identification Number
Overall height - EC curb weight 66 - 67 (1680 - 1702) Wheelbase 106 (2690) Front track 61 - 62 (1554 - 1574) Rear track 61 - 62 (1554 - 1574) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 245 Capacities and Specifications Towing Equipment Dimensions E152457 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 246 41 (1035) Center of tow ball – center 1. attachment 18 (449) point Center of tow ball – center 2. attachment 29 (749) point Maximum Permissable Nose Weight lb (kg) 220 (100) Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 247: Sync
For more information visit the • access phonebook contacts and music regional Ford website. using voice commands • stream music from your connected cell phone • select pre-defined text messages Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 248: Using Voice Recognition
If you connect a media player, the spoken commands. system creates and retains an index of Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 249 When You Say The System Provides less audible interaction and more "Interaction Mode Advanced" tone prompts. Provides more detailed interaction and "Interaction Mode Standard" guidance. The system defaults to the standard interaction mode. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 250 "Phone Candidate Lists On" suggestions. 2. Select SYNC-Settings. Changing the Voice Settings 3. Select Voice Settings. You can change the voice settings using the information and entertainment display. Press the MENU button. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 251: Using Sync™ With Your Phone
2. Press the PHONE button. When the successful. audio display indicates that no phones are paired, select the option to add. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 252 When you ask the system to access a phonebook name, number, etc., the requested information appears in the audio display. Press the voice button and say "call" to call the contact. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 253 "(Phone) settings (set) ringer 3" "(Phone) settings (set) ringer off" "Phone name" "Text message inbox" Words in parenthesis are optional and do not have to be spoken for the system to understand the command. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 254 1. Select the option for more. 2. Access the desired contact through the system or use voice commands to place the second call. Once actively in the second call, select the option for more. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 255 2. Scroll through your phonebook contacts. 3. Press the OK button again when the desired selection appears in the audio display. 4. Press the OK button or dial button to call the selection. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 256 Note: Only one recipient is allowed per text message. When a new message arrives, an audible tone sounds and the audio display indicates you have a new message. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 257 Press the PHONE button. 2. Scroll until the phone settings option appears, then press the OK button. 3. Scroll to select from the following options: Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 258 Downloading times are cell phone dependent and quantity dependent. When automatic download is switched on, any changes, additions or deletions saved in the system since your last download are deleted. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 259 Master Set a previously paired cell phone as your primary cell phone. Select the master option to confirm the primary cell phone. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 260 The display indicates when complete and the system takes you back to the SYNC- Settings menu. Install on SYNC Install applications or software updates you have down- loaded. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 261: Sync™ Applications And Services
Always place your cell phone in a secure location inside your vehicle. Failure to do so may cause serious injury to someone or damage the cell phone which could prevent this feature from working correctly. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 262 The set a voice reminder. system will then attempt to dial 112. Off with voice reminder provides a display and voice reminder when your cell phone connects and your vehicle starts. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 263 Albania, Belarus, Bosnia and be prepared to provide your name, Herzegovina, Macedonia, Netherlands, phone number and location Ukraine, Moldova and Russia. information immediately. Visit the regional Ford website for latest details. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 264: Using Sync™ With Your Media Player
Plug the device into your vehicle's USB port. Press the voice button and when prompted say "USB", and then 2. Press the voice button and when E142599 any of the following: prompted, say "USB". Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 265 <name> is a dynamic listing, meaning that it could be the name of any desired group, artist, song, etc. Voice commands which are not available until indexing is complete. Voice commands which are only available in folder mode. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 266 The media menu allows you to select how 2. Scroll to cycle through: to play your music (by artist, genre, shuffle, repeat, etc.) and to find similar music or reset the index of your USB devices. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 267 Press OK to select. The first track title appears in the display. Playlists Access your playlists (from formats such as .ASX, .M3U, .WPL or .MTP). 1. Press OK to select. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 268: Sync™ Troubleshooting
You can access these menus using the should questions arise, please refer to the audio display. See Using SYNC™ With tables below. Your Phone (page 249). To check your cell phone's compatibility, visit the regional Ford website. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 269 SYNC from your device, then trying again. Always check the security and auto accept prompt settings relative to the SYNC Bluetooth connection on your cell phone. Update your cell phone's firmware. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 270 Make sure you are using the manufacturer's device. cable. Make sure the USB cable is correctly inserted into the device and your vehicle's USB port. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 271 Bluetooth Audio, select SYNC. Bluetooth Audio To listen to the iPhone or iPod Touch at the same through USB, select Dock Connector. time, I some- times do not hear any sound. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 272 ICE as the system does not recognize Your phonebook them. contacts may be saved If the contacts are saved in capital letters, in capital letters. you have to spell them. JAKE requires you to say "Call J-A-K-E". Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 273 SYNC uses a synthetically-generated voice are electronic- speech voice prompt rather than pre-recorded human voice. ally generated technology. and the pronun- ciation of some words may not be accurate for my language. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 274 (phone, USB, example, “call John Smith”) or selecting a Bluetooth track, artist, album, genre or playlist directly audio, voice from your media player (for example, play control and artist Madonna). voice prompts). Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 275: Appendices
Maximum output power Watt (Peak Antenna Positions RMS) 1 – 30 50 W 3, 4 30 – 54 50 W 1, 2, 3 68 – 87.5 50 W 1, 2, 3 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 276: End User License Agreement
Ford Motor Company and its affiliates ("FORD MOTOR COMPANY") from an affiliate of Microsoft Corporation ("MS") . Those installed software products of MS origin, as well as associated media, printed materials, Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 277 FORD MOTOR COMPANY or its third documentation and in the software). party software and service providers. Even if you receive multiple EULAs, you are licensed to use only one (1) copy of the SOFTWARE. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 278 SOFTWARE may permit FORD MOTOR the upgrade. COMPANY, third party software and service suppliers, MS, Microsoft Corporation, their affiliates and/or their designated agent to provide or make available to you SOFTWARE updates, Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 279 Only" you may install one (1) copy of such SOFTWARE onto the DEVICE as a replacement copy for the existing SOFTWARE, and use it in accordance with this EULA, including any additional EULA terms accompanying the upgrade SOFTWARE. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 280 THAN THOSE THAT MAY EXPRESSLY the U.S. Export Administration Regulations, BE PROVIDED FOR YOUR NEW as well as end-user, end-use and VEHICLE. destination restrictions issued by U.S. and other governments. For additional information, see http://www.microsoft.com/exporting/. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 281 Volume Setting: Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while driving. Driving while unable to hear these sounds could cause an accident. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 282 (b) use your own personal judgment while directions. driving. If you feel that a route suggested by the TeleNav Software instructs you to perform an unsafe or illegal maneuver, Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 283 TeleNav Software license), without the right to sublicense, to use the TeleNav Software (in object code form only) in order to access and use the TeleNav Software. This license shall terminate upon Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 284 Agreement or the TeleNav Software shall be settled by independent arbitration involving a neutral arbitrator and administered by the American Arbitration Association in the County of Santa Clara, California. The arbitrator shall apply the Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 285 Agreement. shall a waiver of any breach or default of this Agreement constitute a waiver of any subsequent breach or default or a waiver of the provision itself. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 286 Data. If you wish to reject the terms of this agreement, and have not Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 287 CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THIS DATA; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 288 CONTRACTOR existing between us with respect to such (MANUFACTURER/SUPPLIER) subject matter. ADDRESS: 425 West Randolph Street, Chicago, IL 60606. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 289 Emeryville, California 94608 respectively, reserve all rights in Gracenote ("Gracenote"). Data, the Gracenote Software, and the Gracenote Servers and Gracenote Content, including all ownership rights. Under no circumstances will either Gracenote Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 290 OBLIGATED TO PROVIDE YOU WITH ANY ENHANCED OR ADDITIONAL DATA TYPES THAT GRACENOTE MAY CHOOSE TO PROVIDE IN THE FUTURE AND IS FREE TO DISCONTINUE ITS ONLINE SERVICES AT ANY TIME. GRACENOTE DISCLAIM ALL Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 291 Industry Canada technical specifications were met. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 292 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 293 Alarm System............38 Arming the Alarm..........39 Disarming the Alarm..........40 Full and Reduced Guard........39 Triggering the Alarm..........39 Appendices.............273 At a Glance............9 Front Exterior Overview........9 Instrument Panel Overview........11 Rear Exterior Overview........14 Vehicle Interior Overview........10 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 294 Station Preset Buttons........106 Station Tuning Control........105 Driving with a Catalytic Converter....146 Traffic Information Control......106 Waveband Button..........105 Autolamps............48 Automatic Climate Control......120 Mono Mode............122 Switching Mono Mode Back On....122 Switching Mono Mode Off.......122 Temperature Control..........121 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 295 (EULA)...............274 Climate Control..........118 Engine Coolant Check.........215 Principle of Operation........118 Adding Engine Coolant........215 Clock..............71 Engine Immobilizer Type 1................71 See: Passive Anti-Theft System.....38 Engine Oil Check...........214 Type 2.................71 Cold Weather Precautions......195 Adding Oil..............214 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 296 Long-Term Storage..........145 Switching the System On and Off....153 Fuel Shutoff............197 Using Hill Start Assist........153 Fuse Box Locations........199 Engine Compartment Fuse Box....199 Luggage Compartment Fuse Box....200 Passenger Compartment Fuse Box....199 Pre-Fuse Box............199 Fuses..............199 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 297 Child Seats for Different Mass Groups..18 ISOFIX Anchor Points.........20 Top Tether Anchor Points.........20 Instrument Cluster..........61 Instrument Lighting Dimmer.....48 Interior Lamps..........53 Front Interior Lamp ..........53 Rear Interior Lamp..........53 Interior Mirror............57 Auto-Dimming Mirror..........57 Introduction............5 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 298 See: Windows and Mirrors........55 Load Carriers Mobile Communications Equipment..8 See: Roof Racks and Load Carriers.....189 Moonroof............58 Load Carrying..........187 Bounce-Back............58 General Information..........187 Opening and Closing the Moonroof....58 Opening and Closing the Sunscreen....58 Venting the Moonroof........59 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 299 Power Windows..........55 Roof Racks and Load Carriers....189 Accessory Delay...........56 Running-In Bounce-Back............55 See: Breaking-In..........195 One-Touch Down..........55 Running Out of Fuel........145 One-Touch Up............55 Refilling with a Portable Fuel Window Lock............55 Container............146 Rear Fog Lamps..........51 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 300 Towing Points..........193 Vehicles Without Keyless Starting....138 Towing the Vehicle on Four Steering Wheel..........41 Wheels............194 Storage Compartments......135 All Vehicles............194 Sunroof Vehicles With Automatic See: Moonroof............58 Transmission...........194 Sun Visors............57 Towing..............190 Illuminated Vanity Mirror........58 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 301 Switching Cruise Control On......170 Using Four-Wheel Drive......155 See: Air Vents............118 Driving in Special Conditions With Four-Wheel Drive...........155 See: Vehicle Identification Number....242 Using Snow Chains........232 Voice Control...........43 Vehicles with Stability Control......232 Using Stability Control.......163 ...................163 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 302 See: Changing a Road Wheel......232 Wheels and Tires.........228 General Information.........228 Technical Specifications.........239 Windows and Mirrors........55 Windshield Washers........45 Windshield Wipers........44 Intermittent Wipe..........44 Speed dependent wipers (if equipped)............44 Winter Tires See: Using Winter Tires........232 Wipers and Washers........44 Kuga (CBSCBS) Vehicles Built From: 15-10-2012Vehicles Built From: 15-10-2012...
Page 304 CG3585en...

Ford KUGA Owner's Manual

Introduction

At a Glance

Child Safety

Safety Belts

Supplementary Restraints System

Keys and Remote Controls

Locks

Security

Steering Wheel

Wipers and Washers

Lighting

Windows and Mirrors

Instrument Cluster

Information Displays

Audio System

Climate Control

Seats

Auxiliary Power Points

Storage Compartments

Starting and Stopping the Engine

Unique Driving Characteristics

Fuel and Refueling

Transmission

Four-Wheel Drive

Brakes

Traction Control

Stability Control

Parking Aids

Cruise Control

Driving Aids

Load Carrying

Towing

Driving Hints

Roadside Emergencies

Fuses

Maintenance

Vehicle Care

Wheels and Tires

Capacities and Specifications

Sync

Appendices

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ford KUGA

Summary of Contents for Ford KUGA
