Hardware Installation (Wall Mount) - Nexcom NCo-301-VHR User Manual

Chapter 1: Product Introduction
Hardware Installation

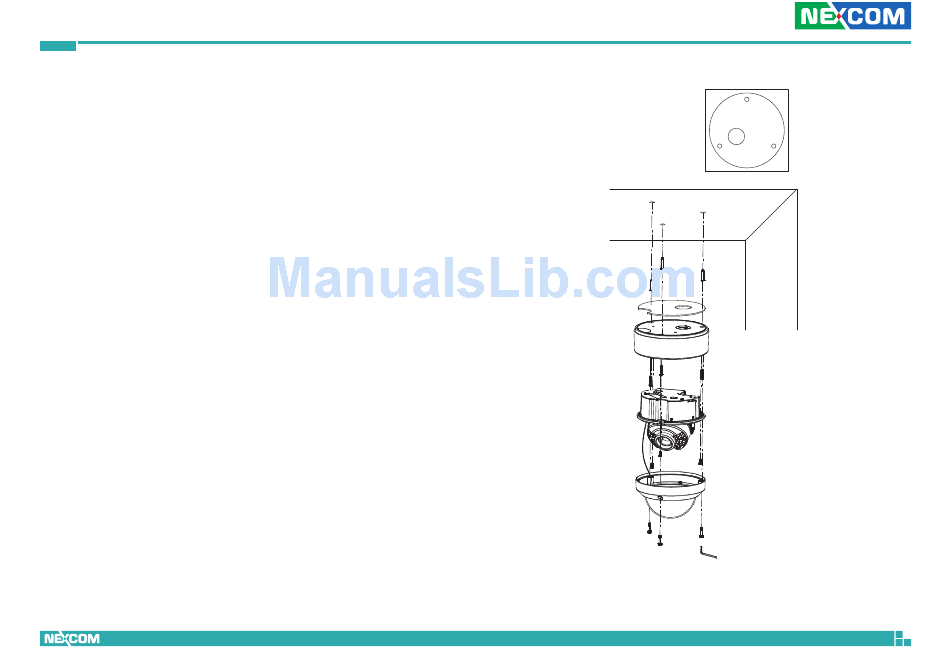

1. Position the placement sticker at the desired installation location.
2. Drill the three mounting holes in the placement sticker, and insert the
included screw anchors.
3. Secure the camera's base plate to the mounting holes.
4. Separate the top cover, then secure the camera to the base plate with
screws (align the arrow marked inside the camera to the direction of the
cable opening on the base plate).
5. Adjust the lens to the appropriate position then replace the top cover and
secure it tightly using the supplied tool.
