TrOublEShOOTiNg
CaN'T hEar a PErSON SPEakiNg?
Increase headset volume using the headset volume button on the side of the belt pack. Push the + symbol button until
you reach desired volume. In extremely loud environments, you will need to use the dual ear muff headset with noise
cancelling properties. If you still can't hear, you may be out of range and need to move closer to the user network.
miCrOPhONE NOT PiCkiNg uP yOur vOiCE?
First, adjust the microphone sensitivity setting on the side of the belt pack by pushing the + button incrementally until
you reach desired sensitivity level. Move the microphone closer to your mouth and speak up clearly. For example, people
with softer voices should set their belt packs to a more sensitive microphone level.
baCkgrOuNd NOiSE TraNSmiTTiNg aCrOSS SySTEm?
Reduce the microphone sensitivity setting by pushing the – symbol button until you reach the desired level.
TraNSmiSSiON iS WEak?
Your rechargeable batteries may be running low. If batteries are weak, the Group LED's will slowly flash. Your belt pack
needs to be recharged. If you need to keep working, you can use disposable alkaline batteries.
PrOPEr iNTErCOm ETiquETTE
Anchorman is designed to allow 4 people to speak at once in close quarters and one person to speak at a time when the
belt packs are far apart.. Use proper intercom etiquette – wait to break into the conversation network until the other belt
pack users have stopped speaking. If a large number of users are in the network, we suggest PTT to allow members to
jump in and out of conversation.
aNChOr audiO CuSTOmEr SErviCE
888/444-6077 • 310/784-2300
TEChNiCal SPECiFiCaTiONS
Range (line of sight)
Duplex
250' / 75 m
Simplex
2,500' / 750 m
Selectable Groups
4
Frequency
945 – 951 MHz
Frequency Settings
4 per Group
Output Power
17 dBm (50mW)
Microphone
Dynamic
DC Requirements
9V – 1.2A
Batteries
4 "AA" NiMH rechargeable
Battery Charge Time
5.5 hours = Full Charge
Battery Life – NiMH Rechargeable
Receive Only
7.5 hours
Continuous Transmit
3.5 hours
Battery Life – Alkaline Disposable
Receive Only
3.0 hours
Continuous Transmit
1.0 hours
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
Headset Connector
4-pin male XLR
Antenna
1/2 wavelength dipole
Dimensions & Weight
BP-900
4 x 4.65 x 1.75" / 101.6 x 118.1 x
44.5 mm
13 oz / .37 kg (batteries installed)
H-2000S
3.5 x 7.4 x 7.9" /
8.9 x 18.8 x 20 cm
13 oz / .37 kg
H-2000
3.5 x 7.4 x 7.9" /
8.9 x 18.8 x 2O cm
16 oz / .45 kg
Antenna
7.18" / 182.372 mm
Antenna Extension
3.5" / 89 mm
(Product descriptions & specifications subject
to change without notice.)
For videos on how to setup & use the anchormaN:

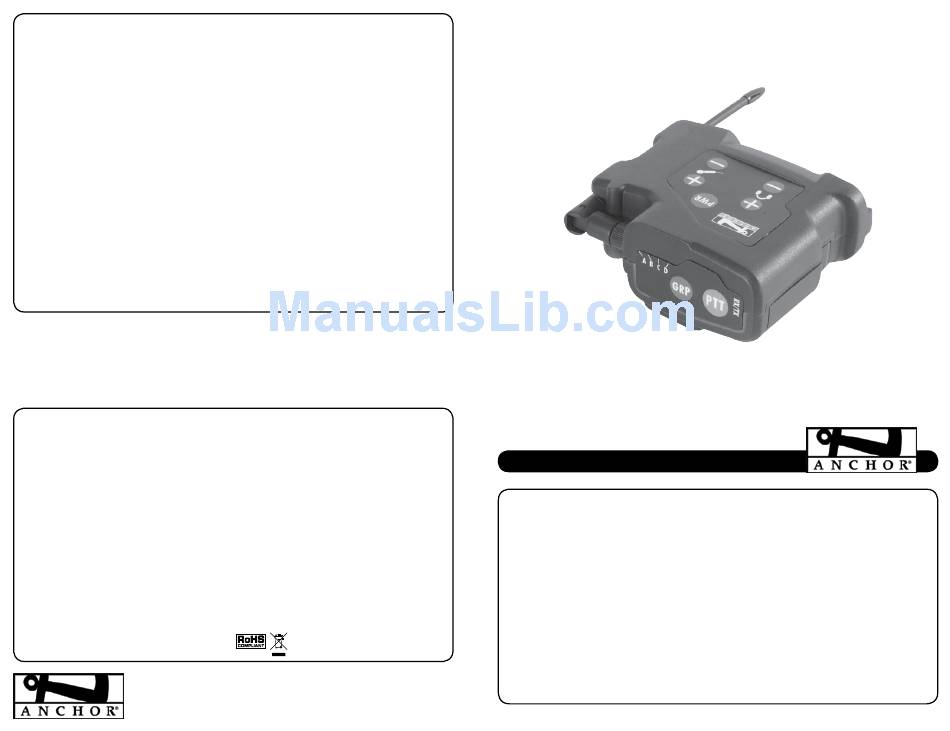

AnchorMAN
WirElESS iNTErCOm SySTEm -
OWNER'S MANUAL
GETTING STARTED .......................................................................................................................................................... 2
BP-900 BELT PACK .......................................................................................................................................................... 3
BASIC OPERATION / SYSTEM RANGE / DIP SWITCH FEATURES .......................................................................................... 4
WHAT IS ANCHORMAN? .................................................................................................................................................. 5
RECHARGEABLE BATTERIES ............................................................................................................................................. 6
FREQUENTLY ASKED QUESTIONS ..................................................................................................................................... 6
HEADSET OPERATION / MICROPHONE SENSITIVITY .......................................................................................................... 7
USER ID SETTINGS .......................................................................................................................................................... 7
TROUBLESHOOTING ........................................................................................................................................................ 8
TECHNICAL SPECIFICATIONS ............................................................................................................................................ 8
100-0182-000/A - 04/09
www.anchoraudio.com
®
PaTENT PENdiNg
CONTENTS
Advertisement
Related Manuals for Anchor AnchorMAN
Summary of Contents for Anchor AnchorMAN
-
Page 1: Troubleshooting
PrOPEr iNTErCOm ETiquETTE Anchorman is designed to allow 4 people to speak at once in close quarters and one person to speak at a time when the belt packs are far apart.. Use proper intercom etiquette – wait to break into the conversation network until the other belt pack users have stopped speaking. -
Page 2: Headset Operation
SETTiNgS Each AnchorMAN belt pack is preset at the factory with an individual USER ID (1 – 4) . If more than four users are required in a single group, use DIP switches 1 & 2 to assign belt packs to a USER ID. In groups of five or more, users will be required to share USER ID’s. -
Page 3: Frequently Asked Questions
PuSh TO Talk buTTON of any group by simply pressing the Group Selector But- Some users are required (for emergency preparedness, etc.) to leave their AnchorMAN units plugged into the charger at all times. ton to the desired group. For these applications we recommend replacing the rechargeable batteries every 12 months. - Page 4 PaCk range will reduce as the path between belt packs becomes more obstruct- hEadSET vOlumE CONTrOl ed. As belt packs get farther apart AnchorMAN automatically reverts to sim- model Shown: bP-900 Page 5 plex mode for a maximum range of 2,500’/750m. This means you will oper- ate in Push to Talk mode and speak one person at a time.
